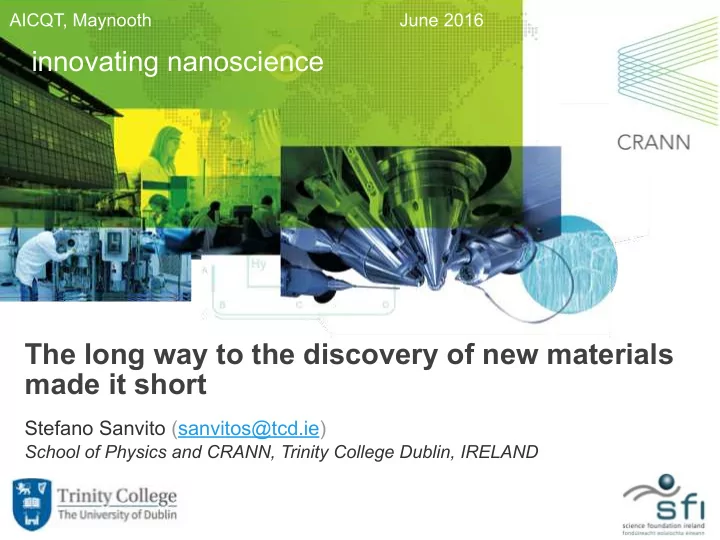

AICQT, Maynooth June 2016 innovating nanoscience The long way to the discovery of new materials made it short Stefano Sanvito (sanvitos@tcd.ie) School of Physics and CRANN, Trinity College Dublin, IRELAND Theory activity Theory activity

slide-1
SLIDE 1

innovating nanoscience

The long way to the discovery of new materials made it short

Stefano Sanvito (sanvitos@tcd.ie)

School of Physics and CRANN, Trinity College Dublin, IRELAND AICQT, Maynooth June 2016

slide-2
SLIDE 2

Theory activity

slide-3
SLIDE 3

Theory activity

Spin electronics Materials Organics

Spin-dynamics Spin-transport Transport and STM Diffusive Transport DNA sequencing 2D/topological Organic spintronics Magnetic Genoma Spin excitation/torque

slide-4
SLIDE 4

Quantum playground 1 H on Si (100)

  • B. Naydenov, M. Mantega, I. Rungger, SS and J.J. Boland, Phys. Rev. B 84, 195321 (2011)
slide-5
SLIDE 5

H on Si (100)

J.E. Northrup, Phys. Rev. B 47, 10032 (1993)

GW Band

slide-6
SLIDE 6

H on Si (100): single centre

H H

20 nm 3 nm 2 nm

STM dI/dV

slide-7
SLIDE 7

H on Si (100): single centre Scattering analysis

slide-8
SLIDE 8

H on Si (100): heterostructures Theory Experiment

slide-9
SLIDE 9

PRB 84, 195321 (2011)

  • Nano Lett. 15, 2881

(2015)

H on Si (100): heterostructures

slide-10
SLIDE 10

Quantum playground 2 Topological surfaces

Awadhesh Narayan, Ivan Rungger and SS, PRB 86, 201402(R) (2012); PRB 90, 205431 (2014)

slide-11
SLIDE 11

PRB 86, 201402(R) (2012)

Scattering at topological surfaces

Sb (111)

Simulated ARPES

Nature 466, 343 (2012)

slide-12
SLIDE 12

Scattering at topological surfaces

Sb (111): scattering at step edge

Transport along GM

slide-13
SLIDE 13

Scattering at topological surfaces

Sb (111): scattering at step edge

slide-14
SLIDE 14

Scattering at topological surfaces

Sb (111): scattering at step edge

slide-15
SLIDE 15

Can we find new quantum playgrounds ?

slide-16
SLIDE 16

The question

Suppose you have a new application …. what is its ideal material(s) ?

Fe, Co, Ni, Nd2Fe14B, LaMnO3, Fe3O4 ….

~2,000

Take the example of magnetism ….

slide-17
SLIDE 17

Magnetism is rare

The discover a new useful magnet is a rare event

Fe3O4

slide-18
SLIDE 18

Magnetism is complicated

SrMO3

SrCrO3

TN=-230C

SrMoO3 SrMnO3

TN=-10C

SrRuO3

TC=-100C

SrFeO3

TN=-140C

SrTcO3

TN=500C

  • C. Franchini, T. Archer, J. He, X.-Q. Chen, A. Filippetti and S. Sanvito, Phys. Rev. B 83, 220402(R) (2011)
slide-19
SLIDE 19

The magnetic genome project

with Stefano Curtarolo, Duke

slide-20
SLIDE 20

The magnetic genome project

Virtual Materials Growth 1) Simulating existing materials 2) Simulating new materials Rational materials storage Creating searchable database where to store information Materials selection Search the database for 1) new materials, 2) physical insights Robust electronic structure method: density functional theory (VASP) Database Creation (AFLOW) Finding descriptors

slide-21
SLIDE 21

The magnetic genome project

Virtual Materials Growth 1) Simulating existing materials 2) Simulating new materials Rational materials storage Creating searchable database where to store information Materials selection Search the database for 1) new materials, 2) physical insights Robust electronic structure method: density functional theory (VASP) Database Creation (AFLOW) Finding descriptors

Virtual Materials Growth 1) Simulating existing materials 2) Simulating new materials Rational materials storage Creating searchable database where to store information

slide-22
SLIDE 22

The AFLOW consortium

  • S. Curtarolo, W. Setyawan, S. Wang, J. Xue, K. Yang, R.H. Taylor, L.J. Nelson, G.L.W. Hart, S. Sanvito, M.

Buongiorno-Nardelli, N. Mingo, O. Levy, Comp. Mat. Sci. 58, 227 (2012)

www.aflowlib.org

slide-23
SLIDE 23

The magnetic genome project

ICSD: Inorganic Crystal Structure Database

  • 1,616 crystal structures of the elements
  • 28,354 records for binary compounds
  • 55,436 records for ternary compounds
  • 54,144 records for quarternary and quintenary
  • About 113,000 entries (75.6%) have been assigned a

structure type.

  • There are currently 6,336 structure prototypes.
  • Lots of redundancy

Virtual Materials Growth (existing materials)

Only ~150,000 are known to us

slide-24
SLIDE 24

The magnetic genome project Duke calculated single elements, binary, ternary and some quaternary (about 50,000) Calculations:

  • AFLOW manages the run (large code)
  • DFT done with VASP (pseudo-potential, plane-wave)
  • Calculations at the DFT GGA-PBE level
  • Relaxation performed à new space group worked out
  • Basic electronic structures collected (including: spin-

polarization, effective mass, magnetic moment, etc.) Virtual Materials Growth (existing materials)

  • S. Curtarolo, W. Setyawan, G. L. W. Hart, M. Jahnatek, R. V. Chepulskii, R. H. Taylor, S. Wang, J. Xue, K.

Yang, O. Levy, M. Mehl, H. T. Stokes, D. O. Demchenko, and D. Morgan, Comp. Mat. Sci. 58, 218 (2012)

slide-25
SLIDE 25

Heusler alloys

~250 known … ~1000 claimed … ~90 magnetic …

slide-26
SLIDE 26

Heusler alloys

~236,000 calculated !!

slide-27
SLIDE 27

The magnetic genome project Rational materials storage

  • S. Curtarolo, W. Setyawan, S. Wang, J. Xue, K. Yang, R.H. Taylor, L.J. Nelson, G.L.W. Hart, S. Sanvito, M.

Buongiorno-Nardelli, N. Mingo, O. Levy, Comp. Mat. Sci. 58, 227 (2012)

www.aflowlib.org

slide-28
SLIDE 28

… and one theory for find them all

  • Comp. Mat. Sci. 49, 299-312 (2010)
slide-29
SLIDE 29

The magnetic genome project

Virtual Materials Growth 1) Simulating existing materials 2) Simulating new materials Rational materials storage Creating searchable database where to store information Materials selection Search the database for 1) new materials, 2) physical insights Robust electronic structure method: density functional theory (VASP) Database Creation (AFLOW) Finding descriptors

Materials selection Search the database for 1) new materials, 2) physical insights

slide-30
SLIDE 30

A look at the full database

Descriptor 0: Enthalpy of formation Energy (Ni2MnAl) < Energy (2Ni + Mn +Al) Property: Can be made ?

Total 235,253 Possible 35,602 Unique 105,212 6,778 Possible Magnetic

slide-31
SLIDE 31

Stability analysis Descriptor 1: Enthalpy of formation Al Ni Mn

2 Ni + Mn + Al Ni2MnAl

Ni2MnAl

2 Ni + MnAl

MnAl MnNi3 NiAl

1/2 (MnNi3 + NiAl + MnAl)

Ni2MnAl

slide-32
SLIDE 32

Stability analysis This is very much on-going

(e)$

Ni - Mn - Al

slide-33
SLIDE 33

TM3 Look at the transition metal intermetallics

36,540

slide-34
SLIDE 34

In summary …

36,540 possible à 248 stable 22 magnetic à 8 Robust 236,000 possible à 1550 stable 138 magnetic à 50 Robust

Extrapolating

slide-35
SLIDE 35

Entropic temperature Descriptor 2: Entropic temperature

slide-36
SLIDE 36

Entropic temperature Descriptor 2: Entropic temperature N=8776 N=248

TS TS

Weibull distribution

slide-37
SLIDE 37

Critical temperature magnetism Descriptor 3: Critical temperature Known Heusler ferromagnets Co2XY Mn2XY Ni2MnY Rh2MnY Cu2MnY Pd2MnY Au2MnY Fe2MnY Generalized regression model based on valence, volume, spin decomposition Prediction of TC

Material V (Å) µ ΔE (eV) T ….. T Co 47.85 2.0

  • 0.30

3007 352 Mn 48.93 2.0

  • 0.32

3524 760 … … … … … … Mn 54.28 9.03

  • 0.17

1918 ?

slide-38
SLIDE 38

Analysis Co2XY Mn2XY X2MnY

slide-39
SLIDE 39

25 26 27 28 29 30

NV

1 2 3 4 5 6

m (µB)

25 26 27 28 29 30

NV

200 400 600 800 1000 1200

TC (K)

Co2MnTi Co2FeSi Co2AB 1 Co2CrGa Co2MnAl/Co2MnGa Co2NbAl Co2VSn Co2NbSn Co2VZn Co2NbZn Co2TaZn Co2VGa/Co2TiGe Co2VAl Co2AB 2 Co2TiGa Co2TiAl Co2FeSi Co2MnTi Co2MnTi Co2FeGa Co2FeAl Co2MnSi Co2MnGe Co2MnSn Co2MnAl/Co2MnGa Co2CrGa Co2NbAl Co2NbSn Co2CrAl Co2VSn Co2VGa/Co2TiGe Co2VAl Co2TaAl Co2AB 3 Co2VZn Co2NbZn Co2TaZn Co2TaZn Co2TiAl Co2TiGa Co2CrAl

Co2YZ Slater- Pauling

mX2YZ=NV-24 Co2YZ

slide-40
SLIDE 40

Co2YZ Slater-Pauling

slide-41
SLIDE 41

X2MnZ

X2MnZ

4.2 4.3 4.4 4.5

dMn-Mn (A)

200 400 600

TC(K)

NV = 27 = 28 = 29 = 27 = 28 = 29 = 30 = 31 = 32 = 33

4.2 4.3 4.4 4.5

dMn-Mn (A)

1 2 3 4 5

m (µB)

Ru2MnV Pd2MnCu Rh2MnTi Pd2MnZn Pt2MnZn Ru2MnNb Ru2MnTa Rh2MnSc Pd2MnAu Rh2MnHf Rh2MnZr Rh2MnZn

Castelliz- Kanomata curve

slide-42
SLIDE 42

X2MnZ

X2MnZ

  • K. Shirakawa et al., J. Magn. Magn. Mater. 70, 421 (1987)
slide-43
SLIDE 43

Mn2YZ

Mn2YZ

45 50 55 60 65

V (A

3)

  • 500
  • 400
  • 300
  • 200
  • 100

100 200

∆H (meV)

Co2XY Mn2XY

Regular Heusler Inverse Heusler

Mn2CoCr (529) Mn2PtCo (1918) Mn2PtV (3353) Mn2PtPd (3218) Mn2PtRh (3247) Mn2PtGa (2236) Mn2PtIn (841)

slide-44
SLIDE 44

OK, but does all that work?

slide-45
SLIDE 45

Co2MnTi Courtesy J.M.D. Coey’s Lab (P. Tozman, M. Venkatesan) Prepared by arc melting in an Ar atmosphere

Co2MnTi

TCmeasured = 940K TCpredicted = 938K

slide-46
SLIDE 46

Mn2PtPd

TN1measured = 67K TN1measured = 350K

Courtesy J.M.D. Coey’s Lab (P. Tozman, M. Venkatesan) Complex antiferromagnetic

  • rder
slide-47
SLIDE 47

Bottom line …. Did we find one ?

slide-48
SLIDE 48

TCD Team: Duke Team:

Tom Archer, Anurag Tiwari, Mario Zic, Awadhesh Narayan, Ivan Rungger, Mauro Mantega

Stefano Curtarolo, Junkai Xue, Kevin Rasch, Corey Oses

slide-49
SLIDE 49

innovating nanoscience

The long way to the discovery of new materials made it short

Stefano Sanvito (sanvitos@tcd.ie)

School of Physics and CRANN, Trinity College Dublin, IRELAND AICQT, Maynooth June 2016
