The HealthPlay Exhibit for IMAGINE IT! THE CHILDRENS MUSEUM OF ATLANTA The exhibit is composed of 7 different interactive components to teach children about the importance of movement, anatomy, mental health, and nutrtion. These components

slide-1
SLIDE 1

The HealthPlay Exhibit

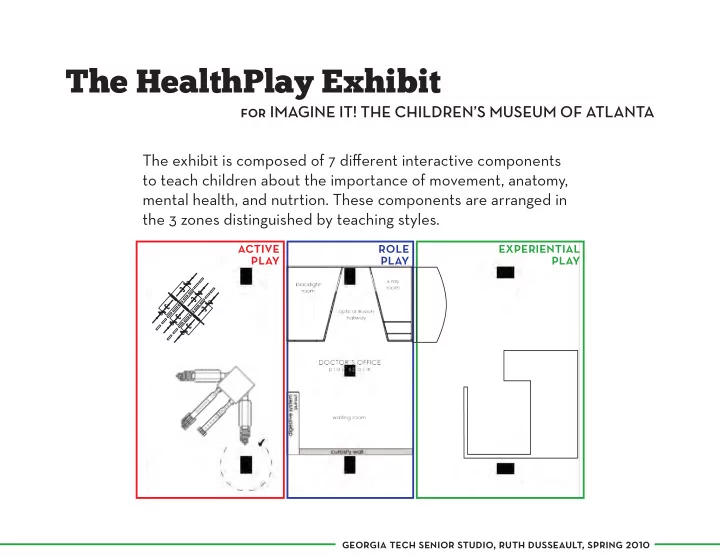

The exhibit is composed of 7 different interactive components to teach children about the importance of movement, anatomy, mental health, and nutrtion. These components are arranged in the 3 zones distinguished by teaching styles. for IMAGINE IT! THE CHILDREN’S MUSEUM OF ATLANTA

georgia tech senior studio, ruth dusseault, spring 2010

active play role play experiential play

slide-2
SLIDE 2

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

a reactive-interactive play structure

slide-3
SLIDE 3

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Location

slide-4
SLIDE 4

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

+ to teach kids about the nervous system and how it operates + to teach kids about the parts of the brain and their purpose(s) + for the component to react when the kids interact with it

Objectives and Learning Goals

slide-5
SLIDE 5

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Inspirations

geometric skeletons playgrounds mission control circuit boards

slide-6
SLIDE 6

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Meet

NEBO!

slide-7
SLIDE 7

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

A Ticklish Experience

slide-8
SLIDE 8

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-9
SLIDE 9

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-10
SLIDE 10

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-11
SLIDE 11

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-12
SLIDE 12

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-13
SLIDE 13

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-14
SLIDE 14

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-15
SLIDE 15

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-16
SLIDE 16

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-17
SLIDE 17

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-18
SLIDE 18

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-19
SLIDE 19

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-20
SLIDE 20

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-21
SLIDE 21

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-22
SLIDE 22

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-23
SLIDE 23

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-24
SLIDE 24

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-25
SLIDE 25

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-26
SLIDE 26

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-27
SLIDE 27

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-28
SLIDE 28

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-29
SLIDE 29

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

A Painful Experience

slide-30
SLIDE 30

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-31
SLIDE 31

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-32
SLIDE 32

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-33
SLIDE 33

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-34
SLIDE 34

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-35
SLIDE 35

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-36
SLIDE 36

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-37
SLIDE 37

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-38
SLIDE 38

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-39
SLIDE 39

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-40
SLIDE 40

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-41
SLIDE 41

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-42
SLIDE 42

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-43
SLIDE 43

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-44
SLIDE 44

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-45
SLIDE 45

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-46
SLIDE 46

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-47
SLIDE 47

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-48
SLIDE 48

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-49
SLIDE 49

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-50
SLIDE 50

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-51
SLIDE 51

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-52
SLIDE 52

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

A Sensational Experience

slide-53
SLIDE 53

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-54
SLIDE 54

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-55
SLIDE 55

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-56
SLIDE 56

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-57
SLIDE 57

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-58
SLIDE 58

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-59
SLIDE 59

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

slide-60
SLIDE 60

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

The Control Board

Paideia Field Test Observations: + successfully connected switch colors to corresponding part of the brain + excited to turn on light + experimented with mixing switches + liked to “see” how it works

slide-61
SLIDE 61

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

15’ 8’

Measurements

25’ 20’ 7’ 7’

slide-62
SLIDE 62

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

7’ 7’

Skull Floorplan

slide-63
SLIDE 63

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Safety Considerations

+ guard rails and protective barriers for elevated surfaces + highest climbable surface is 8 feet + landing mats at bottom of slides

slide-64
SLIDE 64

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Materials Cost

NEBO

Component Item & description Unit Price Quantity Expansion Steel Frame 4 inch Thick A36 Steel Plate $4,200 5 $21,000 1 X 1-1/2 Hot Rolled A-36 Steel Flat $95 24 $2,300 4 inch Thick A36 Steel Plate $2,600 2 $5,300 2 x 2 Square Bar Hot Rolled A-36 Steel Square $250 2 $475 1 inch Thick A36 Steel Plate $250 16 $4,000 3 inch Dia. Round Bar Hot Rolled A-36 Steel Round $420 4 $1,680 Subtotal $34,755 High Density Polyethylene (HDPE) Sheeting HDPE 48" x 96" 1/2" Thick $160 4 $630 HDPE 48" x 96" 1" Thick $300 25 $7,500 Subtotal $8,130 Slides/Mats/Glass 10' Scoop slide $375 2 $740 Tumbling Mats $300 4 $1,200 2"x48"x48" Clear Plexiglass Acrylic

$2,300

2 $4,600 Subtotal $6,540 Lights/Wiring 60 Watt A19 Colored - Ceramic Yellow Pastel $2 50 $100 6 White STRX 500' Thin Single Wire $280 2 $560 Illuminated Push Button Switch $25 6 $150 Subtotal $810 Total $50,495 Specialty Labor Electrician $30/hr Welder $20/hr
slide-65
SLIDE 65

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Materials Cost

NEBO

Component Item & description Unit Price Quantity Expansion Steel Frame 4 inch Thick A36 Steel Plate $4,200 5 $21,000 1 X 1-1/2 Hot Rolled A-36 Steel Flat $95 24 $2,300 4 inch Thick A36 Steel Plate $2,600 2 $5,300 2 x 2 Square Bar Hot Rolled A-36 Steel Square $250 2 $475 1 inch Thick A36 Steel Plate $250 16 $4,000 3 inch Dia. Round Bar Hot Rolled A-36 Steel Round $420 4 $1,680 Subtotal $34,755 High Density Polyethylene (HDPE) Sheeting HDPE 48" x 96" 1/2" Thick $160 4 $630 HDPE 48" x 96" 1" Thick $300 25 $7,500 Subtotal $8,130 Slides/Mats/Glass 10' Scoop slide $375 2 $740 Tumbling Mats $300 4 $1,200 2"x48"x48" Clear Plexiglass Acrylic

$2,300

2 $4,600 Subtotal $6,540 Lights/Wiring Colored LED Lightbulbs $20 50 $1,000 6 White STRX 500' Thin Single Wire $280 2 $560 Illuminated Push Button Switch $25 6 $150 Subtotal $1,710 Total $51,395 Specialty Labor Electrician $30/hr Welder $20/hr
slide-66
SLIDE 66

Chad Boone and Jesse Mejia, Dusseault, Spring 2010

Thanks!
