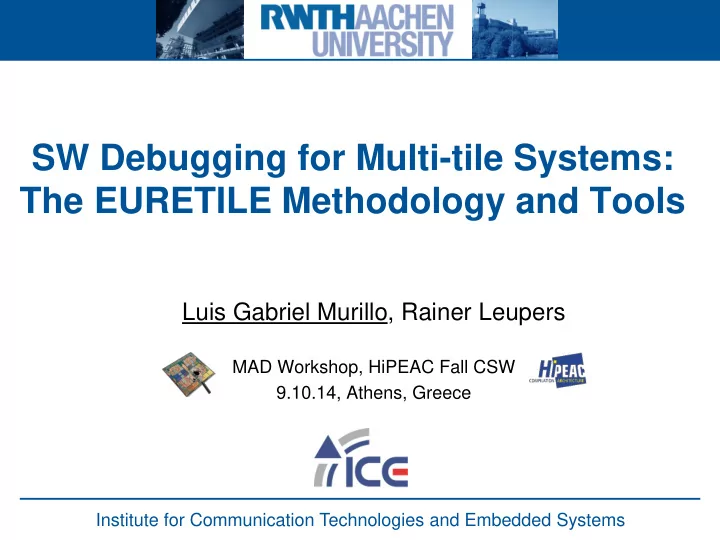

SW Debugging for Multi-tile Systems: The EURETILE Methodology and Tools Luis Gabriel Murillo, Rainer Leupers MAD Workshop, HiPEAC Fall CSW 9.10.14, Athens, Greece Institute for Communication Technologies and Embedded Systems EURETILE Overview

slide-1
SLIDE 1

Institute for Communication Technologies and Embedded Systems

SW Debugging for Multi-tile Systems: The EURETILE Methodology and Tools

Luis Gabriel Murillo, Rainer Leupers

MAD Workshop, HiPEAC Fall CSW 9.10.14, Athens, Greece

slide-2
SLIDE 2

EURETILE Overview

2

  • EURETILE: EUropean REference TIled architecture

Experiment (www.euretile.eu)

  • FET Concurrent Tera-Device Computing (FP7)
  • 6M EUR
  • Duration: 2010 – 2014
  • Partners:
  • Goal:
  • Brain-inspired and fault-tolerant foundational

innovations on massively parallel tiled architectures

  • Corresponding programming paradigm
slide-3
SLIDE 3

EURETILE Overview

3 Cluster Cluster Proc. DNP Proc. Proc. ASIP MEM Periph

Architecture

App. Refine- ment Process Duplica- tion Mapping Optimi- zation

DSE DAL Programming Model

APP2 APP3 APP2 APP4 APP3 APP4 APP1 W C P

Process Code (C) App. Model Execution Scenarios Process Synthesis Runtime Manager Bootstrap Code

Driver COM HAL

Component Selection

DNA- OS

SW Synthesis Targets

Embedded Style (VEP) HPC Style (QUonG) Binary Binary

slide-4
SLIDE 4

EURETILE, How to Debug?

4 Cluster Cluster Proc. DNP Proc. Proc. ASIP MEM Periph

Architecture

App. Refine- ment Process Duplica- tion Mapping Optimi- zation

DSE

Functional Simulation (on host)

. .

Code Generation High-level Check

DAL Programming Model

APP2 APP3 APP2 APP4 APP3 APP4 APP1 W C P

Process Code (C) App. Model Execution Scenarios Process Synthesis Runtime Manager Bootstrap Code

Driver COM HAL

Component Selection

DNA- OS

SW Synthesis Targets

Virtual EURETILE Platform HW Prototype VP-based Debugging

Targets

Embedded Style (VEP) HPC Style (QUonG) Binary Binary

slide-5
SLIDE 5

5

Agenda Introduction

The Virtual EURETILE Platform

Tools for Whole-system Debugging  Conclusions Concurrency Event Monitors and Concurrency Analysis

slide-6
SLIDE 6

VEP: Virtual Platform for SW Development and Debugging

6

  • Advantages
  • Early availability
  • Run unmodified target SW binary
  • Optimal for debugging concurrency issues
  • Non-intrusive inspection and reproducibility
  • VEP Supporting

Technologies

  • Multiple levels of abstraction
  • 2 parallel SystemC kernels
  • parSC (2.2x in quad-core)
  • SCope (4x in quad-core)
  • Distributed SystemC (diSC)
  • Runs on multiple hosts
  • Fault Injection

50 60 70 80 90 100 1K 10K 100K 1M 10M 100M 1G Accuracy [%] Performance [IPS] IAF CA

CA : cycle accurate IAF : instruction accurate JIT-CC, full IAP : instruction accurate JIT-CC, plain (no debug) IAD : instruction accurate, DBT AED : abstract execution device (host-compiled)

IAD ~200 tiles ~35 tiles IAP ~200 tiles ~500 tiles

130 MIPS

AED ~4000 tiles

[single host]

slide-7
SLIDE 7

VP Debugging Features

7

  • Traditional debug augmentations
  • System loggers: single- or multi-file, tile and component filtering,

packets over the network, SW, buses, memories, peripherals…

  • GDB coupling

… but many GDB windows, huge traces…

Target SW System Traces

?

Identify problematic interactions Concurrency Analysis Automatic Bug Exploration

W C P

APP2 APP3 APP2 APP4 APP3 APP4 APP1

GDB GDB

VEP System Traces

… …

System-level correlations

Driver COM HAL

Process Runtime Bootstrap

slide-8
SLIDE 8

8

Agenda Introduction

The Virtual EURETILE Platform

Tools for Whole-system Debugging  Conclusions Concurrency Event Monitors and Concurrency Analysis

slide-9
SLIDE 9

WSDB: Whole-system Debugger

  • Source Debugger Back-end
  • Single interface for:
  • Inspection/control of multiple

cores

  • Different targets, core ABIs,

unwinders and OS-trackers

  • Component-based architecture

for portability and extensibility

  • C++ and SWIG tcl APIs
  • Command-line interface
  • Network protocol (with

Eclipse CDT/DSF plug-in)

  • Can be linked into the VP

9

slide-10
SLIDE 10
  • Multi-tile program analysis, concurrency and HW/SW bugs
  • Easy way to capture user knowledge, covering:

 SW contexts (thread, process), variables  HW devices, signals, registers  Concurrency-related events (e.g., OS events)  Linear Temporal Logic (LTL)

… in a single non-intrusive assertion! SWAT: Language for System-Wide Assertions

debug inspection / control main.c Debugger

binary

… 7:if(tile1) var1=5; else if(tile2) var1=8; 23:…

HW signals and registers Tasks, threads, cores C software elements

10

SWAT Compiler

Cluster Cluster

VEP

slide-11
SLIDE 11

The SWAT Language

  • Examples

11

slide-12
SLIDE 12

12

Agenda Introduction

The Virtual EURETILE Platform

Tools for Whole-system Debugging Conclusions Concurrency Event Monitors and Concurrency Analysis 

slide-13
SLIDE 13

Concurrency Event Monitors

13

HW

…

PC executed MEM write

…

PC executed Func call Process create

time Event abstraction

DAL app.

New task Func call FIFO write

DNA-OS

… …

  • High-level events for analysis but fully trackable to origins
  • Approach
  • Grouping of low level events into programmer-relevant

events

  • Propagation of semantic information to higher-level trace

ABI Binary ABI Event Event Event

Event trace

OS 1 App 1 Core 1 Binary Core 2 DAL App 2 Pthreads

Platform Bridge

slide-14
SLIDE 14

Concurrency Analysis: Ordering Constraints Detection

  • High-level trace reveals the order of dependent events
  • Analyzes: happens-before, shared resource (visit/modify), dependency,

domination, false-dependency

  • Bug Exploration: ordering constraint swap
  • Drawback:
  • VP slowdown
  • ~2x-30x for the

VEP

Example: * 2016 High-level events * 2,3x slowdown No source code instrumentation, no changes to target SW… 14

slide-15
SLIDE 15

15

Agenda Introduction

The Virtual EURETILE Platform

Tools for Whole-system Debugging Conclusions Concurrency Event Monitors and Concurrency Analysis 

slide-16
SLIDE 16

Conclusions

  • Debuggers for multi-tile systems:
  • Facilitate intuitive ways to deal with problems at system-level
  • Present information to developer at the right abstraction
  • Consider different concurrent interleavings
  • EURETILE’s debugging infrastructure:
  • Virtual Platform in the loop
  • Debugger able to control/inspect all the tiles and correlate inter-

tile data

  • Framework for non-intrusive system-wide assertions
  • Programmer-level (DAL) monitoring framework with concurrency

analysis

16

slide-17
SLIDE 17

Institute for Communication Technologies and Embedded Systems

Thanks! & Questions?

slide-18
SLIDE 18

References

  • L. G. Murillo, R. Buecs, R., D. Hincapie, R. Leupers, and G. Ascheid, SWAT: Assertion-based Debugging of Concurrency

Issues at System Level, in ASP-DAC‘15, Chiba/Tokyo, Japan, Jan. 2015, (accepted for publication)

  • L. G. Murillo, R. Buecs, D. Hincapie, R. Leupers and G. Ascheid, Assertion-based Debugging of Concurrency Issues in

Many-core Systems across HW/SW Boundaries, in DAC‘14 WIP, June 2014, San Francisco, USA.

  • L. Schor, I. Bacivarov, L. G. Murillo, et.al., "EURETILE Design Flow: Dynamic and Fault Tolerant Mapping of Multiple

Applications onto Many-Tile Systems", in ISPA‘14, , Aug. 2014, Milan, Italy.

  • L. G. Murillo, S. Wawroschek, J. Castrillon, R. Leupers and G. Ascheid: "Automatic Detection of Concurrency Bugs

through Event Ordering Constraints", in DATE’14, Mar. 2014, Dresden, Germany

  • J. H. Weinstock, C. Schumacher, R. Leupers, et.al.,“Time-Decoupled Parallel SystemC Simulation" in DATE‘14, , Mar. 2014,

Dresden, Germany

  • C. Schumacher, J. H. Weinstock, R. Leupers, et.al. legaSCi: Legacy SystemC Model Integration into Parallel Simulators.

ACM Transactions on Embedded Computing Systems. 2013

  • L. Schor, H. Yang, I. Bacivarov and L. Thiele. Expandable Process Networks to Efficiently Specify and Explore Task, Data,

and Pipeline Parallelism. In CASES‘13, Montreal, Canada, Oct. 2013

  • Roberto Ammendola, et.al. “Design and implementation of a modular, low latency, fault-aware, FPGA-based Network

Interface" in ReConFig 2013

  • Paolucci, P.S., Bacivarov, I., Goossens, G., Leupers, R., Rousseau, F., Schumacher, C., Thiele, L., Vicini, P., "EURETILE

2010-2012 summary: first three years of activity of the European Reference Tiled Experiment.", (2013)

  • C. Schumacher, J. H. Weinstock, R. Leupers and G. Ascheid. Cause and effect of nondeterministic behavior in sequential

and parallel SystemC simulators. In HLDVT'12, Nov 2012, Huntington Beach (California-USA)

  • L. Schor, I. Bacivarov, D. Rai, H. Yang, S.-H. Kang, and L. Thiele. Scenario-Based Design Flow for Mapping Streaming

Applications onto On-Chip Many-Core Systems. In CASES‘12, Tampere, Finland, p. 71-80, Oct. 2012.

  • A. Chagoya-Garzon, F. Rousseau, F. Pétrot. Multi-Device Driver Synthesis Flow for Heterogeneous Hierarchical Systems.

Euromicro Conference on Digital System Design, Sept 2012, Izmir, Turkey.

  • L. G. Murillo, J. Harnath, R. Leupers and G. Ascheid. Scalable and Retargetable Debugger Architecture for Heterogeneous
  • MPSoCs. System, Software, SoC and Silicon Debug Conference (S4D '12), Sep 2012, Vienna Austria
  • L. G. Murillo, W. Zhou, J. Eusse, R. Leupers, G. Ascheid. Debugging Concurrent MPSoC Software with Bug Pattern
  • Descriptions. System, Software, SoC and Silicon Debug Conference (S4D '11), Oct 2011, Munich (Germany)
  • C. Schumacher, R. Leupers, D. Petras and A. Hoffmann. parSC: Synchronous Parallel SystemC Simulation on Multi-Core

Host Architectures. In CODES/ISSS '10, October, 2010, Scottsdale, Arizona, USA

  • X. Guerin and F. Petrot, A System Framework for the Design of Embedded Software Targeting Heterogeneous Multi-core

SoCs,º in ASAP 2009
