SLIDE 1
The Enterprise Centre Exemplary Low Carbon Building OJEU Design - - PowerPoint PPT Presentation
The Enterprise Centre Exemplary Low Carbon Building OJEU Design - - PowerPoint PPT Presentation

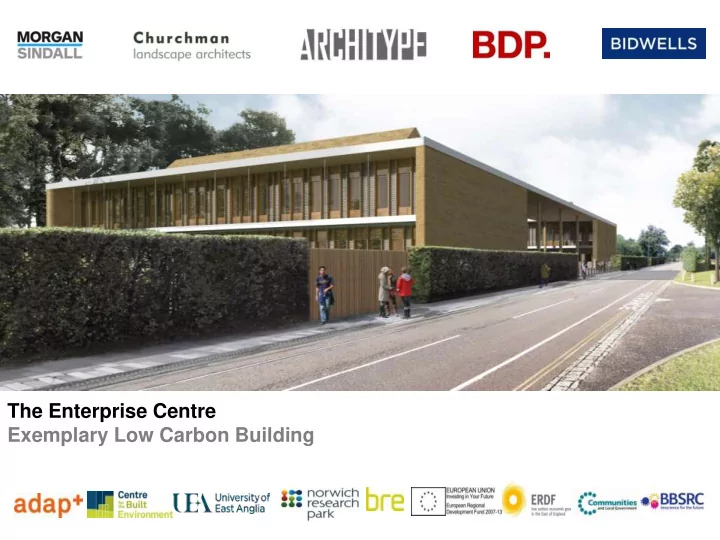

The Enterprise Centre Exemplary Low Carbon Building OJEU Design Competition Project: The Enterprise Centre AKA Exemplar Low Carbon Building Project Client: University of East Anglia (UEA) Key Stakeholders and Partners: UEA, InCrops,
SLIDE 2
SLIDE 3
The Brief
SLIDE 4
Brief - Standards and Qualitative
‘A World Class Building’ - Exemplary Academic and Workspace Environment ‘Gateway to the University’ and sympathetic to Earlham Park Context Flexible, Adaptable and Ability to hold Conferences and other Events Showcase of Sustainability
- 100 Year Design Life, including adaptation for Climate Change
- Passivhaus Certification
- Breeam Outstanding
- Very Low Embodied Energy and High Sequestered Carbon: Ultimate Aim to be
a ‘Carbon Sink’
- Focus on Local Supply Chains
- High Use of Renewable Materials
- Soft Landings and 3 Year Post Occupancy Evaluation
SLIDE 5
The ‘Magnificent 7’
SLIDE 6
Brief - Functional
Demonstration and Business Support Delivery Built Environment Centre Demonstration and Exhibition Area Dynamic Testing Suite - Built Environment Offices for Business Support (ERDF & NRP) Lettable Floor Space Hot Desk Area Start-up Units Expansion Units Academic Teaching and Learning Space 300 Seat Lecture Theatre Seminar Rooms Social Work Areas Offices
SLIDE 7
The Context
SLIDE 8
SLIDE 9
Aerial Photo of Site from the West; VADD
SLIDE 10
SLIDE 11
SLIDE 12
SLIDE 13
SLIDE 14
SLIDE 15
October 30, 2015
SLIDE 16
SLIDE 17
SLIDE 18
SLIDE 19
The Competition Response
SLIDE 20
SLIDE 21
Sketch Aerial Perspective from South West Future Phase Earlham Hall Enterprise Centre
SLIDE 22
SLIDE 23
SLIDE 24
Local timber / Brettstapel
SLIDE 25
Thatch
SLIDE 26
SLIDE 27
Flint
SLIDE 28
SLIDE 29
Competition Masterplan
SLIDE 30
Lightweight Lessons from Self Build / Reduction of Foundations Competition Ground Floor Plan
SLIDE 31
SLIDE 32
Summer Strategy Winter Strategy North South Section
SLIDE 33
SLIDE 34
- PHPP model completed to assess fabric
thermal efficiency
- Preliminary calculations completed to
assess gas vs district heat
- Design was developed to a high level of
detail to ensure compliance with PH.
SLIDE 35
6 kWh/m2.a
SLIDE 36
LifeCYCLE by Franklin + Andrews
Data base system for recording all building components in a conventional QS measuring way, with additional capital & lifecycle Carbon added to this – suitable for a fully design building Carbon calculation only.
RAPIER by Architype
Rapid modelling tool to asses the impacts of design changes on Cost, Carbon & Energy, optional analysis can be done in minutes – suitable for early design stage Carbon calculation through to detailed design.
SLIDE 37
Hemp Insulation
- 173,000 kgCO2e
Thatch Cladding
- 28,000 kgCO2e
Timber Structure
- 1,821,000 kgCO2e
= = =
SLIDE 38
SLIDE 39
SLIDE 40
Design Development
SLIDE 41
SLIDE 42
Nursery Garden Site – Future Academic Building
SLIDE 43
SLIDE 44
SLIDE 45
STAGE 1 INCEPTION AND BRIEFING B2 Review past experience
- The Good, The Bad & The Ugly
SLIDE 46
STAGE 1 INCEPTION AND BRIEFING B2 Review past experience
- The Good, The Bad & The Ugly
SLIDE 47
STAGE 1 INCEPTION AND BRIEFING B2 Review past experience
- The Good, The Bad & The Ugly
SLIDE 48
STAGE 1 INCEPTION AND BRIEFING B2 Review past experience
- The Good, The Bad & The Ugly
SLIDE 49
SLIDE 50
Ground Floor Plan
SLIDE 51
First Floor Plan
SLIDE 52
SLIDE 53
SLIDE 54
SLIDE 55
SLIDE 56
SLIDE 57
SLIDE 58
SLIDE 59
SLIDE 60
Primary Energy (PE)
A total Primary Energy of 120kWh/m2.a will be achieved This figure includes grid loses at a rate of x2.6, and is before renewables inclusion This figure includes all electricity use, including small power and HVAC. Key factors to achieve this target include:
- Extremely efficient HVAC systems
- Energy efficient lighting and sensible
controls
- Good daylight design
- Optimised kitchen design
- Efficient thermal energy supply
120 kWh 310 kWh 189 kWh 120 kWh 6 kWh 112 kWh 58 kWh 15 kWh 43 kWh
PE TD
Typical Education UEA NRP Building (Predicted) Frankfurt Passivhaus School (Actual)
190 kWh/m2.a reduction
UEA NRP Building (Current PHPP Breakdown)
SLIDE 61
Future Climate Analysis
SLIDE 62
2013-2019 2030 2050 2080 2 4 6 8 10 12 14 16
PHPP Energy Use to 2080
sub-title
cooling load Heating Load Total Load
Year kWh/m2.a
SLIDE 63
Value Engineering and Revised Embodied Carbon
SLIDE 64
Lifecycle Costs
SLIDE 65
Conceptual Studies
SLIDE 66
Complete Floor Construction Lifecycle Carbon Analysis
Competition Proposal Revised Proposal
SLIDE 67
SLIDE 68
Materials Database
SLIDE 69
Materials Database
SLIDE 70
SLIDE 71
SLIDE 72
SLIDE 73
SLIDE 74
