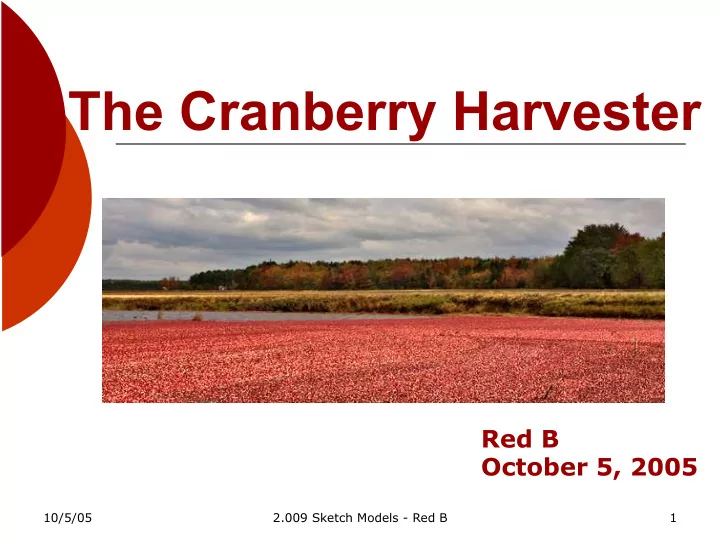

The Cranberry Harvester Red B October 5, 2005 10/5/05 2.009 Sketch Models - Red B 1 Market - 2005: 6.49 billion barrels - $225 million production - Wisconsin (50%) - Massachusetts (33%) - New Jersey, Oregon, Washington 10/5/05 2.009 Sketch
10/5/05 2.009 Sketch Models - Red B 1
Red B October 5, 2005
10/5/05 2.009 Sketch Models - Red B 2
10/5/05 2.009 Sketch Models - Red B 3
10/5/05 2.009 Sketch Models - Red B 4
10/5/05 2.009 Sketch Models - Red B 5
Product Description: Remote controlled watercraft that deploys the barrier used to corral the cranberries Intended Customers: Cranberry Farmers
conducting a wet harvest
10/5/05 2.009 Sketch Models - Red B 6
Customer Needs Design Attributes Engineering Specs Easily and quickly deploy the cranberry barrier Fast and simple Remote controlled craft with intuitive controls Eco-Safe: not harmful to the bog Non-toxic materials A motor that runs on food-grade oils Works in a variety of sizes and shape bogs Robust, stable, and flexible design Floating on pontoons and had a small turning radius Transportable: fits in the back of a pickup truck Collapsible components Main elements easily disconnect for transport
10/5/05 2.009 Sketch Models - Red B 7
Lightweight, simple structure Spool of Barrier net Pontoons
10/5/05 2.009 Sketch Models - Red B 8
Cranberries
secured at shore
cranberries, leaving net in path
cranberries
removes cranberries (as done currently)
Conveyor Path of Boat and Net
10/5/05 2.009 Sketch Models - Red B 9
10/5/05 2.009 Sketch Models - Red B 10
unravel spool negligible compared to the power to overcome water resistance of boat.
10/5/05 2.009 Sketch Models - Red B 11
