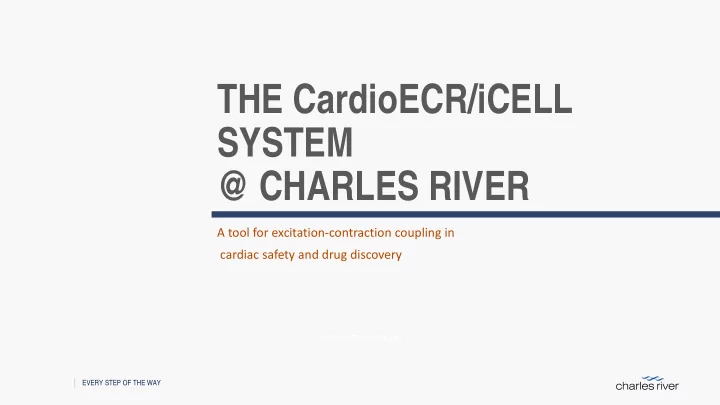

THE CardioECR/iCELL SYSTEM @ CHARLES RIVER

A tool for excitation-contraction coupling in cardiac safety and drug discovery

EVERY STEP OF THE WAY EVERY STEP OF THE WAY

MECHANISTIC ANALYSIS OF CONTRACTION

INOTROPIC EFFECTS

TOOLS

3 EVERY STEP OF THE WAY

xCELLigence RTCA CardioECR iCELL cardiomyocytes Drugs: Blebbistatin Nifedipine FPL 64176 Omecamtiv mecarbil

THE CardioECR/ICell SYSTEM

Cell Index = (Impedance @ time t – Impedance @ time 0 ) / 15 Ω

4 EVERY STEP OF THE WAY

N=45 Cell Index = (Rtn-Rt0)/15Ω

5 EVERY STEP OF THE WAY

THE IMPEDANCE SIGNAL

MATLAB Analysis Raw data Local averages Grand Average

6 EVERY STEP OF THE WAY

MOTION-DEPENDENT EVENTS: BLEBBISTATIN

7 EVERY STEP OF THE WAY

EXCITATION-CONTRACTION COUPLING: L-TYPE CA2+ MODULATORS

NIFEDIPINE (BLOCKER) FPL 64176 (AGONIST)

8 EVERY STEP OF THE WAY

MOTION-DEPENDENT EVENTS: OMECAMTIV MECARBIL

Contraction: Positive inotropy Impedance recordings (CardioECR) 50,000 iCELL2 cardiomyocytes CL: 1500 ms Omecamtiv mecarbil 1 µM

9 EVERY STEP OF THE WAY

CONCLUSION

Discovery Application

• Enhanced software algorithms allow detailed investigation of excitation-

contraction coupling and contraction mechanisms.

• The system responds to known inotropic agents in a predictive way and

could be a valuable tool to investigate contraction in a medium throughput plate-based assay.

MECHANISTIC ANALYSIS OF ARRYTHMIC LIABILITY

11 EVERY STEP OF THE WAY

ARRHYTHMIC LIABILITY

You want this … FIELD POTENTIAL IMPEDANCE

12 EVERY STEP OF THE WAY

ARRHYTHMIC LIABILITY

Ibutilide 100 nM

But some times you get this at the Cmax ( 140 nM ) FIELD POTENTIAL IMPEDANCE

13 EVERY STEP OF THE WAY

ARRHYTHMIC LIABILITY

Moxifloxacin: Cmax 11 µM Baseline 10 µM 30 µM 100 µM 300 µM

14 EVERY STEP OF THE WAY

ARRHYTHMIC LIABILITY

The CardioECR/iCELL system detects delayed repolarization and arrhythmias

15 EVERY STEP OF THE WAY

CONCLUSION

• The CardioECR/iCELL system is a valuable tool to investigate proarrhythmic liability (CiPA)
• The system responds to known pharmacological agents in a predictive way.
• When tailored with appropriate disease cell models the CardioECR/iCell system is a valuable tool to generate

cardiac disease biomarkers. Cardiac Safety Application

MECHANISTIC ANALYSIS OF CARDIOTOXICITY

17 EVERY STEP OF THE WAY

CARDIOTOXIC DRUGS: LONG TERM EFFECTS

Vehicle: 8 days

18 EVERY STEP OF THE WAY

CARDIOTOXIC DRUGS: LONG TERM EFFECTS

Vehicle and Doxorubicin: 8 days

19 EVERY STEP OF THE WAY

CARDIOTOXIC DRUGS: LONG TERM EFFECTS

Effect of Tyrosine Kinase Inhibitors on basal impedance

20 EVERY STEP OF THE WAY

CARDIOTOXIC DRUGS: LONG TERM EFFECTS

Crizotinib: Effects at Therapeutic Doses

21 EVERY STEP OF THE WAY

CARDIOTOXIC DRUGS: LONG TERM EFFECTS

Erlotinib: Supratherapeutic Effects

Ouabain Shortens the FPD (QT-like Signal)

• Cardiac glycoside, increases

intracellular calcium

• Low dose increases contractile

force, has been used as heart failure therapy

• High dose causes cardiac arrest

(used for poison arrows)

Ouabain Does Not Inhibit Ion Channel Currents

0.0 10.0 20.0 30.0 40.0 50.0 60.0 70.0 80.0 90.0 100.0 0.03 0.1 0.3 0.03 0.1 0.3 Percent Inhibition Concentration (µM)

Ion Channel Inhibition

hERG Nav1.5 KvLQT1/minK Kir2.1 Cav1.2 Ouabain Digoxin

Ouabain Toxicity is Revealed in Contraction Measure (Impedance)

1 hr 2 hr 3 hr 4 hr Vehicle 2.5 nM 5 nM 10 nM 20 nM 40 nM

25 EVERY STEP OF THE WAY

OVERALL CONCLUSIONS

• The CardioECR/iCell system is a valuable tool to investigate:
• Contractility
• Proarrhythmic liability (CiPA)
• Cardiotoxicity
• Medium throughput analysis of human cells (integrated system) detects

liability that would be missed using in vitro ion screening strategies alone
