iot Hack challenge for bluecity +1 Kwh Kees the blue hive +10 Kwh Rotterzwam a smart energy awareness system -20 KWH Spireaux +5 Kwh aloha -6 KWH Refil Industrial Design at University of Technology Eindhoven and Delft By Petek Tezcan,

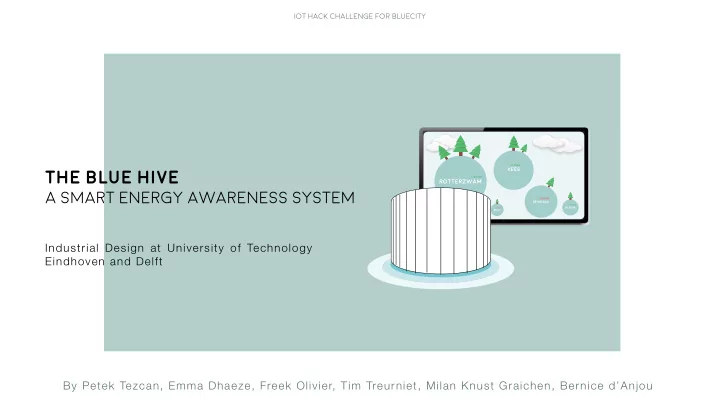

SLIDE 1

iot Hack challenge for bluecity

the blue hive

a smart energy awareness system

Industrial Design at University of Technology Eindhoven and Delft By Petek Tezcan, Emma Dhaeze, Freek Olivier, Tim Treurniet, Milan Knust Graichen, Bernice d’Anjou

Rotterzwam

+10 Kwh +1 Kwh

+5 Kwh

6 KWH
20 KWH

Spireaux

aloha

Kees

Refil

SLIDE 2

iot Hack challenge for bluecity

Problem statement

Difficult to distinguish energy consumption of each occupant Lack of awareness of energy consumption both individual companies and of the building as a whole (energy efficiency)

SLIDE 3

iot Hack challenge for bluecity

Goal To make the occupants of the bluecity building more aware on their energy consumption

Through the visualisation of relative energy consumption and suggestion creation for energy saving behaviour

SLIDE 4

iot Hack challenge for bluecity

Meet the blue hive the smart energy awareness system

Rotterzwam

+10 Kwh +1 Kwh

+5 Kwh

6 KWH
20 KWH

Spireaux

aloha

Kees

Refil

SLIDE 5

iot Hack challenge for bluecity

It allows you to control your room temperature through tangible interaction You can ask for and receive suggestions on opportunities for behavioural change It visualises the relative impact of your action of changing the room temperature through light in each office space

SLIDE 6

iot Hack challenge for bluecity

Rotterzwam

+10 Kwh +1 Kwh

+5 Kwh

6 KWH
20 KWH

Spireaux

aloha

Kees

Refil

It visualises the relative energy consumption It relates your consumption with the other companies The visualisation was inspired by the wood snippets usage of the wood stove It also shows your factual energy saving every day in the entrance hall of the bluecity building

SLIDE 7

iot Hack challenge for bluecity

The system registers the following data The energy consumption of each individual company The total energy production of the wood stove Through a sensor on the radiator Through a sensor on the wood stove

SLIDE 8

iot Hack challenge for bluecity

impact of the concept Through the increased awareness on energy consumption of the occupants of bluecity, the existing heating system will be managed more efficiently
