SLIDE 1
NAXOS 2018 1
Economia linea re e circolare
NAXOS 2018 2

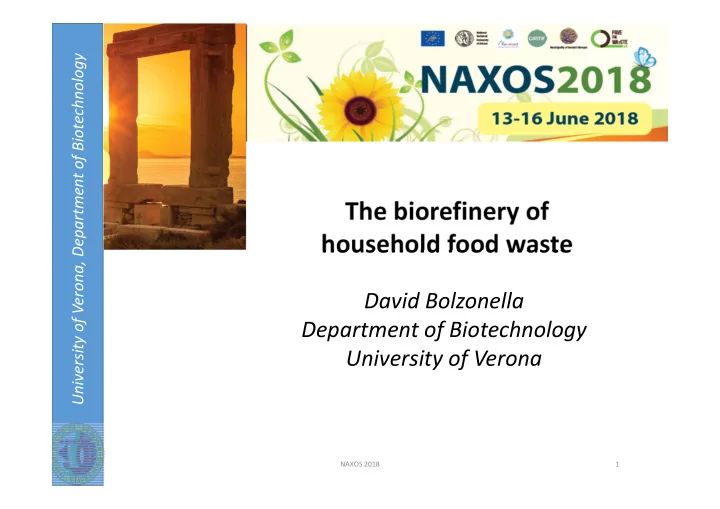

The biorefinery of household food waste David Bolzonella Department - - PowerPoint PPT Presentation
The biorefinery of household food waste David Bolzonella Department - - PowerPoint PPT Presentation
University of Verona, Department of Biotechnology The biorefinery of household food waste David Bolzonella Department of Biotechnology University of Verona NAXOS 2018 1 University of Verona, Department of Biotechnology Economia linea re e circolare
SLIDE 2
SLIDE 3
The role of bioeconomy in the circular economy ….
3 NAXOS 2018
Source Ellen McArtur Foundation
University of Verona, Department of Biotechnology
SLIDE 4
The role of bioeconomy in the circular economy …. primary biomass and residues/waste
4 NAXOS 2018
University of Verona, Department of Biotechnology
Source Ellen McArtur Foundation
SLIDE 5
NAXOS 2018 5
University of Verona, Department of Biotechnology
Households Restaurants Canteens markets Food processing byproducts (waste) (seasonal, site specific ….) Household food waste : is food and kitchen waste from households, restaurants, caterers and retail premises, and comparable waste from food processing plants.
SLIDE 6
NAXOS 2018 6
Specific features of household food waste
- Ubiquitous
- avg. production of 176 kg per person per year (EU‐28)
- High carbon content: 250 gCOD per kg (variable), 75% of mass is water
- N & P contents at 5‐6 and 1‐2 g/kg HFW, respectively
- Where segregate collection is implemented a considerable load of
(«clean») material is available
University of Verona, Department of Biotechnology
SLIDE 7
NAXOS 2018 7
University of Verona, Department of Biotechnology
Household food waste has the perfect characteristics for bio‐processing …. …. if it is separately collected
SLIDE 8
NAXOS 2018 8
Disposal routes for Municipal Waste in Europe
Landfilling still dominant ….
University of Verona, Department of Biotechnology University of Verona, Department of Biotechnology
SLIDE 9
Fo Food Wa Waste and and clim climate chang change
University of Verona, Department of Biotechnology
(courtesy of David Newman)
NAXOS 2018 9
SLIDE 10
NAXOS 2018 10
Big bins in the streets (urban areas) Implementation of different collection strategies ….
University of Verona, Department of Biotechnology
SLIDE 11
NAXOS 2018 11
Door to door collection (kerbside)
University of Verona, Department of Biotechnology
SLIDE 12
NAXOS 2018 12
University of Verona, Department of Biotechnology
455 out of 581 municipalities in the Region passed the 65% separate collection treshold Separate collection (RD)
- f
household food wate
Separate collection %
SLIDE 13
Percentage of non compostable material into organic waste (2012‐2013)
Door to door Door to door Bins in the Mixed collection Non tourist area Tourist area Street System
NAXOS 2018 13
Presence of inert material in segregated food waste (%) as a function of different collection schemes
University of Verona, Department of Biotechnology
SLIDE 14
NAXOS 2018 14
The PRESENT bioeconomy: Compost & biogas (bioenergy, biofuels)
University of Verona, Department of Biotechnology
SLIDE 15
NAXOS 2018 15
High quality compost
University of Verona, Department of Biotechnology
Selling price in the range 3 – 6 € per ton
SLIDE 16
NAXOS 2018 16
Biogas for co‐generation of heat and power or biomethane production
University of Verona, Department of Biotechnology
SLIDE 17
NAXOS 2018 17
University of Verona, Department of Biotechnology
SLIDE 18
NAXOS 2018 18
The FUTURE bioeconomy: Biobased chemicals, compost, biogas, bioenergy, biofuels, nutrients
University of Verona, Department of Biotechnology
SLIDE 19
NAXOS 2018 19
SLIDE 20
20
University of Verona, Department of Biotechnology
NAXOS 2018
Organic waste Recovery techniques + Biocatalysis Bio‐polymers Bio‐plastics High added value chemicals Nutrients Proteins AD Bio‐polymers Biofuels Bio‐gas‐to‐liquid Post Treatments
Environment
Compost Bio‐polymers Bio‐plastics High added value chemicals Nutrients Proteins
Household food wate biorefinery
SLIDE 21
NAXOS 2018 21
University of Verona, Department of Biotechnology
HFW – to – VFA, H2, CH4, PHA ….
SLIDE 22
NAXOS 2018 22
University of Verona, Department of Biotechnology
4000 8000 12000 16000 20000 24000 28000 32000 15 30 45 60 75 90 105120135150165180195210225240255270285300315
TOTAL VFAs CONCENTRATION (mg/L)
TIME (d)
RUN 1 RUN 2 RUN 3 RUN 4
22
OLR, 21 pH 3,8 OLR, 21 pH 5,5 OLR, 10 pH 5,5 OLR, 10 pH 7,0
SLIDE 23
Fermentation in continuous: RESULTS
NAXOS 2018 23
University of Verona, Department of Biotechnology
SLIDE 24
NAXOS 2018 24
Biogas – to – Liquid
Or acetic acid, methanol, ethanol …..
University of Verona, Department of Biotechnology
SLIDE 25
NAXOS 2018 25
University of Verona, Department of Biotechnology
Source: Newlight
Biogas (CH4) – to – Biopolymers (PHB)
SLIDE 26
NAXOS 2018 26
We need nutrients ! 9 billion people Foto Campi …….
University of Verona, Department of Biotechnology
Digestate – to – Nutrients
SLIDE 27
NAXOS 2018 27
University of Verona, Department of Biotechnology
SLIDE 28
28 NAXOS 2018
University of Verona, Department of Biotechnology
End of waste criteria and specific regulations for waste derived biobased products
SLIDE 29
29 NAXOS 2018
University of Verona, Department of Biotechnology Take home messages:
- 1. Household food waste is largely available and have suitable
characteristics as feedstock for biorefinery platforms but segragate collection is crucial !
- 2. We have the (bio)technologies to recovery biobased products,
proteins, nutrients, biofuels ……..
- 3. We need to clearly define end of waste criteria and the safety
