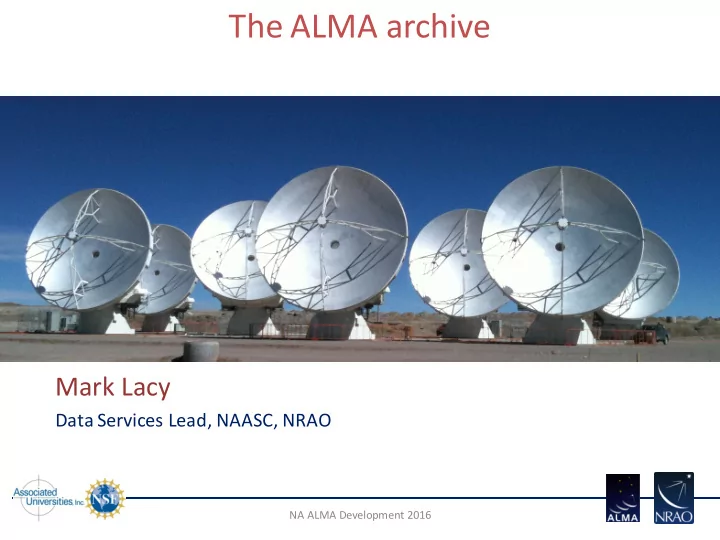

The ALMA archive

Mark Lacy

Data Services Lead, NAASC, NRAO

NA ALMA Development 2016

Motivation

• Papers from archival data are an important. Publications using archival data

account for half of the HST and Chandra publications each year.

• ALMA archival papers picking up, some examples (in high-z extragalactic science):

– Fujimoto et al. 2016: faint end of ALMA source counts to 0.02mJy. – Silva et al. 2015 – excess of submm sources around bright WISE-selected AGN – Oteo et al. 2016: number counts from calibrator fields. – Can save many hours of observation time spent looking at deep fields. – Removes issues of field-to-field variations

• Can point the way for some future observations without needing the TAC to be

“brave” and approve an ambitious/risky proposal.

• Could allow entire projects to be constructed, or supplemented with small

amounts of new ALMA data e.g. for a student thesis.

NA ALMA development 2016

Goals of the Archive

• Provide access to data.

– Traditional search/download limited by bandwidth. – Need to move to server-side tools for the largest ALMA datasets.

• Provide rich metadata to allow complicated

queries/data mining

– ALMA has a lot of data (~200TB today), but with very low information content (~10-4%). – To change it to “Big Data” that we can mine using data science techniques we need to extract the information from the noise. (Specific examples: source and line lists.)

NA ALMA development 2016

Short-term Archive Developments

• May have noticed “collapsed rows” in latest release.

– These were needed as a prerequisite for the ingest of individual pipeline products in Cycle 4. – Tests of this will begin in September. – Current product “tar blobs” will be phased out.

• Coming soon (during Cycle 4):

– footprints via Aladdin Lite – RMS values – Upload of target lists to search on.

NA ALMA development 2016

Current projects

• Access to data – even very large files

– CARTA - remote visualization capability (Erik Rosolowsky) – Pipeline Processing Interface (PPI) – remote pipeline runs to deliver calibrated measurement sets and/or images (NRAO initiative; this talk).

• From “a lot of data” to “Big Data”

– ADMIT enhanced metadata production (Peter Teuben)

NA ALMA development 2016

PPI

• Pipeline Processing interface will allow reruns of the ALMA pipeline. Two

modes: – Apply existing archival calibration tables to ALMA raw data to produce calibrated measurement sets.

• Useful if you just need calibrated uv-data

– Run the current ALMA pipeline version to produce calibrated measurement sets and/or images.

• Useful for running data with a new version of the pipeline
• Also will allow for some pipeline parameter tweaks (parameters

will expand with time).

• Initially available as part of the new NRAO archive access tool, will also be

made available to all ARCs as an add-on to the request handler.

NA ALMA development 2016

RH/OODT infrastructure for the PPI

• The PPI uses a modified ALMA request

handler and the “Object Oriented Data Technology” (OODT) to kick off jobs on the cluster.

• This can be generalized to other tasks e.g.

analysis tools, visualization tasks etc.

• So provides a framework for server-side

deployment of software from the ALMA Development program.

NA ALMA development 2016

Creating rich metadata

• Accurate prior information is crucial

– Source positions & spatial extents – Source velocities/redshifts – (Targeted lines)

• Some of this is supplied by the PI in the OT, some not

– Need to supplement with 3rd party sources (SIMBAD, NED) – But problem of validation, and how to update – We are working on it, but slowly.

• Source/clump finders in 2D and 3D (Jeff’s talk).

NA ALMA development 2016

What else might we need/want?

• Predictive searches (because you selected this

dataset you may also be interested in…) (Barrientos, JAO).

• Cutout server (for extracting small pieces of large

cubes).

• VO interoperability, e.g.

– Search multiwavelength archives for other data on an ALMA field. – Upload ALMA pointings/footprints to e.g. DS9 or Topcat (SAMP).

NA ALMA development 2016

Summary

• We strongly encourage development

proposals for the ALMA archive.

• Do need to work closely with the Archive

working group and the software development team in Garching to ensure successful integration of products/services.
