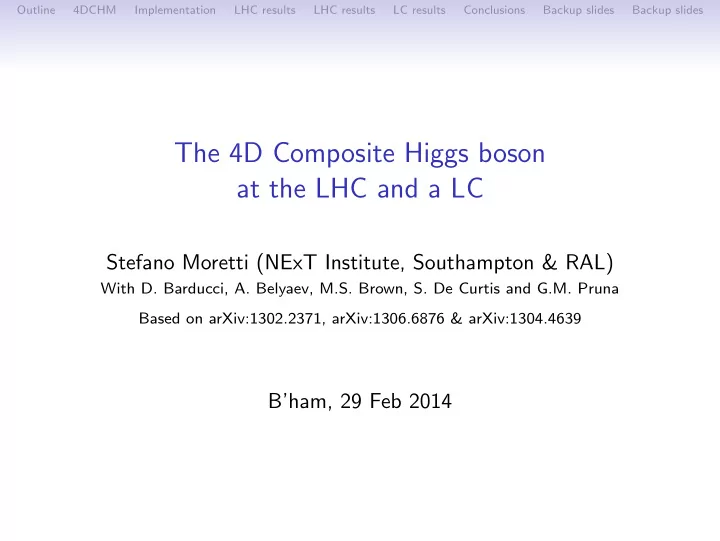

The 4D Composite Higgs boson at the LHC and a LC

Stefano Moretti (NExT Institute, Southampton & RAL)

With D. Barducci, A. Belyaev, M.S. Brown, S. De Curtis and G.M. Pruna Based on arXiv:1302.2371, arXiv:1306.6876 & arXiv:1304.4639

B’ham, 29 Feb 2014

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Outline

Preamble:

• A Higgs(-like) signal has been observed at the LHC

(supplemental earlier evidence from Tevatron as well)

• Both ATLAS and CMS confirm it, very SM-like
• Mass measurements around 125 GeV
• Candidate data samples: γγ, ZZ ∗, WW ∗, b¯

b and τ +τ − (in

• rder of decreasing accuracy and/or significance) plus invisible

Motivation:

• Some inconsistency with the SM predictions existed (still

exists), particularly in the (most significant) γγ channel

• Either way, it is mandatory to explore BSM solutions
• Whereas the ‘fundamental Higgs’ hypothesis is being

quantitatively tested in several models, the ‘composite Higgs’

• ne has only been marginally studied in comparison
• All (pseudo)scalar objects discovered in Nature have always

been fermion composites

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Outline

Desclaimer:

• This talk is about a phenomenological analysis aimed at

capturing the essentials of CHMs, it is not about building them and/or comparing their pros and cons

• It thus adopts a specific CHM realisation that it is entirely

calculable, the 4DCHM, apart from its UV structure

• For an analysis of the Higgs data, knowledge of the latter is

not strictly necessary Content:

• The 4DCHM (touch and go)
• Implementation (trust me, it is damn complicated but it is

correct)

• Results (not exciting as one might have hoped, yet not so

frustrating as in many other BSM scenarios)

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Even with discovery of a Higgs particle, SM may not the end of the story (hierarchy and naturalness problems) Two possible scenarios Weak coupling

• Supersymmetry

Strong coupling

• Technicolor
• Extra dimensions
• Composite Higgs

A possible Composite Higgs scenario

• Higgs doublet arise from a strong dynamics
• Higgs as a (Pseudo) Nambu-Goldstone Boson (PNGB)

Idea from the ’80s: spontaneous breaking of a symmetry G → H

Georgi and Kaplan, Phys.Lett. B136, 183 (1984)

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Simplest example was considered by Agashe, Contino and Pomarol

(arXiv:0412089)

• Symmetry pattern SO(5) → SO(4)

The coset SO(5)/SO(4) turn out to be one of the most economical: 4 Pseudo Nambu-Goldstone Bosons (PNGBs) (minimum number to be identified with the SM Higgs doublet) Potential generated by radiative corrections → light Higgs (a la Coleman, Weinberg ’73) Extra-particle content is present

• Spin 1 resonances
• Spin 1/2 resonances

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

4DCHM of De Curtis, Redi, Tesi (arXiv:1110.1613): highly deconstructed 4D version of general 5D theory

• Just two sites: Elementary and Composite sectors
• Mechanism of partial compositness (e.g. mixing between

elementary and composite states - 3rd generation quarks, cfr γ − ρ mixing in QCD) Effective 4D model, hence needs UV completion, (largely) irrelevant for Higgs sector Minimal: single SO(5) multiplet of resonances from composite sector (only dof’s accessible at the LHC) The 4DCHM represents the framework to study CHMs in a complete and computable way Generic features of all relevant CHMs are captured

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Bosonic sector

Ω1

SU(2)L ⊗ U(1)Y SO(5) ⊗ U(1)X SO(5) ⊗ U(1)X SO(4) ⊗ U(1)X

g0, ˜ W g∗, ˜ A

Φ2 Elementary sector Composite Sector De Curtis, Redi, Tesi ’11

Ω1 = exp( iΠ

2f )

Π Goldstone Matrix f scale of the symmetry breaking (compositeness scale) Φ2 = Ω1ϕ0 ϕ0 = (0, 0, 0, 0, 1) = δi5 11 new gauge resonances 5 Neutral 6 Charged (c.c.)

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Bosonic sector mass spectrum

mγ = 0 mW = 80GeV mZ = 91GeV M∗ ≃ 3TeV

Bosonic sector mass spectrum

M2

Z ≃ f 2

4 g2

∗ (s2 θ +

s2

ψ

2 )ξ M2

Z1 = f 2g2 ∗

tan θ = sθ/cθ = g0/g∗ tan ψ = sψ/cψ = √ 2g0Y /g∗ ξ = sin( v

2f ) ≃ v 2f

v = ⟨h⟩ = 246 GeV Model parameters (gauge): f ≃ 1 TeV and g∗ perturbative (≤ 4π) M∗ = f g∗ Gauge boson mass ≥ 1.5 TeV from EWPTs

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Fermionic sector

qel

L

ΨT tel

R

Ψ ˜

B

bel

R

∆bR ∆bL ∆tL ∆tR ΨB YB, mYB YT , mYT Ψ ˜

T

Explicit breaking of SO(5) through Yukawas in composite sector YT, YB 20 new fermionic resonances

• 10 in the top sector
• 10 in the bottom sector

Model parameters (fermion sector) m∗ ∆tL, ∆tR, YT, mYT , ∆bL, ∆bR, YB, mYB

• Elementary(3rd) fermions mix with composites via link fields Ω1
• First two generation quarks and all leptons considered as in SM

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Fermionic sector mass spectrum Top and bottom sector ( ˜ X = X/m∗)

mtop = 172GeV m∗ ≃ 1TeV

Fermionic sector mass spectrum

m2

b ∝ ξ m2 ∗

2 ˜ ∆2

bL ˜

∆2

bR ˜

Y 2

B

m2

t ∝ ξ m2 ∗

2 ˜ ∆2

tL ˜

∆2

tR ˜

Y 2

T

m2

T1 ≃ m2 ∗

2 ( 2 + ˜ M2

YT − ˜

MYT √ 4 + ˜ M2

YT

) m2

B1 ≃ m2 ∗

2 ( 2 + ˜ M2

YB − ˜

MYB √ 4 + ˜ M2

YB

) Fermionic resonance mass ≃1 TeV

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

Recapping: Higgs sector at a glance

• Four PNGBs in the vector representation of SO(4) one of

which is composite Higgs boson

• Physical Higgs particle acquires mass through one-loop

generated potential (Coleman-Weinberg)

• 4DCHM choice for fermionic sector gives finite potential, i.e.,

from location of minimum one extracts mH and ⟨h⟩

• Partial compositness:
• 1. SM gauge/fermion states couple to Higgs via mixing with

composite particles

• 2. 4DCHM gauge/fermion resonances couple to Higgs directly
• Zoo of new fermions and gauge bosons has potential to alter

Higgs couplings via mixing and/or loops

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

4DCHM

• For natural choice of parameters, mH consistent with 125 GeV
• 500

1000 1500 2000 2500 50 100 150 200 250 300 mfGeV mHGeV

• 500

1000 1500 2000 2500 50 100 150 200 250 mfGeV mHGeV

Masses of lightest fermionic partners f as a function of Higgs mass with 165 GeV ≤ mt ≤ 175 GeV, for (left) f = 500 GeV and (right) f = 800 GeV. Fermionic parameters are varied between 0.5 and 3

• TeV. Gauge contribution corresponds to MZ ′,W ′ = 2.5 TeV. (From

De Curtis, Redi, Tesi (arXiv:1110.1613).)

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Particle spectrum

The particle spectrum of the 4DCHM is

• SM leptons: e, µ, τ, and νe, νµ, ντ
• SM quarks; u, d, c, s, t, b
• SM gauge bosons: γ, Z 0, W ±, g
• 5 extra neutral gauge bosons: Z ′

i=1,...,5

• 3 extra charged gauge bosons: W ′±

i=1,2,3

• 8 extra charged 2/3 fermions: t′

i=1,...,8

• 8 extra charged -1/3 fermions: b′

i=1,...,8

• 2 charged 5/3 fermions: T ′

i=1,2

• 2 charged -4/3 fermions: B′

i=1,2

• Higgs boson

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Calculation

• More than 3000 Feynman rules ! A non-automated approach

would have been impossible

• Implementation of the 4DCHM in numerical tools:
• LanHEP for automated generation of Feynman rules A.Semenov

(arXiv:1005.1909)

• CalcHEP for automated calculation of physical observables

(cross sections, widths...) Belyaev, Christensen and Pukhov

(arXiv:1207.6082)

• Uploaded onto HEPMDB: http://hepmdb.soton.ac.uk/

under 4DCHM(HAA+HGG)

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Experimental constraints

• Implemented outside LanHEP/CalcHEP tools:
• α, MZ and GF
• Top, bottom and Higgs masses (same for 4DCHM & SM)

165 GeV ≤ mt ≤ 175 GeV 2 GeV ≤ mb ≤ 6 GeV 124 GeV ≤ mH ≤ 126 GeV

• Zb¯

b and Zt¯ t couplings

• Standalone Mathematica program performs scans on model

parameters

• Output can be read by LanHEP/CalcHEP to compute

physical observables

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

Define benchmarks

• 4DCHM parameter scans with f and g∗ fixed to:

(a) f = 0.75 TeV and g∗ = 2 (b) f = 0.8 TeV and g∗ = 2.5 (c) f = 1 TeV and g∗ = 2 (d) f = 1 TeV and g∗ = 2.5 (e) f = 1.1 TeV and g∗ = 1.8 (f) f = 1.2 TeV and g∗ = 1.8

• All other parameters varied:

0.5 TeV ≤ m∗, ∆tL, ∆tR, YT, MYT , YB, MYB ≤ 5 TeV 0.05 TeV ≤ ∆bL , ∆bR ≤ 0.5 TeV

• Total number of random points for each (f , g∗): ≈ 15M.
• Survival rate of O(10−5), variations amongst (f , g∗)s ≤ 30%
• 4DCHM highly constrained, phenomenologically interesting

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

Limits on heavy gauge bosons and fermions Call these Z ′, W ′, t′ and b′

• Bosons:
• 1. EWPTs (LEP, SLC & Tevatron) sets MZ ′,W ′ ≥ 1.5 TeV
• 2. Z ′, W ′ have poor lepton rates, hence no stronger limits from

direct searches (Tevatron & LHC)

• Fermions:
• 1. Direct searches (LHC) more constraining, assume pair

production (7 TeV)

• 2. CMS with 5 fb−1, BR(t′ → W +b) = 100%

CMS with 1.14 fb−1, BR(t′ → Zt) = 100%

• 3. CMS with 4.9 fb−1, BR(b′ → W −t) = 100%

CMS with 4.9 fb−1, BR(b′ → Zb) = 100%

• 4. Limit on T1 and B1 about 400 GeV, but it could be slightly

lower

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

Limits on mT1

200 300 400 500 600 700 800 106 104 0.01 1 100 m T1GeV ΣppT1T1BrT1Wb2pb 200 300 400 500 600 700 800 106 104 0.01 1 100 m T1GeV ΣppT1T1BrT1Zt2pb

Black line is cross section assuming 100% BRs, red line is 95% CL

• bserved limit and purple circles are 4DCHM points for f = 1 TeV

and g∗ = 2. Dotted-red line corresponds to extrapolations of experimental results.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

Limits on mB1

200 300 400 500 600 700 800 108 106 104 0.01 1 100 m B1GeV ΣppB1B1BrB1Wt2pb 200 300 400 500 600 700 800 108 106 104 0.01 1 100 m B1GeV ΣppB1B1BrB1Zb2pb

Black line is cross section assuming 100% BRs, red line is 95% CL

• bserved limit and purple circles are 4DCHM points for f = 1 TeV

and g∗ = 2. Dotted-red line corresponds to extrapolations of experimental results.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• Define R (µ) parameters, i.e., the observed events over SM:

RYY = σ(pp → HX)|4DCHM × BR(H → YY )|4DCHM σ(pp → HX)|SM × BR(H → YY )|SM YY = γγ, b¯ b, WW , ZZ (neglect τ +τ −)

• Relevant hadro-production processes:

gg → H (gluon − gluon fusion) q¯ q(′) → VH (Higgs − strahlung) V = W , Z

• Convenient to re-write (valid at LO and HO QCD)

RY ′Y ′

YY

= Γ(H → Y ′Y ′)|4DCHM × Γ(H → YY )|4DCHM Γ(H → Y ′Y ′)|SM × Γ(H → YY )|SM Γtot(H)|SM Γtot(H)|4DCHM Y ′Y ′ = gg, VV

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

ATLAS CMS Rγγ 1.8 ± 0.4 1.564+0.460

−0.419

RZZ 1.0 ± 0.4 0.807+0.349

−0.280

RWW 1.5 ± 0.6 0.699+0.245

−0.232

Rbb −0.4 ± 1.0 1.075+0.593

−0.566

Summary of pre-Moriond LHC measurements of some R parameters from latest ATLAS (ATLAS-CONF-2012-170) and CMS (CMS-PAS-HIG-12-045) data.

• For YY = γγ, WW , ZZ take Y ′Y ′ = gg while for YY = b¯

b take Y ′Y ′ = VV

• Use f = 1 TeV and g∗ = 2 for illustration, features generic to

4DCHM

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• Mixing effects only: ZZ ∗ → 4ℓ and WW ∗ → 2ℓ2νℓ

(corrections to BRs different in 4DCHM)

• Both below 1 mostly, some points above, strong correlation

suggests common cause for effect

0.90 0.92 0.94 0.96 0.98 1.00 1.02 1.04 0.85 0.90 0.95 1.00 1.05

RΓΓ R VV

Correlation between Rγγ and RVV , VV = WW (red) and ZZ (purple), for f = 1 TeV and g∗ = 2. All points compliant with direct searches for t′s and b′s.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• Introduce reduced couplings a la LHC HXSWG (A. Denner et al

(arXiv:1209.0040))

• We can cast Rs in terms of κ’s

RY ′Y ′

YY

= κ2

Y ′κ2 Y

κ2

H

Y , Y ′ = b/τ/g/γ/V κ2

b/τ/g/γ/V = Γ(H → b¯

b/τ +τ −/gg/γγ/VV )|4DCHM Γ(H → b¯ b/τ +τ −/gg/γγ/VV )|SM κ2

H = Γtot(H)|4DCHM

Γtot(H)|SM .

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• κH smaller: b − b′ mixing, all Higgs rates rise

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.70 0.75 0.80 0.85 0.90

m T1TeV ΚH

2

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.70 0.75 0.80 0.85 0.90

m B1TeV ΚH

2

Distribution of κH versus (left) mT1 and (right) mB1 for f = 1 TeV and g∗ = 2. Regions to left of vertical dashed-red lines excluded by t′ and b′ direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• κg smaller: t − t′ mixing, t-loop dominant
• Subtle cancellations/compensations

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.75 0.80 0.85 0.90 0.95 1.00 1.05

m T1TeV Κg

2

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.75 0.80 0.85 0.90 0.95 1.00 1.05

m B1TeV Κg

2

Distribution of κg versus (left) mT1 and (right) mB1 for f = 1 TeV and g∗ = 2. Regions to left of vertical dashed-red lines excluded by t′ and b′ direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• κγ also smaller (less though): t − t′ mixing, t-loop

subdominant

• Again, subtle cancellations/compensations

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.956 0.958 0.960 0.962 0.964 0.966 0.968

m T1TeV ΚΓ

2

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.956 0.958 0.960 0.962 0.964 0.966 0.968

m B1TeV ΚΓ

2

Distribution of κγ versus (left) mT1 and (right) mB1 for f = 1 TeV and g∗ = 2. Regions to left of vertical dashed-red lines excluded by t′ and b′ direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• T1 and B1 masses play significant role, revisit Rγγ
• Leakage of points towars large Rγγ > 1 at small masses
• Asymptotic result for mT1,B1 → ∞ can be wrong by 10+%

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7

m T1TeV RΓΓ

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7

m B1TeV RΓΓ

Distributions of Rγγ versus (left) mT1 and (right) mB1 for f = 1 TeV and g∗ = 2. Regions to left of vertical dashed-red lines excluded by t′ and b′ direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• Compare all benchmarks to SM & data

−1.0 −0.5 0.0 0.5 1.0 1.5 2.0 R H→ZZ H→W + W − H→γγ H→b¯ b

ATLAS CMS f =0.75 TeV, g ∗ =2.00 f =0.80 TeV, g ∗ =2.50 f =1.00 TeV, g ∗ =2.00 f =1.00 TeV, g ∗ =2.50 f =1.10 TeV, g ∗ =1.80 f =1.20 TeV, g ∗ =1.80

4DCHM against data for all (f , g∗) benchmarks. Points compliant with t′ and b′ direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• Perform χ2 fit and compare to SM, can be better

1.125 1.25 1.375 1.5 1.625 1.75

χ2 /dof

9.0 10.0 11.0 12.0 13.0 14.0

χ2

f =0.75 TeV, g ∗ =2.00 f =0.80 TeV, g ∗ =2.50 f =1.00 TeV, g ∗ =2.00 f =1.00 TeV, g ∗ =2.50 f =1.10 TeV, g ∗ =1.80 f =1.20 TeV, g ∗ =1.80 Standard Model

4DCHM χ2 fits for all benchmarks in (f , g∗). Line is SM. Points compliant with t′ and b′ direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• Add m ˜

T1 > 600 GeV (no limits on m˜ B1)

1.125 1.25 1.375 1.5 1.625 1.75

χ2 /dof

9.0 10.0 11.0 12.0 13.0 14.0

χ2

f =0.75 TeV, g ∗ =2.00 f =0.80 TeV, g ∗ =2.50 f =1.00 TeV, g ∗ =2.00 f =1.00 TeV, g ∗ =2.50 f =1.10 TeV, g ∗ =1.80 f =1.20 TeV, g ∗ =1.80 Standard Model

4DCHM χ2 fits for all benchmarks in (f , g∗). Line is SM. Points compliant with t′ and b′ plus ˜ T1 direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LHC results

• After Moriond updates

−1.0 −0.5 0.0 0.5 1.0 1.5 2.0 µ H→ZZ H→W + W − H→γγ H→b¯ b

ATLAS CMS f =0.75 TeV, f =0.80 TeV, f =1.00 TeV, f =1.10 TeV, f =1.20 TeV, 1.25 1.375 1.5 1.625 1.75 1.875

χ2 /dof

10.0 11.0 12.0 13.0 14.0 15.0

χ2 f =0.75 TeV, f =0.80 TeV, f =1.00 TeV, f =1.10 TeV, f =1.20 TeV, Standard Model

4DCHM against data (left) and χ2 fits (right) for all benchmarks in (f , g∗). Line is SM. Points compliant with t′ and b′ plus ˜ T1 direct searches.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LC results

Higgs-strahlung (ZH)

• Production cross section affected by Z ′s: define R = σ4DCHM

σSM

• Visible at higher LC energies, needs Z ′s to be wide

0.85 0.9 0.95 1 1.05 1.1 1.15 1.2 1.25 1.3 500 1000 1500 f=800 GeV, gρ=2.5 250 GeV 500 GeV 1000 GeV ΓZ3 (GeV) R 0.85 0.9 0.95 1 1.05 1.1 1.15 1.2 1.25 1.3 500 1000 1500 f=1000 GeV, gρ=2 ΓZ3 (GeV) R

Corrections induced by mixing plus Z3 exchange as a function of its width for benchmarks (b) (left) and (c) (right).

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LC results

Higgs-strahlung times BRs

• Take low energies, 250 and 500 GeV, and look at leading

ζ = v2/f 2 corrections

• Couplings rescale simply:

gSM

HVV

g4DCHM

HVV

= √1 − ζ,

gSM

Hff

g4DCHM

Hff

= 1−2ζ

√1−ζ

ΜVV ΜΓΓ Μbbgg ΣZH bb WW ZZ ΓΓ gg 400 600 800 1000 1200 1400 1600 0.2 0.4 0.6 0.8 1.0 1.2 f GeV Μi ILC 250 GeV ΣZHWW Bri ΜVV ΜΓΓ Μbbgg ΣZH bb WW ZZ ΓΓ gg 400 600 800 1000 1200 1400 1600 0.2 0.4 0.6 0.8 1.0 1.2 f GeV Μi ILC 500 GeV ΣZH WWBri

WW , ZZ (red), γγ (black) and b¯ b/gg (blue) signal strength as function of f . In green ratio of inclusive ZH cross sections. Horizontal for expected accuracies σ× BR for a 250 GeV and fb−1 (left) and 500 GeV and fb−1 (right) LC.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LC results

• Can disentangle model via couplings (use proper benchmarks)

0.7 0.8 0.9 1 1.1 1.2 1.3 0.6 0.8 1 1.2 1.4 Higgs-strahlung (500 GeV) µWW µbb 0.7 0.8 0.9 1 1.1 1.2 1.3 0.6 0.8 1 1.2 1.4 Higgs-strahlung (500 GeV) µZZ µgg 0.75 0.8 0.85 0.9 0.95 1 1.05 1.1 1.15 1.2 1.25 0.8 0.9 1 1.1 1.2 VBF (1000 GeV) µWW µbb 0.75 0.8 0.85 0.9 0.95 1 1.05 1.1 1.15 1.2 1.25 0.8 0.9 1 1.1 1.2 VBF (1000 GeV) µZZ µgg

Correlations among Rs for HS (top) and VBF (bottom), with f = 800 GeV, g∗ = 2.5 (green) and f = 1000 GeV, g∗ = 2 (blue).

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LC results

Top Yukawa coupling from e+e− → t¯ tH

• Z ′s & t′s in propagators other than mixing effects
• Optimistic, good experimental accuracy: 35%(9%) at a 500

GeV and fb−1(1000 GeV and fb−1) LC.

0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1 1.5 2 2.5 3 3.5 σ(ttH) × BR(bb) µbb (1000 GeV) µbb (500 GeV) 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1 1.5 2 2.5 3 3.5 σ(ttH) × BR(bb), no extra t’s µbb (1000 GeV) µbb (500 GeV)

Correlations among Rbbs with the inclusion of t′ quarks (left) and without these (right), with f = 800 GeV, g∗ = 2.5 (green) and f = 1000 GeV, g∗ = 2 (blue).

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

LC results

Higgs self-coupling from Z(→ ℓ+ℓ−)HH(→ 4b) and ν¯ νHH(→ 4b)

• Rescaling is λ4DCHM = λSM

1−2ζ √1−ζ

• Difficult, poor experimental accuracy: 64%(38%) for

ZHH(ν¯ νHH) at a 500 GeV and fb−1(1000 GeV and fb−1) LC.

0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 0.4 0.6 0.8 1 1.2 1.4 1.6 µZbbbb µννbbbb

Correlations among RZb¯

bb¯ b and Rνe ¯ νeb¯ bb¯ b for two energy and

luminosity stages, with f = 800 GeV, g∗ = 2.5 (green) and f = 1000 GeV, g∗ = 2 (blue).

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Conclusions

• 4DCHM could provide explanation to LHC data pointing to

Higgs discovery at 125–126 GeV (some better χ2’s than SM)

• Substantial parameter space scans show possible moderate

enhancement in H → γγ, i.e., Rγγ ≈ 1.1

• Rγγ could grow to ≈ 1.3, if t′ and b′ masses just below results
• f our extrapolations
• 4DCHM main effect is reduction of Hbb (b-b′ mixing),

smaller Γtot(H)

• Competing effects from Hgg also smaller, Hγγ almost stable
• Relevant by-product: approximations assuming t′ and b′

masses infinite cannot be accurate

• Composite Higgs solution to LHC data seemingly possible and

wanting light fermionic partners

• Revisit t′, b′ searches in 4DCHM dependent way (in progress)
• Future LC ideal to test modified hb¯

b, hW +W −, hZZ etc.

• LC can also probe altered top Yukawa and possibly λ
• LC sensitive to virtual t′, Z ′ (W ′ less) in Higgs processes

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• SM left doublet can be embedded in (2, 2)2/3 ∈ ΨT as,

52/3 = (2, 2)2/3 ⊕ (1, 1)2/3, (2, 2)2/3 = ( T T 5

3

B T 2

3

)

• tR coupled to singlet in different 52/3 representation, Ψ

T

• bR coupled to singlet in a 5−1/3 (Ψ

B)

• To generate b Yukawa it is necessary (by U(1)X symmetry) to

couple SM doublet to second doublet in 5−1/3 (ΨB) which contains 5−1/3 = (2, 2)−1/3⊕(1, 1)−1/3, (2, 2)−1/3 = ( B− 1

3

T ′ B− 4

3

B′ )

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

Lagrangian (gauge and fermions) Lgauge = f 2

1

4 Tr|DµΩ1|2 + f 2

2

2 (DµΦ2)(DµΦ2)T − 1 4ρ

˜ A µνρ ˜ Aµν − 1

4F

˜ W µν F ˜ W µν

(↑ composite ↑ elementary kinetic terms) Lfermions = Lel

fermions + (∆tL¯

qel

L Ω1ΨT + ∆tR¯

tel

R Ω1Ψ ˜ T + h.c.)

+ ¯ ΨT(i ˆ D

˜ A − m∗)ΨT + ¯

Ψ ˜

T(i ˆ

D

˜ A − m∗)Ψ ˜ T

− (YT ¯ ΨT,LΦT

2 Φ2Ψ ˜ T,R + MYT ¯

ΨT,LΨ ˜

T,R + h.c.) + (T → B).

• Covariant derivatives

DµΩ1 = ∂µΩ1 − ig0 ˜ W Ω1 + ig∗Ω1˜ A, DµΦ2 = ∂µΦ2 − ig∗˜ AΦ2 ˜ W [˜ A] mediators of SU(2)L ⊗ U(1)Y [SO(5) ⊗ U(1)X]

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• SO(5) ⊗ U(1)X → SO(4) ⊗ U(1)X from SO(5) vector

Φ2 = ϕ0ΩT

2

where ϕi

0 = δi5.

• ΨT,B and ˜

ΨT,B fundamental representations of SO(5) [embedding composite fermions]

• SM third generation quarks embedded in incomplete

representation of SO(5) ⊗ U(1)X to give correct Y = T 3R + X under SU(2)L ⊗ U(1)Y

• ∆t,b/L,R mixing parameters between elementary and

composite sectors

• YT,B, MYT,B Yukawa parameters of composite sector
• m∗ mass parameter of fermionic resonances

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

Higgs interactions In unitary gauge link fields Ωn = 1 + i sn

h Π + cn−1 h2 Π2,

sn = sin(fh/f 2

n ),

cn = cos(fh/f 2

n ),

h = √ hˆ

ahˆ a, 2

∑

n=1

1 f 2

n

= 1 f 2 Identify Π = √ 2hˆ

aT ˆ a GB matrix and T ˆ a’s SO(5)/SO(4) broken

generators (ˆ a = 1, 2, 3, 4) Π = √ 2hˆ

aT ˆ a = −i

( 04 h −hT ) , hT = (h1, h2, h3, h4) . Relate h to usual SM SU(2)L Higgs doublet H = 1 √ 2 ( −ih1 − h2 −ih3 + h4 ) .

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

Use Ωn = 1 + δΩn to define Higgs interactions Lgauge,H = − f 2

1

2 g0g∗Tr [ ˜ W δΩ1˜ A + ˜ W ˜ AδΩT

1 + ˜

W δΩ1˜ AδΩT

1

] + f 2

2

2 g2

∗

[ ϕT

0 δΩT 2 ˜

A˜ Aϕ0 + ϕT

0 ˜

A˜ AδΩ2ϕ0 + ϕT

0 δΩT 2 ˜

A˜ AδΩ2ϕ0 ] , Lferm,H =∆tL¯ qel

L δΩ1ΨT + ∆tR¯

tel

R δΩ1Ψ ˜ T

− YT ¯ ΨT,L(ϕT

0 ϕ0δΩT 2 + δΩ2ϕ0ϕT 0 + δΩ2ϕT 0 ϕ0δΩT 2 )Ψ ˜ T,R

+ (T → B) + h.c.

• In unitary gauge h1, h2, h3 eaten by W ±, Z and h4 is H
• Expand δΩ1,2 to first order in H to extract gHViVj and gHfi¯

fj

• Couplings to mass eigenstates obtained after diagonalization

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

Subtle loop cancellations/compensations

• Consider loop diagrams

H → γγ induced by fermionic loop H → γγ induced by a charged vector loop

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Consider HViVi charged couplings (SM-like and Extra)

0.955 0.96 0.965 0.97 0.975 0.98 0.985 0.99 1.0 1.5 2.0 1.8 1.9 2.0 2.1 2.2 2.3 2.4

fTeV g gH W W gH W W

SM

2.3 2.25 2.2 2.15 2.1 1.0 1.5 2.0 1.8 1.9 2.0 2.1 2.2 2.3 2.4

fTeV g gH W 2 W 2 gH W W

SM

1.15 1.175 1.2 1.225 1.25 1.275 1.3 1.325 1.0 1.5 2.0 1.8 1.9 2.0 2.1 2.2 2.3 2.4

fTeV g gH W 3 W 3 gH W W

SM

Couplings of Higgs boson in 4DCHM to charged gauge bosons (W left, W2 middle, W3 right) normalised to SM values.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Consider HViVi neutral couplings (SM-like and Extra)

0.96 0.965 0.97 0.975 0.98 0.985 0.99 0.995 1.0 1.5 2.0 1.8 1.9 2.0 2.1 2.2 2.3 2.4

fTeV g gH Z Z gH Z Z

SM

0.58 0.56 0.54 0.52 0.5 1.0 1.5 2.0 1.8 1.9 2.0 2.1 2.2 2.3 2.4

fTeV g gH Z2 Z2 gH Z Z

SM

1.75 1.7 1.65 1.6 1.55 1.0 1.5 2.0 1.8 1.9 2.0 2.1 2.2 2.3 2.4

fTeV g gH Z3 Z3 gH Z Z

SM

Couplings of Higgs boson in 4DCHM to neutral gauge bosons (Z left, Z2 middle, Z3 right) normalised to SM values.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Consider Hfi¯

fi couplings (SM-like)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.75 0.80 0.85 0.90 0.95

m T1TeV gH t t gH t t

SM

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.60 0.65 0.70 0.75 0.80 0.85 0.90 0.95

m B1TeV gH b b gH b b

SM

Couplings of Higgs boson in 4DCHM to top (left) and bottom (right) quarks normalised to SM values vs mT1 and mB1 for f = 0.8 TeV and g∗ = 2.5.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Consider Hfi¯

fi couplings (extra light)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 0.4 0.2 0.0 0.2 0.4

m T1TeV gH T1 T1 gH t t

SM

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.5 1.0 0.5 0.0 0.5 1.0 1.5

m B1TeV gH B1 B1 gH b b

SM

Couplings of Higgs boson in 4DCHM to lightest heavy top (left) and bottom (right) quarks normalised to SM values vs mT1 and mB1 for f = 0.8 TeV and g∗ = 2.5.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Consider Hfi¯

fi couplings (extra heavy)

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.0 0.5 0.0 0.5 1.0

m T1TeV gH T2 T2 gH t t

SM

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.0 0.5 0.0 0.5 1.0

m T1TeV gH T3 T3 gH t t

SM

0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.0 0.5 0.0 0.5 1.0

m T1TeV gH T4 T4 gH t t

SM

Couplings of Higgs boson in 4DCHM to second (left), third (middle) and fourth (right) lightest heavy top quarks normalised to SM values vs mT1 and mB1 for f = 0.8 TeV and g∗ = 2.5.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Loop compensations between SM-like and Extra quarks (gg)
• 0.2
• 0.1

0.1 0.2 0.3 0.4 0.5 0.6 400 600 800 1000 1200 H → gg B’s T’s mT1 [GeV] A4DCHM / ASM

• 0.2

0.2 0.4 0.6 0.8 1 1.2 400 600 800 1000 1200 H → gg Total SM-like Extra mT1 [GeV] A4DCHM / ASM

Loop contributions to H → gg in 4DCHM normalised to SM vs mT1 for f = 0.8 TeV and g∗ = 2.5.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Loop compensations between SM-like and Extra quarks (γγ)
• 0.14
• 0.12
• 0.1
• 0.08
• 0.06
• 0.04
• 0.02

0.02 0.04 400 600 800 1000 1200 H → γγ B’s T’s W’s mT1 [GeV] A4DCHM / ASM

• 0.2

0.2 0.4 0.6 0.8 1 1.2 400 600 800 1000 1200 H → γγ Total SM-like Extra mT1 [GeV] A4DCHM / ASM

Loop contributions to H → γγ in 4DCHM normalised to SM vs mT1 for f = 0.8 TeV and g∗ = 2.5.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Loop cancellations between Extra quarks
• 0.2
• 0.1

0.1 0.2 0.3 0.4 0.5 0.6 400 600 800 1000 1200 H → gg T1 T2 T3 T4 mT1 [GeV] A4DCHM / ASM

• 0.14
• 0.12
• 0.1
• 0.08
• 0.06
• 0.04
• 0.02

0.02 0.04 400 600 800 1000 1200 H → γγ T1 T2 T3 T4 mT1 [GeV] A4DCHM / ASM

Loop contributions to H → gg (left) and γγ (right) in 4DCHM normalised to SM amplitude vs mT1 for f = 0.8 TeV and g∗ = 2.5.

Outline 4DCHM Implementation LHC results LHC results LC results Conclusions Backup slides Backup slides

Backup slides

• Outlook:
• 1. ATLAS & CMS allow for κH ≥ 1
• 2. Need κH < 1 in 4DCHM (also useful for other BSMs, e.g.,

SUSY, 2HDMs - Higgs mixing)

γ

κ

1 2

g

κ

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

CMS Preliminary

• 1

12.2 fb ≤ = 8 TeV, L s

• 1

5.1 fb ≤ = 7 TeV, L s

BSM

BR

0.0 0.2 0.4 0.6 0.8 1.0

g

κ

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0

CMS Preliminary

• 1

12.2 fb ≤ = 8 TeV, L s

• 1

5.1 fb ≤ = 7 TeV, L s

CMS fits to κg and κγ for (left) κH = 1 and (right) κH > 1.
