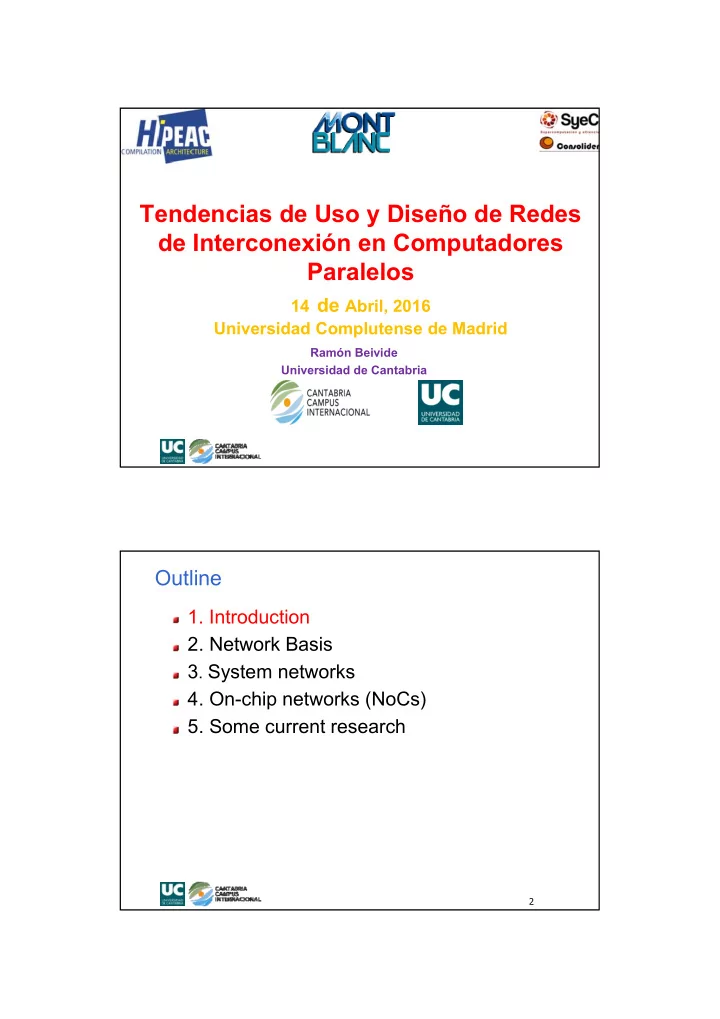

Ramón Beivide Universidad de Cantabria

Tendencias de Uso y Diseño de Redes de Interconexión en Computadores Paralelos

14 de Abril, 2016 Universidad Complutense de Madrid

2

Outline

  • 1. Introduction
  • 2. Network Basis
  • 3. System networks
  • 4. On-chip networks (NoCs)
  • 5. Some current research
slide-2
SLIDE 2
  • 1. Intro: MareNostrum

3

  • 1. Intro: MareNostrum BSC,

Infiniband FDR10 non-blocking Folded Clos (up to 40 racks)

4

36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10

Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch

Infiniband 648-port FDR Core switch

Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch

36-port FDR10 36-port FDR10

560 560 560 560 560 560

Leaf switches 40 iDataPlex racks / 3360 dx360 M4 nodes

18 18 18 18 12

3 links to each core 3 links to each core 3 links to each core 3 links to each core 2 links to each core

FDR10 links

18 18 18 18 12 3 links to each core 3 links to each core 3 links to each core 3 links to each core 2 links to each core 18 18 18 18 12

18 18 18 18 12

Latency: 0,7 μs Bandwidth: 40Gb/s

slide-3
SLIDE 3

5

  • 1. Intro: Infiniband core switches
  • 1. Intro: Cost dominated by (optical) wires

6

slide-4
SLIDE 4

7

  • 1. Intro: Blades

8

  • 1. Intro: Blades
slide-5
SLIDE 5

9

  • 1. Intro: Multicore E5-2670 Xeon Processor
  • 1. Intro: A row of servers in a Google DataCenter, 2012.

10

slide-6
SLIDE 6

11

  • 3. WSCs Array: Enrackable boards or blades + rack router

To other clusters Figure 1.1: Sketch of the typical elements in warehouse-scale systems: 1U server (left), 7’ rack with Ethernet switch (middle), and diagram of a small cluster with a cluster-level Ethernet switch/router (right).

12

  • 3. WSC Hierarchy
slide-7
SLIDE 7
  • 1. Intro: Cray Cascade (XC30, XC40)

13

14

  • 1. Intro: Cray Cascade (XC30, XC40)
slide-8
SLIDE 8

15

  • 1. Intro: An Architectural Model

Interconnection Network … M1 Mn S/R ATU S/R CPU1 … L/S L/S L/S L/S ATU … S/R S/R Interconnection Network Interconnection Network … M1 Mn S/R ATU S/R CPU1 CPUn … L/S L/S L/S L/S ATU … … … …

Interconnection Network

  • 1. Intro: What we need for one ExaFlop/s

16

Networks are pervasive and critical components in Supercomputers, Datacenters, Servers and Mobile Computers. Complexity is moving from system networks towards on-chip networks: less nodes but more complex

slide-9
SLIDE 9

17

Outline

  • 1. Introduction
  • 2. Network Basis

Crossbars & Routers Direct vs Indirect Networks

  • 3. System networks
  • 4. On-chip networks (NoCs)
  • 5. Some current research

18

  • 2. Network Basis

All networks based on Crossbar switches

  • Switch complexity increases quadratically with the number of

crossbar input/output ports, N, i.e., grows as O(N2)

  • Has the property of being non-blocking (N! I/O permutations)
  • Bidirectional for exploiting communication locality
  • Minimize latency & maximize throughput

7 6 5 4 3 2 1 7 6 5 4 3 2 1 7 6 5 4 3 2 1 7 6 5 4 3 2 1

slide-10
SLIDE 10

19

  • 2. Blocking vs. Non-blocking
  • Reduction cost comes at the price of performance

– Some networks have the property of being blocking (Not N!) – Contention is more likely to occur on network links

› Paths from different sources to different destinations share one or more links

blocking topology

X

non-blocking topology

7 6 5 4 3 2 1 7 6 5 4 3 2 1 7 6 5 4 3 2 1 7 6 5 4 3 2 1 20

  • 2. Swith or Router Microarchitecture

Routing Control Unit Header Flit Forwarding Table Input buffers DEMUX Input buffers DEMUX Physical channel Link Control Link Control Physical channel MUX

CrossBar

DEMUX MUX DEMUX Crossbar Control Stage 1 Output buffers MUX Link Control Output buffers MUX Link Control Physical channel Physical channel Stage 2 Stage 3 Stage 4 Stage 5 Arbitration Unit Output Port # IB (Input Buffering) RC (Route Computation) SA (Switch Arb) ST (Switch Traversal) OB (Output Buffering)

IB IB IB RC IB SA IB IB ST ST IB IB ST IB IB ST OB OB OB OB Packet header Payload fragment Payload fragment Payload fragment

Pipelined Switch Microarchitecture

Matching the throughput

  • f the internal switch

datapath to the external link BW is the goal

slide-11
SLIDE 11

21

  • 2. Network Organization

Switches End Nodes

Indirect (Centralized) and Direct (Distributed) Networks

  • 2. Previous Myrinet core switches (Indirect,

Centralized)

22

slide-12
SLIDE 12
  • 2. IBM BG/Q (Direct, Distributed)

23 24

  • 2. Network Organization

64-node system with 8-port switches, c = 4 32-node system with 8-port switches

  • As crossbars do not scale they need to be interconnected for

servicing an increasing number of endpoints.

  • Direct (Distributed) vs Indirect (Centralized) Networks
  • Concentration can be used to reduce network costs

– “c” end nodes connect to each switch – Allows larger systems to be built from fewer switches and links – Requires larger switch degree

slide-13
SLIDE 13

25

Outline

  • 1. Introduction
  • 2. Network Basis
  • 3. System networks

Folded Clos Tori Dragonflies

  • 4. On-chip networks (NoCs)
  • 5. Some current research
  • 3. MareNostrum BSC,

Infiniband FDR10 non-blocking Folded Clos (up to 40 racks)

26

36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10 36-port FDR10

Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch

Infiniband 648-port FDR Core switch

Mellanox 648-port IB Core Switch Mellanox 648-port IB Core Switch

36-port FDR10 36-port FDR10

560 560 560 560 560 560

Leaf switches 40 iDataPlex racks / 3360 dx360 M4 nodes

18 18 18 18 12

3 links to each core 3 links to each core 3 links to each core 3 links to each core 2 links to each core

FDR10 links

18 18 18 18 12 3 links to each core 3 links to each core 3 links to each core 3 links to each core 2 links to each core 18 18 18 18 12

18 18 18 18 12

Latency: 0,7 μs Bandwidth: 40Gb/s

slide-14
SLIDE 14

27

  • 3. Network Topology

Centralized Switched (Indirect) Networks

16 port Crossbar network

7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 28

  • 3. Network Topology

Centralized Switched (Indirect) Networks

16 port, 3-stage Clos network

7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 15 14 13 12 11 10 9 8

slide-15
SLIDE 15

29

  • 3. Network Topology

Centralized Switched (Indirect) Networks

16 port, 5-stage Clos network

7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 30

  • 3. Network Topology

Centralized Switched (Indirect) Networks

16 port, 7 stage Clos network = Benes topology

7 6 5 4 3 2 1 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 15 14 13 12 11 10 9 8

slide-16
SLIDE 16

31

  • 3. Network Topology
  • Bidirectional MINs
  • Increase modularity
  • Reduce hop count, d
  • Folded Clos network

– Nodes at tree leaves – Switches at tree vertices – Total link bandwidth is constant across all tree levels, with full bisection bandwidth

Folded Clos = Folded Benes <> Fat tree network !!!

Centralized Switched (Indirect) Networks

7 6 5 4 3 2 1 15 14 13 12 11 10 9 8

Network Bisection

32

  • 3. Other DIRECT System Network Topologies

Distributed Switched (Direct) Networks

2D torus of 16 nodes hypercube of 16 nodes (16 = 24, so n = 4) 2D mesh or grid of 16 nodes

Network Bisection ≤ full bisection bandwidth!

slide-17
SLIDE 17

33

  • 3. IBM BlueGene/L/P Network

Prismatic 32x32x64 Torus (mixed-radix networks) BlueGene/P: 32x32x72 in maximum configuration Mixed-radix prismatic Tori also used by Cray

  • 3. IBM BG/Q

34

slide-18
SLIDE 18
  • 3. IBM BG/Q

35

36

3 .BG Network Routing

X Wires Y Wires Z Wires

Adaptive Bubble Routing ATC-UC Research Group

slide-19
SLIDE 19
  • 3. Fujitsu Tofu Network

37 38

  • 3. More Recent Network Topologies

Distributed Switched (Direct) Networks

  • Fully-connected network: all nodes are directly connected to

all other nodes using bidirectional dedicated links

6 2 4 5 7 1 3

slide-20
SLIDE 20
  • 3. IBM PERCS

39

  • 3. IBM PERCS

40

slide-21
SLIDE 21
  • 3. IBM PERCS

41

Organized as groups of routers Parameters:

  • a: Routers per group
  • p: Node per router
  • h: Global link per

router

  • Well-balanced

dragonfly [1] a = 2p =2h

  • 3. Dragonfly Interconnection Network

Inter-group

  • Global links
  • Complete graph

Intra-group

  • Local links
  • Complete graph
slide-22
SLIDE 22

Minimal routing

  • Longest path 3 hops:

local-global-local

  • Good performance under

UN traffic

Adversarial traffic [1]

  • ADV+N: Nodes in group i

send traffic to group i+N

  • Saturation of the global

link

  • 3. Dragonfly Interconnection Network

Source Node Destination Node Destination Group i+N Source Group i SATURATION

[1] J. Kim, W. Dally, S. Scott, and D. Abts. “Technology-driven, highly-scalable dragonfly topology.” ISCA ‘08.

Valiant Routing [2]

  • Randomly selects an

intermediate group to misroute packets

  • Avoids saturated

channel

  • Longest path 5 hops

local-global-local- global-local

  • 3. Dragonfly Interconnection Network

Source Node Destination Node Intermediate Group

[2] L. Valiant, “A scheme for fast parallel communication," SIAM journal on com- puting, vol. 11, p. 350, 1982.

slide-23
SLIDE 23

45

  • 3. Cray Cascade, electrical supernode

46

  • 3. Cray Cascade, system and routing
slide-24
SLIDE 24

47

Outline

  • 1. Introduction
  • 2. Network Basis
  • 3. System networks
  • 4. On-chip networks (NoCs)

Rings Meshes

  • 5. Some current research

SEM photo of local levels interconnect

  • 4. On-Chip local interconnects

48

slide-25
SLIDE 25

Global levels interconnect

  • 4. On-Chip global interconnects

49

  • 4. Metal Layers

50

slide-26
SLIDE 26
  • 4. Bumps & Balls

51

Multiple integration with 3D stacking…

  • 4. 3D (& 2.5D) Stacking & Silicon Photonics

3M, IBM team to develop 3D IC adhesive, EETimes India STMicroelectronics & CEA 52

slide-27
SLIDE 27
  • 4. Rings from ARM

53

  • 4. Rings from Intel

54

slide-28
SLIDE 28

55 Folded ring: Lower maximum physical link length

  • 4. Rings (Direct or Indirect?)
  • Bidirectional Ring networks (folded)

– N switches (3 × 3) and N bidirectional network links – Simultaneous packet transport over disjoint paths – Packets must hop across intermediate nodes – Shortest direction usually selected (N/4 hops, on average) – Bisection Bandwidth???

56

  • 4. Meshes and Tori

Distributed Switched (Direct) Networks

2D torus of 16 nodes 2D mesh or grid of 16 nodes

Network Bisection

slide-29
SLIDE 29
  • 4. Meshes from Tilera
  • 4. Mesh from Pythium Mars Architecture

These images were taken form the slides presented at Hot Chips 2015

  • L1:

– Separated L1 Icache and L1 Dcache – 32 KB Icache – 32 KB Dcache

  • 6 outstanding loads
  • 4 cycles latency from load to use
  • L2:

– 16 L2 banks of 4 MB – 32 MB of shared L2

  • L3:

– 8 L3 arrays of 16 MB – 128 MB of L3

  • Memory Controllers:

– 16 DDR3-1600 channels

  • 2x16-lane PCIe-3.0
  • Directory based cache coherency

– 16 Directory Control Unit (DCU)

  • MOESI like cache coherence protocol
slide-30
SLIDE 30
  • 4. Pythium Mars NoC

This image was taken form the slides presented at Hot Chips 2015

  • 6 bi-directional ports switches
  • 4 physical channels for cache coherence
  • 3 cycles for each hop
  • 384 GB/s each cell
  • 4. Meshes from Intel Knights Landing

60

Intel Knights Landing – 3 options

slide-31
SLIDE 31
  • 4. Intel Knights Landing

61

  • 4. Intel Knights Landing

62

slide-32
SLIDE 32
  • 4. Intel Knights Landing

63

  • 4. Intel Knights Landing

64

slide-33
SLIDE 33

65

Outline

  • 1. Introduction
  • 2. Network Basis
  • 3. System networks
  • 4. On-chip networks (NoCs)
  • 5. Some current research
  • 5. Some research on NUCA-based CMP Models

66

slide-34
SLIDE 34
  • 5. Full-system simulation including concentration

67

GEM5 + BookSim full‐system simulation platform parameters ISA X86 Number of Cores 64 CPU Model Out of Order CPU Frequency 2 GHz Cache Coherence Protocol MESI L1 Instructions Size 32 KB L1 Data Size 64 KB Shared distributed L2 256 KB per Core # Memory Controllers 4 Network Frequency 1 GHz Router Pipeline Stages 4 Physical Networks 3 Buffer Size 10 flits Link Width 64 bits Topologies 8x8 mesh, torus and FBFLY 4x4 FBFBLY with C=4 Applications used PARSEC benchmarks

  • 5. Topology comparison

Three different topologies are considered:

68

Topology 2D Mesh 2D Torus 2D FBFLY Degree (ports) ↓ Diameter (max. distance)↓ 2 Average distance ↓ Bisection Bandwidth (links)↑ Advantages Low degree Shortest links Low degree Symmetry Better properties Symmetry Best properties Larger concentration Disadvantages Largest distances Lowest BB Folding Deadlock Highest costs Non‐uniform link lengths

N=16

slide-35
SLIDE 35
  • 5. Full-system simulation

Normalized execution time and network latencies:

  • Average latency has impact in AMAT.
  • High latencies can degrade execution

times if the affected data are critical.

69

  • 5. Router Power and Area

Router leakage power and area evaluation:

  • Buffers are the most consuming part of the router.
  • Crossbars and allocators grew quadratically with the number of

ports.

  • The load in these simulations is low. Hence, the leakage power is

the dominant one.

70

slide-36
SLIDE 36
  • 5. Router Power and Area

Network leakage power evaluation:

  • FBFLY can manage higher concentrations because its higher BB.

71

  • 5. OmpSs vs. pThreads

72
