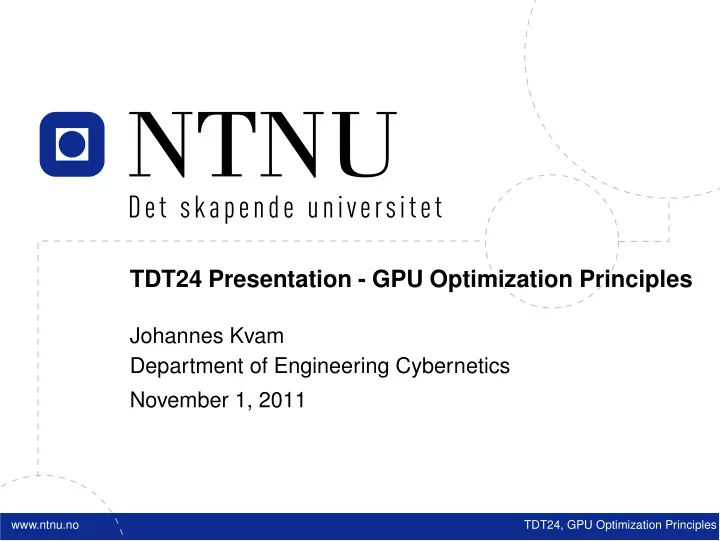

TDT24 Presentation - GPU Optimization Principles

Johannes Kvam Department of Engineering Cybernetics November 1, 2011

www.ntnu.no TDT24, GPU Optimization Principles

2

GPU Optimization Principles

— Paper studies optimizations in CUDA, using a GeForce 8800 — Demonstrates the optimization process on a matrix multiplication kernel — Ports several well known algorithms to CUDA and discusses their performance on the platform

www.ntnu.no TDT24, GPU Optimization Principles

3

GPU - Major optimization principles

— Zero-overhead thread scheduling to hide memory latency — Optimize use of off-chip memory — Optimize use of on-chip memory — Grouping threads to avoid SIMD penalties — Limited synchronization

www.ntnu.no TDT24, GPU Optimization Principles

4

Zero-Overhead Scheduling

— Run-time able to schedule warps of threads (subset of threads within a thread block executing on a SMP) with practically zero

• verhead

— Able to mask the latency of the slow global memory accesses — A high compute-to-memory-access ratio is necessary to avoid saturation of memory channels

www.ntnu.no TDT24, GPU Optimization Principles

5

Optimize use of off-chip memory

— Bandwidth to off-chip memory very high (86.4GB/s for GeForce 8800) — Can saturate if many threads request access within a short period of time — This bandwidth can only be obtained when accesses are contiguous 16-word lines — Optimizations to coalesce accesses and reuse data is hence important — Each non-contiguous access is a seperate DRAM access request

www.ntnu.no TDT24, GPU Optimization Principles

6

Optimize use of on-chip memory

— Threads can share data through shared on-chip memory — Shared memory is limited capacity low latency memory — Enables interthread data reuse — Less loads from high latency global memory An incremental increase in the use of registers or shared memory per thread can have degredating effects on performance as the memory usage may limit the number of threads able to execute simultaneously.

www.ntnu.no TDT24, GPU Optimization Principles

7

Grouping threads to avoid SIMD penalties

— CUDA follows the SPMD ( Single Program Multiple Data ) execution model — However, warps follow the SIMD ( Single Instruction Multiple Data ) execution model — Branching within warps are hence serialized, yielding a longer critical path of execution — Can be avoided by grouping threads so that all threads within the same warp follow the same path of execution

www.ntnu.no TDT24, GPU Optimization Principles

8

Limited synchronization

— Threads within the same block can synchronize using the

• n-chip shared memory

— Global synchronization however is only obtained when a kernel terminates — Limits the kind of parallelism that can be utilized within a single kernel call

www.ntnu.no TDT24, GPU Optimization Principles

9

Effects of memory optimizations

The number of thread blocks that are simultaneously resident on an SM is limited by whichever limit of registers, shared memory, or thread blocks is reached first. — Optimizations may hence have negative effects — Relativly easy to be “trapped” in local maximum — Widely varying configurations should therefore be applied

www.ntnu.no TDT24, GPU Optimization Principles

10

Compiler optimizations

— Complete loop unrolling yields a significant performance increase ( removes induction variable register and condition variable evaluation ) — Common case compiler optimization e.g. common subexpression elimination increases the number of registers as a side effect

www.ntnu.no TDT24, GPU Optimization Principles

11

Matrix-Matrix multiply results

www.ntnu.no TDT24, GPU Optimization Principles

12

Matrix-Matrix multiply results cont.

— The most efficient implementation used tiling and loop

• unrolling. Taking advantage of shared memory and coalesced

global memory accesses. Obtained 91.14 GFLOPS. — A second implementation with a prefetching scheme to improve occupancy as global memory latency was reduced. Implementation needed two more registers, which reduced the number of thread blocks that could be scheduled by each SM by 1. — Implementation obtained 87.10 GFLOPS (∼ −5%) with 2

3 the

number of active threads!

www.ntnu.no TDT24, GPU Optimization Principles

13

Article

Name - Optimization Principles and Application Performance Evaluation of a Multithreaded GPU using CUDA URL - http://dl.acm.org/citation.cfm?id=1345206.1345220
