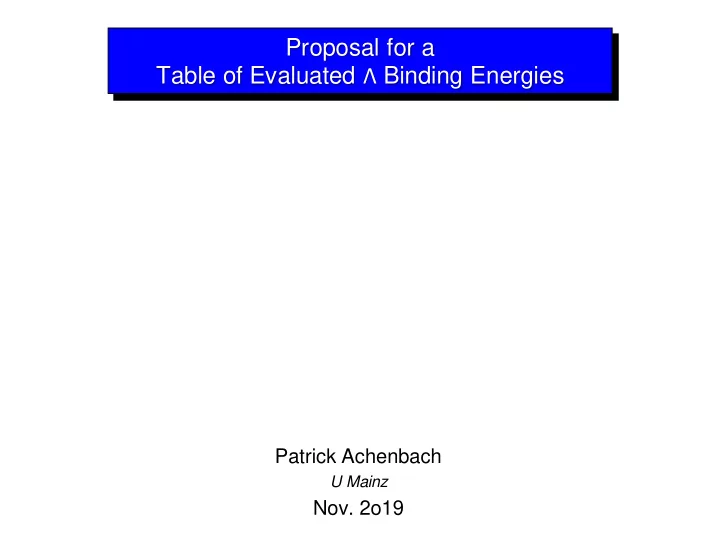

Proposal for a Table of Evaluated Λ Binding Energies

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

A medieval European vision of God measuring the Universe by an unknown painter ca. 1250

Collecting Data from Nature

The Review of Particle Physics detailing more than 38,000 measurements ca. 2016

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Status Quo in Hypernuclear Physics

• Different, not fully compatible, compilations of Λ binding energies exist
• Masses, spins, excited states, and lifetimes even more scattered
• Individual authors and experiments do averages, reviews and selections
• Theoreticians sometimes work with only one set of experimental data
• Is the community satisfied with the current data situation?
• Is this community not interested in an evaluated table as a reference?
• What is this community recommending in case of disputed values?

The three wise monkeys at the Tōshō-gū shrine in Nikkō, Japan: "see no evil, hear no evil, speak no evil" Problem, which problem?

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

“I have a dream that one day… we hold these truths to be self-evident”:

• A Review provides averages, fits and best limits
• It is regularly updated and published, and easily online available
• The data are compiled data critically by groups of evaluators
• Experiment contacts have verified the data entries
• Ideograms show the contributions of measurements to averages
• Scale factors are introduced in cases of likely underestimations of errors
• For data in substantial conflict, error bars that range across the whole

span of results are set, or no average at all is provided

• Recommendations on inconsistent and

unresolvable discrepant data are provided

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

[M. Jurič et al., Nucl. Phys. B 52 (1973) 1]

Canonical Table(s) of Λ Binding Energies

 Emulsion data available for different decay channels  Combination of channels might be affected by different systematics

170 keV

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Hypertriton as an Example

3H Λ

→ π-+3He: BΛ = 70 ±60 keV → π-+1H+2H: BΛ = 120 ±80 keV

decay

Total: BΛ = 130 ±50 keV 50 keV difference

3H Λ decay

[M. Juric et al. NP B52 (1973)]

About 200 analyzed events from emulsion in total

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Hypertriton as an Example

What are the (quantitative and qualitative) limitations of the data?

• Energy resolution about 1–2 MeV
• Events apparently Gaussian distributed

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Systematic Effects on Data Treatment

[M. Jurič et al., Nucl. Phys. B 52 (1973) 1]

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

[D. H. Davis, Nucl. Phys. A 754 (2005) 3c]

Canonical Table(s) of Λ Binding Energies

 A common systematic error has been estimated externally  Cancelling of Λ mass dependence explicitly stated

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Lesson from Frank Anscombe

Calculations such as averages rest on assumptions about the behaviour of the data. Those assumptions may be false, and then the calculations may be misleading. We ought always to try to check whether the assumptions are reasonably correct; and if they are wrong we ought to be able to perceive in what ways they are wrong.

[Frank Anscombe]

• Are the statistical and systematic errors complete?
• Are all errors symmetric?
• Are all measurements normally distributed?
• Were all used estimators unbiased and consistent?
• Were outliers of values treated (discarded) consistently?

It means one should ask, e.g., the following:

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Canonical Table(s) of Λ Binding Energies

 Properties of hypernuclei are presented as an appendix  Format was too brief to go into details of the evaluation  Not updated or revised since almost 10 years

[Nuclear Wallet Card, National Nuclear Data Center, BNL, 8th ed. (2011)]

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

[E. Botta, T. Bressani, A. Feliciello, Nucl. Phys. A 960 (2017) 165]

Canonical Table(s) of Λ Binding Energies

 Tabulated values from different experiments and methods  Correction applied for values which were considered biased  No averages over values from different experiments

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

[A. Gal, E. V. Hungerford, D. J. Millener,

• Rev. Mod. Phys. 88 (2016) 035004]

Canonical Table(s) of Λ Binding Energies

 Most recent and most complete review of experimental values  Is it including all necessary information for the data?

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Combination of Experimental Results

Inclusion of correlations according to PDG procedure:  Modified systematic errors for each measurement  Treated as independent and averaged in standard way with other data  p-value permits to infer mutual consistency

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

12 ΛC Emulsion Data

Visualization can point to unidentified problems in the data: Sometimes data points lie apart from main body, other times data split into groups – Assuming statistical errors average of 10.76 ± 0.19 MeV from Davis and Pniewski and 10.80 ± 0.18 MeV from Dłuzewski et al. seem to be correct – Asymmetry with a longer tail and lower p-value of 0.39 for a summed χ2 = 5.2 and ndf = 5 are indications that average value is not very robust – Evidence of unreported systematic problems (Don Davis, John Millener)

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Correction of (π+,K+) data

[T. Gogami et al., PRC 93 (2016)] [E. Botta, T. Bressani, A. Feliciello, NPA 960 (2017)]

7 LLi, 9 LBe, 10 LB, 13 LC to emulsion

• Normalization of (π+,K+) data to

12 ΛC emulsion value

• Observed offset of (π+,K+) data

7 LLi, 9 LBe, 12 LC , 13 LC, 16 LO to FINUDA

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Recalibration of Emulsion Data

[P. Liu, J. Chen, D. Keane, Z. Xu, Y Ma, arXiv:1908.03134]

Authors claim that changes over the last decades of the assumed particle and nuclear masses, entering into the definition of the hypernuclear binding energies, are a plausible source of systematic errors in emulsion data

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

BΛ Independence on Λ Mass

– In case that Λ mass is measured in emulsion a compensation of the dependence on its actual value is achieved by range-energy calibration – Other masses changed only marginally

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Unanswered Questions in Hypernuclear Physics

• Do we have a complete set of statistical and systematic errors?
• Are all of the known errors symmetric?
• Are all of the known measurements normally distributed?
• Were all used estimators unbiased and consistent?
• Were outliers of values treated (and discarded) consistently?
• Which data have been superseded or excluded by later experiments?
• Were cross-correlated errors considered for combined results?
• Were likelihood functions used for combined results?
• Which algorithms were used for treating inconsistent or discrepant data?

 Comprehensive, regularly updated, and systematic compilation needed  PDG will not include hypernuclear data in the Review (to my knowledge)

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Proposal to Achieve this Goal 1) Form an expert group of several evaluators from Germany, Italy, Japan, and the U.S. (and possibly other countries), 2) Prepare a commonly accepted table of re-evaluated hypernuclear data with a full assessment of input values, procedures, and uncertainties, especially systematic ones, 3) Publish in a special issue of Nuclear Physics A where all relevant issues can be listed and discussed in detail, 4) Make the published data online available with the National Nuclear Data Center at Brookhaven National Laboratory, 5) Repeat the process regularly after a few years or when new data are available.

Appendix: A Lesson on Data Visualisation from Frank Anscombe

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

1: 2: 3: 4:

Examples for Problems in Fitting Data

Data sets which could be e.g. binding energies for different mass numbers: All 4 averages identical and all 4 variances nearly identical: 1: 2: 3: 4: All 4 data sets can be fitted with a linear dependence for BΛ on A: All 4 data sets were fitted well, considering the reduced χ2 of exactly 1.0:

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Frank Anscombe‘s Quartet

All four sets are identical when examined using simple summary statistics

Proposal for a Table of Evaluated Λ Binding Energies

• Nov. 2o19

P Achenbach, U Mainz

Requirements for a Credible Fit

Efficient Unbiased Robust Consistent Physical Fitting programs are very powerful tools Be careful!

[Pink Floyd (1968)]
