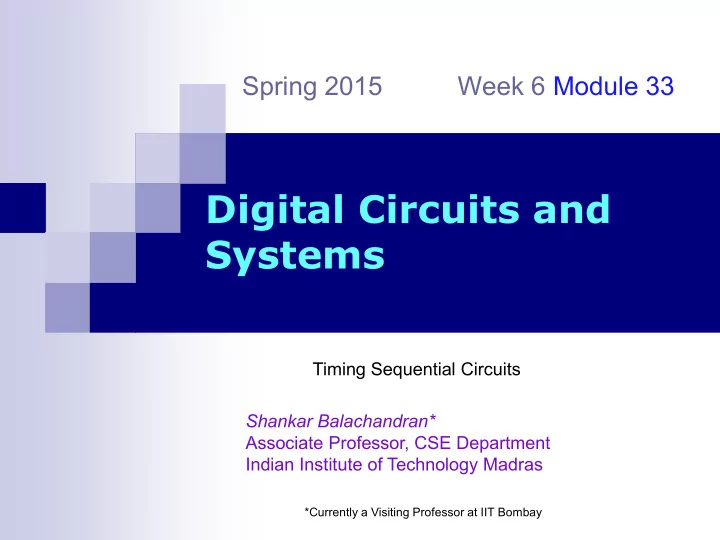

Shankar Balachandran* Associate Professor, CSE Department Indian Institute of Technology Madras

*Currently a Visiting Professor at IIT Bombay

Digital Circuits and Systems

Spring 2015 Week 6 Module 33

Timing Sequential Circuits

Analysis and Design of Sequential Logic Circuits 2

Sequential Circuit Timing

Once the functionality of a sequential network is designed, its timing parameters must be determined. Timing problems can be very subtle because timing parameters can vary with device age and other operating conditions.

Analysis and Design of Sequential Logic Circuits 3

• Global setup time (Tsu)
• Global hold time (Th)
• Maximum clock frequency
• Clock skew.

These parameters are derived using the circuit (known) delays described below.

tio – delay from input of IFL to output of OFL tif – delay from circuit inputs of flip-flop inputs tfo – delay from flip-flop outputs to circuit outputs tff – delay from flip-flop outputs to flip-flop inputs tc-q– clock to Q propagation delay of flip-flops tsu – setup time of flip-flops th – hold time of flip-flops tc – clock delay; time required for clock to reach all flip-flops

Timing Parameters

Analysis and Design of Sequential Logic Circuits 4

X (at sequential circuit input)

 Changes that occur at inputs can be delayed by as much as

maximum tif by the time they reach the flip-flop inputs. Hence, we want to setup circuit inputs relative to clock edge appearing at the flip-flops.

 Similarly, hold time of the circuit inputs relative to the system

clock at the source is given by

  

max max min

if u su c s

t t t T

  

max min max

h if c h

T t t t

Global Setup and Hold Times

Tsu Th th tsu

CLK (at clock source)

tc

CK (at FF clock input)

tif tif

D (at FF input)

Analysis and Design of Sequential Logic Circuits 5

Maximum Clock Frequency

 For an edge-triggered circuit: minimum clock period is,  Maximum Clock Frequency:



  

C Q ff su max max max

clk

t t t T

clk clk

T f 1 

Comb. logic

Λ

Qi Di Qj Dj

CKi CKj tff Λ CLK

tsu Tck (=Tclk)

CKi Edge Triggering

tff

Dj Qi

tC-Q

Analysis and Design of Sequential Logic Circuits 6

Timing Violations

 The clock period (Tclk) has a lower bound of tff.max .  If the clock period is equal to (tff.max + tC-Q.max) then the

flip-flop state changes can violate setup times.

 Remedy :

 Use faster flip-flops (decrease tC-Q )  Use faster gates (decrease tff )  Use a slower clock (increase clock period, Tclk)



  

max max max

f C f l u c k Q s

t t T t

Analysis and Design of Sequential Logic Circuits 7

 The previous discussion assumes that clock signals

arrive at all flip-flops simultaneously - this is not a good assumption since it is not true in practice.

 Because of different wire lengths over which the clock

signals travel and the load at the destination, there is a slight difference in clock arrival times at different flip-flop inputs.

 Clock skew, tskew, is the difference in time between

triggering edges seen at different flip-flops. Clock skew affects minimum Tclk.

Clock Skew

Analysis and Design of Sequential Logic Circuits 8

 Therefore, for an edge-triggered circuit with clock skew,  Clock skew is a significant factor in determining the speed of high-

performance synchronous circuits. The larger the skew, the slower the circuit will operate.

max max max max

clk skew C Q ff su

T t t t t



   

• Max. Clock Frequency with Skew

tskew

Comb. logic

Λ

Qi Di Qj Dj

CKi CKj tff Λ CLK

tsu Tck (=Tclk)

CKi

tskew

CKj

tC-Q

Qj

tff

Di

Analysis and Design of Sequential Logic Circuits 10

For the circuit given below determine all the sequential circuit timing parameters. For a D flip-flop use: tsu = 2ns, th = 15ns and tC-Q = 20ns For a NAND gate use: tp,max = 10ns and tp,min = 3ns

Timing Analysis Example

Analysis and Design of Sequential Logic Circuits 11

.

ns t t ns t t ns t t ns t t ns t t ns t t

nand p c nand p c nand p ff nand p ff nand p if nand p if

6 2 20 2 6 2 20 2 6 2 30 3

min, , min , max, , max , min, , min , max, , max , min, , min , max, , max ,

           

,max ,max ,min ,max ,min ,max ,max ,max ,max ,max

2 30 6 26 20 15 6 29 20 20 2 42 1/ 42 23.8

su su if c h h if c clk C Q ff su clk

T t t t ns T t t t ns T t t t ns f ns MHz



                      

For a D flip-flop use: tsu = 2ns, th = 15ns, tC-Q = 20ns For a NAND gate use: tp,max = 10ns, tp,min = 3ns

Analysis and Design of Sequential Logic Circuits 12

Sequential Systems Using Latches



Latches can be used to create sequential systems. However, since these are level-triggered clocking must be done carefully – must ensure that state changes only once per clock cycle.



Use narrow-width clock whose pulse width is less than the fastest possible path through the combinational logic.



To guarantee correct next state, make sure that the clock period is longer than the worst-case propagation delay through the combinational logic. Comb. logic

Qi Di Qj Dj

CKi CKj tff CLK

tw < tff.min+ tD-Q.min > (tD-Q.max + tff.max+ tsu.max)

CLK

Analysis and Design of Sequential Logic Circuits 14

Clocking Frequency with Latches

Tclk

tskew

Comb. logic

Qi Di Qj Dj

CKi CKj tff CLK

tsu

CKi

tD-Q

Q

j

tff

Dj

tskew

CK

j

Di

 

max min max max max

clk skew w su D Q ff su

T t t t t t t



     

tsu tw

End of Week 6: Module 33
