System-on-Chip Design Data Flow hardware Implementa8on Hao Zheng Dept. Comp Sci & Eng U of South Florida haozheng@usf.edu (813) 9744757 1 Single-Rate SDF to Hardware Single-rate SDF: all producJon/consumpJon rates are a fixed number


slide-1
SLIDE 1

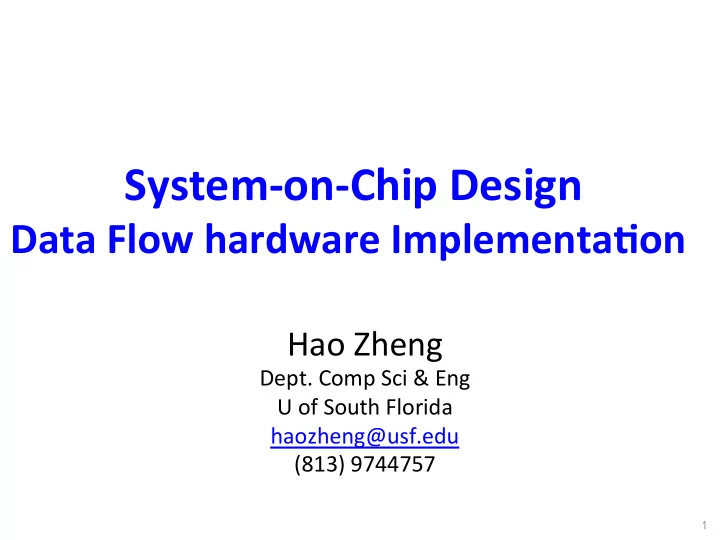

System-on-Chip Design

Data Flow hardware Implementa8on

Hao Zheng

  • Dept. Comp Sci & Eng

U of South Florida haozheng@usf.edu (813) 9744757

1

slide-2
SLIDE 2

Single-Rate SDF to Hardware

  • Single-rate SDF: all producJon/consumpJon

rates are a fixed number = 1.

– The enJre circuit controlled by a single clock.

  • ImplementaJon

– Actors -> combinaJon circuits – Queues -> wires – IniJal tokens -> registers.

2

slide-3
SLIDE 3

Single-Rate SDF to Hardware

3

diff

1 1

sort

1 1 1 1 1 1

initial token value = a initial token value = b

  • ut1 = (a > b) ? a : b;
  • ut2 = (a > b) ? b : a;
  • ut1 = (a !=b) ? a – b : a;
  • ut2 = b;

sort diff

  • Fig. 3.10 Euclid’s greatest common divisor as an SDF graph
slide-4
SLIDE 4

Single-Rate SDF to Hardware

4

compare 1 1 compare sub

SORT DIFF SORT DIFF REGISTER

  • Fig. 3.11 Hardware implementation of euclid’s algorithm

Can lead to long combinaJon paths.

slide-5
SLIDE 5

SDF HW Implementa8on

  • CombinaJonal path is a sequence of actors

s.t. edges between these actors do not have iniJal token.

  • CriJcal path is a combinaJonal path s.t. the

sum of latencies of all actors on that path is the longest.

  • CriJcal path delay determines the clock

frequency.

– Should be minimized to increase clock speed.

5

slide-6
SLIDE 6

Pipelining: Break Long Comb. Paths

6

c0 c1 c2 + +

  • ut

in x0 x1 x2

  • Fig. 3.12 SDF graph of a

simple moving-average application

  • ut = x0 · c2 + x1 · c1 + x2 · c0
slide-7
SLIDE 7

Pipelining: Break Long Comb. Paths

7

  • ut = x0 · c2 + x1 · c1 + x2 · c0

c0 c1 c2 + +

  • ut

in x1 x2 x3 c2x0 c1x1 c0x2

  • Fig. 3.13 Pipelining the

moving-average filter by inserting additional tokens (1)

slide-8
SLIDE 8

c0 c1 c2 + +

  • ut

in x2 x3 x4 c2x0 c1x2 c0x3 C0x2+c1x1 c2x1

  • Fig. 3.14 Pipelining the

moving-average filter by inserting additional tokens (2)

Pipelining: Break Long Comb. Paths

8

  • ut = x0 · c2 + x1 · c1 + x2 · c0
slide-9
SLIDE 9

Pipelining: Break Long Comb. Paths

9

c0 c1 c2 + +

  • ut

in x2 x3 x4 c2x0 c1x2 c0x3 C0x2+c1x1 c2x1

c0 c1 c2 + +

  • ut

in

slide-10
SLIDE 10

Pipelining: PiCall

10

ADD IN ADD IN

!=

accumulator double-accumulator for odd/even samples

Do Not add iniJal tokens unless they can be injected by a sequence of actor firings.

slide-11
SLIDE 11

Mul8-Rate Expansion (Sec. 2.5.1)

11 IN A B OUT

3 2 1 1 1 1

PASS Firing Rate 2 2 3 3

IN0 A0 IN1 A1 B0 OUT0 B1 OUT1 B2 OUT2

a b c d e f

This single-rate DFG can be mapped to HW as shown previously.

slide-12
SLIDE 12

HW/SW Hybrid Implementa8on

12

ctr snk 1 1

data req ack P0 P1 P2 ctr

8051 Microcontroller

FIFO

snk

Hardware Design

Interface btw. HW & CPU Interface btw. SW & CPU

slide-13
SLIDE 13

Reading Guide

  • SecJon 3.2 - 3.3, the CoDesign book.

13
