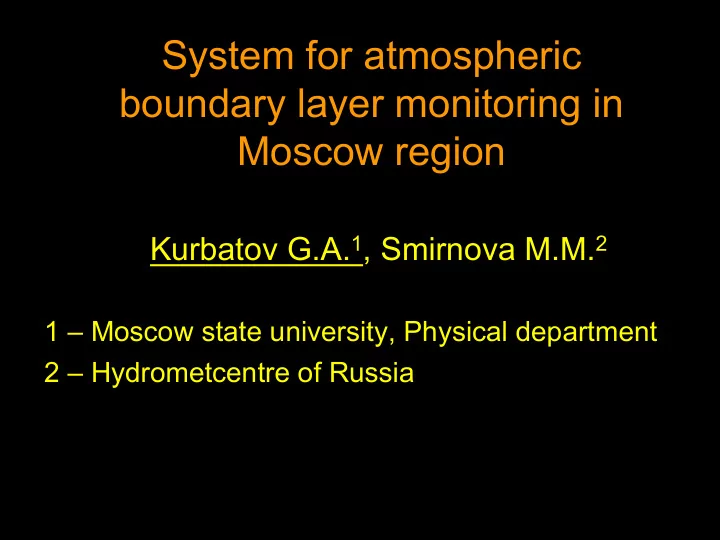

System for atmospheric boundary layer monitoring in Moscow region

Kurbatov G.A.1, Smirnova M.M.2

1 – Moscow state university, Physical department 2 – Hydrometcentre of Russia

Ø Meteostation Ø Towers

(meteo, TV and other)

Ø Radiosonde Ø Remote sensing

• Satellite
• Ground base

Only near surface measurements Difficult, influence itself etc…. Low resolution in ABL Not resolve ABL Difficult access, few points

Tools for observation in ABL

Sounding ¡in ¡ABL ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡ ¡(SODAR ¡LATAN-­‑3) ¡

Sound impulses Reflected signal Non homogeneities

Example of sounding data (echogramm) and wind profiles

Microwave temperature profiler MTP-5

Example data of Meteorological Temperature Profiler MTP-5

Ultrasonic anemometer

time w in d s p e e d

http://veret.gfi.uib.no/ http://www.arpa.veneto.it/bollettini/htm/profilatori.asp

Several observation systems in the word

Bergen Italy

http://atm007-3.phys.msu.ru

Observation system in the Moscow region

http://translate.google.ru/translate? sl=ru&tl=en&js=n&prev=_t&hl=ru&ie=UTF-8&layout=2&eotf=1&u=http%3A%2F

Observations in Moscow region

Observations Database Data processing Presentation

Moscow State university Zvenigorod scientific station

• ther…

Central Aerological Observatory

Forecast

Map of points and

• bservation

tools

Real time data

Possible choice

ü Point of

• bservations

ü Tool ü Date

Result of data choice Visual comparing

Comparison of the mixing layer height and the height of the inversion layer

Layer of intensive turbulence

5:45 9:10

Inversion temperature

Data arhiv and choice period of presented data

Plot data for chosen period

Plot average temperature profile for chosen period

100 200 300 400 500 600 700 20 22 24 26 28 30 32 34 36 38 40 Temperature 0C Height, m

01-10 08.2010 ZSS all data 01-10 08.2010 ZSS night 0-6 hours 01-10 08.2010 ZSS morning 6-12 hours 01-10 08.2010 ZSS day 12-18 hours 01-10 08.2010 ZSS evening 18-24 hours adiabatic profile

100 200 300 400 500 600 700 20 22 24 26 28 30 32 34 36 38 40 Temperature 0C Height, m

01-10 08.2010 MSU all data 01-10 08.2010 MSU night 0-6 hours 01-10 08.2010 MSU morning 6-12 hours 01-10 08.2010 MSU day 12-18 hours 01-10 08.2010 MSU evening 18-24 hours adiabatic profile

Temperature profiles during blocking anticyclone summer 2010

0 h 6 h 12 h 18 h

100 200 300 400 500 600 700 6 8 10 12 14 16 18 20 22 24 26 Temperature 0C Height, m

01-10 08.2008 ZSS all data 01-10 08.2008 ZSS night 0-6 hours 01-10 08.2008 ZSS morning 6-12 hours 01-10 08.2008 ZSS day 12-18 hours 01-10 08.2008 ZSS evening 18-24 hours adiabatic profile

100 200 300 400 500 600 700 20 22 24 26 28 30 32 34 36 38 40 Temperature 0C Height, m

01-10 08.2010 ZSS all data 01-10 08.2010 ZSS night 0-6 hours 01-10 08.2010 ZSS morning 6-12 hours 01-10 08.2010 ZSS day 12-18 hours 01-10 08.2010 ZSS evening 18-24 hours adiabatic profile

Temperature profiles during the same period in 2008

0 h 6 h 12 h 18 h

Comparison of observation and forecast in real time

Temperature profilers in Russia

http://atm007-3.phys.msu.ru Thank you for your attention !

e-mail: kurbatov_ga@physics.msu.ru
