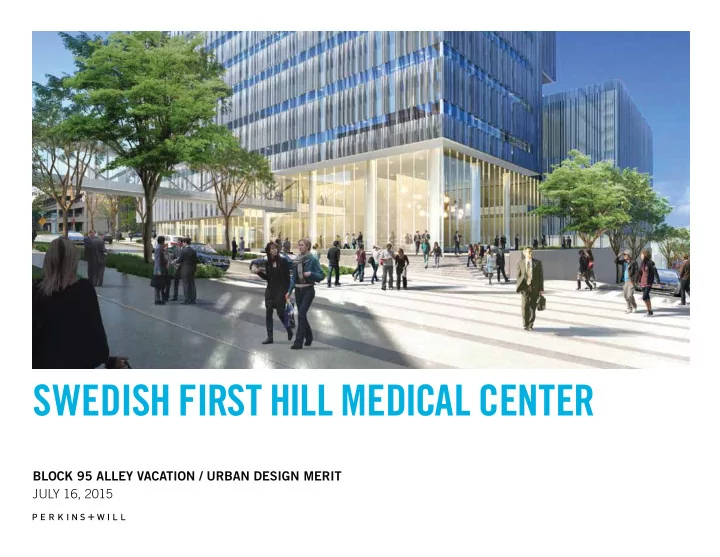

SWEDISH FIRST HILL MEDICAL CENTER BLOCK 95 ALLEY VACATION / URBAN DESIGN MERIT JULY 16, 2015 CONTENTS INTRODUCTION NEIGHBORHOOD CONTEXT EXISTING CONDITIONS DESIGN COMPARISON 2 07 / INTRODUCTION 3 3 PROJECTS AND PETITIONS PETITIONS

slide-1
SLIDE 1

SWEDISH FIRST HILL MEDICAL CENTER

BLOCK 95 ALLEY VACATION / URBAN DESIGN MERIT JULY 16, 2015

slide-2
SLIDE 2

2

CONTENTS

INTRODUCTION NEIGHBORHOOD CONTEXT EXISTING CONDITIONS DESIGN COMPARISON

slide-3
SLIDE 3

3

07 / INTRODUCTION

3

slide-4
SLIDE 4

4

PROJECTS AND PETITIONS

  • E. JAMES WAY

MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST

BLOCK 95 NORTHWEST TOWER

PETITIONS

  • A. Marion Skybridge
  • B. Tunnel
  • C. Minor Skybridge
  • D. Alley

A B C D O

slide-5
SLIDE 5

5

BLOCK 95

slide-6
SLIDE 6

6

NORTHWEST TOWER

slide-7
SLIDE 7

7

BLOCK 95

BLOCK 95

slide-8
SLIDE 8 ฀ ฀
  • ฀
  • Blk 95
Blk 96 Blk 100 Blk 110 ฀ ฀฀
  • ฀
฀ ฀ ฀
  • ฀
฀ ฀ ฀ ฀ ฀
  • ฀
฀
  • ฀
  • ฀
฀
  • N
  • SUPPO
BUILDI

D E

SU SU

G

฀

฀฀฀

฀ ฀฀฀ ฀฀฀ ฀฀ ฀ ฀฀ ฀ ฀฀฀ ฀ ฀฀฀฀ ฀ ฀฀ ฀฀ ฀ ฀ ฀ ฀ ฀ ฀฀ ฀฀ ฀฀฀฀฀
  • ฀฀฀฀
฀ ฀฀฀
  • ฀
฀฀฀฀ ฀
  • ฀฀
฀ ฀
  • ฀฀
฀

8

Planned Medical Office Projects Potential Medical Office Projects Planned Hospital Projects Potential Hospital Projects Planned Support Projects

MIMP REQUIREMENTS

Development Standards Design Guidelines Council Conditions EIS Conditions MIO District/MIMP Boundary

MIMP SITE PLAN

slide-9
SLIDE 9

9

MIMP COUNCIL CONDITION #7: Increase required Open Space from 5% to 9.5%, or 61,738 SF

BOREN AVE

MIMP OPEN SPACE

MIMP OPEN SPACE REQUIREMENT AREA (SF) MIMP Setbacks 25,300 MIMP Designated Open Space 27,900 Pocket Parks/Plazas 8,538 Total 61,738

POCKET PARK/PLAZA REQUIREMENT AREA (SF) MIMP Requirement 8,538 Swedish Orthopedic Institute 6,500 Remaining Requirement 2,038 1101 MADISON ARNOLD PAVILION HEATH NORDSTROM TOWER EAST TOWER SOUTH TOWER 1124 COLUMBIA ORTHOPEDIC INSTITUTE MINOR AVENUE GARAGE
slide-10
SLIDE 10

10

4/14/15 5/8/15 7/14/15 7/16/15 9/3/15 9/8/15 9/8/15 9/8/15 10/11/15 9/17/15 10/15/15 11/11/15 3/15/16 3/15/16 3/15/16 4/15/16 4/15/16 4/15/16

ALLEY MINOR & MARION SKYBRIDGES TUNNEL SCHEDULE

Community Meeting Community Meeting Community Meeting Tunnel Petition Submitted Alley Vacation Petition Submitted SDOT finishes review of Alley Vacation Petition Seattle Design Commission Presentation: Public Benefits (TBD) Seattle Design Commission Presentation: Public Benefits (TBD) Skybridge Review Committee completes review City Council Conceptual Approval City Council Conceptual Approval City Council Conceptual Approval MUP Issued MUP Issued MUP Issued Block 95 Tower and NW Tower MUP submission Block 95 Tower and NW Tower MUP submission Block 95 Tower and NW Tower MUP submission SDOT completes review of petition Seattle Design Commission Presentation: Urban Design Merit Seattle Design Commission Presentation: Urban Design Merit (TBD) Skybridge Petition Submitted

4/14/15 4/14/15 8/07/15 7/15/15
slide-11
SLIDE 11

11

07 / NEIGHBORHOOD CONTEXT

11

slide-12
SLIDE 12

SWEDISH FIRST HILL CAMPUS

VIRGINIA MASON HARBORVIEW MEDICAL CENTER SEATTLE UNIVERISTY

MADISON ST SPRING ST UNIVERSITY ST UNION ST SENECA ST BOREN AVE TERRY AVE 9TH AVE 8TH AVE MINOR AVE SUMMIT AVE BOYLSTON AVE HARVARD AVE MARION ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST PIKE ST
  • E. CHERRY ST
  • E. COLUMBIA ST
  • E. MARION ST
E JEFFERSON ST BROADWAY 10TH AVE 12TH AVE 13TH AVE

DOWNTOWN

12

Medical Institutions Civic/Cultural Facilities Parks

NEIGHBORHOOD CONTEXT

I N T E R S T A T E 5

8TH AV 8TH MARION ST MARION S MARION ST
slide-13
SLIDE 13

13

Community Gardens Frye Art Museum 8th Ave Hill Climb O’Dea High School Healthcare Community St James Versatile Transit Harborview Medical Jefferson Terrace Town Hall Sports and Recreation Multi-family Housing

NEIGHBORHOOD LANDMARKS AND CHARACTER

slide-14
SLIDE 14

14

BLOCK 95

FIRST HILL PUBLIC REALM ACTION PLAN

slide-15
SLIDE 15

Project Site 15

LAND USE

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST COLUMBIA ST CHERRY ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

BLOCK 95 Hospital Office Retail Residential Institutional Parking

slide-16
SLIDE 16

16

ALLEYS

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Alleys Project Site

COLUMBIA ST CHERRY ST
slide-17
SLIDE 17

17

TOPOGRAPHY

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

+347 +326 +330 +334 +360 +361 +345 +330

COLUMBIA ST CHERRY ST
slide-18
SLIDE 18

18

CIRCULATION/ VEHICULAR

B R O A D W A Y M A D I S O N B O R E N J A M E S

MARION ST COLUMBIA ST CHERRY ST JEFFERSON ST SPRING ST

Arterials Project Site

COLUMBIA ST CHERRY ST
slide-19
SLIDE 19

19

ACCESS/ VEHICULAR

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Parking Entrances Vehicular Drop Offs Project Site

COLUMBIA ST CHERRY ST
slide-20
SLIDE 20

20

CIRCULATION/ TRUCKS AND SERVICE

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Loading Dock Truck Route I-5 Northbound I-5 Southbound Project Site

COLUMBIA ST CHERRY ST
slide-21
SLIDE 21

21

CIRCULATION/ PUBLIC TRANSIT

12 60 193 303 60 193 303 309 64 43 49 9 193
  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Streetcar

Line + Stop

Madison BRT

Line + Stop

Bus Route Bus Stop Project Site

9 COLUMBIA ST CHERRY ST
slide-22
SLIDE 22

22

CIRCULATION/ BICYCLES

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Neighborhood Greenway Cycletrack Project Site

COLUMBIA ST CHERRY ST
slide-23
SLIDE 23

23

CIRCULATION/ PEDESTRIAN

Crosswalk Interior/Exterior Link Intersection Enhancement Opportunity

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Primary Cross- Campus Pedestrian Route Active Pedestrian Shopping Corridor Project Site Designated Green Street

COLUMBIA ST CHERRY ST
slide-24
SLIDE 24

24

OPEN SPACE/ PARKS AND GREEN STREETS

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST

Designated Green Street Proposed Green Street Potential “Pedestrian“ Streets Existing Open Space Potential Park Site Project Site

COLUMBIA ST CHERRY ST
slide-25
SLIDE 25

25

VIEWS

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST Madison St Marion St Columbia St Cherry St James St CHERRY ST
slide-26
SLIDE 26

Combined Sewer Overhead Power Sanitary Sewer Storm Sewer Water Main Project Site 26

UTILITIES

  • E. JAMES WAY
MARION ST MADISON ST COLUMBIA ST CHERRY ST JAMES ST JEFFERSON ST SPRING ST COLUMBIA ST CHERRY ST
slide-27
SLIDE 27

27

EXISTING CONDITIONS

27

slide-28
SLIDE 28

28

Alley

66’ ROW 66’ ROW 16’

Proposed Alley Vacation (3,841 SF)

EXISTING SITE

66’ ROW 66’ ROW BLOCK 95 CHERRY ST COLUMBIA ST BOREN AVE MINOR AVE

slide-29
SLIDE 29

29

  • A. View of Cherry St entrance
  • B. Side entry between Invex & 1120
  • C. Garage entry off of alley
  • E. Alley view looking South
  • D. View of Charlotte Building
  • F. SE View of Invex Garage access
D A E B F C

CHERRY ST COLUMBIA ST Invex Building 1120 Cherry Charlotte Building Invex Garage

SITE PHOTOS

slide-30
SLIDE 30

30

Cherry Street Elevation Block 95 South Minor Avenue Elevation Block 95 East

Charlotte Building Existing Structure Alley Existing Structure Existing Structure

SITE PHOTOS

+360’ +347’ +330’ +360’

slide-31
SLIDE 31

31

Invex Garage Existing Structure Charlotte Building Invex Garage Alley

SITE PHOTOS

Columbia Street Elevation Block 95 North Boren Avenue Elevation Block 95 West +330’ +326’ +326’ +347’

slide-32
SLIDE 32

32

DESIGN COMPARISON

32

slide-33
SLIDE 33

33

DESIGN COMPARISON

ALLEY VACATION NO ALLEY VACATION

B O R E N A V E M I N O R A V E COLUMBIA ST B O R E N A V E M I N O R A V E COLUMBIA ST
slide-34
SLIDE 34

34

SITE PLAN

NO ALLEY VACATION

C O L U M B I A S T C H E R R Y S T

BLOCK 95

LOBBY LOADING
slide-35
SLIDE 35

35

BUILDING SECTION

NO ALLEY VACATION

EXISTING HOSPITAL BOREN AVE MINOR AVE TUNNEL BEYOND 01 03 02 04 05 06 07 08 09 10 11 12 13 14 15 16 C D PARKING STRUCTURE ALLEY PL PL SUPPORT SERVICES PL PL Building Section East-West Looking North
slide-36
SLIDE 36

36

TUNNEL BELOW

COLUMBIA STREET CHERRY STREET BOREN AVENUE MINOR AVENUE

LEVEL C

NO ALLEY VACATION

slide-37
SLIDE 37

37

+354’6” +343’ +343’

COLUMBIA STREET CHERRY STREET BOREN AVENUE MINOR AVENUE

LEVEL 01

NO ALLEY VACATION

ALLEY
slide-38
SLIDE 38

38

West Elevation Boren Avenue +326’ +330’ +360’ +347’ +326’ South Elevation Cherry Street East Elevation Minor Street North Elevation Columbia Street

ELEVATIONS

NO ALLEY VACATION

slide-39
SLIDE 39

39

Looking South at Minor and Columbia Looking West at Minor and Columbia

PERSPECTIVE VIEWS

NO ALLEY VACATION

slide-40
SLIDE 40 C O L U M B I A S T C H E R R Y S T

BLOCK 95

PARKING ACCESS LOADING ENTRY LOADING EXIT LOBBY LEVEL 1 OUTDOOR TERRACE LEVEL 1 OUTDOOR TERRACE CAFE/RETAIL

40

SITE PLAN

ALLEY VACATION

slide-41
SLIDE 41

41

BOREN AVE MINOR AVE TUNNEL BEYOND 01 03 02 04 05 06 07 08 09 10 11 12 13 14 15 16 C P1/D P2 P3 P4 P5 P6 PL PL

BUILDING SECTION

ALLEY VACATION

Building Section East-West Looking North
slide-42
SLIDE 42

42

+348’ +348’

LEVEL C

ALLEY VACATION

COLUMBIA STREET CHERRY STREET BOREN AVENUE MINOR AVENUE

slide-43
SLIDE 43

43

LEVEL 01

ALLEY VACATION

COLUMBIA STREET CHERRY STREET BOREN AVENUE MINOR AVENUE

TERRACE TERRACE
slide-44
SLIDE 44

44

West Elevation Boren Avenue South Elevation Cherry Street East Elevation Minor Street North Elevation Columbia Street +326’ +330’ +360’ +347’ +326’

ELEVATIONS

ALLEY VACATION

slide-45
SLIDE 45

45

Looking South at Minor and Columbia Looking West at Minor and Columbia

PERSPECTIVE VIEWS

ALLEY VACATION

slide-46
SLIDE 46

46

URBAN DESIGN MERIT

Access Circulation Open Space Utilities Air / Light / Views

slide-47
SLIDE 47

47

ACCESS

LOADING LOADING TUNNEL SKY BRIDGE PARKING PARKING

ALLEY VACATION NO ALLEY VACATION

TUNNEL SKY BRIDGE
slide-48
SLIDE 48

48

ACCESS - LOADING X X X

ALLEY VACATION NO ALLEY VACATION

LOADING LOADING LOADING
slide-49
SLIDE 49

49

ACCESS - LOADING

COLUMBIA STREET BOREN AVENUE MINOR AVENUE CHERRY STREET LOADING DOCK LOADING DOCK PARKING Level 0C Level 01 ALLEY

ALLEY VACATION NO ALLEY VACATION

LOADING LOADING TUNNEL SKY BRIDGE MINOR AVE MINOR AVE BOREN AVE BOREN AVE PARKING PARKING TUNNEL SKY BRIDGE COLUMBIA STREET BOREN AVENUE MINOR AVENUE CHERRY STREET
slide-50
SLIDE 50

50

CIRCULATION

20’ ALLEY 20’ ALLEY

ALLEY VACATION NO ALLEY VACATION

Level 01 Level 01 CAR PARKING TRUCK LOADING COLUMBIA STREET BOREN AVENUE MINOR AVENUE CHERRY STREET COLUMBIA STREET BOREN AVENUE MINOR AVENUE CHERRY STREET
slide-51
SLIDE 51

51

OPEN SPACE

Level 01 Level 01

ALLEY VACATION NO ALLEY VACATION

ALLEY COLUMBIA STREET BOREN AVENUE MINOR AVENUE CHERRY STREET COLUMBIA STREET BOREN AVENUE MINOR AVENUE CHERRY STREET
slide-52
SLIDE 52

52

COLUMBIA STREET SECTION

NO ALLEY VACATION

11’ Drive 11’ Drive 8’ Park

ALLEY VACATION

18’ Sidewalk 11’ Drive 11’ Drive 8’ Park 18’ Sidewalk 18’ Sidewalk 18’ Sidewalk 30’ Setback

slide-53
SLIDE 53

53

MINOR AVE STREET SECTION

18’ Sidewalk 15’ Setback 18’ Sidewalk 8’ Park 11’ Drive 11’ Drive 11’ Drive 18’ Sidewalk 8’ Park 11’ Drive 11’ Drive 11’ Drive 18’ Sidewalk

NO ALLEY VACATION ALLEY VACATION

slide-54
SLIDE 54

54

UTILITIES

ALLEY VACATION NO ALLEY VACATION

slide-55
SLIDE 55

55

VIEWS VIEWS

ALLEY VACATION NO ALLEY VACATION

Looking West at Minor and Columbia Looking West at Minor and Columbia
slide-56
SLIDE 56

56
