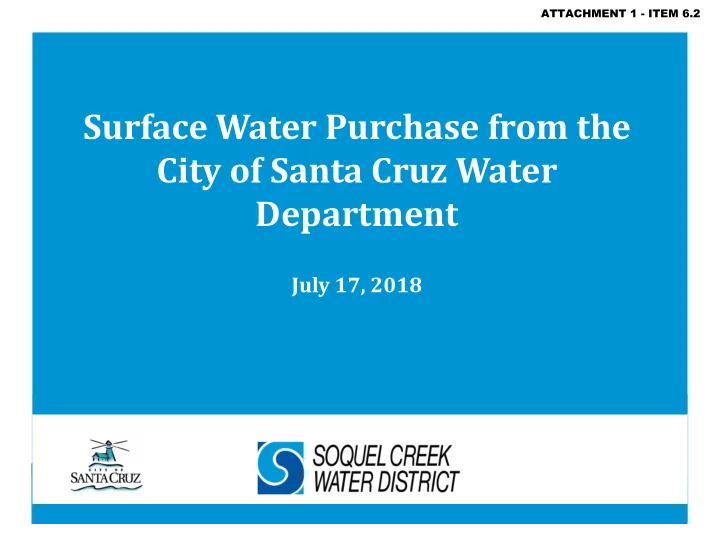

Surface Water Purchase from the City of Santa Cruz Water Department

July 17, 2018

ATTACHMENT 1 - ITEM 6.2

slide-2
SLIDE 2

Our Project Partners and Team

ATTACHMENT 1 - ITEM 6.2

slide-3
SLIDE 3

Community Water Plan

  • Maximizing Conservation
  • Groundwater Management
  • New Water Supplies

– Water Reuse – River Water Transfers/Purchase – Desalination – Stormwater Capture

ATTACHMENT 1 - ITEM 6.2

slide-4
SLIDE 4

District’s Guiding Principles for River Water Purchase/ Transfer:

  • Increase public education and outreach that the District is evaluating river water

transfers for the two different options: The North Coast Option (short-term) and the San Lorenzo River Option (long-term) which the City of Santa Cruz is currently evaluating based on their water supply advisory committee efforts.

  • Continue working with the City of Santa Cruz on the North Coast Option (5-year,

short-term pilot project) to investigate and resolve potential issues related to water quality and blending of groundwater and river water within the District’s

  • system. Amend the District’s Domestic Water Supply permit from the Division of

Drinking Water to add the City of Santa Cruz’s surface water as a supply source.

  • Ready to receive City water by December 2018.
  • Continue working with the City to better understand the benefits, issues, and

constraints of the City’s long-term San Lorenzo River Option that includes in-lieu recharge with dry-summer groundwater returns and aquifer storage and recovery.

ATTACHMENT 1 - ITEM 6.2

slide-5
SLIDE 5

Cooperative Water Transfer Pilot Project Agreement (excerpt)

for Groundwater Recharge and Water Resource Management (August 1, 2016-December 31, 2020)

ATTACHMENT 1 - ITEM 6.2

slide-6
SLIDE 6

City’s North Coast Sources

ATTACHMENT 1 - ITEM 6.2

slide-7
SLIDE 7

City’s North Coast Sources

Laguna Creek 2-25-18 Liddell Creek 3-4-18 Majors Creek 3-4-18 Included in CEQA evaluation and Water Purchase Agreement

ATTACHMENT 1 - ITEM 6.2

slide-8
SLIDE 8

What’s happened to others:

ATTACHMENT 1 - ITEM 6.2

slide-9
SLIDE 9

Work completed and planned

Desktop Intertie Blending Analysis June 14, 2016 CEQA Analysis January 2016 Bench scale and Jar Testing September 2016- June 2018 Full Scale Pilot 2018-20 ~250 AFY COMPLETED COMPLETED COMPLETED PREPARING FOR NOV 2018

ATTACHMENT 1 - ITEM 6.2

slide-10
SLIDE 10

Water Quality Assessment: Bench Scale and Jar Testing Results & Recommendations

Presentation by Black & Veatch Team Emily Tummons, Ph. D.

Process Specialist, Water Technology Group

ATTACHMENT 1 - ITEM 6.2

slide-11
SLIDE 11

Water Quality Assessment Bench-Scale Testing Results & Recommendations

City of Santa Cruz Water Department Soquel Creek Water District

17 July 2018 ATTACHMENT 1 - ITEM 6.2

slide-12
SLIDE 12

Agenda

  • Goals / Overview
  • Testing Design
  • Testing Results
  • Conclusions / Recommendations
  • Next Steps – Implementation Plan

2

ATTACHMENT 1 - ITEM 6.2

slide-13
SLIDE 13

Goals/Overview

3

ATTACHMENT 1 - ITEM 6.2

slide-14
SLIDE 14

New Water Source

The District is planning to purchase water from the City during winter months (Nov-Mar). District = Soquel Creek Water District; City = City of Santa Cruz Water Department

4

DISTRICT CITY SERVICE AREA 1 SERVICE AREA 2 SERVICE AREA 3 CITY1 PARAMETER AVERAGE RANGE AVERAGE RANGE AVERAGE RANGE AVERAGE RANGE Alkalinity 196 157-254 242 197-288 175 149-205 131 92-194 Calcium 72 34-110 38 21-59 29 14-36 50 48-51 Chloride 49 25-88 41 31-53 26 18-39 25 19-30 Magnesium 21 14-25 29 16 - 50 31 21-40 9 9 - 10 CCPP2 7 5

  • 1
  • 7

Orthophosphate (as P) 0.02 ND-.075 0.04 ND-.09 0.2 0.15-0.34 0.2 0.1-0.3 pH 7.5 7.0–8.1 7.6 7.1-8.1 7.7 7.2-8.1 7.4 7.1-7.7 Sulfate 101 42-180 68 46-99 28 15-43 77 64-92 CSMR3 0.5 0.6 0.9 0.3 Total Dissolved Solids 477 300-638 411 332-492 282 191-357 262 255-258

1 Data from SS 105,119, or GHWTP effluent as available 2 Calcium Carbonate Precipitation Potential (CCPP) results using Water!Pro modeling software. Results modeled for

average conditions only

3 Chloride to Sulfate Mass Ratio

ATTACHMENT 1 - ITEM 6.2

slide-15
SLIDE 15

Goals of Bench-Scale Corrosion Testing

  • Examine the relative aggressiveness of the City’s water and the District’s

water towards materials in the District’s system.

  • Screen multiple treatment conditions to determine the impact of adjusting

the water chemistry of either the District’s wells, or of the City’s water at the intertie location.

  • Establish the need for future pipe-loop testing, and which treatment

alternatives could be further tested with pipe-loop testing.

5

ATTACHMENT 1 - ITEM 6.2

slide-16
SLIDE 16

Bench-Scale Corrosion Testing Overview

Testing Components:

  • Phase 1
  • Metal wire testing
  • Phase 2
  • Scale analysis
  • Metal coupon testing

Testing Performed by:

  • Virginia Tech
  • Min Tang, Ph.D
  • Jeffrey Parks, Ph.D
  • Marc Edwards, Ph.D

6

ATTACHMENT 1 - ITEM 6.2

slide-17
SLIDE 17

Pipe Coupon Testing Design

7

ATTACHMENT 1 - ITEM 6.2

slide-18
SLIDE 18

Material Selection – Coupon Testing

  • Harvested from the District’s system:
  • Galvanized iron service lines
  • 4 inch diameter asbestos cement (AC) pipe
  • New copper pipe with 50:50 lead:tin solder

Selected for highest potential to release metals as a result of changes in water chemistry

8

ATTACHMENT 1 - ITEM 6.2

slide-19
SLIDE 19

Galvanized Iron Pipe Coupons

9

2nd Batch 1st Batch 170 GIP coupons

ATTACHMENT 1 - ITEM 6.2

slide-20
SLIDE 20

Galvanized Iron Pipe Scale Characterization

10

XRF-Mass Percent (%) Element Fe Mn Zn Pb Ti W Ni Bi Pipe 1 3.50 0.99 0.04 0.02 ND ND 0.01 0.02 Pipe 2 27.15 44.61 24.64 1.21 ND 2.39 ND ND Pipe 3 14.05 55.05 27.16 0.91 0.43 2.40 ND ND

Pipe 1 Pipe 2 Pipe 3

ATTACHMENT 1 - ITEM 6.2

slide-21
SLIDE 21

Coupon Jars

  • 127 Galvanized Iron Pipe Coupons
  • 56 Cement Pipe Coupons
  • 60 Copper Pipe with Lead Solder Coupons

Used for conditioning prior to selection for testing.

11

Galvanized Iron Asbestos Cement Copper Pipe/ Lead Solder

ATTACHMENT 1 - ITEM 6.2

slide-22
SLIDE 22

Conditioning

Measured metals, calcium, and/or turbidity for different coupon types. Purpose:

  • Allows scale to re-equilibrate after

harvesting

  • Provides baseline for testing
  • Allows for selection of similar coupons

Method:

  • Jars filled with District’s GW at pH 7.5
  • Water exchanged 3x/week
  • Length of conditioning:
  • 6 weeks for galvanized iron coupons
  • 3 weeks for cement and copper

pipe/lead solder coupons

12

ATTACHMENT 1 - ITEM 6.2

slide-23
SLIDE 23

Water Treatment Condition Selection

GW = groundwater (District) SW = surface water (City) P = phosphorous

13

WATER CONDITION WATER DESCRIPTION C1 GW, pH 7.5, 0.5 mg/L free chlorine (Baseline) C2 GW, pH 7.5, 0.2 mg/L orthophosphate as P, 0.5 mg/L free chlorine C3 SW, pH 7.2, 0.2 mg/L orthophosphate as P, 1 mg/L free chlorine C4 SW, pH 7.8, 0.2 mg/L orthophosphate as P, 1 mg/L free chlorine C5 Alternating between C1 and C3 C6 Alternating between C1 and C4 C7 Alternating between C2 and C3

ATTACHMENT 1 - ITEM 6.2

slide-24
SLIDE 24

Testing Schedule

  • 13 weeks of testing
  • Alternating conditions switched

sources 1x/month

  • Nomenclature:
  • GW = groundwater (District)
  • SW = surface water (City)
  • OP = orthophosphate (0.2 mg/L as P)
  • Number = pH value

14

Testing Condition Weeks 0-5 Weeks 6-9 Weeks 10-13 C1 GW-7.5 GW-7.5 GW-7.5 C2 GW-7.5-OP GW-7.5-OP GW-7.5-OP C3 SW-7.2-OP SW-7.2-OP SW-7.2-OP C4 SW-7.8-OP SW-7.8-OP SW-7.8-OP C5 SW-7.2-OP GW-7.5 SW-7.2-OP C6 SW-7.8-OP GW-7.5 SW-7.8-OP C7 SW-7.2-OP GW-7.5-OP SW-7.2-OP

ATTACHMENT 1 - ITEM 6.2

slide-25
SLIDE 25

Pipe Coupon Results

15

ATTACHMENT 1 - ITEM 6.2

slide-26
SLIDE 26

Results Organization

  • Asbestos cement
  • Copper pipe with lead solder
  • Galvanized iron

16

ATTACHMENT 1 - ITEM 6.2

slide-27
SLIDE 27

Control Jars with Epoxy Only

Control analyte measurements taken after 2 days stagnation

17

Control 1 (GW-7.5) Control 2 (GW-7.5-OP) Control 3 (SW-7.2-OP) Control 4 (SW-7.8-OP)

ATTACHMENT 1 - ITEM 6.2

slide-28
SLIDE 28

Alternating Sources SW SW GW SW SW GW SW SW GW

20 40 60 80 100 120 Calcium (mg/L)

Week 0_Control Week 0 Week 4_Control Week 4 Week5_Control Week 5 Week6_Control Week 6 Week8_Control Week 8 Week9_Control Week 9 Week10_Control Week 10 Week 12_Control Week 12 Week 13_Control Week 13

Calcium

Testing shows no concern for calcium scale dissociation

18

Asbestos Cement

ATTACHMENT 1 - ITEM 6.2

slide-29
SLIDE 29

Alternating Sources SW SW GW SW SW GW SW SW GW

50 100 150 200 250 300 Phosphorus (µg/L)

Week 0_Control Week 0 Week 4_Control Week 4 Week5_Control Week 5 Week6_Control Week 6 Week8_Control Week8 Week9_Control Week 9 Week10_Control Week 10 Week 12_Control Week 12 Week 13_Control Week 13

Phosphorous

Minimal to no uptake of phosphorous

19

Asbestos Cement

Detection Limit = 10 µg/L

ATTACHMENT 1 - ITEM 6.2

slide-30
SLIDE 30

Summary for Asbestos Cement Testing

  • Overall no concern for switching sources
  • Calcium levels fluctuate naturally in the GW (~60 to 110 mg/L)
  • SW has slightly lower calcium levels (~40 to 60 mg/L)
  • Testing shows no concern for calcium scale dissociation
  • Minimal to no uptake of phosphorous

SW = surface water (City); GW = groundwater (District)

20

ATTACHMENT 1 - ITEM 6.2

slide-31
SLIDE 31

Alternating Sources SW GW SW SW GW SW SW GW SW

Copper

Minimal changes in Cu except for a spike in C6

21

Copper Pipe/ Lead Solder

500 1,000 1,500 2,000 2,500 Copper (µg/L) Conditioning Week 0 Week 4 Week 5 Week 6 Week 8 Week 9 Week 10 Week 12 Week 13

ATTACHMENT 1 - ITEM 6.2

slide-32
SLIDE 32

Alternating Sources SW GW SW SW GW SW GW SW

Lead

Lead decreased for all conditions except C6 Orthophosphate limited lead release

22

Copper Pipe/ Lead Solder

10 20 30 40 50 60 70 80 90 100 Lead (µg/L) Conditioning Week 0 Week 4 Week 5 Week 6 Week 8 Week 9 Week 10 Week 12 Week 13

SW

ATTACHMENT 1 - ITEM 6.2

slide-33
SLIDE 33

Phosphorous

Minimal to no uptake of phosphorous

23

Copper Pipe/ Lead Solder

50 100 150 200 250 300 Phosphorus (µg/L) Week 0_Control Week 0 Week 4_Control Week 4 Week5_Control Week 5 Week6_Control Week 6 Week8_Control Week 8 Week9_Control Week 9 Week10_Control Week 10 Week 12_Control Week 12 Week 13_Control Week 13

Alternating Sources SW SW GW SW SW GW SW SW GW

Detection Limit = 10 µg/L

ATTACHMENT 1 - ITEM 6.2

slide-34
SLIDE 34

Summary for Lead & Copper Testing

  • All conditions decreased Pb release except C6
  • C5 and C7 were equal to or better than C1 at limiting Pb and Cu
  • C6 showed spikes in Cu and Pb when switching from SW to GW
  • Cu release is limited with SW 7.8 OP
  • However - switching from SW 7.8 OP to GW 7.5 caused a spike in Cu release
  • Minimal to no uptake of phosphorous
  • Typical due to small surface area and limited demand

Pb = lead; Cu = copper; OP = orthophosphate; SW = surface water; GW = groundwater

24

ATTACHMENT 1 - ITEM 6.2

slide-35
SLIDE 35

GW SW SW GW SW SW GW SW SW

Turbidity

Galvanized Iron

Alternating Sources

0.0 0.5 1.0 1.5 Turbidity (NTU) Conditioning Week 0 Week 4 Week 5 Week 6 Week 7 Week 8 Week 9 Week 10 Week 12 Week 13

Turbidity is similar for all conditions – lowest for C5

25

ATTACHMENT 1 - ITEM 6.2

slide-36
SLIDE 36

SW SW GW SW SW GW SW SW GW

Manganese

Manganese decreased for all conditions Individual spikes are the result of one elevated coupon

26

Galvanized Iron

100 200 300 400 Manganese (µg/L) Conditioning Week 0 Week 4 Week 5 Week 6 Week 8 Week 9 Week 10 Week 12 Week 13

Alternating Sources

ATTACHMENT 1 - ITEM 6.2

slide-37
SLIDE 37

SW GW SW

Iron

Iron is decreasing or minimal change for all conditions except C6

27

Galvanized Iron

50 100 150 200 250 Iron (µg/L) Conditioning Week 0 Week 4 Week 5 Week 6 Week 8 Week 9 Week 10

Detection Limit = 10 µg/L

Alternating Sources SW GW SW SW GW SW

ATTACHMENT 1 - ITEM 6.2

slide-38
SLIDE 38

50 100 150 200 250 300 Phosphorus (µg/L)

Week 0_Control Week 0 Week 4_Control Week 4 Week5_Control Week 5 Week6_control Week 6 Week8_Control Week 8 Week 9_Control Week 9 Week10_Control Week 10 Week 12_Control Week 12 Week 13_Control Week 13

Phosphorous

Phosphorous depletion of 15-67% after 3 days exposure Phosphorous depletion decreases over time

28

Galvanized Iron

Detection Limit = 10 µg/L

Alternating Sources SW SW GW SW SW GW SW SW GW

ATTACHMENT 1 - ITEM 6.2

slide-39
SLIDE 39

Phosphorous Depletion Test

  • Galvanized iron coupons from C1 (GW-7.5) & C3 (SW-7.2-OP)
  • Jars filled with SW-7.2-OP
  • 0.2 mg/L orthophosphate as Phosphorous
  • 2 week test
  • No adjustment to water
  • Measured phosphorous every 2-3 days

Goal: Understand the phosphorous demand from galvanized iron pipe for long periods of contact time with stagnant water.

29

Galvanized Iron

ATTACHMENT 1 - ITEM 6.2

slide-40
SLIDE 40

20 40 60 80 100 120 140 160 180 200 220 2 4 6 8 10 12 14 16 Phosphorus (µg/L) Time (day) C1-Corrected C3-Corrected

Phosphorous Depletion Test

Phosphorous is still present after 2 weeks of stagnation with SW-7.2-OP

30

Galvanized Iron

Detection Limit = 10 µg/L

60% 82%

(GW-7.5 coupons) (SW-7.2-OP coupons)

ATTACHMENT 1 - ITEM 6.2

slide-41
SLIDE 41

Summary for Galvanized Iron Testing

  • Phosphorous uptake decreases over time
  • Phosphorous is still present after 2 weeks
  • Manganese is decreasing for all conditions
  • Iron is decreasing or minimal change for all conditions except C6 (SW-7.8-

OP/GW-7.5)

  • Turbidity is similar for all conditions

SW = surface water (City); GW = groundwater (District); OP = orthophosphate

31

ATTACHMENT 1 - ITEM 6.2

slide-42
SLIDE 42

Conclusions/ Recommendations

32

ATTACHMENT 1 - ITEM 6.2

slide-43
SLIDE 43

Conclusions

OP = orthophosphate; SW = surface water; GW = groundwater

Alternating Conditions:

  • C5 (SW-7.2-OP/GW-7.5) performed

better or equal to C1 (GW-7.5)

  • Decreased lead & iron
  • C6 (SW-7.8-OP/GW-7.5) caused lead,

copper, and iron to increase

  • C7 (SW-7.2-OP/GW-7.5-OP) results were

similar to C5 but would require OP

  • Adjusting SW to pH 7.8 is not beneficial
  • Adding OP to GW is not necessary
  • Pipe-loop testing is not necessary
  • Not planning to adjust water

chemistry (pH or OP)

  • Proceed with C5 at the full-scale pilot
  • Monitoring is necessary
  • Customer notification plan
  • Flushing of distribution system

33

Recommendations

ATTACHMENT 1 - ITEM 6.2

slide-44
SLIDE 44

Next Steps – Implementation Plan

34

ATTACHMENT 1 - ITEM 6.2

slide-45
SLIDE 45

Distribution System Monitoring

Necessary to provide full-scale validation to bench-scale testing results

  • Monitor water quality parameters:
  • Before purchasing SW – baseline
  • During the addition of SW
  • After returning to only GW
  • Monitoring Locations:
  • Sampling stations throughout the

distribution system – effect on mains

  • Lead & Copper Rule sampling sites –

effect on premise plumbing and service lines

  • Disinfection By-Product sample sites –

total trihalomethanes (TTHMs) and haloacetic acids

35

ATTACHMENT 1 - ITEM 6.2

slide-46
SLIDE 46

Customer Notification Plan

Alert businesses or individuals susceptible to water quality changes (i.e., hospitals, daycare facilities, nursing homes, dialysis patients, and food or beverage production facilities).

  • Options for public notification:
  • Mailed flier
  • Letter with billing statement
  • Notice added to website
  • Item addressed at board meeting
  • Other
  • Items to include in a notification:
  • Logistics of purchasing SW
  • Results of testing demonstrate

minimal to no change in water quality

  • Possible changes could include slight

discoloration or turbidity

  • Who to contact with

questions/concerns

36

ATTACHMENT 1 - ITEM 6.2

slide-47
SLIDE 47

Implementation Plan

  • Coordination with State Department of Drinking Water

(DDW) for permit approval and to define number and location of monitoring sites.

  • Isolation area within District’s system for at least 1 year
  • Implications for compliance monitoring (Lead & Copper Rule;

Disinfection By-Products)

  • Intertie logistics discussion
  • Short-term plans (isolated zone) and long-term plans
  • Flushing is complete for isolated zone

37

ATTACHMENT 1 - ITEM 6.2

slide-48
SLIDE 48

Phase 1 Zone

  • Isolate portion of Service Area 1

(2,300 service connections)

  • Generally West of Soquel Creek)
  • Watermains flushed
  • Water supply May-Oct:
  • O’Neill Ranch Well
  • Garnet Well
  • Main St. Well
  • Water supply Nov-April
  • City of Santa Cruz North Coast

(Liddell and Majors)

  • Cornwell and Pringle Tanks
  • Avg. Winter Demand (Nov- April)
  • Isolated area in red: 250 (AFY)
  • All of SA 1: 500 AFY
  • All of SA 1 & SA 2: 800 AFY

Pilot Program is focused on Water Quality NOT Quantity

ATTACHMENT 1 - ITEM 6.2

slide-49
SLIDE 49

Emily N. Tummons, PhD TummonsEN@BV.com 913-458-3160

17 July 2018 ATTACHMENT 1 - ITEM 6.2
