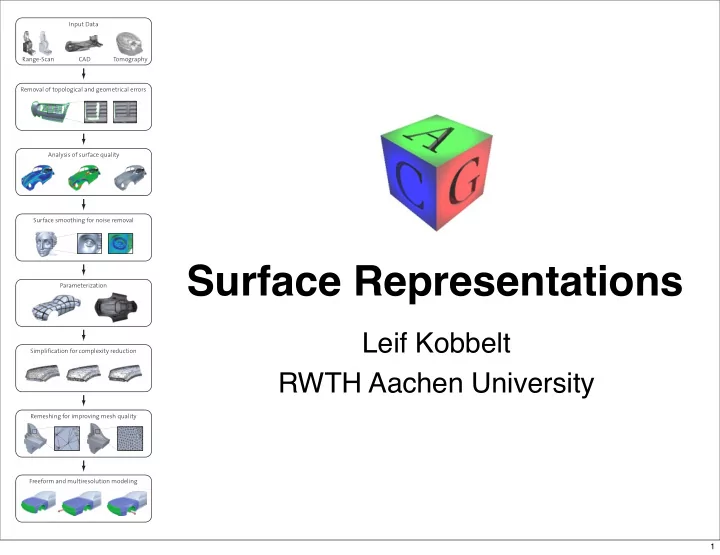

SLIDE 1

Surface Representations

Leif Kobbelt RWTH Aachen University

1

SLIDE 2

Leif Kobbelt RWTH Aachen University

Outline

(mathematical) geometry representations

– parametric vs. implicit

approximation properties
types of operations

– distance queries – evaluation – modification / deformation

data structures

2

SLIDE 3

Leif Kobbelt RWTH Aachen University

(mathematical) geometry representations

– parametric vs. implicit

approximation properties
types of operations

– distance queries – evaluation – modification / deformation

data structures

Outline

3

SLIDE 4

Leif Kobbelt RWTH Aachen University

Mathematical Representations

parametric

– range of a function – surface patch

implicit

– kernel of a function – level set

4

f : R2 → R3, SΩ = f(Ω) F : R3 → R, Sc = {p : F(p) = c}

4

SLIDE 5

Leif Kobbelt RWTH Aachen University

2D-Example: Circle

parametric
implicit

5

f : t → r cos(t) r sin(t)

,

S = f([0, 2π]) F(x, y) = x2 + y2 − r2 S = {(x, y) : F(x, y) = 0}

5

SLIDE 6

Leif Kobbelt RWTH Aachen University

parametric
implicit

2D-Example: Island

6

f : t → r cos(t) r sin(t)

,

S = f([0, 2π]) F(x, y) = x2 + y2 − r2 S = {(x, y) : F(x, y) = 0} ??? ??? ???

6

SLIDE 7

Leif Kobbelt RWTH Aachen University

piecewise parametric
piecewise implicit

Approximation Quality

7

f : t → r cos(t) r sin(t)

,

S = f([0, 2π]) F(x, y) = x2 + y2 − r2 S = {(x, y) : F(x, y) = 0} ??? ??? ???

7

SLIDE 8

Leif Kobbelt RWTH Aachen University

piecewise parametric
piecewise implicit

Approximation Quality

8

f : t → r cos(t) r sin(t)

,

S = f([0, 2π]) F(x, y) = x2 + y2 − r2 S = {(x, y) : F(x, y) = 0} ??? ??? ???

8

SLIDE 9

Leif Kobbelt RWTH Aachen University

Requirements / Properties

continuity

– interpolation / approximation

topological consistency

– manifold-ness

smoothness

– C0, C1, C2, ... Ck

fairness

– curvature distribution

9

f(ui, vi) ≈ pi

9

SLIDE 10

Leif Kobbelt RWTH Aachen University

continuity

– interpolation / approximation

topological consistency

– manifold-ness

smoothness

– C0, C1, C2, ... Ck

fairness

– curvature distribution

Requirements / Properties

10

f(ui, vi) ≈ pi

10

SLIDE 11

Leif Kobbelt RWTH Aachen University

Requirements / Properties

continuity

– interpolation / approximation

topological consistency

– manifold-ness

smoothness

– C0, C1, C2, ... Ck

fairness

– curvature distribution

11

f(ui, vi) ≈ pi

11

SLIDE 12

Leif Kobbelt RWTH Aachen University

continuity

– interpolation / approximation

topological consistency

– manifold-ness

smoothness

– C0, C1, C2, ... Ck

fairness

– curvature distribution

Requirements / Properties

12

f(ui, vi) ≈ pi

12

SLIDE 13

Leif Kobbelt RWTH Aachen University

continuity

– interpolation / approximation

topological consistency

– manifold-ness

smoothness

– C0, C1, C2, ... Ck

fairness

– curvature distribution

Requirements / Properties

13

f(ui, vi) ≈ pi

13

SLIDE 14

Leif Kobbelt RWTH Aachen University

Topological Consistency

14

SLIDE 15

Leif Kobbelt RWTH Aachen University

Topological Consistency

14

SLIDE 16

Leif Kobbelt RWTH Aachen University

Topological Consistency

14

Mesh Repair ...

14

SLIDE 17

Leif Kobbelt RWTH Aachen University

Closed 2-Manifolds

parametric

– disk-shaped neighborhoods – + injectivity

implicit

– surface of a “physical” solid –

15

f(Dε[u, v]) = Dδ[f(u, v)] F(x, y, z) = c, ∇F(x, y, z) = 0

15

SLIDE 18

Leif Kobbelt RWTH Aachen University

Closed 2-Manifolds

parametric

– disk-shaped neighborhoods – + injectivity

implicit

– surface of a “physical” solid –

16

f(Dε[u, v]) = Dδ[f(u, v)] F(x, y, z) = c, ∇F(x, y, z) = 0

16

SLIDE 19

Leif Kobbelt RWTH Aachen University

Closed 2-Manifolds

parametric

– disk-shaped neighborhoods – + injectivity

implicit

– surface of a “physical” solid –

17

f(Dε[u, v]) = Dδ[f(u, v)] F(x, y, z) = c, ∇F(x, y, z) = 0

17

SLIDE 20

Leif Kobbelt RWTH Aachen University

Closed 2-Manifolds

parametric

– disk-shaped neighborhoods –

implicit

– surface of a “physical” solid –

18

f(Dε[u, v]) = Dδ[f(u, v)] F(x, y, z) = c, ∇F(x, y, z) = 0

18

SLIDE 21

Leif Kobbelt RWTH Aachen University

Closed 2-Manifolds

parametric

– disk-shaped neighborhoods –

implicit

– surface of a “physical” solid –

19

f(Dε[u, v]) = Dδ[f(u, v)] F(x, y, z) = c, ∇F(x, y, z) = 0

19

SLIDE 22

Leif Kobbelt RWTH Aachen University

Smoothness

position continuity : C0
tangent continuity : C1
curvature continuity : C2

20

SLIDE 23

Leif Kobbelt RWTH Aachen University

Smoothness

position continuity : C0
tangent continuity : C1
curvature continuity : C2

21

SLIDE 24

Leif Kobbelt RWTH Aachen University

Smoothness

position continuity : C0
tangent continuity : C1
curvature continuity : C2

22

SLIDE 25

Leif Kobbelt RWTH Aachen University

Fairness

minimum surface area
minimum curvature
minimum curvature variation

23

SLIDE 26

Leif Kobbelt RWTH Aachen University

(mathematical) geometry representations

– parametric vs. implicit

approximation properties
types of operations

– distance queries – evaluation – modification / deformation

data structures

Outline

24

SLIDE 27

Leif Kobbelt RWTH Aachen University

Polynomials

computable functions
Taylor expansion
interpolation error (mean value theorem)

25

p(t) =

p

i=0

ci ti =

p

i=0

c

i Φi(t)

p(ti) = f(ti), ti ∈ [0, h]

f(h) =

p

i=0

1 i! f (i)(0) hi + O(hp+1) f(t) − p(t) = 1 (p + 1)! f (p+1)(t∗)

p

i=0

(t − ti) = O(h(p+1))

25

SLIDE 28

Leif Kobbelt RWTH Aachen University

computable functions
Taylor expansion
interpolation error (mean value theorem)

Polynomials

26

p(ti) = f(ti), ti ∈ [0, h]

p(t) =

p

i=0

ci ti =

p

i=0

c

i Φi(t)

f(t) − p(t) = 1 (p + 1)! f (p+1)(t∗)

p

i=0

(t − ti) = O(h(p+1))

f(h) =

p

i=0

1 i! f (i)(0) hi + O(hp+1)

26

SLIDE 29

Leif Kobbelt RWTH Aachen University

Polynomials

computable functions
Taylor expansion
interpolation error (mean value theorem)

27

p(ti) = f(ti), ti ∈ [0, h]

p(t) =

p

i=0

ci ti =

p

i=0

c

i Φi(t)

f(h) =

p

i=0

1 i! f (i)(0) hi + O(hp+1)

f(t) − p(t) = 1 (p + 1)! f (p+1)(t∗)

p

i=0

(t − ti) = O(h(p+1))

27

SLIDE 30

Leif Kobbelt RWTH Aachen University

Implicit Polynomials

interpolation error of the function values
approximation error of the contour

28

F(p + p) − F(p) p ≈ ∇F(p) p = λ ∇F(p) F(x, y, z) − P(x, y, z) = O(h(p+1))

28

SLIDE 31

Leif Kobbelt RWTH Aachen University

Implicit Polynomials

interpolation error of the function values
approximation error of the contour

29

F(p + p) − F(p) p ≈ ∇F(p) p = λ ∇F(p) F(x, y, z) − P(x, y, z) = O(h(p+1))

p p+Δp

29

SLIDE 32

Leif Kobbelt RWTH Aachen University

Implicit Polynomials

interpolation error of the function values
approximation error of the contour

30

p ≈ F(p + p) − F(p) ∇F(p) p = λ ∇F(p) (gradient bounded from below) F(x, y, z) − P(x, y, z) = O(h(p+1))

p p+Δp

30

SLIDE 33

Leif Kobbelt RWTH Aachen University

Implicit Polynomials

31

large gradient small gradient F(x,y,z) F(x,y,z) x,y,z x,y,z

31

SLIDE 34

Leif Kobbelt RWTH Aachen University

Polynomial Approximation

approximation error is O(hp+1)
improve approximation quality by

– increasing p ... higher order polynomials – decreasing h ... smaller / more segments

issues

– smoothness of the target data ( maxt f(p+1)(t) ) – handling higher order patches (e.g. boundary conditions)

32

SLIDE 35

Leif Kobbelt RWTH Aachen University

Polynomial Approximation

approximation error is O(hp+1)
improve approximation quality by

– increasing p ... higher order polynomials – decreasing h ... smaller / more segments

issues

– smoothness of the target data ( maxt f(p+1)(t) ) – handling higher order patches (e.g. boundary conditions)

33

MOTD: p = 1 MOTD: p = 1

33

SLIDE 36

Leif Kobbelt RWTH Aachen University

Piecewise Definition

parametric

– Euler formula: V - E + F = 2 (1-g) – regular quad meshes

F ≈ V
E ≈ 2V
average valence = 4

– quasi-regular – semi-regular

34

SLIDE 37

Leif Kobbelt RWTH Aachen University

Piecewise Definition

parametric

– Euler formula: V - E + F = 2 (1-g) – regular triangle meshes

F ≈ 2V
E ≈ 3V
average valence = 6

– quasi-regular – semi-regular

35

SLIDE 38

Leif Kobbelt RWTH Aachen University

Piecewise Definition

quasi regular (→ remeshing, Pierre)

36

SLIDE 39

Leif Kobbelt RWTH Aachen University

Piecewise Definition

semi regular

37

SLIDE 40

Leif Kobbelt RWTH Aachen University

Piecewise Definition

semi regular

38

SLIDE 41

Leif Kobbelt RWTH Aachen University

Piecewise Definition

implicit

– regular voxel grids O(h-3) – three color octrees

surface-adaptive refinement O(h-2)
feature-adaptive refinement O(h-1)

– irregular hierarchies

binary space partition O(h-1)

(BSP)

39

SLIDE 42

Leif Kobbelt RWTH Aachen University

3-Color Octree

40

12040 cells 1048576 cells

40

SLIDE 43

Leif Kobbelt RWTH Aachen University

Adaptively Sampled Distance Fields

41

12040 cells 895 cells

41

SLIDE 44

Leif Kobbelt RWTH Aachen University

Binary Space Partitions

42

254 cells 895 cells

42

SLIDE 45

Leif Kobbelt RWTH Aachen University

Message of the Day ...

polygonal meshes are a good compromise

– approximation O(h2) ... error * #faces = const. – arbitrary topology – flexibility for piecewise smooth surfaces – flexibility for adaptive refinement

43

SLIDE 46

Leif Kobbelt RWTH Aachen University

Message of the Day ...

polygonal meshes are a good compromise

– approximation O(h2) ... error * #faces = const. – arbitrary topology – flexibility for piecewise smooth surfaces – flexibility for adaptive refinement

44

SLIDE 47

Leif Kobbelt RWTH Aachen University

Message of the Day ...

polygonal meshes are a good compromise

– approximation O(h2) ... error * #faces = const. – arbitrary topology – flexibility for piecewise smooth surfaces – flexibility for adaptive refinement

45

SLIDE 48

Leif Kobbelt RWTH Aachen University

Message of the Day ...

polygonal meshes are a good compromise

– approximation O(h2) ... error * #faces = const. – arbitrary topology – flexibility for piecewise smooth surfaces – flexibility for adaptive refinement

46

SLIDE 49

Leif Kobbelt RWTH Aachen University

Message of the Day ...

polygonal meshes are a good compromise

– approximation O(h2) ... error * #faces = const. – arbitrary topology – flexibility for piecewise smooth surfaces – flexibility for adaptive refinement – efficient rendering

47

SLIDE 50

Leif Kobbelt RWTH Aachen University

Message of the Day ...

polygonal meshes are a good compromise

– approximation O(h2) ... error * #faces = const. – arbitrary topology – flexibility for piecewise smooth surfaces – flexibility for adaptive refinement – efficient rendering

implicit representation can support efficient

access to vertices, faces, ....

48

SLIDE 51

Leif Kobbelt RWTH Aachen University

(mathematical) geometry representations

– parametric vs. implicit

approximation properties
types of operations

– evaluation – distance queries – modification / deformation

data structures

Outline

49

SLIDE 52

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

50

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
50

SLIDE 53

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates)

51

(α, β) → α P1 + β P2 + (1−α−β) P3

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
0 ≤ α,

0 ≤ β, α + β ≤ 1

51

SLIDE 54

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates)

52

(α, β, γ) → α P1 + β P2 + γ P3

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
α + β + γ = 1

52

SLIDE 55

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates)

53

α u + β v + γ w → α P1 + β P2 + γ P3

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
α + β + γ = 0

53

SLIDE 56

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates)

54

α u + β v + γ w → α P1 + β P2 + γ P3

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
α + β + γ = 0

→ Parametrization Bruno

54

SLIDE 57

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates) – normals (per face, Phong)

55

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
N = (P2 − P1) × (P3 − P1)

55

SLIDE 58

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates) – normals (per face, Phong)

56

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
α u + β v + γ w → α N1 + β N2 + γ N3

56

SLIDE 59

Leif Kobbelt RWTH Aachen University

Evaluation

smooth parametric surfaces

– positions – normals – curvatures

generalization to triangle meshes

– positions (barycentric coordinates) – normals (per face, Phong) – curvatures ... (→ smoothing, Mark)

57

f(u, v) n(u, v) = fu(u, v) × fv(u, v) c(u, v) = C

fuu(u, v), fuv(u, v), fvv(u, v)
57

SLIDE 60

Leif Kobbelt RWTH Aachen University

Distance Queries

parametric

– for smooth surfaces: find orthogonal base point – for triangle meshes

use kd-tree or BSP to find closest triangle
find base point by Newton iteration

(use Phong normal field)

58

[p − f(u, v)] × n(u, v) = 0

58

SLIDE 61

Leif Kobbelt RWTH Aachen University

Modifications

parameteric

– control vertices – free-form deformation – boundary constraint modeling

59

f (u, v) =

n

i=0

m

j=0

cijN n

i (u) N m j (v)

59

SLIDE 62

Leif Kobbelt RWTH Aachen University

Modifications

parameteric

– control vertices – free-form deformation – boundary constraint modeling

60

f (u, v) =

n

i=0

m

j=0

cijN n

i (u) N m j (v)

60

SLIDE 63

Leif Kobbelt RWTH Aachen University

parameteric

– control vertices – free-form deformation – boundary constraint modeling

Modifications

61

→ Remeshing Pierre

61

SLIDE 64

Leif Kobbelt RWTH Aachen University

parameteric

– control vertices – free-form deformation – boundary constraint modeling

Modifications

62

SLIDE 65

Leif Kobbelt RWTH Aachen University

parameteric

– control vertices – free-form deformation – boundary constraint modeling

Modifications

63

SLIDE 66

Leif Kobbelt RWTH Aachen University

parameteric

– control vertices – free-form deformation – boundary constraint modeling

Modifications

63

SLIDE 67

Leif Kobbelt RWTH Aachen University

parameteric

– control vertices – free-form deformation – boundary constraint modeling

Modifications

64

→ Mesh Editing Mario

64

SLIDE 68

Leif Kobbelt RWTH Aachen University

(mathematical) geometry representations

– parametric vs. implicit

approximation properties
types of operations

– distance queries – evaluation – modification / deformation

data structures

Outline

65

SLIDE 69

Leif Kobbelt RWTH Aachen University

Mesh Data Structures

how to store geometry & connectivity?
compact storage

– file formats

efficient algorithms on meshes

– identify time-critical operations – all vertices/edges of a face – all incident vertices/edges/faces of a vertex

66

SLIDE 70

Leif Kobbelt RWTH Aachen University

Face Set (STL)

face:

– 3 positions

67

Triangles x11 y11 z11 x12 y12 z12 x13 y13 z13 x21 y21 z21 x22 y22 z22 x23 y23 z23 ... ... ... xF1 yF1 zF1 xF2 yF2 zF2 xF3 yF3 zF3

36 B/f = 72 B/v no connectivity!

67

SLIDE 71

Leif Kobbelt RWTH Aachen University

Shared Vertex (OBJ, OFF)

vertex:

– position

face:

– vertex indices

68

Vertices x1 y1 z1 ... xV yV zV Triangles v11 v12 v13 ... ... ... ... vF1 vF2 vF3

12 B/v + 12 B/f = 36 B/v no neighborhood info

68

SLIDE 72

Leif Kobbelt RWTH Aachen University

Face-Based Connectivity

vertex:

– position – 1 face

face:

– 3 vertices – 3 face neighbors

69

64 B/v no edges!

69

SLIDE 73

Leif Kobbelt RWTH Aachen University

Edge-Based Connectivity

vertex

– position – 1 edge

edge

– 2 vertices – 2 faces – 4 edges

face

– 1 edge

70

120 B/v edge orientation?

70

SLIDE 74

Leif Kobbelt RWTH Aachen University

Halfedge-Based Connectivity

vertex

– position – 1 halfedge

halfedge

– 1 vertex – 1 face – 1, 2, or 3 halfedges

face

– 1 halfedge

71

96 to 144 B/v no case distinctions during traversal

71

SLIDE 75

Leif Kobbelt RWTH Aachen University 72

One-Ring Traversal

1. Start at vertex

72

SLIDE 76

Leif Kobbelt RWTH Aachen University 73

One-Ring Traversal

1. Start at vertex
2. Outgoing halfedge

73

SLIDE 77

Leif Kobbelt RWTH Aachen University 74

One-Ring Traversal

1. Start at vertex
2. Outgoing halfedge
3. Opposite halfedge

74

SLIDE 78

Leif Kobbelt RWTH Aachen University 75

One-Ring Traversal

1. Start at vertex
2. Outgoing halfedge
3. Opposite halfedge
4. Next halfedge

75

SLIDE 79

Leif Kobbelt RWTH Aachen University 76

One-Ring Traversal

1. Start at vertex
2. Outgoing halfedge
3. Opposite halfedge
4. Next halfedge
5. Opposite

76

SLIDE 80

Leif Kobbelt RWTH Aachen University 77

One-Ring Traversal

1. Start at vertex
2. Outgoing halfedge
3. Opposite halfedge
4. Next halfedge
5. Opposite
6. Next
7. ...

77

SLIDE 81

Leif Kobbelt RWTH Aachen University

Halfedge-Based Libraries

CGAL

– www.cgal.org – computational geometry – free for non-commercial use

OpenMesh

– www.openmesh.org – mesh processing – free, LGPL licence

78

SLIDE 82

Leif Kobbelt RWTH Aachen University

Literature

Kettner, Using generic programming for designing a

data structure for polyhedral surfaces, Symp. on

Comp. Geom., 1998
Campagna et al, Directed Edges - A Scalable

Representation for Triangle Meshes, Journal of Graphics Tools 4(3), 1998

Botsch et al, OpenMesh - A generic and efficient

polygon mesh data structure, OpenSG Symp. 2002

79

SLIDE 83

Leif Kobbelt RWTH Aachen University

Outline

(mathematical) geometry representations

– parametric vs. implicit

approximation properties
types of operations

– distance queries – evaluation – modification / deformation

data structures

80
