Support ing Time-Sensit ive I nt roduct ion Mult imedia applicat - - PDF document

1

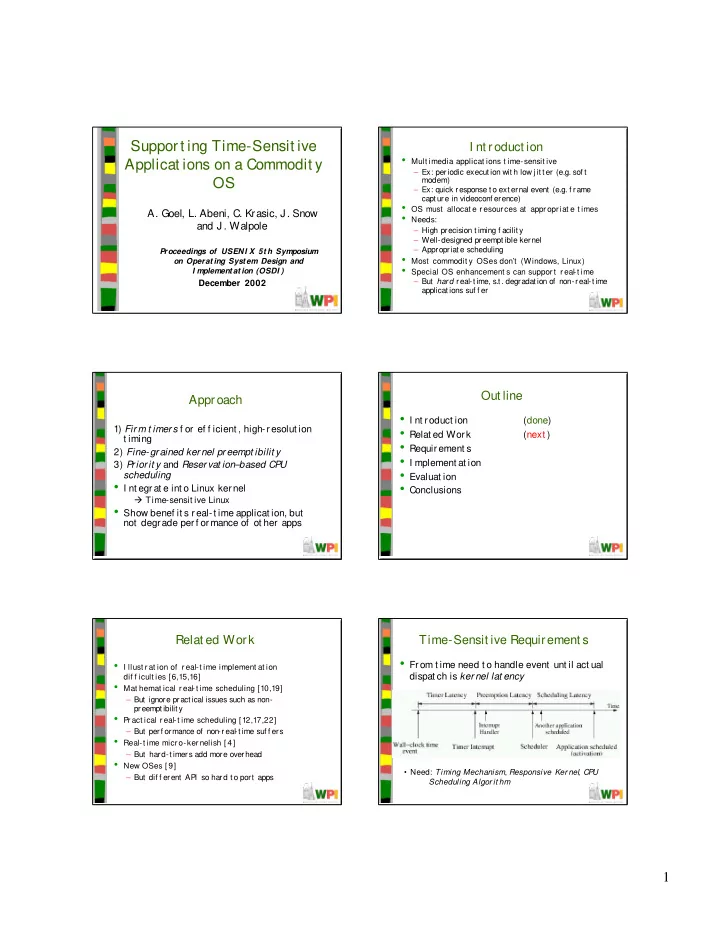

Support ing Time-Sensit ive Applicat ions on a Commodit y OS

• A. Goel, L. Abeni, C. Krasic, J. Snow

and J. Walpole

Proceedings of USENI X 5t h Symposium

• n Operat ing Syst em Design and

I mplement at ion (OSDI )

December 2002

I nt roduct ion

• Mult imedia applicat ions t ime-sensit ive

– Ex: periodic execut ion wit h low j it t er (e.g. sof t modem) – Ex: quick response t o ext ernal event (e.g. f rame capt ure in videoconf erence)

• OS must allocat e r esour ces at appr opr iat e t imes
• Needs:

– High precision t iming f acilit y – Well-designed preempt ible kernel – Appropriat e scheduling

• Most commodit y OSes don’t (Windows, Linux)
• Special OS enhancement s can suppor t r eal
• t ime

– But hard real-t ime, s.t . degradat ion of non-real-time applicat ions suf f er

Approach

1) Firm t imers f or ef f icient , high-resolut ion t iming 2) Fine-grained kernel preempt ibilit y 3) Priorit y and Reservat ion–based CPU scheduling

• I nt egrat e int o Linux kernel

Time-sensit ive Linux

• Show benef it s real-t ime applicat ion, but

not degrade perf ormance of ot her apps

Out line

• I nt roduct ion

(done)

• Relat ed Work

(next )

• Requirement s
• I mplement at ion
• Evaluat ion
• Conclusions

Relat ed Work

• I llust r at ion of r eal-t ime implement at ion

dif f icult ies [6,15,16]

• Mat hemat ical r eal-t ime scheduling [10,19]

– But ignore pract ical issues such as non- preempt ibilit y

• Pr act ical r eal-t ime scheduling [12,17,22]

– But perf ormance of non

• r eal
• t ime suf f ers
• Real-t ime micro-ker nelish [ 4]

– But hard-t imers add more overhead

• New OSes [ 9]

– But dif f erent AP I so hard t o port apps

Time-Sensit ive Requirement s

• From t ime need t o handle event unt il act ual

dispat ch is ker nel lat ency

• Need: Timing Mechanism, Responsive Ker nel, CPU

Scheduling Algor it hm

2

Timer Mechanism

• Accur at e t imer t he lar gest add t o ker nel lat ency
• Can use:

– One-shot t imer –on x86, use on

• chip C

P U Advanced P rogrammable I nt errupt Cont roller (AP I C). Needs t o be reprogrammed each t ime. – Sof t Timer –check f or expired t imers at st rat egic locat ions, reduce t he number of int errupt s

• Solut ion: Combine t o call f ir m t imer s

Responsive Ker nel

• I f t imer is accur at e, might st ill not have low

ker nel lat ency if ker nel cannot r espond – (Tradit ionally, t hread in kernel runs unt il done)

• Solut ion: r educe size of non-pr eempt ible r egions

CPU Scheduling Algorit hm

• Need t o schedule t he r ight pr ocess as quickly as

possible

• Solut ions:

– P riorit y-based scheduler –pre-assign priorit ies and schedule in t hat order – P roport ion

• period scheduler – schedule wit h an

upper-bound on delay

Misc

• Not e, any one alone not suf f icient !

– High-resolut ion t imer doesn’t help if kernel not pr eemt ible or: – Responsive ker nel not usef ul wit hout accurat e t ime

• Not e, t asks may not be independent :

– X server operat es (and is scheduled) in FI FO order – Video applicat ion wit h higher priorit y t han X server will have priorit y inversion (wait ing

• n low pr ior it y) (will addr ess)

Out line

• I nt roduct ion

(done)

• Relat ed Work

(done)

• Requirement s

(done)

• I mplement at ion

– Fir m Timer s (next ) – Fine-Gr ained Pr eempt ibilit y – CPU Scheduling

• Evaluat ion
• Conclusions

Per iodic Timer s

• Commodit y OSes implement t iming wit h per iodic

t imer s. – Ex: on I nt el x86, int errupt s generat ed wit h P rogrammable I nt erval Timer (P I T) – Ex: is 10 ms on Linux, t hus is max lat ency

• Can r educe lat ency by r educing per iod, but adds

mor e int er r upt over head

• I nst ead, move t o one-shot t imer
• Ex: t wo t asks, period 5 and 7 ms, t imer period 1

ms, 35 ms running t ime – P eriodic: 35 int errupt s generat ed – One-shot : 11 int errupt s generat ed (5, 7, 10, 14 … ) – P lus, one-shot t imer reduces t imer lat ency

3

Fir m Timer Design

• One-shot t imer cost s: t imer r epr ogr amming and

f ielding t imer int er r upt s – Reprogramming cost has decreased in modern hardware (P 2+)

• P

I T on x86 used t o use slow out on bus

• Newer AP

I C resides on CP U chip

– Thus, last cost is int errupt cost

• Reduce by sof t-t imer s

– P

• ll f or expired t imers at st rat egic point s where

cont ext swit ch is occurring

• Ex: syst em call, int errupt , except ion ret urn
• Two new pr oblems: poll cost and added t imer lat ency
• Can solve 2nd pr oblem wit h t imer over shoot

– P rovides upper bound on lat ency – Tradeof f bet ween accuracy and overhead

• 0 hard t imers, large sof t -t imers
• At 100 MHz, t heor et ical accur acy of 10 nanoseconds

Firm Timer I mplement at ion

• Timer queue f or each queue, sor t ed by expir y
• When t imer expir es

– execut e callback f unct ion f or each expired t imer – Reprogram AP I C

• Global over shoot value (but could be done per

t imer)

• Accessible t hr ough: nanosleep(), pause(),

setitimer(), select() and poll()

Out line

• I nt roduct ion

(done)

• Relat ed Work

(done)

• Requirement s

(done)

• I mplement at ion

– Fir m Timer s (done) – Fine-Gr ained Pr eempt ibilit y (next ) – CPU Scheduling

• Evaluat ion
• Conclusions

Reasons Scheduler Cannot Run

• I nt errupt s disabled

– Hopef ully, short

• Anot her t hread in crit ical region
• Commodit y OSes have no preempt ion f or

ent ire kernel period

– Ex: when int errupt f ires or durat ion of syst em call – Unless known it will be long (ex: disk I / O) – Preempt ion lat ency under Linux can be 30 ms

Enabling More Preempt ion

1) Add more preempt ion point s

– Must be done manually

2) Allow preempt ion anyt ime not using shared dat a st ruct ures

– Prot ect shared st ruct ures wit h locks – Can st ill result in long lat encies

• Combine 1) and 2) works best

– (Done by Rober t Love [11]) – (Aut hor s evalut ed in [1])

Out line

• I nt roduct ion

(done)

• Relat ed Work

(done)

• Requirement s

(done)

• I mplement at ion

– Fir m Timer s (done) – Fine-Gr ained Pr eempt ibilit y (done) – CPU Scheduling (next )

• Evaluat ion
• Conclusions

4

CPU Scheduling

• Priorit y CPU scheduling is simple, POSI X

compliant

– But assumes applicat ions well-behaved

• So, combine wit h pr opor t ion-period on t op

t o give prot ect ion

P roport ion-Period CPU Scheduling

• For single independent t asks, assign highest

priorit y t ask – Mis-behaving t ask can consume “t oo much” – Use t emporal prot ect ion

• Pr opor t ion-per iod pr ovides by allocat ing f ixed CPU

amount each per iod – Task execut es as “real-t ime” (highest priorit y) f or t ime Q every T – P eriod det ermined by applicat ion requirement s (Ex: 30ms f or video)

• I mplement ed using Ear liest Deadline Fir st (EDF)

Priorit y CPU Scheduling

• Pr ior it y inver sion occur s when an applicat ion has

mult iple t asks t hat ar e independent – Example: Video applicat ion uses X – Video is highest since t ime-sensit ive – Sends f rame t o X server and blocks – X server may be preempt ed by ot her medium priorit y t ask, hence delaying Video client

• To solve, use highest-locking pr ior it y (HLP) [19] in

which t ask inher it s pr ior it y when using shar ed resource – Example: display is shared resource so X server get s highest priorit y of blocking client s

Out line

• I nt roduct ion

(done)

• Relat ed Work

(done)

• Requirement s

(done)

• I mplement at ion

(done)

• Evaluat ion

(next )

• Conclusions

Evaluat ion

1) Behavior of t ime-sensit ive applicat ions r unning on TSL 2) The Over heads of TSL

• Set up:

– Sof t ware

• Linux 2.4.16
• Robert Love’s lock-breaking preempt ible kernel pat ch
• P

roport ion-period scheduler

– Hardware

• 1.5 GHz I nt el P4 wit h 512 MB RAM

Lat ency in Micro Benchmarks

• Test low-level component s of ker nel lat ency:

t imer , pr eempt ion and scheduling – Time-sensit ive process t hat sleeps f or a specif ied amount of t ime (using nanosleep()) – Result s: 10 ms in st andard Linux, f ew microseconds in TSL

• Test pr eempt ion lat ency under loads

– Result s: Linux worst case 100 ms (when copying dat a f rom kernel t o user space), but t ypically less t han 10 ms and is hidden by t imer lat ency. TSL is 1 ms. (Result det ails in [1])

5

Lat ency in Real Applicat ions

• Test ed t wo applicat ions:

– mplayer – a open-source audio/ video player – P roport ion- period scheduler - a kernel-level “applicat ion”

Mplayer Det ails

• Synchronizes audio and video using t ime-

st amps

• Audio card used as t iming source
• When video f rame decoded, t ime st amp

compared wit h audio clock.

– I f lat e, t hen play – I f early, t hen sleep f or t ime t hen play

• I f kernel not responsive or has coarse

t iming, will be poor audio/ video synch and high int er-f rame display j it t er

Test ing MPlayer

• Compare Linux wit h TSL under:

– Non-kernel CPU load –run user -level st r ess t est – Kernel CPU load –large (8 MB) mem buf f er copied t o a f ile (one write() call) , 90% in ker nel mode – File-syst em load –lar ge dir (linux sr c, 13000 f iles, 180 MB dat a, ext2) copied (via DMA) recursively and f lushed

• Fore ach t est , run mplayer f or 100 seconds

at r eal-t ime priorit y

Non-kernel CPU Load : Linux

• 5 ms t o 50 ms when X server run normal prio

(X server at real-t ime, 250 microseconds (not y-axis)) (This conf ig used f or all ot hers)

Non-Ker nel CPU Load : TSL Ker nel CPU Load : Linux

(90 msec f or Linux, since done in non-preempt ible sect ion)

6

Kernel CPU Load : TSL

(Skew improves t o less t han 400 microseconds)

File Syst em Load : Linux

(Skew of t en low, but as high as 120 msec)

File Syst em Load : TSL

(Skel less t han 500 microseconds, of t en lower)

Compar ison wit h Real-Time Kernel

• Linux-SRT [6], includes f iner -gr ained t imer s and

r eser vat ion scheduler – (See f igure 5a, 5b, 5c)

• Non-ker nel CPU load skew less t han 2ms, but as

high as 7 ms (compar e w/ TSL of 250 micr osec)

• Ker nel CPU load wor st case was 60 ms (compar e

w/ TSL of 400 micr osec)

• File-Syst em load wor st case was 30 ms (compar e

w/ TSL of 500 micr osec)

• Shows r eal- t ime scheduling and mor e pr ecise

t imer s insuf f icient . Responsive ker nel also required.

Non-Ker nel CPU Load : TSL

(Much lower, but can st ill be 35 msec)

P roport ion-Period Scheduler

• Simult aneously ran 2 t ime-sensit ive apps

wit h proport ions of 40% and 20% and per iods of 8192 microsec and 512 microsec

• Each process records t ime via

gettimeofday() and records in array

• Measure perf ormance by dif f erences in

array compared wit h period

7

Maximum Deviat ion

Deviat ions low. Higher when load is high. Maximum gives you bounds. Example: sof t -modem needs CP U every 4 t o 16 ms so could be support ed.

Syst em Overhead

• Cost s of execut ing code at newly insert ed

preempt ion point s

• Cost s of execut ing f ir m t imess

Cost of Preempt ion

• Memory access t est (sequent ially access

128 MB ar r ay), f or k t est (cr eat e 512 processes) and f ile-syst em access t est (copy 2 MB buf f er s t o 8 MB f ile)

– Designed in [1], should be wor st case

• Test s hit addit ional preempt ion checks
• Measure rat io of complet ion t ime under

TSL / Linux

• Result : memory .42%+-.18%, f ork .53%+-

.06%, f ile sys had no overhead

Fir m Timer s

• Firm t imers user hard and sof t t imers.

Cost s:

– Har d t imer s cost s only –int er r upt handling and cache pollut ion – Hard and sof t t imers common cost s – manipulat ion t imer s f r om queue execut ing preempt ion f or expired t hread – Sof t t imers cost s only –checking f or expired t imers

Firm Timers : Set up

• Timer process - t ime-sensit ive process is

periodic t ask wakes up via setitimer() call, measures t ime, goes t o sleep

• Throughput process – povray, a r ay-

t racing program rendering skyvase benchmark, measure elapsed t ime

• Run t imer wit h 10 ms period since is

suppor t ed by Linux

Fir m Timer Over head

(Dif f erent overshoot values. 8 t imes w/ 95% conf idence int ervals) (Only small decrease in overhead wit h larger overshoot )

8

Fir m Timer Over head

(Larger decrease in overhead since more t imers) (Linux slower wit h 500 since synchronizes 500 procs. Art if act of set up)

Firm Timer Overhead High Frequencies

(Compare wit h hard t imers only since Linux cannot do 1 ms)

Discussion

• Firm t imers lower overhead when sof t-

t imer checks f ind t imers

• Firm t imers higher overhead when sof t-

t imer checks f ind not hing and t imer goes

• f f

– Fr om t heir wor k, f ir m t imer s lower when more t han 2.1% of t imer checks f ind t imer

Conclusions

• TSL can suppor t applicat ions needing f ine-gr ained

r esour ce allocat ion and low lat ency r esponse – Firm t imers f or accurat e t iming – Fine-grained kernel preempt ibilit y f or improving kernel response – P roport ion

• period scheduling f or providing precise

allocat ion of t asks

• Var iat ions of less t han 400 micr oseconds under

heavy CPU and f ile syst em load

• Overhead is low
