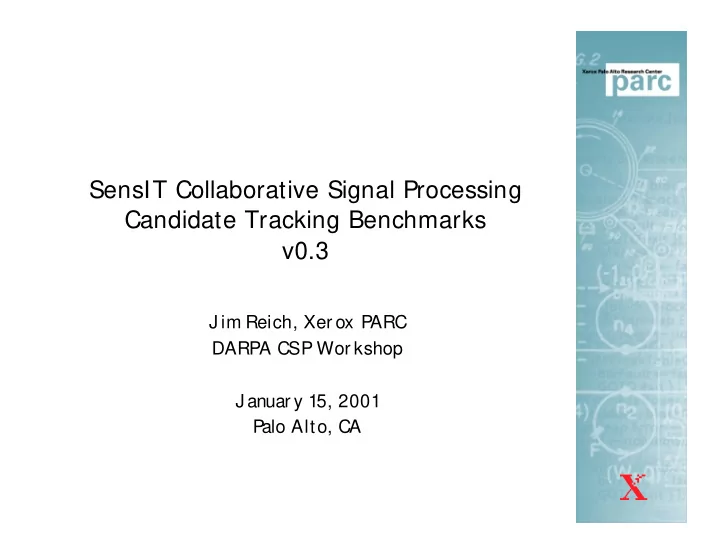

SensIT Collaborative Signal Processing Candidate Tracking Benchmarks v0.3

J im Reich, Xer ox P ARC DARPA CSP Wor kshop J anuar y 15, 2001 P alo Alto, CA

Issues to Consider as we go

• What ar e the unique challenges of the scenar io?

– I s ther e a way to make the scenar io mor e “f undament al” and f ocus on the challenge

• What inf or mation needs to be combined f r om multiple

nodes, and how of ten?

• What ar e some likely quer ies?
• How would we benchmar k success?
• Can this test be implemented as a r eal wor ld

exper iment?

Assumptions

• Single vehicle unless other wise shown
• Unless other wise stated, vehicles at t empt to

maint ain constant speed and do not shif t gear s

• Unless other wise stated, vehicles star t beyond

the sensor f ield and ar r ive in sequence

• Complications to be handled as we get bet ter :

– Var iation of acoustic signatur e with aspect – Acceler ation, br aking, and gear shif ts

• Changes the acoustic signals

– Spatio-tempor ally var ying pr opagation models – Node unr eliabilit y

Linear Array Laydown Example

Microphone/ Microphone Array PIR 3-Axis Seismic (optional) 600m Nodes may continue along road (optional) Query Source

2D Array Laydown Example

Microphone/ Microphone Array PIR 3-Axis Seismic Randomly distributed in [X, Y, θ] 300m

Benchmarking

• Gener ic Benchmar ks

– Ener gy Consumption

• Total, per node (max, avg)
• f (comput ation, communication)

– Detection Accur acy

• Fr equency of f alse positives, negatives

– Detection Lat ency

• Mean, max vs. quer y sour ce location

– Tr acking accur acy

• Mean, max, std.
• f (desir ed output f r equency)

– Tr acking Latency

• Mean, max vs. quer y sour ce location
• Task-specif ic Benchmar ks

1: Track Single Target

Task

• Estimate target position vs. time

Challenges

• Localize target
• Maintain accurate estimate in large

gaps between sensors

• Fuse data from multiple sensor types

2: Track Single Maneuvering Target

Task

• Estimate target position vs. time

Challenges

• No road, hence no prior

knowledge of vehicle trajectory

• Constant direction dynamics

models no longer adequate

• Many sensors making

simultaneous observations

3: Track Accelerating/Decelerating Target

Vehicle begins stationary and idling at point “A” Accelerates, maintains constant velocity Decelerates and stops and point “B” Extra credit: Handle gear shifts

A B

Task

• Estimate target position vs. time

Challenges

• Vehicle signature time-varying
• Constant velocity dynamics

models no longer adequate

• Gear shift requires maintaining

internal discrete state (curr. gear)

4: Count Stationary (idling) Targets

Task

• Count number of targets
• Locate targets

Challenges

• Multiple vehicles
• Unknown number of vehicles
• Cannot depend on peak-finding

(CPA) of acoustic signal

Task-Specific Benchmarks

• Accuracy of count
• vs. dynamic range of acoustic
• utputs from ensemble of

vehicles

5: Two-way traffic

Task

• Track target positions
• Estimate target crossing time

Challenges

• Vehicles in close proximity,

need to use dynamics to keep identities separate

Task-Specific Benchmarks

• Accuracy of crossing time

estimate

6: Convoy on a Road

Vary inter-vehicle spacing to vary problem difficulty

Task

• Count number of vehicles of

each type

• Determine order of vehicles

Challenges

• Multiple vehicles
• Classification and state

information must follow vehicle along full length of road

Task-Specific Benchmarks

• Accuracy of count & order
• vs. vehicle spacing &

convoy velocity

7: Perimeter Violation Sensing

Task

• Alert on violation of perimeter
• Ignore activity outside of

perimeter (distractors)

• Identify violator type and track

location

Challenges

• Filter out distractor
• Respond quickly while

minimizing quiescent activity

Task-Specific Benchmarks

• Detection delay
• Power usage during periods
• f no violation
• Frequency of false positives

all vs. distractor/violator source amplitude ratio

8: Tracking in an Obstacle Field

Task

• Track vehicle position

Challenges

• Obstacles cause individual

sensors to lose lock on the target

• Different sensing modalities are

blocked differently by obstacles (i.e. seismic vs. acoustic)

9: Road Junction Merge/Split on Localized One-Time Sensor

Task

• Track targets
• Maintain target identities
• Re-establish identity of both

targets when right-hand magnetometer is crossed

Challenges

• Need to conserve number and

type of targets as they pass through tunnel.

• Need to reason about targets –

Seeing blue at top right mag. guarantees red at bottom.

Task-Specific Benchmarks

• Time to propagate data from

RHS magnetometer to red car in the lower RHS Targets can only be distinguished from each other by magnetometers (shown), which give one-time “red/blue” output when the vehicle passes over them.

• 10. Cluster Behavior

Task

• Track cluster centroid
• Keep count of vehicles in cluster

adjusting as some leave and join

Challenges

• Large number of targets
• Coalescing many similar targets,

limiting exponential hypothesis blowup

• Measuring global properties of

cluster (centroid, count) rather than properties of single target

Task-Specific Benchmarks

• Maximum number of targets

which can be handled simultaneously

• Centroid accuracy
