Supervision and accreditation of CSPs within the EU legal framework Ulrich Latzenhofer Forum of European Supervisory Authorities for Electronic Signatures (FESA) 2009-12-08 Supervision and accreditation of CSPs within the EU legal framework

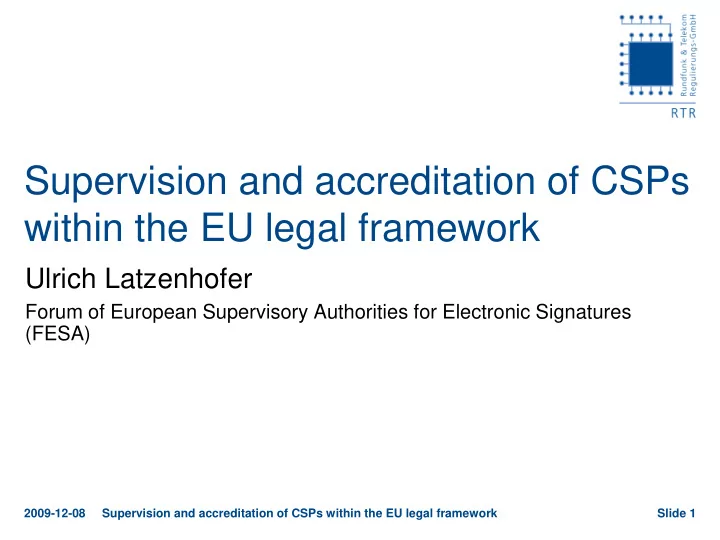

slide-1
SLIDE 1

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 1

Supervision and accreditation of CSPs within the EU legal framework

Ulrich Latzenhofer

Forum of European Supervisory Authorities for Electronic Signatures (FESA)

slide-2
SLIDE 2

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 2

Outline

  • Terminology
  • eSignature Directive
  • Supervision vs. accreditation
  • FESA
slide-3
SLIDE 3

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 3

Terminology

slide-4
SLIDE 4

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 4

slide-5
SLIDE 5

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 5

eSignature

  • Definition from European eSignature Directive
  • Data in electronic form
  • Attached to or logically associated with other electronic data
  • Serving as a method of authentication
  • Simple examples
  • Scanned signature attached to electronic document
  • Transaction authentication number as used by online

banking services

slide-6
SLIDE 6

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 6

Advanced eSignature

  • Criteria from European eSignature Directive
  • Uniquely linked to signatory
  • Capable of identifying signatory
  • Created using means under sole control of signatory
  • Subsequent changes of signed data detectable
  • Non-binding interpretation by FESA
  • Example: Digital signature based on public-key

cryptography

slide-7
SLIDE 7

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 7

Secure signature creation device (SSCD)

slide-8
SLIDE 8

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 8

SSCD requirements

  • Requirements from European eSignature Directive
  • Uniqueness and secrecy of signature creation data
  • Protection against illegitimate use and forgery
  • Possible presentation, no alteration of data to be signed
  • Conformity with requirements
  • To be assessed by body referred to in Directive, Article 3(4)
  • Presumed for SSCDs meeting “generally recognised

standards” (CWA 14169)

slide-9
SLIDE 9

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 9

Qualified certificate (QC)

Policy identifier for QC with SSCD

  • Link between

natural person and signature verification data

  • Confirmed by

trusted third party

slide-10
SLIDE 10

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 10

QC: Content requirements

  • QC statement
  • Identification of certification service provider (CSP)

and State of establishment

  • Name of the signatory or pseudonym
  • Signature verification data
  • Period of validity
  • Identity code of certificate
  • Advanced eSignature of CSP
slide-11
SLIDE 11

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 11

QC: Requirements for CSP

  • Directory and revocation services
  • Verification of identity
  • Reliability and qualifications of personnel
  • Trustworthy systems
  • Financial resources
  • Records
  • Information for signatories
slide-12
SLIDE 12

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 12

Qualified eSignature

  • Criteria from European eSignature Directive
  • Advanced eSignature
  • Based on QC
  • Created by SSCD
  • Legal equivalence with handwritten signature

(provided that electronic form is admissible)

slide-13
SLIDE 13

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 13

Types of eSignature

Advanced eSignatures Based on QC Created by SSCD Qualified eSignature s

slide-14
SLIDE 14

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 14

eSignature Directive

slide-15
SLIDE 15

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 15

Important provisions

  • Market access
  • Internal market principles
  • Legal effects of eSignatures
  • Liability of CSPs
  • International aspects
  • Data protection
slide-16
SLIDE 16

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 16

Market access

  • No prior authorisation for certification services
  • Voluntary accreditation schemes possible on EU

Member State level

  • CSPs issuing QCs to be supervised by EU Member

States

  • Conformity of SSCDs to be assessed by designated

bodies

  • Criteria for additional public sector requirements
slide-17
SLIDE 17

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 17

Internal market principles

  • Home state regulation
  • National provisions to be applied only to CSPs established
  • n that nation’s territory
  • No restriction of certification services originating in another

Member State

  • Free circulation of eSignature products complying

with eSignature Directive

slide-18
SLIDE 18

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 18

Legal effects of eSignatures

  • Qualified eSignatures
  • Legal equivalence with handwritten signatures
  • Admissibility as evidence in legal proceedings
  • Other eSignatures
  • Legal effectiveness and admissibility as evidence not to be

denied solely due to “quality level”

slide-19
SLIDE 19

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 19

Liability of CSPs

  • For damage to party relying in QC
  • Accuracy of information contained in QC
  • Corresponding signature creation data held by signatory
  • Complementarity of signature creation data and signature

verification data

  • Revocation of QC
  • Possible limitations
  • Use of QC
  • Value of transactions
slide-20
SLIDE 20

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 20

International aspects

  • Recognition of QC from third country
  • CSP accredited in EU Member State or
  • QC guaranteed by CSP established within European

Community or

  • Recognition under agreement between European

Community and third country or international organisation

  • Proposals and mandates of European Commission
slide-21
SLIDE 21

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 21

Data protection

  • Compliance with Data Protection Directive
  • CSPs
  • Bodies responsible for supervision and accreditation
  • Collection of personal data
  • Only from data subject or with consent of data subject
  • Only as far as necessary for purpose of certification service
  • Pseudonyms not to be prevented
slide-22
SLIDE 22

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 22

Supervision vs. accreditation

slide-23
SLIDE 23

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 23

Types of CSPs to be supervised

  • CSPs issuing QCs to the public
  • Other CSPs if required by national law
  • Non-qualified certificates
  • Directory and revocation
  • Time-stamping
  • eSignature verification
  • Closed systems exempted
slide-24
SLIDE 24

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 24

Supervision modality determined by national law

  • Supervision system (e.g., public or private sector)
  • Obligations of bodies involved with supervision
  • Scope of supervision
  • Directory of CSPs
  • Obligations of CSPs to support supervision
  • Supervisory measures and enforcement
slide-25
SLIDE 25

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 25

Bodies typically involved with supervision

  • Supervisory authority and its office
  • Designated bodies
  • Bodies recognised under

Common Criteria Recognition Arrangement (CCRA)

  • Certification/Validation Bodies
  • Evaluation Facilities
  • Independent experts
  • Other administrative authorities and courts
slide-26
SLIDE 26

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 26

Supervision practices

  • Mode, depth, and frequency of supervision different

from country to country

  • Applicable standards
  • National law implementing eSignature Directive
  • Technical standards if compliance required by law or

claimed by CSP, e.g. ETSI TS 101 456, CWA 14167-1

  • Guidance on technical standards and conformity

assessment, e.g. ETSI TR 102 437, CWA 14172-2 and -3

slide-27
SLIDE 27

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 27

Voluntary accreditation

  • Aiming at enhanced levels of CSP
  • Setting out rights and obligations specific to CSP
  • Granted upon request by CSP
  • Supervision within accreditation scheme
  • CSP not entitled to exercise rights prior to

accreditation

slide-28
SLIDE 28

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 28

Differences supervision – accreditation

  • Supervision
  • Accreditation

notification end of procedure compliance check CSP activity request accreditation compliance check CSP activity

slide-29
SLIDE 29

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 29

Advantages of accreditation

  • For CSPs within EU: Advantages not directly

stemming from eSignature Directive

  • For third country CSPs: Recognition of QCs within

EU by means of accreditation in EU Member State

  • For all CSPs: Advantages depending on particular

accreditation scheme and/or national law

slide-30
SLIDE 30

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 30

Various types of accreditation

  • Approval

Compliance typically assured under private law

  • One-level accreditation

CSP accredited by accreditation body directly

  • Two-level accreditation

CSP certified by “certification body” “Certification body” accredited by accreditation body

slide-31
SLIDE 31

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 31

Supervisory authority ≠ accreditation body

  • Competencies for supervision and accreditation split

to different bodies in some EU Member States

  • Supervision of accredited CSPs within accreditation

scheme

  • Typically no additional supervision by supervisory

authority unless accreditation revoked or expired

slide-32
SLIDE 32

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 32

Directory of CSPs

  • Required for independent certificate verification
  • No uniform European approach so far
  • National root CA, e.g. Germany
  • Special purpose root CA, e.g. Hungary
  • Signed list of CSPs, e.g. Italy
  • List of CSPs, e.g. Norway
  • Trusted List according to ETSI TS 102 231 to be

maintained by each Member State as of 2009-12-28

slide-33
SLIDE 33

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 33

FESA

slide-34
SLIDE 34

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 34

Cross-border issues in supervision

  • Example: CSP X-Trust operating in several countries
  • Company X-Trust Ltd. established in country A
  • X-Trust’s technical infrastructure located in country B
  • X-Trust’s registration services provided in countries C
  • X-Trust’s SSCDs initialised in country D
  • Problem: Competencies of national authorities
  • Solution: Cooperation of national authorities and

harmonisation of their activities within FESA

slide-35
SLIDE 35

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 35

Membership

  • Full members: National bodies responsible for

supervision and/or accreditation from EU and EFTA members as well as candidate countries

  • Associate members: Similar bodies from other

countries

  • Currently 24 members and 3 associate members,

see http://www.fesa.eu/members.html

slide-36
SLIDE 36

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 36

Organisation

  • Meetings of assembly at least twice every year
  • Tools for electronic collaboration
  • Internal document repository
  • Internal mailing lists
  • Board responsible for organisational matters
  • No fixed seat or secretariat
  • Public information available at http://www.fesa.eu/
slide-37
SLIDE 37

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 37

Selected common points of view

  • Cross-border supervision of CSPs
  • Advanced eSignature
  • Verification of identity
  • QCs for automatically signing systems
  • Server based signature services
  • Issuing QCs to the public vs. closed systems
  • CSPs established on Member State’s territory
slide-38
SLIDE 38

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 38

Summary

  • eSignature Directive as common framework for

eSignatures with legal effect in EU

  • Supervision and accreditation as means for ensuring

quality of certification services and promoting trust

  • FESA as organisation aiming at cooperation among

supervisory authorities and harmonisation of their activities

slide-39
SLIDE 39

Terminology eSignature Directive Supervision vs. accreditation FESA

2009-12-08 Supervision and accreditation of CSPs within the EU legal framework Slide 39

Thank you for your interest!

Please contact

  • board@fesa.eu for questions regarding FESA
  • signatur@signatur.rtr.at for questions regarding

eSignatures in Austria

  • ulrich.latzenhofer@rtr.at for personal questions
