Lake Bluff Park District Sunrise Park and Beach Preliminary Engineering / Consulting Erosion Study June 17, 2019 Study Purpose Study is an Outgrowth of Erosion Impacts Caused by High Lake Levels Sand Losses Permanent Loss of Base

slide-1
SLIDE 1

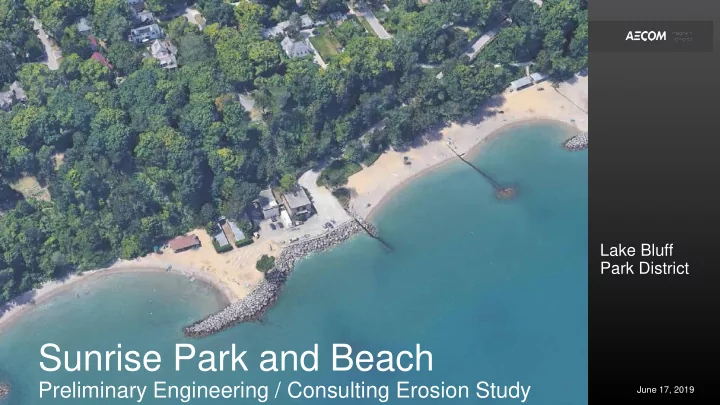

Sunrise Park and Beach

Preliminary Engineering / Consulting Erosion Study

Lake Bluff Park District

June 17, 2019

slide-2
SLIDE 2

Study Purpose

Lake Bluff Beach Erosion Study 2

– Study is an Outgrowth of Erosion Impacts Caused by High Lake Levels

– Sand Losses

  • Permanent Loss of Base Clay that Underlies Sand
  • Beach Erosion
  • Protection of Bluffs

– Evaluate Preventative Measures that Address Current Damage and Anticipated Future Damage – Plan Now to Preserve the Beach Asset: Current High Water Lake Levels are similar to Historic Conditions in the 1970’s and 1980’s

slide-3
SLIDE 3

Beach Sand Loss

Lake Bluff Beach Erosion Study 3

slide-4
SLIDE 4

Beach Clay Foundation Soil Loss

Lake Bluff Beach Erosion Study 4

slide-5
SLIDE 5

Beach Condition Stressors

Lake Bluff Beach Erosion Study 5

– Wave Induced Beach Erosion in Surf Zone

Sand Erosion Clay Erosion

Normal Conditions – Sand Ebbs and Flows to & From Beach High Water Storm Conditions: *Sand Erosion Exposes Clay to Direct Wave Attack in Surf Zone

* Native Stiff Clay Loss is permanent * Deep Water Allows Larger Waves to Approach Bluff Toe

slide-6
SLIDE 6

Report Content

Lake Bluff Beach Erosion Study 6

– Project Introduction and Background – History of the Lake Bluff Park District’s Sunrise Beach – Existing Site Conditions Evaluation – Site Plan Analysis – Engineering Design for Selected Options

slide-7
SLIDE 7

Historic Beach and Bluff Damage

7

Lake Bluff Beach Erosion Study 7

slide-8
SLIDE 8

Historic Damage & Restoration (Central Beach)

Lake Bluff Beach Erosion Study 8

– Restroom/Guard Building Erosion (1973\1975)

Looking North

slide-9
SLIDE 9

Historic Damage & Restoration

(Central Beach)

9

  • Restroom/Guard Building

Erosion (1973\1975)

Looking South

Lake Bluff Beach Erosion Study

slide-10
SLIDE 10

Central Beach Restoration

Lake Bluff Beach Erosion Study 10

– 188’ Steel Groin Constructed (1976) - North Cell Breakwater Constructed (2000)

1998 Photograph 2017 Photograph

Restroom/Guard Building Eroded West Groin End

slide-11
SLIDE 11

Historic Damage & Restoration (North of Dog Beach)

Lake Bluff Beach Erosion Study 11

– Bluff Erosion (Early 1970’s)

slide-12
SLIDE 12

Restoration

(North of Dog Beach)

Lake Bluff Beach Erosion Study 12

  • - Armor Stone Revetment (Constructed 1988)
  • Successful Erosion Protection
  • Unusable Beach – Safety Concerns in Park

Setting

slide-13
SLIDE 13

Historic Damage & Restoration (South Beach)

Lake Bluff Beach Erosion Study 13

– Bluff Failure (1970’s)

Looking South from Parking Lot NSWRD South Beach Area Bluff Failure

slide-14
SLIDE 14

South Beach Restoration

Lake Bluff Beach Erosion Study 14

– Breakwater Constr. & Bluff Restoration (Constructed 1991)

2018 Photograph

slide-15
SLIDE 15

Recent Damage

Lake Bluff Beach Erosion Study 15

– South End Central Beach –

  • Beach and Clay Lakebed Erosion

– Central Beach North and South Cells

  • Beach and Lakebed Erosion

– Parking Lot & Groin Damage – South Beach Erosion

South Beach Parking Lot

South End Central Beach

slide-16
SLIDE 16

Recent Damage

Lake Bluff Beach Erosion Study 16

– South End Central Beach

  • Beach and Clay

Lakebed Erosion South End Central Beach

slide-17
SLIDE 17

Recent Damage

Lake Bluff Beach Erosion Study 17

Central Beach South Cell

slide-18
SLIDE 18

North Beach

Lake Bluff Beach Erosion Study 18

– Dog Beach–

  • Cobbles Dominate the Beach Surface
  • Rubble Pile

Lake Bed Erosion

slide-19
SLIDE 19

Recent Nearby Beach & Bluff Damage

Lake Bluff Beach Erosion Study 19

Lake Forest

slide-20
SLIDE 20

Recent Nearby Beach & Bluff Damage

Lake Bluff Beach Erosion Study 20

Lake Bluff

slide-21
SLIDE 21

Beach Formation & Erosion Factors

21

slide-22
SLIDE 22

Beach Condition Stressors

Lake Bluff Beach Erosion Study 22

– Lake Level Fluctuations (Monthly Average Lake Levels)

  • High Water allows larger waves to make it to shore without breaking and increases erosion potential

Record High Level Up to 6’ Fluctuation >>>High Water Period

slide-23
SLIDE 23

Beach Condition Stressors

Lake Bluff Beach Erosion Study 23

– Storm Surge (Wind Setup)

  • Wind Storms can cause up to 3.5’ or more of Lake Level Rise

Wave Storm 2.5’ Level Fluctuation Lake Michigan Level (October 2014 - 24 hour Storm)

slide-24
SLIDE 24

Beach Condition Stressors

Lake Bluff Beach Erosion Study 24

– Wave attack

slide-25
SLIDE 25

Beach Formation Dynamics!

Lake Bluff Beach Erosion Study 25

– Littoral Drift – Shoreline Character – Influence of Coastal Structures – Wave Climate – Beach Sand Sources:

  • Rivers
  • Ravines
  • Shoreline Erosion
  • Bluff Erosion
slide-26
SLIDE 26

Sunrise Beach Sand Formation Dynamics!

Lake Bluff Beach Erosion Study 26

– Littoral Drift – Shoreline Character – Influence of Coastal Structures – Wave Climate – Beach Sand Sources:

  • Rivers
  • Ravines
  • Shoreline Erosion
  • Bluff Erosion
slide-27
SLIDE 27

Existing Sunrise Beach Sand Formations

Lake Bluff Beach Erosion Study 27

slide-28
SLIDE 28

Existing Sunrise Beach - Geometry

Lake Bluff Beach Erosion Study 28

slide-29
SLIDE 29

Existing Sunrise Beach – Historic Beach Waterline Positions

Lake Bluff Beach Erosion Study 29

slide-30
SLIDE 30

Engineering Design for Selected Options

30

Lake Bluff Beach Erosion Study 30

slide-31
SLIDE 31

Base Option

Lake Bluff Beach Erosion Study 31

slide-32
SLIDE 32

Base Option

Lake Bluff Beach Erosion Study 32

slide-33
SLIDE 33

Base Option - Comparison

Lake Bluff Beach Erosion Study 33

slide-34
SLIDE 34

Base Option – Opinion of Probable Cost

Lake Bluff Beach Erosion Study 34

slide-35
SLIDE 35

Expanded Base Option

Lake Bluff Beach Erosion Study 35

slide-36
SLIDE 36

Expanded Base Option

Lake Bluff Beach Erosion Study 36

slide-37
SLIDE 37

Expanded Base Option Comparison

Lake Bluff Beach Erosion Study 37

slide-38
SLIDE 38

Expanded Base Option- Opinion of Probable Cost

Lake Bluff Beach Erosion Study 38

slide-39
SLIDE 39

Base Option with Lakefill Expansion

Lake Bluff Beach Erosion Study 39

slide-40
SLIDE 40

Base Option with Lakefill Expansion

Lake Bluff Beach Erosion Study 40

slide-41
SLIDE 41

Base Option with Lakefill Expansion –

Section Options

Lake Bluff Beach Erosion Study 41

TALL TREE OPTION LOW LEVEL VEGETATION AND BERM

slide-42
SLIDE 42

Base Option with Lakefill Expansion - Comparison

Lake Bluff Beach Erosion Study 42

slide-43
SLIDE 43

Base Option with Lakefill Expansion- Opinion of Probable Cost

Lake Bluff Beach Erosion Study 43

slide-44
SLIDE 44

2013 Master Plan Island Breakwater Concept

Lake Bluff Beach Erosion Study 44

slide-45
SLIDE 45

Sunrise Park and Beach

Preliminary Engineering / Consulting Erosion Study

Lake Bluff Park District

June 7, 2019
