Sunrise Metal Technology Co., Ltd Rapid prototype Die casting Machining Surface Treatments Sunrise Metal's Company Introduction Brief Information. With more than 10 years experience, our 3 facilities dedicate to offer customer aluminum

slide-1

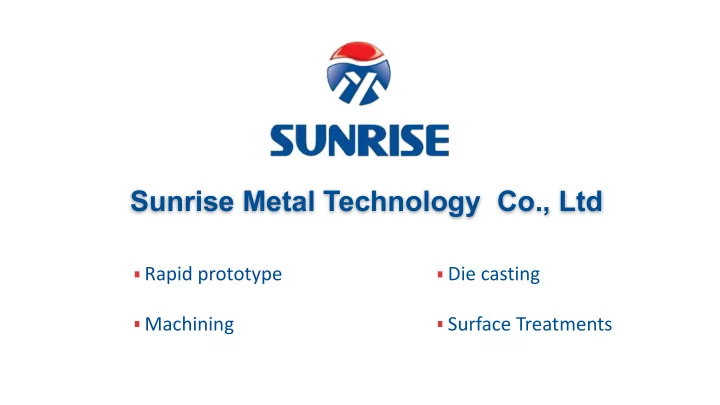

SLIDE 1

Sunrise Metal Technology Co., Ltd

Rapid prototype Machining Die casting Surface Treatments

slide-2
SLIDE 2

Integrate Rapid Prototyping, Tooling, Die casting, Machining, Sand blasting, Tumbling, Cleaning etc. all in house and other out-sourced surface treatments.

Brief Information.

With more than 10 years experience, our 3 facilities dedicate to offer customer aluminum complete solution including: ① Prototyping ② Die Casting Production ③ Machining from solid , extrusion, forging ,etc

We offer One-stop Solution .

High Quality , Fast Production, Fast Response , Friendly service

Our Core Values: Market Target:

High Mix , Low to Medium Volume Projects

Sunrise Metal's Company Introduction

slide-3
SLIDE 3

The Yangtze River Delta region is：

  • 1. The 1st develop and open-up regions in China.
  • 2. Total 26 cities included and with huge industry clusters.
  • 3. Covers 220,000 Square KM, World’s Best Local Supplier Base.
  • 4. A GDP of RMB 17.72 trillion (US$2.76 trillion) , about 20% of national

GDP of China in 2016.

  • 5. 1/3 of China’s imports and exports.
  • 6. Transportation:
  • with 9 Airports, 2 world busiest ports
  • the most dense High speed train networks in China / world.

The Location---Yangtze River Delta

slide-4
SLIDE 4

Sunrise focuses on professional markets, which are characterized by low to medium volume, high mix and high requirements for quality reliability.

 Medical & Health Care  Marine Electronics  Automotive Engine & Electronics  Industrial & Commercial  Communications & Networking  Aerospace Electronics  Smart Metering  LED Lighting

Market Segments

slide-5
SLIDE 5

Strategic Principles

◎ What:

★ Provide creative, dependable design, production, delivery solutions, and specifically tailored to our customer’s needs. ★ Do the technically challenging projects. ★ Fast production solution, save ½ time of your project.

◎ Who:

★ Small and medium sized companies who have special needs and looking for something unique, especially within the communication, medical, automotive, aerospace, marine, or industrial sectors.

◎ By offering:

★ Strong engineering competence. ★ Customized project organization to suit customers specific requirements.

★ A-customer-oriented service, that’s what make customers being first, excellent in details, waste control, and keep our commitments.

slide-6
SLIDE 6
  • 1. CNC Prototype
  • 2. CNC machining of High Precision parts
  • 3. Rapid Mold

Quality Management

Sunrise Metal's Prototyping Shop – Services We Offer

slide-7
SLIDE 7

Automotive Industry

1

Marine & Ship Equipments

2

Telecommunication

3

Instrumentations and General Industry

4

  • a. Engine
  • b. Body & Chassis

component c . Safety parts

  • a. Maritime satellite

communication

  • b. GPS positioning

system

  • c. Hunting underwater

system

  • a. Radar & Frequency

control system

  • b. Antenna
  • c. Transmitter
  • a. Ultrasonic Scanner
  • b. flow control system
  • c. Textile Industry Etc.

Sunrise Metal's Prototyping Shop – Parts we are producing

slide-8
SLIDE 8

No. Name Q’ty Stroke

1 Mazak 7-axis turning&milling Machine 1 Ø658*1011MM 2 Mazak /Hass 5axis CNC machine 4 Ø850/Ø600 3 3-axis CNC machine center 1 2000*1500MM 4 4-axis CNC machine center 8 Ø250*800MM 5 3-axis CNC machine center 20 1000*600*600MM 6 CNC Lathes 2 Ø320*800/ Ø610*1000MM 7 Sodick Wire cutting Machine 3 400*400*200MM 8 EDM machine 2 500*400*400MM 9 Surface grinder 1 600*300*200MM

Sunrise Metal's Prototyping Shop – Equipment List

★ MAZAK 7axis: Turning and Milling CNC Made by：Mazak Japan

slide-9
SLIDE 9

·Advanced technique to offer customer one-stop tooling service in-house:

  • -Tooling Design, Mold Manufacturing, Maintenance and ECN tool quickly etc.

·Equipped with Grinding, Milling ,CNC, EDM machine etc. ·Rapid Reaction.

Sunrise Metal's Die Casting Shop – Tooling

slide-10
SLIDE 10

Tooling Shop Brand Type Stroke Unit Shop 1(Nantong)

Grinder TATUNG-OKUMA KGS-615AHD From 380mm to 1600mm 4 Drilling ShenYang Machine Z3050*16/1 1600mm 1 Sawer Juli MJ034W 1 Lather Shanghai 2nd Machine C6250A 1000mm 1 EDM EDM Korea YIHAWJET Taiwan From 438mm to 1100mm 8 CNC Local Brand SONYU-SL850 From 850mm to 3015mm 5 Wire Cutting Local Brand DK7763 800*630mm 1000*800mm 2 Milling Machine Local Brand QJM-S2 4 High-speed Cutting Machine Local Brand 0906148 750mm 1 Deep Hole Drilling Local Brand DHD-1513 1513mm 1 Die Spotting Machine Nice Dongguan NC150-1511 1400mm 1 EDM/wire cutting Combined Machine Local Brand DK7755 550*630mm 1 EDM for very small hole Local Brand DD703 300*400mm 1 3D Laser Scanner Sikan Hangzhou HSCAN771 1

Sunrise Metal's Tooling Equipment—in Nantong

slide-11
SLIDE 11

Die Casting Shop 2 （Nantong Shop) Brand Ton Unit Al LK 280T 1 Al LK 300T 1 Al Yizumi 400T 1 Al Buhler 500T 1 Al LK 630T 1 Die Casting Shop 1 (Kunshan Shop ) Brand Ton Unit Al LK 280T 1 Al LK 400T 1 Al LK 500T 1 Al LK 800T 1 AI LK 1600T 1

Sunrise Metal's Die Casting Shops – Equipment List 1

Remark: 1600T machine will be ready in 2020.

ZINC LK 180T 1 ZINC LK 88T 2 Al Toshiba 800T 1

slide-12
SLIDE 12

No. Equipment Q’ ty

1 CNC Lathe 4 2 CNC Machining Center 17 3 Fanuc CNC Machining Center 2 4 Hass CNC Machining Center 2 6 Grinding machine 4 7 Saw Machine 1 8 Drilling Machine 2

Sunrise Metal's Die Casting Shops—Equipment List 2

slide-13
SLIDE 13

Sunrise Metal's Die Casting Shops – QC Instruments-1/2

slide-14
SLIDE 14

Spectrum Meter CMM X-ray Detector Imaging Measurement Instrument

Sunrise Metal's Die Casting Shops – QC Instruments-2/2

slide-15
SLIDE 15

| ISO9001:2015 | | IATF16949:2016|

Sunrise Metal's Die Casting Shops – QC Certification

slide-16
SLIDE 16

Sunrise Metal's Service 1 – Prototyping Product Show

slide-17
SLIDE 17

Sunrise Metal's Service 2—Die Casting Product Show 1/3

slide-18
SLIDE 18

Sunrise Metal's Service 2—Die Casting Product Show 2/3

slide-19
SLIDE 19

Sunrise Metal's Service 2—Die Casting Product Show 3/3

slide-20
SLIDE 20

Sunrise Metal's Service 2 – Machining Product Show 4

slide-21
SLIDE 21

Why choose us

  • 1. Strong R&D capability and rich engineering experience enable us

① Design Mechanical parts ② Design For Manufacturing

③ Cost saving suggestions ④ PPAP capability

  • 2. One-stop Solution

Integrate Rapid Prototyping, tooling, Die casting, machining,assembling in house and surface treatments, together with various value-added services.

  • 3. Fast delivery

① Rapid Prototyping: 1-2 weeks for Volume less than 200pcs. ② Rapid tooling: 2-4 weeks for production tooling. ③ Rapid Production: With Rapid tooling and quick production arrangement, we can provide

quick production delivery.

slide-22
SLIDE 22

Our Employees

Be committed to providing training to all our staff to strengthen their:

  • knowledge of technology
  • team work and problem solving
  • interpersonal and family relationships

The company has a strong sense of family and community which is reflected in our training programs and company activities.

Social Charity

Be making a difference beyond ourselves and our company by sponsoring village children in poverty, disability and orphanages.

Company Culture

slide-23
SLIDE 23

Gilbert Chen

Managing Director Tel: 0512-55291075 MB:+86-159 5110 7399 E-mail: gil.chen@sunrise-metal.com

Richard Lu

Customer Service Manager Tel: 0512-55291075 MB:+86-136 5626 3932 E-mail: rich.lu@sunrise-metal.com

Contact us

WEB:WWW.SUNRISE-CASTING.COM
