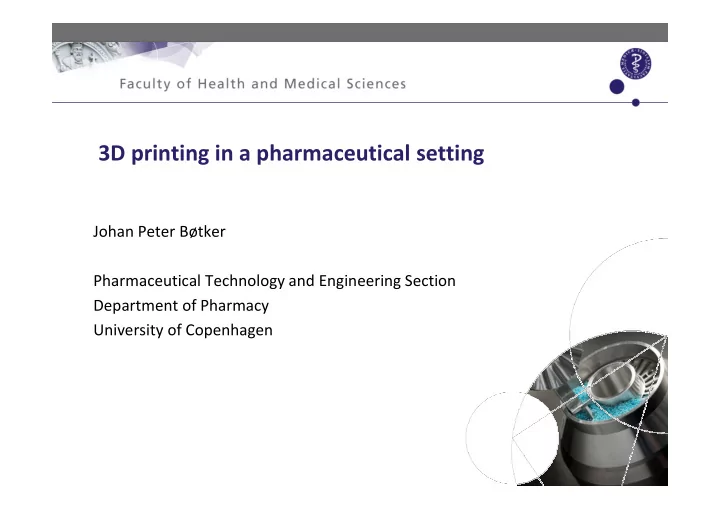

U N I V E R S I T Y O F C O P E N H A G E N 3D printing in a pharmaceutical setting Johan Peter Btker Pharmaceutical Technology and Engineering Section Department of Pharmacy University of Copenhagen D E P A R T M E N T O F P H A R M A C

SLIDE 1

U N I V E R S I T Y O F C O P E N H A G E N

3D printing in a pharmaceutical setting

Johan Peter Bøtker Pharmaceutical Technology and Engineering Section Department of Pharmacy University of Copenhagen

SLIDE 2

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

3D printing is applied in industries such as food, aerospace, automotive, jewelry, military, medical and dental. It is often used for rapid prototyping but within the aerospace industry it is used for actual production of final parts. The possibility to modify the design of a given part at will is a huge benefit for production. Within the pharmaceutical industry the ability to play with e.g. surface area and shape in general may provide interesting possibilities.

SLIDE 3

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

3D printing aka solid free-form technology (SFF), rapid prototyping (RP) and additive manufacturing (AM). 1986 Charles Hull field first stereolitographic patent alongside starting the company “3D systems” and developing the .STL file format. 1990 Fused deposition modeling (FDM) was developed by Scott Crump at Stratasys. 1993 MIT Professors Emanuel Sachs and Michael Cima patented first device named ”3D printer” that could print plastic, metal and ceramic parts. 3D printing enables more flexible manufacturing. Thus may also enable more flexible manufacturing of pharmaceuticals. Aprecia Pharmaceuticals have recently received FDA approval for a 3D printed orally disintegrating tablet and have started production.

SLIDE 4

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Introduction to 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

3D printing can be achieved using various techniques such as:

Stereolitography (SLA) Inkjet printing

SLIDE 5

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Introduction to 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

Selective laser sintering (SLS)

Fused Deposition modeling (FDM)

SLIDE 6

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

SLIDE 7

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

The 3D printing technique can facilitate the production of highly complex formulations.

SLIDE 8

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y

Thus the 3D printing technique can facilitate the production of highly complex formulations that has a unique dissolution profile.

SLIDE 9

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y !"#$

SLIDE 10

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y !"#$

SLIDE 11

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y !"#$

SLIDE 12

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N

Possibilities with the 3D printing techniques

D E P A R T M E N T O F P H A R M A C Y !"#$

SLIDE 13

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

Activities within 3D printing

%& '())

3D printed implants containing NF, HA and PLA.

!"#!$%&&&'() *+)*,)-.%(/

( ' *0&")!&0 &"1&"&"&

SLIDE 14

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

Activities within 3D printing

%& '())

3D printed implants containing NF, HA and PLA.

SLIDE 15

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

Activities within 3D printing

%& '())

3D printed implants containing NF, HA and PLA.

SLIDE 16

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

Activities within 3D printing

$* !+("!'(,

3D printed oral formulations.

SLIDE 17

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing two compartment shell

$* !+("!'(,

SLIDE 18

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

Activities within 3D printing

$* !+("!'(,

3D printed oral formulations.

SLIDE 19

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing of PLA shell

$* !+("!'(,

SLIDE 20

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing PVA shell

$* !+("!'(,

SLIDE 21

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing PVA shell

$*!+("!'(,

3D printed oral powder formulations.

SLIDE 22

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing two compartment shell

$* !+("!'(,

3D printed oral SNEDDS formulations.

SLIDE 23

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing two compartment shell

$* !+("!'(,

SLIDE 24

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing two compartment shell

$* !+("!'(,

3D printed oral SNEDDS formulations.

SLIDE 25

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

3D printing two compartment shell

$*!+("!'(,

3D printed oral SNEDDS formulations.

&!&"

SLIDE 26

U N I V E R S I T Y O F C O P E N H A G E N U N I V E R S I T Y O F C O P E N H A G E N D E P A R T M E N T O F P H A R M A C Y

Credits

Cecilie Rasch, Maria Høtoft Michaelsen, Anette Müllertz, Jukka Rantanen and Thomas Rades, University of Copenhagen

Daniel Markl and Axel Zeitler, University of Cambridge
