Study of Scanning Electron Microscope images The relationship between the structure of insects and their mode of living Group A What is an insect? Class: Invertebrates Phylum: Arthropods Three part body: head thorax abdomen Three pairs of

slide-1
SLIDE 1

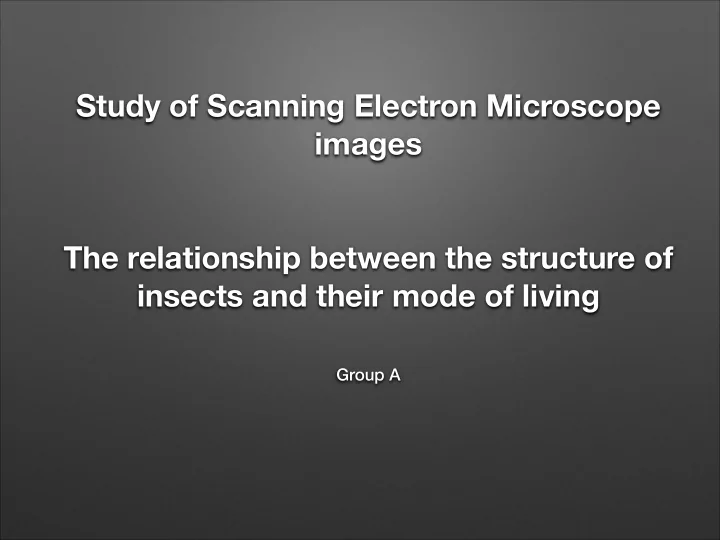

Study of Scanning Electron Microscope images The relationship between the structure of insects and their mode of living

Group A

slide-2
SLIDE 2

What is an insect?

Class: Invertebrates Phylum: Arthropods Three part body: head thorax abdomen Three pairs of joined legs, compound eyes and a pair of antenna Most diversed animals

slide-3
SLIDE 3

Comparison of differences in structure(legs, eyes and mouth)

Asian Tiger Mosquito Aphid

slide-4
SLIDE 4

Asian tiger mosquito

  • Order: Diptera
  • Blood sucking( female only)
  • Transmission of disease
  • Larvae in polluted water
slide-5
SLIDE 5

Aphid

  • Family: Apidoidea
  • Sap-sucking
  • Live on leaves on trees and

shrubs

  • Most destructive insects

pests

slide-6
SLIDE 6

Legs( magnified by 1.5k) (Asian tiger mosquito)

  • Hooked claws for clinging

to skin

  • Hairy pads for sticking to

smooth surface

  • Water repelling for

standing on water surface

slide-7
SLIDE 7

Legs(Magnified by 800) (Asian Tiger Mosquito)

  • Feathery scales for

walking on water

slide-8
SLIDE 8

Legs(Magnified by 1.2k) (Aphid)

  • Long and thin for

penetrating the stem

slide-9
SLIDE 9

Legs(manified by 6k) (Aphid)

  • Two-jointed , two-clawed

tarsi for clinging on to the stem

slide-10
SLIDE 10

Comparison of legs

CLAWS FEATHERY SCALE HAIRY PADS WATER REPELLENC E SHAPE ASIAN TIGER MOSQUITO

Facing the same direction Yes Yes Yes Long and thin

APHID

C-shaped No No No Long and thin

slide-11
SLIDE 11

Mouth(magnified by 1k) (Asian tiger mosquito)

  • Elongated( in female)
  • Two sensory palps( shorter in

male)

slide-12
SLIDE 12

Mouth(Magnified by 1.5k) (Aphid)

  • Stylets enclosed in rostrum
  • Long and needle like
slide-13
SLIDE 13

Comparison of mouth

SHAPE PRESENCE OF PALPS ENCLOSURE OF ROSTRUM ASIAN TIGER MOSQUITO

Elongated Yes No

APHID

Long and needle like No Yes

slide-14
SLIDE 14

Eyes(magnified by 600) (Asian Tiger mosquito)

  • Compound eyes distinctly

separated

  • Semi circular rows of
  • mmatidia
  • Ability to detect fast

movement

slide-15
SLIDE 15

Eyes(magnified by 8k) (Asian tiger mosquito)

  • Hexagonal
slide-16
SLIDE 16

Eyes(magnified by 2.5k) (Aphid)

  • Two compound eye
  • Circle in shape
slide-17
SLIDE 17

Comparison of eye

NUMBER OF COMPOUND EYES SHAPE OF COMPOUND EYES VIEW ANGLE ASIAN TIGER MOSQUITO

More Hexagonal Large

APHID

Less Circular Large
