Structural variant detection in colorectal cancer E van den Broek 1 , JC Haan 1 , MH Jansen 1 , B Carvalho 1 , MA van de Wiel 2 , ID Nagtegaal 3 , CJA Punt 4 , B Ylstra 1 , S Abeln 5 , GA Meijer 1 , RJA Fijneman 1 1 Dept. of Pathology, VU

slide-1

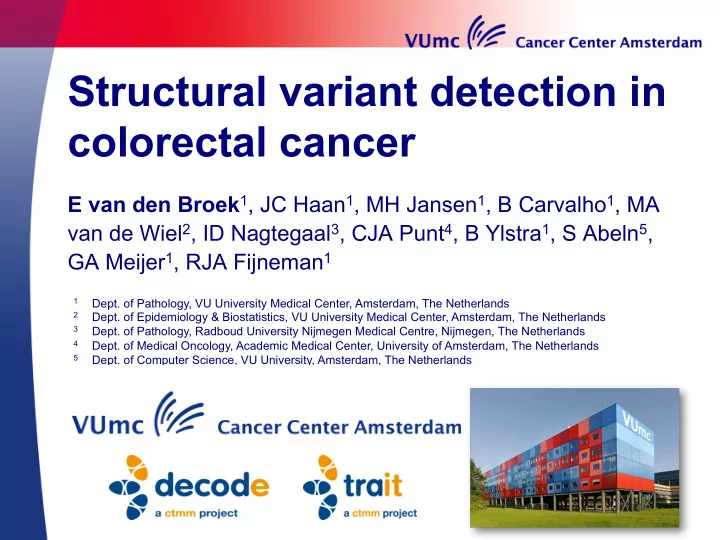

SLIDE 1

Structural variant detection in colorectal cancer

1

1

  • Dept. of Pathology, VU University Medical Center, Amsterdam, The Netherlands

2

  • Dept. of Epidemiology & Biostatistics, VU University Medical Center, Amsterdam, The Netherlands

3

  • Dept. of Pathology, Radboud University Nijmegen Medical Centre, Nijmegen, The Netherlands

4

  • Dept. of Medical Oncology, Academic Medical Center, University of Amsterdam, The Netherlands

5

  • Dept. of Computer Science, VU University, Amsterdam, The Netherlands

E van den Broek1, JC Haan1, MH Jansen1, B Carvalho1, MA van de Wiel2, ID Nagtegaal3, CJA Punt4, B Ylstra1, S Abeln5, GA Meijer1, RJA Fijneman1

slide-2
SLIDE 2

Colorectal cancer (CRC)

  • Colorectal cancer is a major health concern worldwide
  • Second cause of cancer related death

– The incidence worldwide is 1,200,000 – The incidence in the US is 144,000

  • Mortality rates

2

Stage 1 < 10 % Stage 2 25 - 30 % Stage 3 45 – 50 % Stage 4 > 90 %

slide-3
SLIDE 3

Diagnostic biomarkers Predictive biomarkers Prognostic biomarkers Clinical needs:

  • 1. Screening
  • 2. Predict recurrence
  • 3. Personalized therapy

CRC research

Clinical needs for biomarker discovery

3

normal colon progressive adenoma adenoma localized CRC CRC liver metastasis CRC lymph node metastasis activated Wnt signaling genomic instability (~5% of adenomas) ~15% MIN+ ~85% CIN+ ~3% MIN+ ~97% CIN+ Key molecular features

20 40 60 80 100

5-year survival rate (%) Stage IV Stage I+II Stage III CRC stage:

slide-4
SLIDE 4

Chromosomal Instability

a hallmark of CRC

SKY: numerical & structural aberrations

4

M Hermsen et al., Oncogene 2005

slide-5
SLIDE 5

CAIRO & CAIRO2 studies

Phase III clinical trials In total 1575 patients were included CApecitabine, IRinotecan, Oxaliplatin in advanced colorectal cancer CAIRO: Koopman et al. Lancet 2007 CAIRO2: Tol et al. N Engl J Med 2009 DNA from 356 patients: primary tumor and matched normal – Representative group – Isolated from FFPE

5

slide-6
SLIDE 6

Array CGH: 356 CAIRO & CAIRO2 samples

6

Calling Copy numbers Segmentation

1 2 3

Numerical aberrations

Comparative Genomic Hybridization (CGH)

Agilent, 180k array CGH

slide-7
SLIDE 7

Segmentation - array CGH

Profile of one tumor with 180k probes

7

Segmentation was performed using Circular Binary Segmentation algorithm

(DNAcopy. Olshen et al. 2004)

slide-8
SLIDE 8

Calling - array CGH

Profile of one tumor with 180k probes

8

Calling was performed using CGHcall

(CGHcall. vd Wiel et al. 2007)

slide-9
SLIDE 9

Structural Variants (SV) in cancer

Hematological disorders

  • Philadelphia chromosome

– t(9;22) – Fusion gene: BCR-ABL – Drug: Imatinib / Gleevec Epithelial cancers

  • TMPRSS2-ERG in prostate cancers
  • VTI1A-TCF7L2 is confirmed in 3% of 97 CRCs

– Bass et al., Nature Genetics 2011

9

slide-10
SLIDE 10

TO IDENTIFY RECURRENT SOMATIC STRUCTURAL GENOMIC VARIANTS THAT CAUSE CRC

AIM

10

slide-11
SLIDE 11

Array CGH: 356 CAIRO & CAIRO2 samples

Breakpoint (BP) detection

Based on array CGH

11

Breakpoint detection Candidate genes Segmentation

1 2 3

Structural variants

slide-12
SLIDE 12

BP detection in array CGH

Profile of one tumor with 180k probes

12

Breakpoints are defined by the start position of the first probe of each segment Breakpoint annotation per gene

slide-13
SLIDE 13
  • Total number of genes with BPs: 5,737 genes
  • 482 candidate genes were identified with recurrent BP (FDR < 0.1)

13

Results based on array CGH

BP detection

20 40 60 80 100 120 140

Amount of affected samples in array CGH

Candidate genes (top 15) MACROD2

slide-14
SLIDE 14

Overall survival: MACROD2

Recurrent BP (1) versus no-BP (0)

14

Log rank P= 0.08

500 1000 1500 0.0 0.2 0.4 0.6 0.8 1.0

MACROD2

Overall Survival (days) Survival probability BP (samples) 0 ( 207 ) 1 ( 144 )

slide-15
SLIDE 15
  • Total number of genes with BPs: 5,737 genes
  • 482 candidate genes were identified with recurrent BP (FDR < 0.1)

Limitations breakpoint determination using array CGH: – Location BP is estimation (average probe distance is ~17 kb) – DNA structure is unknown – Balanced events will be missed

15

CGH 482 CANDIDATE GENES

Results based on array CGH

BP detection

slide-16
SLIDE 16
  • 482 candidate genes were identified with recurrent BP (FDR < 0.1)

16

CGH 482 CANDIDATE GENES Candidate validation is required

Validation array CGH BPs

NGS data from TCGA

The Cancer Genome Atlas CRC samples (COAD & READ) Whole Genome DNA Seq from paired tumor-normal samples

slide-17
SLIDE 17
  • 482 candidate genes were identified with recurrent BP (FDR < 0.1)

17

CGH 482 CANDIDATE GENES Candidate validation is required

Validation array CGH BPs

NGS data from TCGA

Structural Variant (SV) detection Candidate driven Negative Control Genes (no BP)

slide-18
SLIDE 18

Computational methods

Focus on candidate genes

Based on paired-end NGS data

  • Read-pair approach

– Discordance: location / bridge length / orientation reads Discordant pairs (DP) types

  • Translocation

> different chromosomes

  • Insertion

> bridge length

  • Deletion

> bridge length

  • Inversion

> orientation

  • Eversion

> orientation

  • Single mapped

could indicate a breakpoint

18

ref

slide-19
SLIDE 19

Computational methods

Focus on candidate genes

Based on paired-end NGS data

  • 1. Read-pair approach

Combined with:

  • 2. Read-depth
  • 3. Define breakpoint location
  • 4. Determine tumor specific events

19

ref

1 2 3

slide-20
SLIDE 20

Translocation

IGV

MACROD2

  • Discordant pairs
  • Breakpoints

20

!

Fusion partner

slide-21
SLIDE 21

Based on DP groups: Approximately 5 fold higher number of translocation-DP groups for candidate genes compared to control genes

Distribution DP groups per type

Preliminary results candidate genes in TCGA data

21

Deletion 50.8% Eversion 8.4% Inversion 6.7% Insertion 26.4% Translocation 7.7%

slide-22
SLIDE 22

Translocation-DP groups per candidate gene in TCGA samples

Putative translocations

22

Frequency of translocation-DP groups (au) Candidate genes Frequency of translocation-DP groups (au) Candidate genes (top 20) MACROD2

slide-23
SLIDE 23

0% 10% 20% 30% 40%

Correlation per candidate gene

  • Frequency of samples with BP based on array CGH
  • Frequency of translocation-DP groups in TCGA data

23

Frequency of affected samples in array CGH analysis Frequency of translocation-DP groups (au) MACROD2

slide-24
SLIDE 24

Conclusions

  • 482 candidate genes with recurrent breakpoints were identified

in a large cohort of 356 CRC samples, based on array CGH analysis

  • The TCGA provided an essential CRC

reference dataset (COAD, READ) to validate Structural Variants in candidate genes with recurrent breakpoints

  • Identification of BPs based on array CGH is correlated with SV

detection in TCGA CRC NGS data

  • Further studies will be performed to investigate clinical and

functional significance of validated candidate genes

24
