Lehrstuhl Informatik III: Datenbanksysteme StreamGlobe Adaptive Query Processing and Optimization in Streaming P2P Environments A. Kemper, R. Kuntschke, and B. Stegmaier TU Mnchen Fakultt fr Informatik Lehrstuhl III: Datenbanksysteme

slide-1

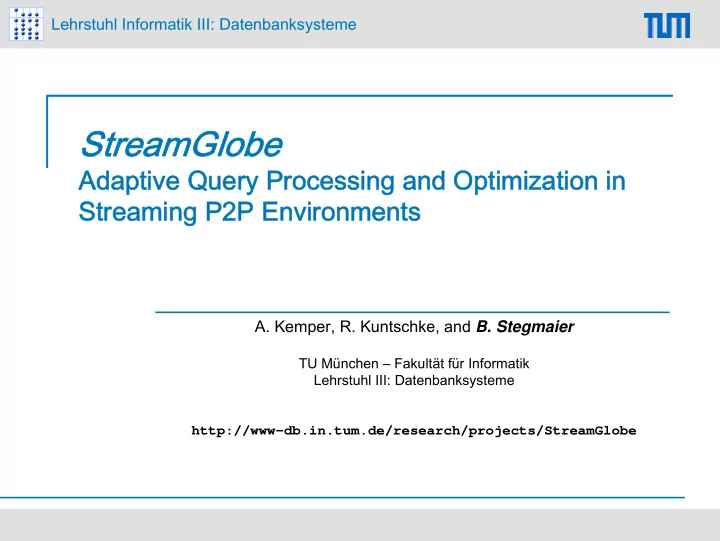

SLIDE 1

Lehrstuhl Informatik III: Datenbanksysteme

StreamGlobe

Adaptive Query Processing and Optimization in Streaming P2P Environments

  • A. Kemper, R. Kuntschke, and B. Stegmaier

TU München – Fakultät für Informatik Lehrstuhl III: Datenbanksysteme http://www-db.in.tum.de/research/projects/StreamGlobe

slide-2
SLIDE 2

09/05/2006 StreamGlobe 2

Lehrstuhl Informatik III: Datenbanksysteme

Outline

Motivation StreamGlobe

The StreamGlobe Approach Architecture Overview

Current and Future Research Conclusion

slide-3
SLIDE 3

09/05/2006 StreamGlobe 3

Lehrstuhl Informatik III: Datenbanksysteme

Exemplary Initial Situation

Network

  • Consists of peers
  • Given or grown topology

Data Sources

  • Provide XML data stream
  • Possibly infinite streams

(e.g., sensor measurements) User requests

  • Continuous queries
  • Query language XQuery
  • Registered at a peer

A B Request ab Request a Request a

WLAN

slide-4
SLIDE 4

09/05/2006 StreamGlobe 4

Lehrstuhl Informatik III: Datenbanksysteme

General Traditional Approach

1.

Register requests

2.

Establish data transfer

→ Peers may connect arbitrarily

3.

Process / Execute requests

4.

Routing of streams

→ Map streams to network

A B Request a Request a Request ab

slide-5
SLIDE 5

09/05/2006 StreamGlobe 5

Lehrstuhl Informatik III: Datenbanksysteme

General Traditional Approach (ctd.)

  • Drawbacks

1.

Transmission of useless data

2.

Redundant transmissions

3.

Multiple request evaluation

Network congestion and processing overhead

A B Request a Request a Request ab

1 2 3 3

slide-6
SLIDE 6

09/05/2006 StreamGlobe 6

Lehrstuhl Informatik III: Datenbanksysteme

Why StreamGlobe?

Other Systems / previous work

E.g. Cougar, TelegraphCQ, Multicast techniques:

Focus on specific aspects (e.g., query optimization) Tailored to specific domains

StreamGlobe

Contribution is combination of techniques:

In-network query processing combined with routing

Constitutes a generic infrastructure

Independent of domain Efficient data stream transformation and distribution

slide-7
SLIDE 7

09/05/2006 StreamGlobe 7

Lehrstuhl Informatik III: Datenbanksysteme

Outline

Motivation StreamGlobe

The StreamGlobe Approach Architecture Overview

Current and Future Research Conclusion

slide-8
SLIDE 8

09/05/2006 StreamGlobe 8

Lehrstuhl Informatik III: Datenbanksysteme

The StreamGlobe Approach

Intelligent Routing

  • Multicast routing techniques

Data Stream Clustering

  • Push query execution into

network

  • Multi-query optimization

Reduce network traffic Avoid redundant transmissions Reduce processing cost

A B Request a Request a Request ab

ab a

slide-9
SLIDE 9

09/05/2006 StreamGlobe 9

Lehrstuhl Informatik III: Datenbanksysteme

Basic Concepts

P2P Network Topology

No arbitrary communication

→ Communication via transfer paths

No fixed P2P topology

Classification of peers

Thin-Peers Super-Peers Constitution of a super-peer backbone

Hierarchical organization

→ Speaker-peer responsible for certain subnet

slide-10
SLIDE 10

09/05/2006 StreamGlobe 10

Lehrstuhl Informatik III: Datenbanksysteme

StreamGlobe Peer Architecture

  • Based upon Open Grid

Services Architecture (OGSA)

  • Integration similar to OGSA-

DAI or OGSA-DQP

  • Layers as grid-services
  • Availability according to peer

capabilities

  • Message exchange via RPC

and notifications

  • Data stream transfer via direct

TCP connections

Globus Toolkit Query Engine Optimization Metadata Management StreamGlobe Interface XQuery Subscriptions XML Data Streams

register

slide-11
SLIDE 11

09/05/2006 StreamGlobe 11

Lehrstuhl Informatik III: Datenbanksysteme

Optimization

  • Goals

1.

Registration of arbitrary subscriptions at any peer

2.

Achieve good distribution of data streams

3.

Optimize evaluation of many subscriptions

  • Achievement
  • Pushing query execution into the network

→ (1) and (3)

  • Multiquery optimization

→ (3)

  • Early filtering of data streams resp. evaluation of subscriptions

→ (2)

  • Data stream clustering

→ (2)

slide-12
SLIDE 12

09/05/2006 StreamGlobe 12

Lehrstuhl Informatik III: Datenbanksysteme

Multi-Query Optimization

  • Performed by speaker-peer
  • Analyze subscriptions and

streams

  • Common subqueries
  • Re-usability of streams
  • Based on properties of

subscriptions / streams

  • Computes
  • Filters and queries
  • Data stream clustering
  • Execution locations

Request a Request ab Filter a Filter b Query a Query ab Request a

slide-13
SLIDE 13

09/05/2006 StreamGlobe 13

Lehrstuhl Informatik III: Datenbanksysteme

Query Execution

Basic concepts

Streaming evaluation and push-based techniques Preclude unbounded buffering by requiring window

constraints

Extensibility by means of mobile code

Evaluation of subscriptions with FluX

Designed for streaming processing of XQuery Event-based extension to XQuery Usage of schema information for buffer minimization

→ Visit my talk at the VLDB: Tomorrow, Research Session 6: XML(II)

slide-14
SLIDE 14

09/05/2006 StreamGlobe 14

Lehrstuhl Informatik III: Datenbanksysteme

Outline

Motivation StreamGlobe

The StreamGlobe Approach Architecture Overview

Current and Future Research Conclusion

slide-15
SLIDE 15

09/05/2006 StreamGlobe 15

Lehrstuhl Informatik III: Datenbanksysteme

Current and Future Research

Current Research

Optimization techniques Extension of FluX

Future Research

Quality-of-Service management Explicit load balancing Load shedding techniques Construction of overlay network

…

slide-16
SLIDE 16

09/05/2006 StreamGlobe 16

Lehrstuhl Informatik III: Datenbanksysteme

Conclusion StreamGlobe

Exploiting in-network query processing capabilities In combination with data stream clustering

Minimization of network traffic

Query execution with FluX

Efficient and scalable execution of subscriptions

Multi-query optimization

Parallelization and load balancing in the network

slide-17
SLIDE 17

09/05/2006 StreamGlobe 17

Lehrstuhl Informatik III: Datenbanksysteme

Related Work

  • Aberer, Cudré-Mauroux, Datta, Despotovic, Hauswirth, Punceva, Schmidt. “P-Grid: a self-
  • rganizing structured P2P system”. SIGMOD Record 32(3), 2003
  • Arasu, Babcock, Babu, Datar, Ito, Motwani, Nishizawa, Srivastava, Thomas, Varma,
  • Widom. “STREAM: The Stanford Stream Data Manager”. Data Engineering Bulletin 26(1),

2003

  • Carney, Cetintemel, Cherniack, Convey, Lee, Seidman, Stonebraker, Tatbul, Zdonik.

“Monitoring Streams – A New Class of Data Management Applications”. VLDB 2002

  • Chandrasekaran, Cooper, Deshpande, Franklin, Hellerstein, Hong, Krishnamurthy,

Madden, Raman, Reiss, Shah. “TelegraphCQ: Continuous Dataflow Processing for an Uncertain World”. CIDR 2003

  • Cherniack, Balakrishnan, Balazinska, Carney, Cetintemel, Xing, Zdonik. “Scalable

Distributed Stream Processing”. CIDR 2003

  • Krämer, Seeger. “PIPES – A Public Infrastructure for Processing and Exploring Streams”.

SIGMOD 2004

  • Madden, Shah, Hellerstein, Raman. “Continuously Adaptive Continuous Queries over

Streams”. SIGMOD 2002

  • Sellis. “Multiple-Query Optimization”. TODS 1988
  • Yang, Garcia-Molina. “Designing a Super-Peer Network”. ICDE 2003
  • Yao, Gehrke. “The Cougar Approach to In-Network Query Processing in Sensor Networks”.

SIGMOD Record 31(3), 2002
