Daniel Huppmann

http://dergelbesalon.at/dh e0425524@student.tuwien.ac.at

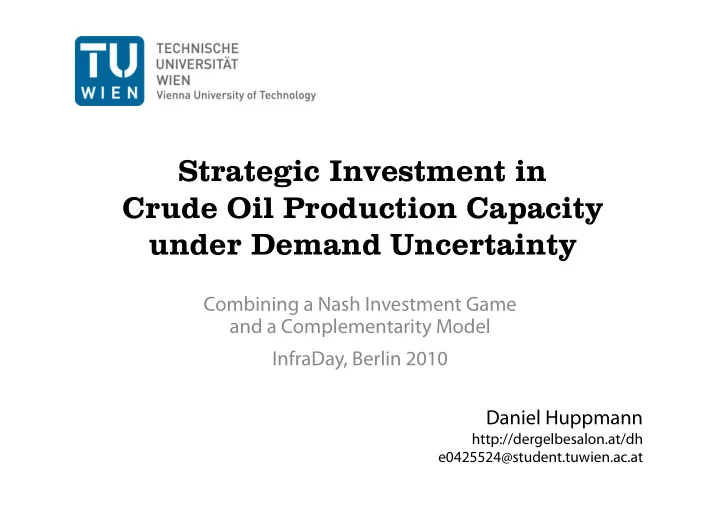

Strategic Investment in Crude Oil Production Capacity under Demand Uncertainty

Combining a Nash Investment Game and a Complementarity Model InfraDay, Berlin 2010

Agenda

• Uncertainty in the Crude Oil Market
• Methodology

– Difficulty in Modelling Strategic Games – Complementarity Modelling – Investment Analysis

• Scenarios, Countries and Data
• Results

– Nash Equilibrium of Investment Game – Outlook on the Crude Oil Market

• Conclusion

2 InfraDay, Berlin 2010

Motivation

• Uncertain demand development for Crude Oil

– Economic Crisis – “Risk“ of Climate Change Mitigation Initiatives

• Current situation:

low investment in new production capacity

• Risk:

Capacity Bottleneck in the future (WEO, IEA 2009)

• Question of this work:

Investment Incentives under Uncertainty

InfraDay, Berlin 2010 3

Difficulty in modelling strategic games

InfraDay, Berlin 2010 4

Strategic investment games

• Murphy and Smeers (2005):

Electricity generation capacity investment: Peak-load vs. Base-load generator Solved as open-loop, closed-loop and feedback model

• Yegorov and Wirl (2010):

Natural gas market – investment and transit game: Production capacity vs. Geopolitical power

• Common aspect:

Mathematically complex, numerically (almost) intractable...

InfraDay, Berlin 2010 5

Optimization & Equilibrium: Complementarity Modelling

InfraDay, Berlin 2010 6

Equilibrium Modelling & Energy

• Natural gas:

– GASTALE (Lise et al., 2008) – World Gas Model (Egging et al., 2008) – GasMod (Holz et al., 2008)

• Coal:

– CoalMod (Haftendorn and Holz, 2010)

• Electricity

– Hobbs, 2001; Ehrenmann and Neuhoff, 2009

• Crude Oil ???

InfraDay, Berlin 2010 7

Difficulty in multi-period modelling

• Commonly implemented as open-loop model:

– Implicit assumption of perfect foresight – Stackelberg market not easily tractable due to dynamic inconstistency of strategies – Strategic behaviour:

• Cournot market power in production/sales possible
• Endogenous investment necessarily competitive

(invest if: shadow value of capacity constraint > investment cost)

• Consequence:

Trade-Off between game complexity and model size

InfraDay, Berlin 2010 8

A Crude Oil Market Model

InfraDay, Berlin 2010 9

Crude Oil Market Model (I)

• Earlier version presented at the IAEE European

Conference 2009, Vienna (Huppmann and Holz)

• Specifications of the current version:

– multi-period model with endogenous investment – open-loop and deterministic – hybrid Cournot market power/perfect competition

InfraDay, Berlin 2010 10

Crude Oil Market Model (II)

• Agents:

– Suppliers – Arbitragers located at spot markets (pool hubs) (exploit price differentials between demand nodes) – Final Demand (inverse demand function)

• Implementation:

– Karush-Kuhn-Tucker conditions derived from supplier and arbitrager profit maximization problems – Coded in GAMS (General Albegraic Modeling System) using the PATH Solver (Ferris & Munson, 2000)

InfraDay, Berlin 2010 11

Caveats of this model

• Not a Hotelling model

– Finite time horizon, not necessarily all reserves depleted – Agents consider inter-temporal optimization

• Complex interaction within OPEC neglected
• Production capacity depreciation is neglected
• No explicit backstop technology considered

Implicitely via inverse demand function

InfraDay, Berlin 2010 12

Methodology of Investment Analysis

InfraDay, Berlin 2010 13

Structure of the Investment Game

InfraDay, Berlin 2010 14

From the point of view of one strategic crude oil supplier

!"#$%&

!""# !"$! !"$% !"$& '(()*)+,-./01+(23*)+,/ 3-0-3)*4/),567*86,* 96-.):-*)+,/+;/(68-,(/ .656./(656.+086,* <+/-(()*)+,-./01+(23*)+,/ / 3-0-3)*4/),567*86,* =)>?/(68-,( @+A/(68-,( =)>?/(68-,( @+A/(68-,(

Solution Method (I)

InfraDay, Berlin 2010 15

Numerical solution using market equilibrium model

!"#$%&

!""# !"$! !"$% !"$& '(()*)+,-./01+(23*)+,/ 3-0-3)*4/),567*86,* 96-.):-*)+,/+;/(68-,(/ .656./(656.+086,* <+/-(()*)+,-./01+(23*)+,/ / 3-0-3)*4/),567*86,* =)>?/(68-,( @+A/(68-,( =)>?/(68-,( @+A/(68-,(

!"!"#$%&'(%#')*+",+*-%(.#-/ !"!"#$%&'(%#')*012*-%(.#-/ !"!#1*"#$%&'(%#')*+",+*-%(.#-/ !"!#1*"#$%&'(%#')*012*-%(.#-/

Solution Method (II)

InfraDay, Berlin 2010 16

Compare expected Net Present Value – Input for Nash Game

!"#$%&

!""# !"$! !"$% !"$& '(()*)+,-./01+(23*)+,/ 3-0-3)*4/),567*86,* 96-.):-*)+,/+;/(68-,(/ .656./(656.+086,* <+/-(()*)+,-./01+(23*)+,/ / 3-0-3)*4/),567*86,* =)>?/(68-,( @+A/(68-,( =)>?/(68-,( @+A/(68-,(

!!""#$%&'()&$(* !!""$+!#$%&'()&$(* E E

Demand Scenarios

• Speedy Recovery

Based on World Energy Outlook 2009, Reference Scenario Quick economic upturn, no climate change mitigation policies enacted

• Green Rebound

Based on World Energy Outlook 2009, 450 Scenario Economic upturn, international climate change mitigation

• Long Slump

Continued global recession

• Tiger & Dragon

Continued recession in OECD, upturn in rest of the world

InfraDay, Berlin 2010 17

Suppliers under Investigation

• Saudi Arabia

– High level of unused capacity – Ambiguity regarding market power (Stackelberg leader?)

• Russia

– Political risk for foreign and non-state oil companies – Difficulty of capacity expansion without foreign expertise and funding

InfraDay, Berlin 2010 18

Countries included in the data set

InfraDay, Berlin 2010 19

Source: http://commons.wikimedia.org/wiki/File:BlankMap-World-v2.png

Data Sources

• Consumption and production quantities, reference prices

IEA (2009), BP (2009)

• Production Costs

Aguilera et al., Depletion and Future Availability of Petroleum

• Resources. The Energy Journal, 30(1):141–174 (2009)
• Transport and Investment Costs

OGJ, EIA, IEA, The Economist, etc.

• Demand Elasticity

Fattouh, B. The Drivers of Oil Prices: The Usefulness and Limitations

• f Non-Structural model, the Demand-Supply Framework

and Informal Approaches. Working Paper 32. Oxford Institute of Energy Studies, March 2007.

InfraDay, Berlin 2010 20

Some results

InfraDay, Berlin 2010 21

Nash Investment Game

InfraDay, Berlin 2010 22

Russia ¡ No ¡Investment ¡ Investment ¡ Saudi ¡Arabia ¡ No ¡Investment ¡ Investment ¡

Unique Nash equilibrium for all demand scenarios independent of demand development!

Demand and Price – Speedy Recovery

InfraDay, Berlin 2010 23

Consumption OECD/non-OECD (MMbbl/d, left) and price (US $/bbl, right)

Demand and Price – Green Rebound

InfraDay, Berlin 2010 24

Consumption OECD/non-OECD (MMbbl/d, left) and price (US $/bbl, right)

Demand and Price – Long Slump

InfraDay, Berlin 2010 25

Consumption OECD/non-OECD (MMbbl/d, left) and price (US $/bbl, right)

Demand and Price – Tiger & Dragon

InfraDay, Berlin 2010 26

Consumption OECD/non-OECD (MMbbl/d, left) and price (US $/bbl, right)

Remaining Reserves after 2030

InfraDay, Berlin 2010 27

in % (relative reserve shares are similar in all scenarions)

Remaining Reserves & Future Supply

• Reserves remain substantial after 2030

Global Reserves-to-Production Ratio ~40 years in all scenario

• Even higher concentration of reserves

> 60 % in Middle East > 75 % in OPEC Canada is the only OECD country with reserves Little reserves left in Russia

InfraDay, Berlin 2010 28

Security of Supply & Import Dependency

• Common Wisdom:

„Green revolution leads to higher security of supply and lower import dependence“

• Observation from simulation results:

Import dependency of demand regions higher in „Green Rebound“ scenario than in all other scenarios

InfraDay, Berlin 2010 29

Import Dependence – Europe

InfraDay, Berlin 2010 30

Imports and domestic production in MMbbl/d, in 2030

Import Dependence – North America

InfraDay, Berlin 2010 31

Imports and domestic production in MMbbl/d, in 2030

Import Dependence – Asia Pacific

InfraDay, Berlin 2010 32

Imports and domestic production in MMbbl/d, in 2030

Conclusion

InfraDay, Berlin 2010 33

Conclusion (I)

• Investment game equilibrium:

– Investment by Saudi Arabia – No investment by Russia

• Remark on modelling:

– Implementing multi-level strategic game is a challenge – Compromise between game complexity and model detail – Simulation results depend on many assumptions

InfraDay, Berlin 2010 34

Conclusion (II)

• Outlook on the crude oil market:

– Reserve constraint is not a major issue in the next two decades – Middle East retains and expands its dominant position, both in production and remaining reserves – Consequently, potential for market disturbances and price spikes remains large

• Remark on policy:

Climate change mitigation policies may in the medium term increase crude oil import dependence!

InfraDay, Berlin 2010 35

Thank you for your attention!

e0425524@student.tuwien.ac.at dhuppmann@diw.de http://dergelbesalon.at/dh

InfraDay, Berlin 2010 36

Bibliography (I)

• R. Egging, S. A. Gabriel, F. Holz, and J. Zhuang. A Complementarity Model for the European

Natural Gas Market. Energy Policy, 36(7):2385–2414, 2008.

• A. Ehrenmann and K. Neuhoff. A Comparison of Electricity Market Designs in Networks.

Operations Research, 57(2):274–286, 2009.

• M. C. Ferris and T. S. Munson. Complementarity Problems in GAMS and the PATH Solver.

Journal of Economic Dynamics and Control, 24(2):165–88, 2000.

• C. Haftendorn and F. Holz. Modeling and analysis of the international steam coal trade.

The Energy Journal, 31(4):201–225, 2010.

• B. F. Hobbs. Linear Complementarity Model of Nash-Cournot Competition in Bilateral and

Poolco Power Markets. IEEE Transactions on Power Systems, 16(2):194–202, 2001.

• F. Holz, C. v. Hirschhausen, and C. Kemfert. A strategic model of European gas supply

(GASMOD). Energy Economics, 30(3):766–788, 2008.16

InfraDay, Berlin 2010 37

Bibliography (II)

• D. Huppmann and F. Holz. A Model for the Global Crude Oil Market Using a Multi-Pool MCP
• Approach. DIW Discussion Paper 869, March 2009.
• IEA. World Energy Outlook 2009. Organisation for Economic Co-operation and Development,

Paris, 2009.

• F. H. Murphy and Y. Smeers. Generation Capacity Expansion in Imperfectly Competitive

Restructured Electricity Markets. Operations Research, 53(4):646–661, 2005.

• W. Lise, B. F. Hobbs, and F. van Oostvoorn. Natural gas corridors between the EU and its

main suppliers: Simulation results with the dynamic GASTALE model. Energy Policy, 36(6):1890–1906, 2008.

• Y. Yegorov and F. Wirl. Gas Supply Security, Competition and Geopolitics.

Presented at the IAEE European Conference, Vilnius, 2010.

InfraDay, Berlin 2010 38
