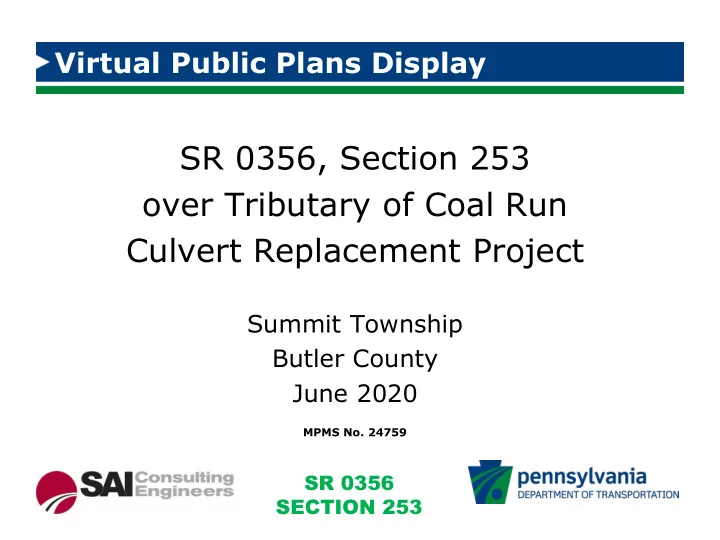

Virtual Public Plans Display SR 0356, Section 253 over Tributary of Coal Run Culvert Replacement Project Summit Township Butler County June 2020 MPMS No. 24759 SR 0356 SECTION 253
PROJECT DESCRIPTION SR 0356, Section 253 -PROJECT DESCRIPTION This project consists of the replacement of an existing culvert carrying SR 0356 (Freeport Road) over an unnamed tributary to Coal Run in Summit Township, Butler County, Pennsylvania. The project is adjacent to the intersection of SR 0356 (Freeport Road) and Hinchberger Road (T-583). The existing reinforced concrete arch culvert carries two 11'-0" travel lanes with 4’ - 0” shoulders of Freeport Road over the unnamed tributary of Coal Run. The work involves the replacement of the existing concrete arch structure with a precast concrete box culvert with approximately 250 feet of roadway reconstruction along the same horizontal roadway alignment. The proposed culvert and stream alignment have been shifted approximately 10 feet to the north. The proposed box culvert carries two 12’ - 0” lanes with 8’ - 0” shoulders over the unnamed tributary. SR 0356 SECTION 253
LOCATION MAP SR 0356 SECTION 253
ROADWAY PLAN SR 0356 SECTION 253
STRUCTURE PLAN SR 0356 SECTION 253
DETOUR PLAN – HINCHBERGER ROAD (T-583) SR 0356 SECTION 253
ANTICIPATED – RIGHT-OF-WAY IMPACTS Required Right-of-way – the term used to describe “right of passage over another’s land. When PennDOT acquires title to your land PennDOT becomes the owner and it then gives the “right of passage” to the public. Temporary Construction Easement – an easement required for the purposes of construction or demolition. Land reverts back to original owner upon expiration of the easement. SR 0356 SECTION 253
ANTICIPATED SCHEDULE • Construction schedule is currently being developed, actual dates have not been established • Anticipated construction duration 7 months SR 0356 SECTION 253
