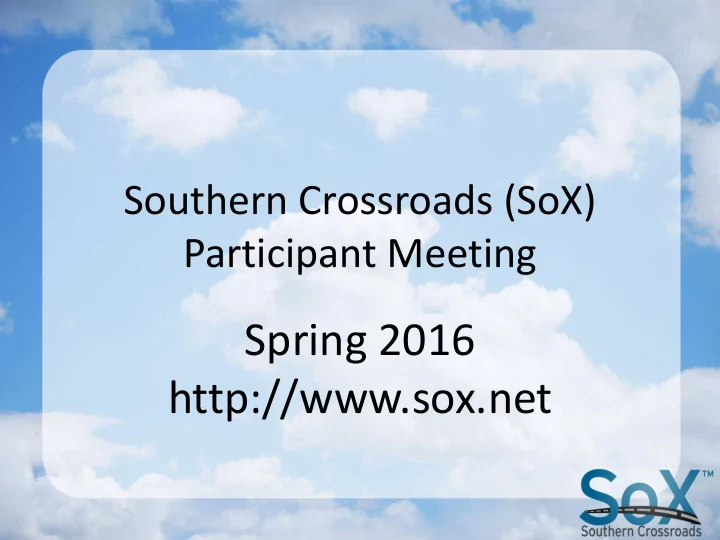

Southern Crossroads (SoX) Participant Meeting

Spring 2016 http://www.sox.net

Agenda - Thursday

• Logistics
• Introductions
• Agenda Bash
• Advisory Committee seats on SLR Board
• Network Updates
• Commodity Internet
• GRNOC
• NSF Workshops and Grant updates
• Brainstorming over Dinner

Agenda - Friday

• Software Defined Exchange (SDX)
• Workshops
• RPKI
• SoX Colo for Compute and Storage - Dallas
• HVS update
• GT Advanced Research and Computing Facility
• Customer Feedback
• Participant Survey
• What’s next

Network Updates

• Internet2 Update
• Future Strategies meeting
• Replace AL2S network
• Migrate to MPLS based backbone
• Operate SDN network as overlay

Network Updates

• Internet2 Update
• Fees (membership dues and participation

fees)

• Elimination of levels of membership
• Fees based on amount of research ($$ of

funding) total annual expenditures (IPEDS) and total annual R&D expenditures NSF HERD 80:20 or 85:15

• Fully implemented in 2018
• “modest 2.2% increase for R1 universities in

2017”

Network Updates

• Internet2 Update
• R&E Network Membership dues will increase

in 2017 by approximately 2.2% or $288.75

• “CIO”s were invited to a webinar yesterday

to discuss fee changes

• Connectors were invited to that call (with

about 4 hours notice)

• Connector call was today to go over changes

Network Updates

• Internet2 Update
• NTAC DDOS
• Continue to review solutions from

community

• Net+ service likely to include Akamai

Network Updates

• Regional Network Redundancy

–Atlanta

• 56 Marietta St (Telx)
• 55 Marietta St (Colo-ATL)
• 345 Courtland St (Level3) moved from suite to cabinet

–Nashville

• 460 Metroplex (CenturyLink)
• 2990 Sidco (Level3)

Network Updates

• Regional Network Redundancy

–Dallas

• 460 S. Akard (Level3 at DataBank)
• 1950 Stemmons (Equinix at InfoMart)
• ASA and Georgia Tech have space here

–Chicago

• 710 N. Lakeshore (Starlight)

Peering statistics

• International : GLORIAD (decom 4/29), RedCLARA
• National: Internet2, ESNet, ISC
• Regional: MREN, ONE-NET, FLR, MARIA
• TIEX: 24 peers
• SNAP (55 Marietta): 2
• NOTA: 1
• Other 56 Marietta Peerings: 3
• TR-CPS participants: 12
• Telia participants: 14

Internet2 combined

(Atlanta, Chicago, Nashville)

ESNet

SoX 100G interface

TR-CPS combined

Google – direct peering

Google GGC

Netflix

Netflix Cache

Facebook - combined

Akamai

Akamai Cache

Telx Internet Exchange (TIEX)

Telia – combined traffic

(Dallas, Atlanta, Miami)

Network Updates

• Quilt
• Expected price drops for FY17
• CenturyLink $1.50/Mbps
• NTT $0.80/Mbps
• Cogent $0.61/Mbps
• TSIC $0.87/Mbps
• Tata $0.72/Mbps
• Verizon $1.25/Mbps 10G
• $1.58/Mbps 2G

Network Updates Baker’s Dozen 1-6

Network Updates Baker’s dozen 7-9

Network Updates Baker’s Dozen 10-13

AKAMAI SECURITY OPTIONS for SOX

John Baez| Major Account Executive | U.S Public Sector

Avoid data theft and downtime by extending the security perimeter outside the data-center and protect from increasing frequency, scale and sophistication of web attacks.

About Akamai

Akamai has a proven track record working with more than 5,000 customers delivering up to 30% of the world web’s content with more than 15 Terabits per second daily. Akamai’s customers are some of the best-known companies in the world: All Branches of the U.S. Military 14 out of 15 Cabinet Agencies of the US Government 9 out of the top 10 US Banks All top 20 global eCommerce Sites 97 of the top 100 US Retailers All top 30 Media and Entertainment companies All of the top anti-virus companies

Avoid data theft and downtime by extending the security perimeter outside the data-center and protect from increasing frequency, scale and sophistication of web attacks.

Akamai / Southern Crossroads Phase 1

• Connect 1 Gbps provisioned production site(s)
• Includes CIR commit of 1 Gbps
• On demand protection for up to 8 protected /24 subnets
• Cost:
• One time provisioning cost $28,805
• Each additional site would be $10,000 one time provisioning fee
• Port charges: GTT 10GBs On-Demand Port to the Connect Network

(Americas) Tail circuit and cross connects between the nearest Connect Point of Presence and the customer device not included $16,383 monthly

• Can be distributed to multiple universities
• Provisioning costs will come down based on additional commitment

Avoid data theft and downtime by extending the security perimeter outside the data-center and protect from increasing frequency, scale and sophistication of web attacks.

Benefits

• Direct Connection to Tier global backbone
• Provision to as many schools as the bandwidth and address space allows
• Additional bandwidth and address space will be additional cost but discount will

be commensurate with commitment

Network Updates

• DDOS NTT

Bundled service pricing for DDoS mitigation NTT’s DDoS mitigation service (DPS) is priced as follows: GE is $500 MRC and $500 NRC 10GE is $1,000 MRC and $1,000 NRC In addition to the monthly recurring charges, there is a small event fee calculated as: The event fee is measured on the 95th percentile

• billing. It is charged by 120% of the commit rate. i.e.

$1/Mb commit rate a 5Gb attack and 24 hour duration will cost you $200 in event fees

Network Updates

• DDOS TSIC
• Initial one time charge for customer setup
• Monthly recurring charge
• MRC includes the following
• Predefined amount of enabled protection over each 12 month term
• Five Managed Objects
• Initial Learning period / Managed Object
• Customer can choose a ‘Usage Band’ that fits their needs:
• Service is scalable to support Customer’s growth:
• A Customer can increase the number of Managed Objects *
• Additional learning periods can be arranged via TeliaSonera Sales *
• Usage above entitled enabled protection will carry an additional charge

Network Updates

• DDOS TSIC

Network Updates

• DDOS CenturyLink
• Blackhole
• Reactive
• Proactive
• DDOS Tata (small add to bandwidth fee)
• Cogent: no DDOS
• DDOS Verizon

Time to Close Tickets

Time to Close Participant Outage Tickets 2 days, 0 hours, 41 minutes Time to Close Unscheduled Outage Tickets 4 days, 18 hours, 3 minutes Time to Close Participant Requested Tickets 14 days, 14 hours, 30 minutes Time to Close Tickets 8 days, 17 hours, 12 minutes

Ticket Creations

Participant Outages Non-Participant Outages Total Unscheduled Outages Participant Requested Tickets Total Tickets Oct-15 4 20 24 6 52 Nov-15 1 6 7 1 21 Dec-15 7 8 15 6 35 Jan-16 3 10 13 7 43 Feb-16 7 7 14 6 38 Mar-16 5 11 16 4 49

10 20 30 40 50 60 Oct-15 Nov-15 Dec-15 Jan-16 Feb-16 Mar-16

Ticket Creations

Participant Outages Non-Participant Outages Total Unscheduled Outages Participant Requested Tickets

DB Entries, Calls, and Emails

DB Entries Calls Inbound Emails Outbound Emails Total Emails Oct-15 N/A* 20 208 2 210 Nov-15 N/A* 20 71 45 116 Dec-15 1912 29 117 23 140 Jan-16 1922 8 157 24 181 Feb-16 1931 9 211 21 232 Mar-16 1948 18 241 11 252

NSF Workshops/Grant Applications

• OIN workshop

Fall 2016 – Nashville/Vanderbilt

• SPAN workshop
• Fall 2016 Durham, NC/Duke

Pasta da pulcinella

Location 1123 Peachtree Walk NE Atlanta, GA 30309 Phone (404) 876-1114

Brainstorming over Dinner

perfSONAR Deep Dive Workshop

• perfSONAR
• Sidco perfSONAR operational
• SoX Mesh operational
• http://55m-ps.sox.net/maddash-

webui/index.cgi?dashboard=perfSONAR Deep Dive Mesh

• Performance engineer for hire
