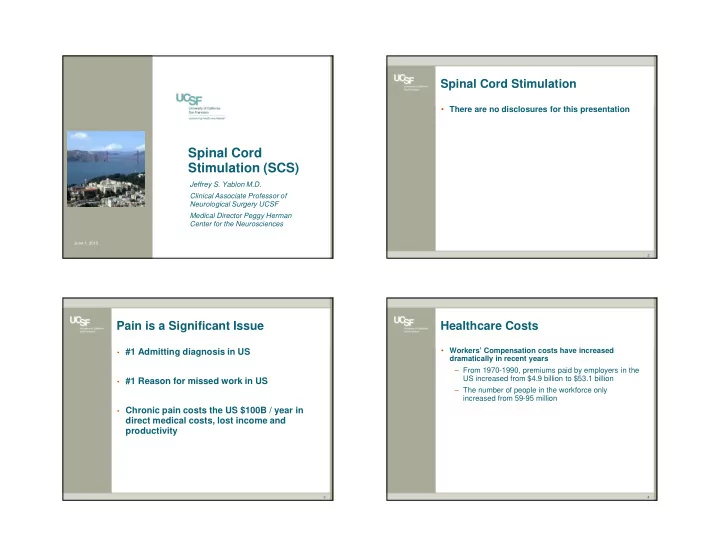

Spinal Cord Stimulation (SCS)

Jeffrey S. Yablon M.D. Clinical Associate Professor of Neurological Surgery UCSF Medical Director Peggy Herman Center for the Neurosciences

June 1, 2013

Spinal Cord Stimulation

• There are no disclosures for this presentation

2

Pain is a Significant Issue

• #1 Admitting diagnosis in US
• #1 Reason for missed work in US
• Chronic pain costs the US $100B / year in

direct medical costs, lost income and productivity

3

Healthcare Costs

• Workers’ Compensation costs have increased

dramatically in recent years – From 1970-1990, premiums paid by employers in the US increased from $4.9 billion to $53.1 billion – The number of people in the workforce only increased from 59-95 million

4

Healthcare Costs

• With Medical costs increasing at the rates

they are for the treatment of low back pain, it is imperative that patients get the care they need as early as possible

• Earlier intervention leads to better care and

better outcomes

5

Chronic Pain

• Chronic pain is continuous pain that persists for

more than 3 months, and beyond the time of normal

• healing. It ranges from mild to severe and can last

weeks, months, or years to a lifetime. (http://www.niams.nih.gov)

• 20% of the population in developed countries is

afflicted with chronic pain

– 30-40% due to musculoskeletal and joint disorders – 30% neck and back pain – Headache and migraines < 10%

Pain Clinical Updates, Sep. 2004, IASP Pain Clinical Updates, Sep. 2004, IASP

6

Neuropathic Pain

• 4M People in the US/year suffer from

Neuropathic pain (NP), caused by a primary lesion or dysfunction in the nervous system1

• Associated with diabetic peripheral

neuropathy, post herpetic neuralgia, human immunodeficiency virus-related disorders, and chronic radiculopathy.

7

Neuropathic Pain

• Treatment often fails because1:
• Inadequate diagnosis and a lack of appreciation of

the mechanisms involved

• Insufficient management of comorbid conditions
• Incorrect understanding or selection of treatment
• ptions

1J Pain Symptom Manage. 2003 May;25

(5Suppl):S12-7

8

Chronic Neuropathic Pain

Chronic, intractable, neuropathic pain is intense pain caused by injury to the nervous system that lasts several months or longer and is not relieved by medical and/or surgical care.

• It can result from an injury long since healed or from

an ongoing condition such as nerve damage, cancer,

• r chronic infections.
• Common causes include Failed Back Syndrome

(FBSS), Arachnoiditis, Complex Regional Pain Syndrome (CRPS), Radiculopathies, and Peripheral Neuropathy of Upper and Lower Extremity Nerves (Upper-Ulnar, Median, Radial. Lower–Tibial and Common Peroneal).

9

Therapeutic Options

• Management of chronic pain includes a variety of
• techniques. Conservative, or noninvasive, treatments

are tried first; if these do not work, invasive, or advanced, techniques may be used.

10

Selection Criteria for SCS

• Psychiatric and psychological assessment
• Evidence that psychiatric opinion is

effective in identifying poor risk candidates. Nielsen et al. Surg Neurol, 1975

• In Belgium, where reimbursement for SCS is

conditional upon psych assessment, success rate was 3X higher in those approved by psychiatrist in a series of 100 patients, Kupers et al. 1994

• Quality of the pain is important.
• Continuous burning, sharp. Other

neuropathic pain descriptors.

• Not effective against nociceptive pain such

as cancer pain, arthritis, wound pain, etc.

11

Mechanism of SCS

• Generates electric field in

epidural space

• Stimulates axons of

dorsal column (primarily) and dorsal root fibers in spinal column

• Produces a pleasant

paresthesia.

• Need maximal control
• ver stimulation of the

targeted nerves, while preventing stimulation of undesired neurons.

12

Current Indications

“Indicated as an aid in the management of chronic intractable pain of the trunk and/or limbs, including unilateral or bilateral pain associated with the following: Failed Back Surgery Syndrome, intractable low back pain and leg pain.” Commonly treated syndromes (approved when lead is placed in the epidural space)

• CRPS 1 & 2
• Arachnoiditis
• Post Thoracotomy Pain
• Peripheral Neuropathy
• Post Herpetic Neuralgia
• Phantom Limb Pain
• Ilioinguinal Neuralgia

13

Failed Back Surgery Syndrome

• $20B annually in direct health care costs1
• 5th most common reason for MD visit1
• Patient continues to experience chronic back and/or leg pain

despite surgery. The most common reason for FBSS is poor patient selection (psychological, social, behavioral issues)

• Common Psychosocial disorders in FBSS
• Depression, Anxiety, Somatization, Personality disorders, and

secondary gain issues

• Strong evidence supports that low back pain is neuropathic
• Important to identify and treat other etiologies of FBSS that

are not neuropathic and not candidates for SCS

• Foraminal stenonsis, descogenic pain, recurrent disc herniation,

pseudoarthrosis, facetogenic pain, sacroiliac syndrome

14

Chronic Postamputation Pain

• Two Possible Neuropathic syndromes
• Pain in the stump which is related to neuroma formation following

the sectioning of the sciatic nerve

• Pain is felt in the amputated extremity and is termed Phantom Pain
• SCS therapy is typically not the first line choice for pain

control Post Thoracotomy Syndrome

• Chronic chest wall pain syndromes that follow a

thoracotomy and sternotomy

• The pain is due to injury to at least one intercostal nerve

15

Studies of Clinical Effectiveness

Early study Conclusions re: SCS:

• SCS was significantly more successful than reoperation in giving selected FBSS patients

at least 50% pain relief.*

• Lower morbidity than surgery and opportunity for therapeutic trial are important

advantages.*

• Computerized system optimized pain relief better, more than doubled battery life, and

reduced costs by about one-third.**

• Battery life is a major SCS cost driver. If it can be prolonged, lifetime savings can exceed

$300,000 for average patient.**

• SCS was less expensive and more effective than reoperation in selected failed back-

surgery syndrome patients, and should be the initial therapy of choice. SCS is most cost-effective when patients forego repeat operation. Should SCS fail, reoperation is unlikely to succeed.

• 6-month outcomes demonstrate significant improvements of SCS patients compared to

CMM group -Significantly more SCS patients (48% versus 9%) achieved the primary

• utcome of ≥ 50% pain relief (p<0.001).

16

Studies of SCS Effectiveness

Study

• Kemler & Furnee 2002
• Kumar 2002
• Alo 2002

Outcome

• CRPS – Pain but not

functional status or depression improved compared with PT

• FBS – SCS group

improved 15% > non SCS group

• Significant improvement

in pain. 8/10 prior to surgery to 4.9/10 4 years post surgery.

17

Summary

• Chronic pain is a pervasive, expensive problem for society,

government, employers, payers, and individuals.

• SCS has been proven effective for chronic neuropathic pain in

many studies over decades, including recent RCTs.

• Present generation devices have overcome the technical

problems and high failure rates common in early devices.

• Routine trial stimulation, better patient selection criteria, and

improved understanding of appropriate indications insure that SCS is only performed in those who have a high likelihood

• f benefit.
• Cost analyses have repeatedly shown that SCS saves

money when used appropriately.

18

Trial Stimulation:

Temporary Percutaneous Lead

• Preferred test

stimulation for surgical paddle leads

• Lead implanted

and secured to skin

• Allows for test

stimulation

• f several days

19

SCS System Types

• Conventional SCS Technologies
• Radio Frequency

– Requires patient to wear external equipment to power the implant

• Fully implantable, Primary Cell battery

– Short life span and repeat replacement surgeries

• Advanced SCS Technology
• Fully implantable, rechargeable power

– Long lasting – Significantly smaller implant – Increased stimulation parameters and therapy options

20

Permanent Trial

• More invasive trial
• ption
• Why use permanent

trial technique? – challenging lead placement – physician preference

• Advantages vs.

disadvantages

21

Permanent Implant

• Begin same method as

trial

• Remove extension

from permanent trial

• Remove splitter

22

• Using fluoro of trial lead as

reference for place permanent leads

23

Surgical Lead Implantation

Surgical Lead Implantation

• Surgical lead choice
• Procedure

– Laminotomy – Surgical lead placement

• Advantages vs. disadvantages

24

Success of Spinal Cord Stimulation

• Assure lead stability
• Review instructions with patient’s family
• Ensure patient’s full understanding of system operation
• Successful stimulation demands topographic coverage of the

electrical field of paresthesia over the area of the pain

25 26

Common Surgical SCS Complications & How to Avoid Them

#1 SCS Complication

27

Lead migration is cited as the #1 complication.

Lead Migration

Prevention

• Insert long length of lead in

epidural space

• Anchor securely to fascia /

supraspinous ligament

• Hard copies of intra-op fluoro
• Limit physical activity for at

least 2 weeks – No lifting objects > 5 lbs – No twisting, bending, or climbing – Do not raise arms above head

28

Lead Breakage

• Presentation
• Loss of simulation-induced paresthesia
• May occur at any time
• Management
• Plain spine radiographs to assess continuity
• f wires (usually normal)
• Check impedances
• If necessary, replace electrode

29

SCS Infections

– Main organisms S aureus, and S epidermidis, and 3 % Pseudomonas – Sites: pocket 54%, tract 17%, insertion 8% – SCS systems removed in 94 % of cases – 56 % of infections occurred in first 2 months – No data on when to re-implant after eradication of the infection

30

Infection

• The risk of pocket and catheter infections range from 2 - 5%

and appears to be similar with spinal cord stimulators and intrathecal drug delivery devices.

• The risk of deep infections including epidural abscess and

meningitis ranges from 0 – 0.5%.

31

Guidelines for Infection Prevention

– All remote infections are resolved – Avoid removing hair – Preoperative IV antibiotics – Avoid vancomycin prophylaxis – Optimal blood glucose control – Cease Tobacco use

– Antiseptic bath prior to surgery – 2-5 min scrub prep – Mark device pocket site – Sterile Technique – Occlusive dressings

32

Infection Prevention: Antibiotic Prophylaxis

• RECOMMENDATION
• Category IA
• cefazolin 1-2 g iv 30 minutes prior to incision
• clindamycin 600 mg iv 30 minutes prior to incision

(in patients with ß-lactam allergy]

• vancomycin 1 g iv over 60 minutes prior to

incision

• (in MRSA carriers)

33

Hematoma

• Management
• Consider benefits/risks of reopening wound vs.

allowing to resolve on its own

• Baseline lab & imaging tests for clinically significant

hematomas

• Potential surgical intervention
• Prevention
• Meticulous hemostasis
• Role of anticooagulant therapy, OTC agents, and

supplements

34

Other Surgical Complications

• Seroma
• Skin erosion
• Wound dehiscence
• Rare:

– Epidural hemorrhage – Neurological deficit – Severe abdominal pain – Paralysis

35

Summary

• Most complications are not life-threatening and can be

resolved

• Technology has improved and equipment failures are

now less common

• Meticulous technique can help to minimize common

complications

36
