Sirius Web 100% open source cloud modeling platform Our Crew Mlanie Bats Stphane Bgaudeau CTO @ Obeo Software Architect @ Obeo melanie.bats@obeo.fr stephane.begaudeau@obeo.fr @melaniebats @sbegaudeau Sirius-II Mission Countdown

SLIDE 1

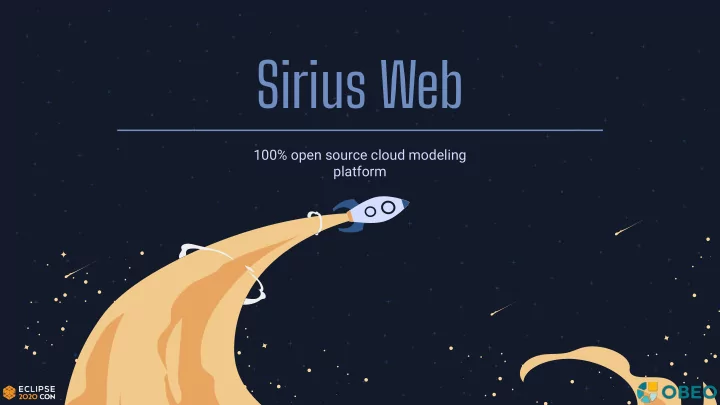

Sirius Web

100% open source cloud modeling platform

SLIDE 2

Our Crew

Software Architect @ Obeo stephane.begaudeau@obeo.fr @sbegaudeau CTO @ Obeo melanie.bats@obeo.fr @melaniebats

Mélanie Bats Stéphane Bégaudeau

SLIDE 3

Sirius-II Mission Countdown

SLIDE 4

Principles of Sirius

Sirius specifier Workbench end users Metamodel Sirius configuration Graphical modeler + =

SLIDE 5

Principles of Sirius

Sirius specifier Workbench end users Metamodel Sirius configuration Graphical modeler + = RCP Application

SLIDE 6

Principles of Sirius

Sirius specifier Workbench end users Metamodel Sirius configuration Graphical modeler + = Web Application

SLIDE 7

3

SLIDE 8

2

SLIDE 9

1

SLIDE 10

SLIDE 11

Sirius Web!

Cloud-based evolution of Sirius 100% open source To deploy modeling tools to the web Available in Sirius project at Eclipse Foundation https://github.com/eclipse-sirius/sirius-web

SLIDE 12

Sirius Web Architecture

Sirius Web Sirius Components Frontend Components Backend Components EMF-JSON Application

SLIDE 13

Technical Details

HTTP Websocket GraphQL Spring (Framework, MVC, Security, Data JPA) Reactor EMF-JSON Java

Protocols Backend

React RollUp Create React App Webpack TypeScript

Frontend

SLIDE 14

How to try Sirius Web? DEMO

SLIDE 15

The Sirius ecosystem

Community Edition

All you need to work with Sirius Desktop

Open Source Obeo Desktop Web

SLIDE 16

The Sirius ecosystem

Community Edition Team Edition

For real time collaborative edition in Eclipse based workbenches

Open Source Obeo Desktop Web

All you need to work with Sirius Desktop

SLIDE 17

The Sirius ecosystem

Community Edition Sirius Web

Cloud-based evolution of Sirius for deploying modeling tools to the web

Team Edition

For real time collaborative edition in Eclipse based workbenches

Open Source Obeo Desktop Web

All you need to work with Sirius Desktop

SLIDE 18

The Sirius ecosystem

Community Edition Sirius Web

Cloud-based evolution of Sirius for deploying modeling tools to the web

Team Edition

For real time collaborative edition in Eclipse based workbenches

Cloud Platform

Professional platform to deploy easily to the cloud

Open Source Obeo Desktop Web

All you need to work with Sirius Desktop

SLIDE 19

Team Collaboration DEMO

SLIDE 20

https://www.obeocloudplatform-demo.com/signup

So you can create graphical models collaboratively from your browser!

Try in OCP

SLIDE 21

Take away

Sirius Web

Specify a modeler dedicated to a domain and render it in a browser:

Configuration file
CRUD
Diagram
Assisted Layout

http://eclipse.org/sirius/sirius-web.html

Obeo Cloud Platform

Enterprise solution relying on Sirius Web to deploy modeling tools to the cloud:

Professional support
Authentication
Projects sharing
Team collaboration

https://www.obeo.fr/en/products/ocp-modeler

100% Open Source 100% Enterprise
