videos are available on the powerpoint version, ask for it: vincent.talbo@gmail.com Frequency-dependent shot noise in single-electron devices interpreted by means of waiting time distributions Vincent Talbo, Javier Mateos, Toms Gonzlez

slide-1
SLIDE 1

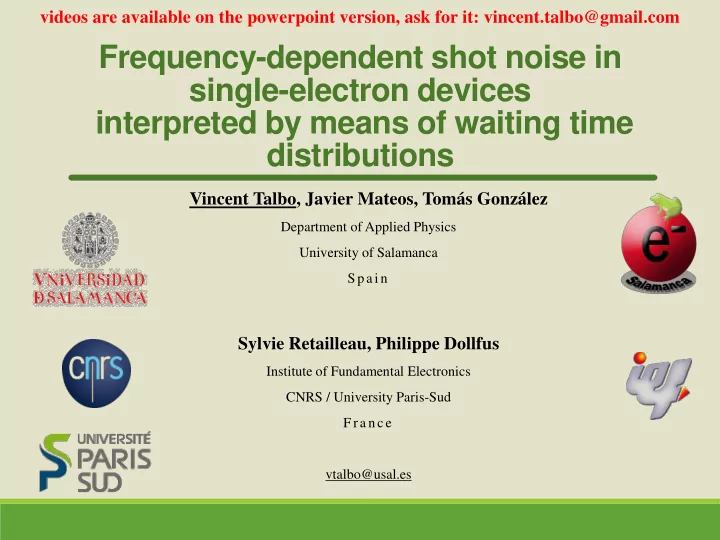

Frequency-dependent shot noise in single-electron devices interpreted by means of waiting time distributions

Vincent Talbo, Javier Mateos, Tomás González

Department of Applied Physics University of Salamanca Spain

Sylvie Retailleau, Philippe Dollfus

Institute of Fundamental Electronics CNRS / University Paris-Sud France vtalbo@usal.es

videos are available on the powerpoint version, ask for it: vincent.talbo@gmail.com

slide-2
SLIDE 2

Introduction

COULOMB BLOCKADE AND APPLICATIONS

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

2

slide-3
SLIDE 3

From micrometric to nanometric

  • V. TALBO - UPON 2015 - BARCELONA

3D - bulk 2D – quantum well 1D - nanowire 0D – quantum dot

  • discretization of energy levels
  • gap broadening with reduction of size
  • blue shift

size of the dot

ENERGY Density of states

14/07/2015 3

slide-4
SLIDE 4

Applications in electronics

Granular floating gate FLASH memories

Multiple-tunnel junction FLASH memory

Deleruyelle, Microelec Eng., 2004

  • Writing through

nanocrystals

  • Writing/Reading

decoupled

grille de contrôle

source drain

grille flottante

COULOMB BLOCKADE

  • Tiwari, IEDM, 1995
  • Freescale

Single-Electron Transistor (SET)

Shin, APL, 2010

Thermoelectricity Double-Tunnel junction (DTJ) SHOT NOISE IN DTJ

Time Current

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

4

slide-5
SLIDE 5

Coulomb blockade

  • V. TALBO - UPON 2015 - BARCELONA

double-tunnel junction: simple case of Coulomb blockade

Charging energy: (energy to bring to add an electron in the dot)

14/07/2015 5

slide-6
SLIDE 6

COULOMB BLOCKADE

double-tunnel junction: simple case of Coulomb blockade

Charging energy: (energy to bring to add an electron in the dot)

Coulomb blockade

  • V. TALBO - UPON 2015 - BARCELONA

14/07/2015 6

slide-7
SLIDE 7

Coulomb blockade

double-tunnel junction: simple case of Coulomb blockade

Charging energy: (energy to bring to add an electron in the dot)

14/07/2015 7

  • V. TALBO - UPON 2015 - BARCELONA
slide-8
SLIDE 8

Coulomb blockade

double-tunnel junction: simple case of Coulomb blockade

Charging energy: (energy to bring to add an electron in the dot)

14/07/2015 8

  • V. TALBO - UPON 2015 - BARCELONA
slide-9
SLIDE 9

Coulomb blockade

double-tunnel junction: simple case of Coulomb blockade

Charging energy: (energy to bring to add an electron in the dot)

14/07/2015 9

  • V. TALBO - UPON 2015 - BARCELONA
slide-10
SLIDE 10

Coulomb blockade

COULOMB STAIRCASE

double-tunnel junction: simple case of Coulomb blockade

Charging energy: (energy to bring to add an electron in the dot)

14/07/2015 10

  • V. TALBO - UPON 2015 - BARCELONA
slide-11
SLIDE 11

 Shot noise (SN): Consequence of charge granularity  more information of the electronic transport Between two electrodes: Poissonian transport  Comparison with Poissonian transport S ( f ) current spectral density at frequency f 2e <I> current spectral density of a Poissonian process

  • at f = 0, Fano factor

< 1 : sub-Poissonian noise = 1 : Poissonian noise > 1 : super-Poissonian noise

  • Behaviour at f = 0 already well understood

 

2 F S e I 

Shot Noise in double-tunnel junction

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

11

  2

S f e I

Sub-Poissonian noise : Birk et al., Phys. Rev. Lett, 1995 Super-Poissonian noise in multi-levels QDs: W. Belzig, Phys. Rev. B, 2005 Shot Noise in double-tunnel junction: V. Talbo et al., Fluct. Noise Lett., 2012

slide-12
SLIDE 12

SENS Simulation

MODEL AND RESULTS

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

12

slide-13
SLIDE 13

SENS model – Single-Electron Nanodevice Simulation

Electronic structure of Si QDs( wave-function ψ, energy E)

  • 3D solver for Poisson and Schrödinger equations (geometry, bias,

number of electrons)

  • Hartree method, access to the electronic wave-function
  • delocalization of the wavefunction with bias

double-tunnel junction: J.Sée et al., IEEE TED, 2006 double-dot structure: A. Valentin et al., J. Appl. Phys., 2009 single-electron transistor: V. Talbo et al., IEEE TED, 2011

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

13

slide-14
SLIDE 14

SENS model – Single-Electron Nanodevice Simulation

Electronic structure of Si QDs( wave-function ψ, energy E)

  • 3D solver for Poisson and Schrödinger equations (geometry, bias,

number of electrons)

  • Hartree method, access to the electronic wave-function

Tunnel transfer rates Γ(Bias, Temperature) from wave functions

  • weak coupling
  • Fermi golden rule and Bardeen formalism
  • decrease (increase) of Γin (Γout) with as consequence of

delocalization of the wavefunction with bias Electronic characteristics

  • Monte-Carlo algorithm: probability to find N electrons in the

dot(P(N))

  • and / or master equation, linked with Korotkov formalism for

noise

  • negative differential conductance when Γin (N) < Γout(N+1)

double-tunnel junction: J.Sée et al., IEEE TED, 2006 double-dot structure: A. Valentin et al., J. Appl. Phys., 2009 single-electron transistor: V. Talbo et al., IEEE TED, 2011

tunnel transfer rates (108 s-1) Γout(N) Γin(N) bias (V) current (pA) bias (V) 14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

14

slide-15
SLIDE 15

Results

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

15 Ø = 10 nm hS = 1.2 nm hD = 1.8 nm T = 0 K

slide-16
SLIDE 16

Results – Sub-Poissonian case

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

16

  • remains sub-Poissonian with frequency

Monte – Carlo simulation

1st electron in excess 2nd electron in excess

slide-17
SLIDE 17

Results – Super-Poissonian “bunching”

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

17

  • remains super-Poissonian with frequency

Monte – Carlo simulation

1st electron in excess 2nd electron in excess 3rd electron in excess 4th electron in excess

slide-18
SLIDE 18

Results – Near-Poissonian (F = 1.01)

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

18

Where this specific dynamics is coming from ?

slide-19
SLIDE 19

3-state case

CORRELATIONS AND WAITING TIME DISTRIBUTIONS

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

19

slide-20
SLIDE 20

Results

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

20

Monte – Carlo simulation

frequency (Hz) spectral density / 2e<I> time lag (s) autocorrelation function (pA)

1st electron in excess 2nd electron in excess

slide-21
SLIDE 21

How to understand the behaviour of auto-correlation functions ?

  • V. TALBO - UPON 2015 - BARCELONA

tunnel events through source: 01 and 12

partial AUTO-CORRELATIONS C01-01 C12-12 + partial CROSS-CORRELATIONS C01-12 C12-01 = total auto-correlation CII Probabilities of 01 and 12 peaks WAITING TIME DISTRIBUTIONS WT01-01 WT12-12 WT01-12 WT12-01

12 tunnel events through source time 01 WT01-01 WT01-12 WT12-01 WT12-12

14/07/2015 21

Electron Waiting Times in Mesoscopic Conductors

  • M. Albert, G. Haack, C. Flindt, and M. Büttiker
  • Phys. Rev. Lett. 2012
slide-22
SLIDE 22

Cross-correlations C01-12 and C12-01

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

22

Monte – Carlo simulation

Prob01-12 = Prob12-01 = 23 %

time lag (s) autocorrelation function (pA) waiting time distribution (μs-1)

  • 2 tunnel events (drain side) between 12 and 01
  • WTD = 0 at short times
  • Negative correlation C12-01
  • No tunnel event between consecutive 01 and

12

  • Poissonian WTD (maximum at 0)
  • High correlation C01-12 at low times

01-12 12-01

slide-23
SLIDE 23

Auto-correlations C12-12 and C01-01

14/07/2015

  • V. TALBO - UPON 2015 - BARCELONA

23

Monte – Carlo simulation

  • one tunnel event between consecutive peaks
  • WTD = 0 at short times, increases after
  • negative correlation at low times,

increasing later

  • P12-12 is not high enough for C12-12 to remain

negative when WTD increases Prob12-12 = 43 % , Prob01-01 = 12 %

time lag (s) autocorrelation function (pA) waiting time distribution (μs-1)

ORIGIN OF SPECIFIC DYNAMICS

01-12 01-01 12-12 12-01

slide-24
SLIDE 24

Conclusion

The time-dependent physics of electronic transport in double- tunnel junction Obtained from SENS simulator: tunnel transfer rates Understood through the study of the link between: auto- and cross-correlations, probabilities and waiting time distributions High-majority of a given tunnel event: negative correlation

  • Equality of tunnel events: positive correlation
  • "in between": specific dynamics, going from negative to positive

correlation

  • V. TALBO - UPON 2015 - BARCELONA

14/07/2015 24

slide-25
SLIDE 25
  • V. TALBO - UPON 2015 - BARCELONA

Thank you !

14/07/2015 25
