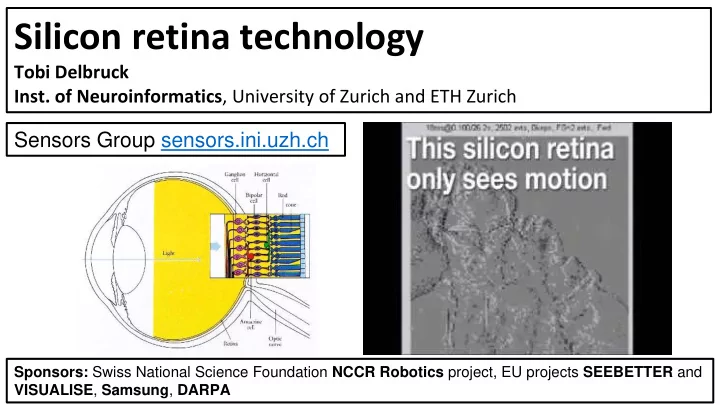

Silicon retina technology

Tobi Delbruck

• Inst. of Neuroinformatics, University of Zurich and ETH Zurich

2

Sponsors: Swiss National Science Foundation NCCR Robotics, EU projects CAVIAR, SEEBETTER, VISUALISE, Samsung, DARPA, University of Zurich and ETH Zurich

sensors.ini.uzh.ch inilabs.com

Conventional cameras (Static vision sensors) output a stroboscopic sequence of frames

Muybridge 1878 (150 years ago)

Good

Compatible with 50+years of machine vision Allows small pixels (1um for consumer, 3-5um for machine vision)

Bad

Redundant output Temporal aliasing Limited dynamic range (60dB)

Fundamental “latency vs. power” trade-off

3

100M photoreceptors 1M output fibers carrying max 100Hz spike rates 180dB (109) operating range >20 different “eyes” Many GOPs computing 3mW power consumption Output is sparse, asynchronous stream of digital spike events

4

The Human Eye as a digital camera

This talk has 4 parts

• Dynamic Vision

Sensor Silicon Retinas

• Simple object

tracking by algorithmic processing of events

• Using probabilistic

methods for state estimation

• “Data-driven” deep

inference with CNNs

5

DVS (Dynamic Vision Sensor) Pixel

logI

photoreceptor

I

ON OFF comparators (ganglion cells) threshold

Brightness change events Event reset

change amplifier (bipolar cells)

Lichtsteiner et al., ISSCC 2007, JSSC 2009

From Rodieck 1998

6

±𝛦log𝐽

Edmund 0.1 density chart Illumination ratio=135:1

780 lux 5.8 lux

780 lux

ON events

5.8 lux

DVS pixel has wide dynamic range

ISSCC 2007

Using DVS for high speed (low data rate) imaging Data rate <1MBps “Frame rate” equivalent to 10 kHz but 100x less data (10 kHz image sensor x 16k pixels = 160 MBps)

ISSCC 2007

DAVIS (Dynamic and Active Pixel Vision Sensor) Pixel

logI

photoreceptor

I

ON OFF comparators (ganglion cells) threshold

Change events Event reset

change amplifier (bipolar cells)

Brandli et al., Symp VLSI, JSSC 2014

From Rodieck 1998 Intensity reset Intensity value

9

±𝛦log𝐽

10

DVS/DAVIS +IMU demo

11

Brandli, Berner, Delbruck et al., Symp. VLSI 2013, JSSC 2014, ISCAS 2015

Start DAVIS Demo

DAVIS (Dynamic and Active Pixel Vision Sensor) Pixel

logI

photoreceptor

I

ON OFF comparators (ganglion cells) threshold

Change events Event reset

change amplifier (bipolar cells)

Brandli et al., Symp VLSI, JSSC 2014

From Rodieck 1998 Intensity reset Intensity value

12

±𝛦log𝐽

13

DAVIS346

Bias generator AER DVS asynch. event readout

APS col-parallel ADCs and scanner

180nm CIS 346x260 18.5um pixel DAVIS 8mm

14

Important layout considerations

• 1. Post layout

simulations to minimize parasitic coupling

• 2. Shielding parasitic

photodiodes

Event threshold matching measurement

Experiment: Apply slow triangle wave LED stimulus to entire array, measure njmber of events that pixels generate

Conclusion: Pixels generate 11±3 events per factor 3.3 contrast. Since ln(3.3)=1.19 and 1.19/11=0.11, contrast threshold=11% ± 4%

latency jitter time

Conclusion: Pixels can have minimum latency of about 12us under bright illumination. But “real world” latencies are more like 100us-1ms.

Measuring DVS pixel latency

Experiment: Stimulate small area of sensor with flashing LED spot, measure response latencies from recorded event stream

DVS pixel has built-in temperature compensation

17

Photoreceptor VpT ln(Ip) Threshold onT ln(Ion/Id) Since photoreceptor gain and threshold voltage both scale with absolute temperature T, it cancels out

Nozaki, Delbruck 2017 (unpublished)

Integrated bias generator and circuit design enables

• peration over extended temperature range

18

Nozaki, Delbruck 2017 (submitted)

350nm 90nm 180nm 350/180nm

Global shutter APS Rolling shutter consumer APS

DVS pixel size trend

20

https://docs.google.com/spreadsheets/d/1pJfybCL7i_wgH3qF8zsj1JoWMtL0zHKr9eygikBdElY/edit#gid=0

Event camera silicon retina developments

21

DVS/DAVIS CeleX ATIS/CCAM DVS

Commercial entities Inilabs (Zurich) – R&D prototoypes Insightness (Zurich) – Drones and Augmented Reality Samsung (S Korea) – Consumer electronics Pixium Vision (Paris) – Retinal implants Inivation (Zurich) – Industrial applications, Automotive Chronocam (Paris) - Automotive Hillhouse (Singapore) - Automotive

22

Neuromorphic sensor R&D prototypes Open source software, user guides, app notes, sample data Shipped devices based on multiproject wafer silicon to 100+ organizations

Founded 2009

www.iniLabs.com

Run as not-for-profit

23

• Dynamic Vision Sensor

Silicon Retinas

• Simple object tracking

by algorithmic processing of events

• Using probabilistic

methods for state estimation

• “Data-driven” deep

inference with CNNs

Tracking objects from DVS events using spatio-temporal coherence

24/30

• 1. For each event, find nearest cluster
• If event within a cluster, move

cluster

• If event not within cluster, seed

new cluster

• 2. Periodically prune starved clusters,

merge clusters, etc (lifetime mgmt)

Advantages

• 1. Low computational cost (e.g. <5% CPU)
• 2. No frame memory (~100 bytes/object).
• 3. No frame correspondence problem

Litzenberger 2007

Robo Goalie

25

Delbruck et al, ISCAS 2007, Frontiers 2013

Using DVS allows 2 ms reaction time at 4% processor load with USB bus connections

26

This talk has 4 parts

• Dynamic Vision

Sensor Silicon Retinas

• Simple object

tracking by algorithmic processing of events

• Using probabilistic

methods for state estimation

• “Data-driven” deep

inference with CNNs

27

Simultaneous Mosaicing and Tracking with DVS

28

Hanme Kim, A. Handa, … Andy J. Davison, BMVC 2014.

29

Hanme Kim, A. Handa, … Andy J. Davison, BMVC 2014.

Simultaneous Mosaicing and Tracking with DVS

Goal: To do event-based, semi-dense visual odometry

• We want to estimate State vector 𝑡 (camera pose, visual

scene spatial brightness gradients and sensor event thresholds) using Bayesian filtering from the events 𝑓: 𝑞 𝑡 𝑓

• Sensor likelihood 𝑞 𝑓 𝑡

is modeled as mixture of inlier Gaussian distribution and outlier uniform distribution

• A tractable posterior 𝑟 𝑡 𝑓 ≈ 𝑞(𝑡|𝑓) is approximated by

Kullback-Leibler (KL) divergence

• Leads to closed-form update equations in the form of a

classical Kalman filter, thus computationally efficient (unlike particle filtering)

• G. Gallego
• E. Mueggler D. Scaramuzza

(submitted to PAMI, 2016)

Towards event-based, semi-dense SLAM: 6-DOF pose estimation

• G. Gallego et al., PAMI (submitted 2016).

This talk has 4 parts

• Dynamic Vision

Sensor Silicon Retinas

• Simple object

tracking by algorithmic processing of events

• Using probabilistic

methods for state estimation

• “Data-driven” deep

inference with CNNs

32

Demo - RoShamBo

33

RoShamBo CNN architecture

Conv 5x5 16x60x60

Total 18MOp (~9M MAC) Compute times: On 150W Core i7 PC in Caffe: 2ms On 1W CNN accelerator on FPGA: 8ms

Paper Scissors Rock Background

64x64 DVS 2D rectified histogram of 2k events (0.1Hz – 1kHz rate)

MaxPool 2x2 16x30x30 Conv 3x3 32x28x28 Conv 1x1 + MaxPool 2x2 128x1x1 MaxPool 2x2 32x14x14 Conv 3x3 64x12x12 MaxPool 2x2 64x6x6 Conv 3x3 128x4x4 MaxPool 2x2 128x2x2 240x180 DVS “frames”

Conventional 5-layer LeNet with ReLU/MaxPool and 1 FC layer before output.

I.-A. Lungu, F. Corradi, and T. Delbruck, “Live Demonstration: Convolutional Neural Network Driven by Dynamic Vision Sensor Playing RoShamBo,” in 2017 IEEE Symposium on Circuits and Systems (ISCAS 2017), Baltimore, MD, USA, 2017.

RoShamBo training images

I.-A. Lungu, F. Corradi, and T. Delbruck, “Live Demonstration: Convolutional Neural Network Driven by Dynamic Vision Sensor Playing RoShamBo,” in 2017 IEEE Symposium on Circuits and Systems (ISCAS 2017), Baltimore, MD, USA, 2017.

36

• A. Aimar, E. Calabrese, H. Mostafa, A. Rios-Navarro, R. Tapiador, I.-A. Lungu, A. Jimenez-Fernandez, F.

Corradi, S.-C. Liu, A. Linares-Barranco, and T. Delbruck, “Nullhop: Flexibly efficient FPGA CNN accelerator driven by DAVIS neuromorphic vision sensor,” in NIPS 2016, Barcelona, 2016.

Conclusions

• 1. The DVS was developed by following a neuromorphic approach of

emulating key properties of biological retinas

• 2. The wide dynamic range and sparse, quick output make these sensors

useful in real time uncontrolled conditions

• 3. Applications could include vision prosthetics, surveillance, robotics

and consumer electronics

• 4. The precise timing could improve learning and inference
• 5. The main challenges are to reduce pixel size and to develop effective
• algorithms. Only industry can do the first but academia has plenty of

room to play for the second.

• 6. Event sensors can nicely drive deep inference. There is a lot of room

for improvement of deep inference power efficiency at the system level!
