SILENT RAILROAD CROSSING PRESENTATION Department of Public Works TEXARKANA AR CROSSINGS 8 MAJOR CROSSINGS 4 TYPES OF SILENT CROSSINGS BARRIER FOUR QUADRANT AUTOMATED HORN SYSTEM FULL CLOSURE 14 th & BROAD 19 TH

SLIDE 1

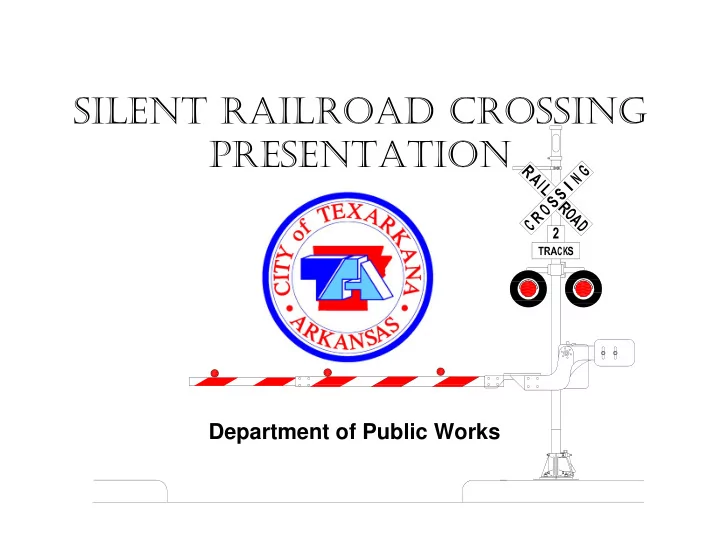

SILENT RAILROAD CROSSING PRESENTATION

Department of Public Works

SLIDE 2

TEXARKANA AR CROSSINGS

8 MAJOR CROSSINGS
4 TYPES OF SILENT CROSSINGS

– BARRIER – FOUR QUADRANT – AUTOMATED HORN SYSTEM – FULL CLOSURE

SLIDE 3

14th & BROAD

SLIDE 4

19TH & BROAD

SLIDE 5

ARKANSAS & BROAD

SLIDE 6

DUDLEY & OATS

SLIDE 7

PINHURST & DRAUGH ST

SLIDE 8

SO RONDO RD

SLIDE 9

SEIBERT/FERGUSON

SLIDE 10

TENNESSEE RD

SLIDE 11

SILENT CROSSING INDICATOR

SLIDE 12

AUTOMATED HORN SYSTEM

(WAYSIDE HORN)

SLIDE 13

Wayside Horn

SLIDE 14

FOUR-QUADRANT GATE

SLIDE 15

4QG

SLIDE 16

BARRIER TYPE CROSSING

100’ OF BARRIERS

SLIDE 17

SLIDE 18

Gates with Medians or Channelization Devices

Channelization Device Non-traversable Curb

SLIDE 19

Gates with Medians or Channelization Devices

Median Median 100’ Minimum Length

SLIDE 20

Gates with Medians or Channelization Devices

60’ Minimum Length 100’ Median

SLIDE 21

Gates with Medians or Channelization Devices

Median must be 6” or greater 1’ Maximum from tip of gate to edge of median

SLIDE 22

CLOSED CROSSING

SLIDE 23

CCVS

SLIDE 24

CONCLUSION

Closure

– Temporary closure (night time only)

$30,000

– Permanent closure

$10,000
Barrier

– $30,000 to $60,000

Automated Horn System

– $90,000 to $110,000

Four Quadrant Gates

– $250,000

(ALL COSTS ARE PER CROSSING)
