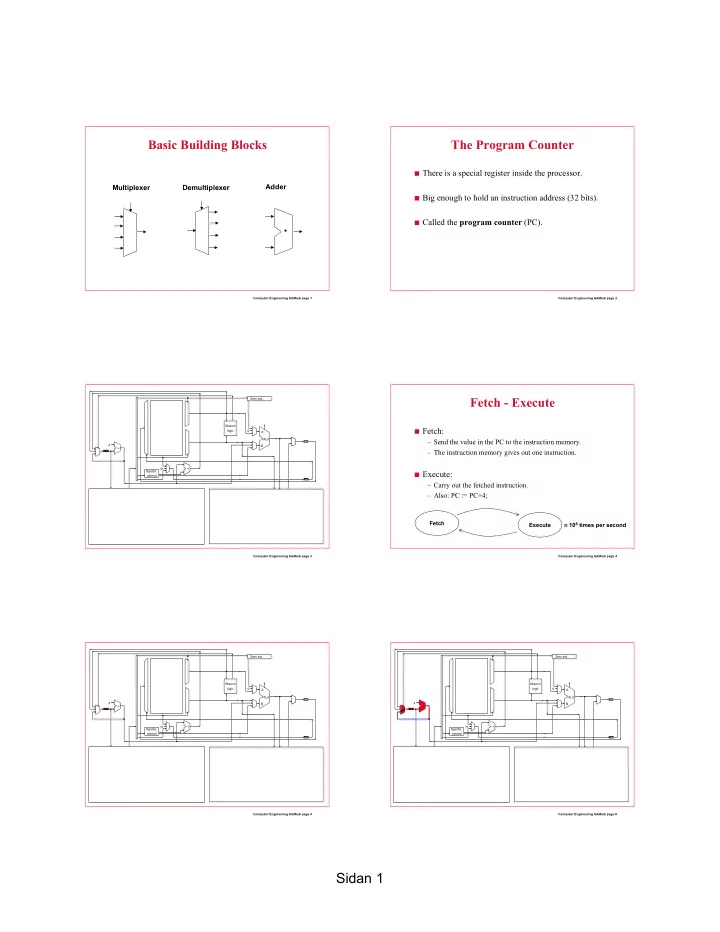

Computer Engineering AddSub page 1

Basic Building Blocks

Multiplexer

+

Demultiplexer Adder

Computer Engineering AddSub page 2

The Program Counter

■ There is a special register inside the processor. ■ Big enough to hold an instruction address (32 bits). ■ Called the program counter (PC).

Computer Engineering AddSub page 3 Branch logic Sgn/Ze extend Zero ext. ALU A B 31 4 + + Computer Engineering AddSub page 4

Fetch - Execute

■ Fetch:

– Send the value in the PC to the instruction memory. – The instruction memory gives out one instruction.

■ Execute:

– Carry out the fetched instruction. – Also: PC := PC+4;

Fetch Execute ≅ 108 times per second

Computer Engineering AddSub page 5 Branch logic Sgn/Ze extend Zero ext. ALU A B 31 4 + + Computer Engineering AddSub page 6 Branch logic Sgn/Ze extend Zero ext. ALU A B 31 4 + +

Sidan 2

Computer Engineering AddSub page 7

The Register File

■ 32 word (32 bit) registers. ■ r0 is special:

– Read: always zero. – Write: allowed, but won´t change it.

■ r31 is special:

– Hard-wired return address (lab1).

Computer Engineering AddSub page 8 Branch logic Sgn/Ze extend Zero ext. ALU A B 31 4 + + Computer Engineering AddSub page 9

Add Instructions

■ 32 bit operands. ■ Example:

– Add rd rs rt. – rd := rs + rt.

■ There is also:

– Addu rd rs rt.

■ These are not add signed and add unsigned.

The “u”-variant ignores overflow.

Opcode rs rt rd 5 5 5 6

Computer Engineering AddSub page 10 Branch logic Sgn/Ze extend Zero ext.

Add rd rs rt

ALU A B 31 4 + + Computer Engineering AddSub page 11 Branch logic Sgn/Ze extend Zero ext.

Add rd rs rt

ALU A B 31 4 + + Computer Engineering AddSub page 12 Branch logic Sgn/Ze extend Zero ext.

Add rd rs rt

ALU A B 31 4 + +

Sidan 3

Computer Engineering AddSub page 13 Branch logic Sgn/Ze extend Zero ext.

Add rd rs rt

ALU A B 31 4 + + Computer Engineering AddSub page 14 Branch logic Sgn/Ze extend Zero ext.

Add rd rs rt

ALU A B 31 4 + + Computer Engineering AddSub page 15 Branch logic Sgn/Ze extend Zero ext.

Add rd rs rt … next instr

ALU A B 31 4 + + Computer Engineering AddSub page 16

Sub Instructions

■ 32 bit operands. ■ Example:

– Sub rd rs rt – rd := rs - rt

■ There is also:

– Subu rd rs rt

■ These are not sub signed and sub unsigned

The “u”-variant ignores overflow

Computer Engineering AddSub page 17

How to Negate

■ Y := -X? ■ Sub rd $0 rt

($0 means r0)

■ rd := 0 - rt ■ Careful: Neg ≠ Not

Computer Engineering AddSub page 18

Compare Instructions

■ Signed integers:

– Slt rd rs rt – if rs < rt then rd := 1 else rd := 0

■ Unsigned integers:

– Sltu rd rs rt – if rs < rt then rd := 1 else rd := 0

Sidan 4

Computer Engineering AddSub page 19

Immediate Variants

• f the arithmetic instructions:

■ Addi

rt rs Imm

■ Addiu

rt rs Imm

■ Slti

rt rs Imm

■ Sltiu

rt rs Imm

■ Imm sign-extend ■ No sub instruction

Computer Engineering AddSub page 20

Sign/Zero extension

■ The immediate field is 16 bits ■ But most operations work on 32 bits!

Zero extension Sign extension

Immediate

xxxxxxxxxxxxxxxx

Immediate

0000000000000000

Immediate Bit 15, the Sign bit, is copied into bits 16 - 31

x

15 16 31 15 16 31

Computer Engineering AddSub page 21 Branch logic Sgn/Ze extend Zero ext. ALU A B 31 4 + + Computer Engineering AddSub page 22 Branch logic Sgn/Ze extend Zero ext.

Addi rt rs Imm

ALU A B 31 4 + + Computer Engineering AddSub page 23 Branch logic Sgn/Ze extend Zero ext.

Addi rt rs Imm

ALU A B 31 4 + + Computer Engineering AddSub page 24 Branch logic Sgn/Ze extend Zero ext.

Addi rt rs Imm

ALU A B 31 4 + +

Sidan 5

Computer Engineering AddSub page 25 Branch logic Sgn/Ze extend Zero ext.

Addi rt rs Imm

ALU A B 31 4 + + Computer Engineering AddSub page 26 Branch logic Sgn/Ze extend Zero ext.

Addi rt rs Imm … next instr

ALU A B 31 4 + +
