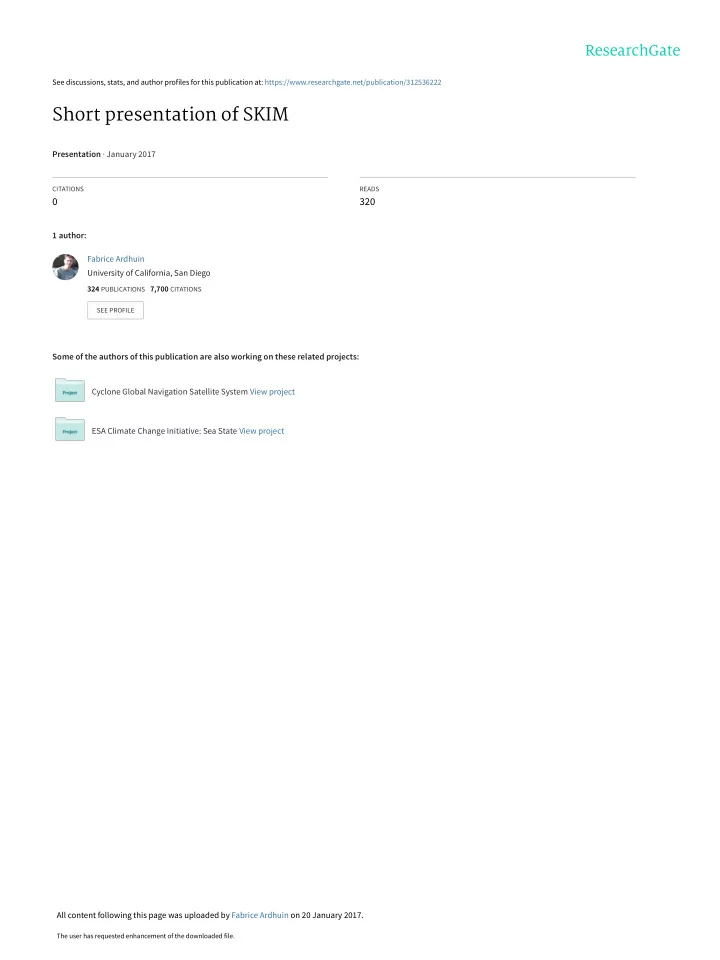

See discussions, stats, and author profiles for this publication at: https://www.researchgate.net/publication/312536222

Short presentation of SKIM

Presentation · January 2017

CITATIONS READS

320

1 author: Some of the authors of this publication are also working on these related projects: Cyclone Global Navigation Satellite System View project ESA Climate Change Initiative: Sea State View project Fabrice Ardhuin University of California, San Diego

324 PUBLICATIONS 7,700 CITATIONS

SEE PROFILE

All content following this page was uploaded by Fabrice Ardhuin on 20 January 2017.

The user has requested enhancement of the downloaded file.

slide-2
SLIDE 2

The SKIM Team

– https://www.facebook.com/SKIM4EE9 http://tinyurl.com/SKIMonRG

The ocean Surface KInematics Multiscale monitoring mission (SKIM)

A proposal for ESA Earth Explorer 9 : Why and how ?

1.5 km

Picture by S. Lamarche

http://www.umr-lops.fr/Projets/Projets-actifs/SKIM

slide-3
SLIDE 3

2

  • 1. What is SKIM ?

SKIM combines

  • an « altimeter on steroids » looking straight down (at nadir)

(very high PRF Ka-band radar, 200 MHz bandwidth, SAR unfocused) → very low noise measurements of sea level, wave height, ice freeboard … (the best altimeter ever flown)

  • a novel wave + current spectrometer

This is a real aperture radar with 5 to 7 rotating beams (5 in 2016 design) at 6 and 12° incidence → measurement of full wave spectrum unambiguous in direction, down to 20 m wavelength, 5° resolution + wind vector → companion to Sentinel 1 : wave bias correction on total ocean surface currents (single component, error goal < 20 cm/s @ dx= 20 km ) → SKIM alone : total ocean surface vector currents (error goal < 30 cm/s on each component

  • ver a 6 km footprint)

Example of surface Line-of-sight current map, achievable with S1 + SKIM (Chapron et al. JGR 2005)

slide-4
SLIDE 4

3

  • 2. How does SKIM work ?
  • rotating plate carrying horns
  • pattern of footprints illuminated
  • ver 30 ms.
  • not a full picture but many footprints :

each is 6 km in diameter

  • 1D wave spectrum + radial current on

each footprint.

  • Higher res than 6 km possible with SAR

unfocused

slide-5
SLIDE 5

4

  • 3. What is SKIM good at ?
  • a. Ocean circulation

SKIM correction on S1 SAR will give total surface current on each pass at high resolution Rouault et al. (JGR 2010). SAR only : many passes averaged High resolution Altimeters : Only geostrophic current resolution ~ 100 km

slide-6
SLIDE 6

5

  • 3. What is SKIM good at ?
  • b. Ocean circulation

There is no geostrophy at the equator : no currents from altimeters … not a problem for SKIM and SKIM + S1 Envisat (below) → eastward current with a 3 month average S1+SKIM and SKIM → global map every 15 days From Collard et al. (SEASAR 2008)

slide-7
SLIDE 7

6

  • 3. What is SKIM good at ?
  • b. waves : coastal, wave+current interaction

Measuring much shorter waves than CFOSAT : fraction of resolved wave energy fraction of resolved energy or Stokes drift Measuring shorter waves → measuring Stokes drift

slide-8
SLIDE 8

7

  • 3. What is SKIM good at ?
  • b. waves : wave-ice interactions

Arctic ice is thinning and shrinking : the Arctic may soon be a giant Marginal Ice Zone in which waves play a big role → urgent to make reliable wave spectra & ice measurements at the ice edge → S1 can be used in the ice (> 10 km from the edge) → SKIM for the open water + leads + near the edge (range bunching on 6° beam) 1-day coverage complementarity with Sentinel 1 (only beam 1 and 6 are shown)

slide-9
SLIDE 9

8

  • 3. What is SKIM good at ?
  • b. waves : extremes

Measuring detailed directional spectrum → extreme water levels at shoreline A narrow directional spectrum gives larger run-up (Guza and Feddersen JGR 2012)

slide-10
SLIDE 10

9

  • 3. What is SKIM good at ?
  • b. waves : extremes

Measuring detailed directional spectrum → freak waves estimation Wave spectrum probability of crest height example Freak wave (Fedele et al., Scientific Reports 2016)

slide-11
SLIDE 11

1

  • 3. What is SKIM good at ?
  • b. solid Earth : microseism sources

SKIM wil measure the full wave spectrum … we still have to verify that we can separate waves in opposite directions. If that works we will directly measure the sources of microseism → considerable improvement in Earth tomography and real time monitoring (Obrebski et al. GRL 2012)

slide-12
SLIDE 12

1

  • 4. What you can do for SKIM
  • have other ideas of something SKIM can do ?
  • want to use SKIM data one day ?

→ advocate to your national ESA representatives → join the team of PIs or supporters → spread the word about SKIM !

SKIM needs you … without you it will never happen

slide-13
SLIDE 13

1

  • 4. What you can do for SKIM

More details and updates :

The SKIM Team

https://www.facebook.com/SKIM4EE9 http://tinyurl.com/SKIMonRG

1.5 km

http://www.umr-lops.fr/Projets/Projets-actifs/SKIM
