ZONING INFORMATION ZONING DISTRICT: LOCAL NEIGHBORHOOD DISTRICT (LNC) NEIGHBORHOOD : BLOOMFIELD MAX. HEIGHT: 3 STORIES OR 45'-0" FLOOR AREA RATIO: 2:1 (SITE APPROX. 24,730 SF) MAX LOT COVERAGE: 90% FRONT SETBACK: NONE REAR SETBACK:

slide-1
SLIDE 1 P E N N A V E . P E N N A V E . F R I E N D S H I P A V E . C O M R I E W A Y C A R R O L L S T . WOOLSLAYER WAY M I L G A T E S T . C H I L D R E N ' S H O S P I T A L O F P I T T S B U R G H U P M C

BLOOMFIELD CENTRAL LAWRENCEVILLE

A-011 1 Sim EXISTING BLDGs

N

45TH STREET 44TH STREET PARKING GARAGE

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1" = 100'-0"

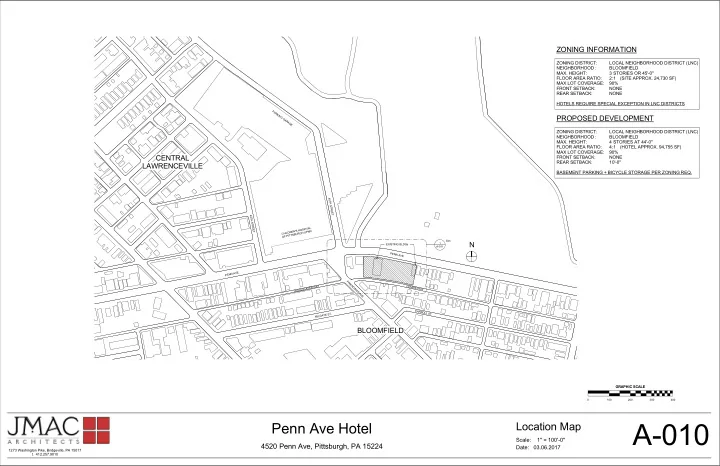

Location Map

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-010

ZONING DISTRICT: LOCAL NEIGHBORHOOD DISTRICT (LNC) NEIGHBORHOOD : BLOOMFIELD

  • MAX. HEIGHT:

3 STORIES OR 45'-0" FLOOR AREA RATIO: 2:1 (SITE APPROX. 24,730 SF) MAX LOT COVERAGE: 90% FRONT SETBACK: NONE REAR SETBACK: NONE HOTELS REQUIRE SPECIAL EXCEPTION IN LNC DISTRICTS

ZONING INFORMATION

200 300 400 100

GRAPHIC SCALE

PROPOSED DEVELOPMENT

ZONING DISTRICT: LOCAL NEIGHBORHOOD DISTRICT (LNC) NEIGHBORHOOD : BLOOMFIELD

  • MAX. HEIGHT:

4 STORIES AT 44'-0" FLOOR AREA RATIO: 4:1 (HOTEL APPROX. 94,755 SF) MAX LOT COVERAGE: 90% FRONT SETBACK: NONE REAR SETBACK: 10'-0" BASEMENT PARKING + BICYCLE STORAGE PER ZONING REQ.

slide-2
SLIDE 2

FRIENDSHIP AVE.

4 STORY, 112 ROOM WOOD FRAME HOTEL 72,500 GSF OVER BASEMENT PARKING

  • ST. MARY'S CEMETERY
CHILDREN'S HOSPITAL

COMRIE WAY PENN AVE.

PROPOSED STREET TREE LANDSCAPING

94,755 SF TOTAL

RESIDENTIAL PARKING & GARAGES RESIDENTIAL PARKING & GARAGES SURFACE PARKING APARTMENT GARAGE APARTMENT BUILDING 10' - 0" PROPOSED CURB CUT 4538 4540 4542 4544 4510 4508 4506 4515/17/19 PROPOSED LANDSCAPING

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1" = 20'-0"

Architectural Site Plan

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-011

40 60 80 20

GRAPHIC SCALE

N

slide-3
SLIDE 3

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale:

Neighboring Buildings

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-012

COMRIE WAY COMRIE WAY PENN AVE & FRIENDSHIP CORNER EXISTING BUILDING 4536 - 4554 PENN AVE. 4506 - 4520 PENN AVE.

slide-4
SLIDE 4

HOTEL LOBBY FLOOR

  • APPROX. 15,150sf

3rd PARTY LEASED SPACE

  • APPROX. 1,800sf

OUTDOOR PATIO

  • APPROX. 1,500sf

DRIVE AISLE & HOTEL DROP OFF RAMP TO PARKING 233' - 3" 253' - 9" 89' - 6" PROPOSED LANDSCAPING & STREET TREES EXIT TO PENN AVE. ENTRANCE TO DROP OFF & PARKING RAMP

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1" = 10'-0"

Hotel Entry Plan

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-101

N

slide-5
SLIDE 5

TYPICAL GUESTROOM FLOOR

  • APPROX. 19,000sf

35' - 2" 8' - 0" 9 '

  • 6

" 1 '

  • 2

"

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1" = 10'-0"

Typical Floor Plan

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-102

slide-6
SLIDE 6

ADJACENT BUILDING

  • APPROX. 28' - 0"

ADJACENT BUILDING ROOF PEAK

  • APPROX. 40' - 3"
  • MAX. HEIGHT W/ PARAPET

48' - 1" PROPOSED HOTEL ENTRY 3RD PARTY LEASED ENTRY VEHICLE ENTRY UTILIZING EXISTING CURB CUT VEHICLE EXIT

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1/8" = 1'-0"

Front Elevation

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-200

slide-7
SLIDE 7

ADJACENT BUILDING 28' - 0"

  • MAX. HEIGHT INC. PARAPET

46' - 6" ADJACENT BUILDING HEIGHT 26' - 3" COMRIE WAY PENN AVE.

  • MAX. HEIGHT INC. PARAPET

46' - 6" ADJACENT BUILDING ROOF PEAK

  • APPROX. 38' - 8"

ADJACENT BUILDING HEIGHT 30' - 9" COMRIE WAY PENN AVE.

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1/8" = 1'-0"

Side Elevations

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-201

slide-8
SLIDE 8

ADJACENT SURFACE PARKING LOT BASEMENT PARKING SCREENING ADJACENT SURFACE PARKING LOT AREA OF BUILDING SET BACK

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1/8" = 1'-0"

Rear Elevation

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-202

slide-9
SLIDE 9

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1" = 40'-0"

Sun/Shade Study

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-300

SPRING MORNING SPRING EVENING SUMMER MORNING SUMMER EVENING

slide-10
SLIDE 10

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1" = 40'-0"

Sun/Shade Study

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-301

FALL MORNING FALL EVENING WINTER MORNING WINTEREVENING

slide-11
SLIDE 11

PENN AVE. COMRIE WAY

APARTMENT BLDG. CEMETERY WALL 10' - 0"
  • APPROX. HEIGHT
27' - 0"
  • MAX. HEIGHT
44' - 0" 10' - 0" 10' - 0" 10' - 0" BASEMENT PARKING GUESTROOMS GUESTROOMS GUESTROOMS 12' - 0"

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1/8" = 1'-0"

Building Cross Section

Penn Ave Hotel

Date: 03.06.2017

4520 Penn Ave, Pittsburgh, PA 15224

A-400

slide-12
SLIDE 12

PENN AVE. COMRIE WAY

FACULTY PAVILION BEYOND APARTMENT BLDG.
  • APPROX. HEIGHT
72' - 0" CEMETERY WALL 10' - 0"
  • APPROX. HEIGHT
27' - 0"
  • MAX. HEIGHT
44' - 0" PARAPET 4' - 0" 12' - 0" 14' - 0" 10' - 0" 10' - 0" 10' - 0" BASEMENT PARKING DRIVE AISLE PATIO HOTEL LOBBY GUESTROOMS GUESTROOMS GUESTROOMS

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale: 1/8" = 1'-0"

Building Cross Section

Date: 03.06.2017

A-401

Penn Ave Hotel

4520 Penn Ave, Pittsburgh, PA 15224

slide-13
SLIDE 13

1273 Washington Pike, Bridgeville, PA 15017

  • t. 412.257.9010

Scale:

Penn Ave. Perspective

Date: 03.06.2017

A-600

Penn Ave Hotel

4520 Penn Ave, Pittsburgh, PA 15224

* FOR ILLUSTRATIVE PURPOSES ONLY
