Sequential Data Modeling – Conditional Random Fields

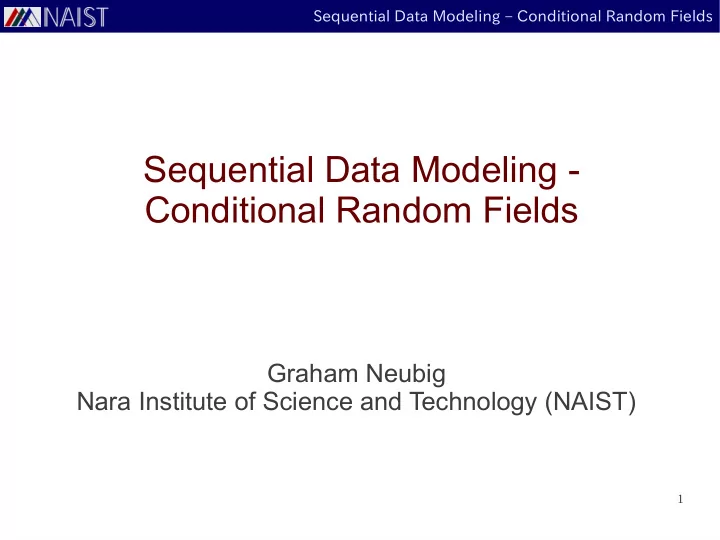

Sequential Data Modeling - Conditional Random Fields

Graham Neubig Nara Institute of Science and Technology (NAIST)

2

Sequential Data Modeling – Conditional Random Fields

Prediction Problems

Given x, predict y

3

Sequential Data Modeling – Conditional Random Fields

Prediction Problems Given x, predict y

A book review Oh, man I love this book! This book is so boring... Is it positive? yes no

Binary Prediction (2 choices)

A tweet On the way to the park! 公園に行くなう！ Its language English Japanese

Multi-class Prediction (several choices)

A sentence I read a book Its parts-of-speech

Structured Prediction (millions of choices)

I read a book

DET NN VBD N

4

Sequential Data Modeling – Conditional Random Fields

Logistic Regression

5

Sequential Data Modeling – Conditional Random Fields

Example we will use:

• Given an introductory sentence from Wikipedia
• Predict whether the article is about a person
• This is binary classification (of course!)

Given

Gonso was a Sanron sect priest (754-827) in the late Nara and early Heian periods.

Predict

Yes!

Shichikuzan Chigogataki Fudomyoo is a historical site located at Magura, Maizuru City, Kyoto Prefecture.

No!

6

Sequential Data Modeling – Conditional Random Fields

Review: Linear Prediction Model

• Each element that helps us predict is a feature
• Each feature has a weight, positive if it indicates “yes”,

and negative if it indicates “no”

• For a new example, sum the weights
• If the sum is at least 0: “yes”, otherwise: “no”

contains “priest” contains “(<#>-<#>)” contains “site” contains “Kyoto Prefecture” wcontains “priest” = 2 wcontains “(<#>-<#>)” = 1 wcontains “site” = -3 wcontains “Kyoto Prefecture” = -1 Kuya (903-972) was a priest born in Kyoto Prefecture.

2 + -1 + 1 = 2

7

Sequential Data Modeling – Conditional Random Fields

Review: Mathematical Formulation

y = sign(w⋅ϕ(x)) = sign(∑i=1

I

wi⋅ϕi(x))

• x: the input
• φ(x): vector of feature functions {φ1(x), φ2(x), …, φI(x)}
• w: the weight vector {w1, w2, …, wI}
• y: the prediction, +1 if “yes”, -1 if “no”
• (sign(v) is +1 if v >= 0, -1 otherwise)

8

Sequential Data Modeling – Conditional Random Fields

• 10
• 5

5 10 0.5 1 w*phi(x) p ( y | x )

Perceptron and Probabilities

• Sometimes we want the probability
• Estimating confidence in predictions
• Combining with other systems
• However, perceptron only gives us a prediction

P( y∣x)

In other words:

P( y=1∣x)=1 if w⋅ϕ(x)≥0 y=sign(w⋅ϕ( x)) P( y=1∣x)=0 if w⋅ϕ(x)<0

9

Sequential Data Modeling – Conditional Random Fields

• 10
• 5

5 10 0.5 1 w*phi(x) p ( y | x )

The Logistic Function

• The logistic function is a “softened” version of the

function used in the perceptron

• 10
• 5

5 10 0.5 1 w*phi(x) p ( y | x )

Perceptron Logistic Function

P( y=1∣x)= e

w⋅ ϕ( x)

1+e

w⋅ϕ(x)

• Can account for uncertainty
• Differentiable

10

Sequential Data Modeling – Conditional Random Fields

Logistic Regression

• Train based on conditional likelihood
• Find the parameters w that maximize the conditional

likelihood of all answers yi given the example xi

• How do we solve this?

̂ w=argmax

w

∏i P( yi∣xi ; w)

11

Sequential Data Modeling – Conditional Random Fields

Review: Perceptron Training Algorithm

create map w for I iterations for each labeled pair x, y in the data phi = create_features(x) y' = predict_one(w, phi) if y' != y w += y * phi

• In other words
• Try to classify each training example
• Every time we make a mistake, update the weights

12

Sequential Data Modeling – Conditional Random Fields

Stochastic Gradient Descent

• Online training algorithm for probabilistic models

(including logistic regression) create map w for I iterations for each labeled pair x, y in the data w += α * dP(y|x)/dw

• In other words
• For every training example, calculate the gradient

(the direction that will increase the probability of y)

• Move in that direction, multiplied by learning rate α

13

Sequential Data Modeling – Conditional Random Fields

• 10
• 5

5 10 0.2 0.4 w*phi(x) d p ( y | x ) / d w * p h i ( x )

Gradient of the Logistic Function

• Take the derivative of the probability

d d w P( y=1∣x) = d d w e

w⋅ ϕ( x)

1+e

w⋅ϕ(x)

= ϕ(x) e

w⋅ϕ(x)

(1+e

w⋅ϕ(x)) 2

d d w P( y=−1∣x) = d d w (1− e

w⋅ϕ(x)

1+e

w⋅ϕ(x))

= −ϕ (x) e

w⋅ϕ(x)

(1+e

w⋅ϕ(x)) 2

14

Sequential Data Modeling – Conditional Random Fields

Example: Initial Update

• Set α=1, initialize w=0

x = A site , located in Maizuru , Kyoto y = -1

w⋅ϕ(x)=0

w← w+−0.25ϕ (x)

wunigram “A” = -0.25 wunigram “site” = -0.25 wunigram “,” = -0.5 wunigram “located” = -0.25 wunigram “in” = -0.25 wunigram “Maizuru” = -0.25 wunigram “Kyoto” = -0.25

d d w P( y=−1∣x) = − e (1+e

0) 2 ϕ(x)

= −0.25ϕ(x)

15

Sequential Data Modeling – Conditional Random Fields

Example: Second Update

x = Shoken , monk born in Kyoto y = 1

w⋅ϕ(x)=−1

w← w+0.196 ϕ( x)

wunigram “A” = -0.25 wunigram “site” = -0.25 wunigram “,” = -0.304 wunigram “located” = -0.25 wunigram “in” = -0.054 wunigram “Maizuru” = -0.25 wunigram “Kyoto” = -0.054

• 0.5
• 0.25 -0.25

wunigram “Shoken” = 0.196 wunigram “monk” = 0.196 wunigram “born” = 0.196

d d w P( y=1∣x) = e

1

(1+e

1) 2 ϕ(x)

= 0.196ϕ(x)

16

Sequential Data Modeling – Conditional Random Fields

Calculating Optimal Sequences, Probabilities

17

Sequential Data Modeling – Conditional Random Fields

Sequence Likelihood

• Logistic regression considered probability of
• What if we want to consider probability of a sequence?

y∈{−1,+1}

P( y∣x)

I visited Nara PRN VBD NNP Xi Yi

P(Y∣X)

18

Sequential Data Modeling – Conditional Random Fields

φ( )*w=1 φ( )*w=2 φ( )*w=0

φ( ) φ( ) φ( )

Calculating Multi-class Probabilities

• Each sequence has it's own feature vector
• Use weights for each feature to calculate scores

time flies N V

φ( )

φT,<S>,N=1 φT,N,V=1 φT,V,</S>=1 φE,N,time=1 φE,V,flies=1

time flies V N

φT,<S>,V=1 φT,V,N=1 φT,N,</S>=1 φE,V,time=1 φE,N,flies=1

time flies N N

φT,<S>,N=1 φT,N,N=1 φT,N,</S>=1 φE,N,time=1 φE,N,flies=1

time flies V V

φT,<S>,V=1 φT,V,V=1 φT,V,</S>=1 φE,V,time=1 φE,V,flies=1 wT,<S>,N=1 wE,N,time=1 wT,V,</S>=1

time flies N V φ( )*w=3 time flies V N time flies N N time flies V V

19

Sequential Data Modeling – Conditional Random Fields

exp(φ( )*w)=2.72 exp(φ( )*w)=7.39 exp(φ( )*w)=1.00

The Softmax Function

• Turn into probabilities by taking exponent and

normalizing (the Softmax function)

• Take the exponent and normalize

time flies N V exp(φ( )*w)=20.08 time flies V N time flies N N time flies V V

P(Y∣X)= e

w⋅ϕ(Y , X )

∑ ̃

Y e w⋅ϕ( ̃ Y , X )

P(N V | time flies)=.6437 P(N N | time flies)=.2369 P(V V | time flies)=0.0872 P(V N | time flies)=0.0320

20

Sequential Data Modeling – Conditional Random Fields

Calculating Edge Features

• Like perceptron, can calculate features for each edge

<S> N V N V </S> time flies

φT,<S>,N=1 φT,<S>,V=1 φE,N,time=1 φE,V,time=1 φT,N,N=1 φT,V,V=1 φT,V,N=1 φT,N,V=1 φE,V,flies=1 φE,N,flies=1 φE,N,flies=1 φE,V,flies=1 φT,V,</S>=1 φT,N,</S>=1

21

Sequential Data Modeling – Conditional Random Fields

Calculating Edge Probabilities

• Calculate scores, and take exponent

<S> N V N V </S> time flies

ew*φ=7.39 P=.881 ew*φ=1.00 P=.119 ew*φ=1.00 P=.237 ew*φ=1.00 P=.032 ew*φ=1.00 P=.644 ew*φ=2.72 P=.731 ew*φ=1.00 P=.269 ew*φ=1.00 P=.087

• This is now the same form as the HMM
• Can use the Viterbi algorithm
• Calculate probabilities using forward-backward

22

Sequential Data Modeling – Conditional Random Fields

Conditional Random Fields

23

Sequential Data Modeling – Conditional Random Fields

Maximizing CRF Likelihood

• Want to maximize the likelihood for sequences
• For convenience, we consider the log likelihood
• Want to find gradient for stochastic gradient descent

P(Y∣X)= e

w⋅ϕ(Y , X )

∑ ̃

Y e w⋅ϕ( ̃ Y , X )

log P(Y∣X)=w⋅ϕ(Y , X)−log∑ ̃

Y e w⋅ ϕ( ̃ Y , X)

d d w log P(Y∣X)

̂ w=argmax

w

∏i P(Y i∣Xi;w)

24

Sequential Data Modeling – Conditional Random Fields

Deriving a CRF Gradient:

log P(Y∣X) = w⋅ϕ(Y , X)−log∑ ̃

Y e w⋅ϕ( ̃ Y , X )

= w⋅ϕ(Y , X)−log Z d d w log P(Y∣X) = ϕ(Y , X)− d d w log∑ ̃

Y e w⋅ϕ( ̃ Y , X)

= ϕ(Y , X)−1 Z ∑ ̃

Y

d d w e

w⋅ϕ( ̃ Y , X )

= ϕ(Y , X)−∑ ̃

Y

e

w⋅ϕ( ̃ Y , X)

Z ϕ( ̃ Y , X) = ϕ(Y , X)−∑ ̃

Y P( ̃

Y∣X)ϕ( ̃ Y , X)

25

Sequential Data Modeling – Conditional Random Fields

In Other Words...

• To get the gradient we:

d d w log P(Y∣X)=ϕ(Y , X)−∑ ̃

Y P( ̃

Y∣X)ϕ ( ̃ Y , X)

add the correct feature vector subtract the expectation of the features

26

Sequential Data Modeling – Conditional Random Fields

Example

φ( ) φ( ) φ( )

time flies N V

φ( ) φT,<S>,N=1 φT,N,V=1 φT,V,</S>=1 φE,N,time=1 φE,V,flies=1

time flies V N

φT,<S>,V=1 φT,V,N=1 φT,N,</S>=1 φE,V,time=1 φE,N,flies=1

time flies N N

φT,<S>,N=1 φT,N,N=1 φT,N,</S>=1 φE,N,time=1 φE,N,flies=1

time flies V V

φT,<S>,V=1 φT,V,V=1 φT,V,</S>=1 φE,V,time=1 φE,V,flies=1

P=.644 P=.237 P=.087 P=.032

φT,<S>,N, φE,N,time = 1-.644-.237 = .119 φT,N,V = 1-.644 = .356 φT,V,</S>, φE,V,flies = 1-.644-.087 = .269 φT,V,N = 0-.032 = -.032 φT,N,N = 0-.237 = -.237 φT,V,V = 0-.087 = -.087 φT,<S>,V, φE,V,time = 0-.032-.087 = -.119 φT,N,</S>, φE,V,flies = 0-.032-.237 = -.269

27

Sequential Data Modeling – Conditional Random Fields

Combinatorial Explosion

• Problem!: The number of hypotheses is exponential.

d d w log P(Y∣X)=ϕ(Y , X)−∑ ̃

Y P( ̃

Y∣X)ϕ ( ̃ Y , X)

O(T|X|)

T = number of tags

28

Sequential Data Modeling – Conditional Random Fields

Calculate Feature Expectations using Edge Probabilities!

• If we know the edge probabilities, just multiply them!

<S> N V time

φT,<S>,N=1 φT,<S>,V=1 φE,N,time=1 φE,V,time=1

…

ew*φ=7.39 P=.881 ew*φ=1.00 P=.119 φT,<S>,N, φE,N,time = 1-.881 = .119 φT,<S>,V, φE,V,time = 0-.119 = -.119 φT,<S>,N, φE,N,time = 1-.644-.237 = .119 φT,<S>,V, φE,V,time = 0-.032-.087 = -.119

Same answer as when we explicitly expand all Y!

29

Sequential Data Modeling – Conditional Random Fields

CRF Training Procedure

create map w for I iterations for each labeled pair X, Y in the data gradient = φ(Y,X) calculate eφ(y,x)*w for each edge run forward-backward algorithm to get P(edge) for each edge gradient -= P(edge)*φ(edge) w += α * gradient

• Can perform stochastic gradient descent, like logistic

regression

• Only major difference is gradient calculation
• Learning rate α

30

Sequential Data Modeling – Conditional Random Fields

Learning Algorithms

31

Sequential Data Modeling – Conditional Random Fields

Batch Learning

create map w for I iterations for each labeled pair x, y in the data w += α * dP(y|x)/dw

• Online Learning: Update after each example
• Batch Learning: Update after all examples

Online Stochastic Gradient Descent

create map w for I iterations for each labeled pair x, y in the data gradient += α * dP(y|x)/dw w += gradient

Batch Stochastic Gradient Descent

32

Sequential Data Modeling – Conditional Random Fields

Batch Learning Algorithms: Newton/Quasi-Newton Methods

• Newton-Raphson Method:
• Choose how far to update using the second-order

derivatives (the Hessian matrix)

• Faster convergence, but |w|*|w| time and memory
• Limited Memory Broyden-Fletcher-Goldfarb-Shanno

algorithm (L-BFGS):

• Guesses second-order derivatives from first-order
• Most widely used?
• Library: http://www.chokkan.org/software/liblbfgs/
• More information:

http://homes.cs.washington.edu/~galen/files/quasi- newton-notes.pdf

33

Sequential Data Modeling – Conditional Random Fields

Online Learning vs. Batch Learning

• Online:
• In general, simpler mathematical derivation
• Often converges faster
• Batch:
• More stable (does not change based on order)
• Trivially parallelizable

34

Sequential Data Modeling – Conditional Random Fields

Regularization

35

Sequential Data Modeling – Conditional Random Fields

Cannot Distinguish Between Large and Small Classifiers

• For these examples:
• Which classifier is better?
• 1 he saw a bird in the park

+1 he saw a robbery in the park Classifier 1 he +3 saw

• 5

a +0.5 bird -1 robbery +1 in +5 the -3 park -2 Classifier 2 bird -1 robbery +1

36

Sequential Data Modeling – Conditional Random Fields

Cannot Distinguish Between Large and Small Classifiers

• For these examples:
• Which classifier is better?
• 1 he saw a bird in the park

+1 he saw a robbery in the park Classifier 1 he +3 saw

• 5

a +0.5 bird -1 robbery +1 in +5 the -3 park -2 Classifier 2 bird -1 robbery +1 Probably classifier 2! It doesn't use irrelevant information.

37

Sequential Data Modeling – Conditional Random Fields

Regularization

• A penalty on adding extra weights
• L2 regularization:
• Big penalty on large weights,

small penalty on small weights

• High accuracy
• L1 regularization:
• Uniform increase whether large
• r small
• Will cause many weights to

become zero → small model

• 2
• 1

1 2 1 2 3 4 5 L2 L1

38

Sequential Data Modeling – Conditional Random Fields

Regularization in Logistic Regression/CRF

• To do so in logistic regression/CRF, we add the

penalty to the log likelihood (for the whole corpus)

• c adjusts the strength of the regularization
• smaller: more freedom to fit the data
• larger: less freedom to fit the data, better generalization
• L1 also used, slightly more difficult to optimize

̂ w=argmax

w

(∏i P(Y i∣X i; w))−c∑w∈w w

2

L2 Regularization

39

Sequential Data Modeling – Conditional Random Fields

Conclusion

40

Sequential Data Modeling – Conditional Random Fields

Conclusion

• Logistic regression is a probabilistic classifier
• Conditional random fields are probabilistic structured

discriminative prediction models

• Can be trained using
• Online stochastic gradient descent (like peceptron)
• Batch learning using a method such as L-BFGS
• Regularization can help solve problems of overfitting

41

Sequential Data Modeling – Conditional Random Fields

Thank You!
