Sensor Fusion: A Technique To Improve Location Systems E-NEXT WG1 TF Thomas King University of Mannheim king@informatik.uni-mannheim.de Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 1/14 Motivation

slide-1
SLIDE 1

Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 1/14

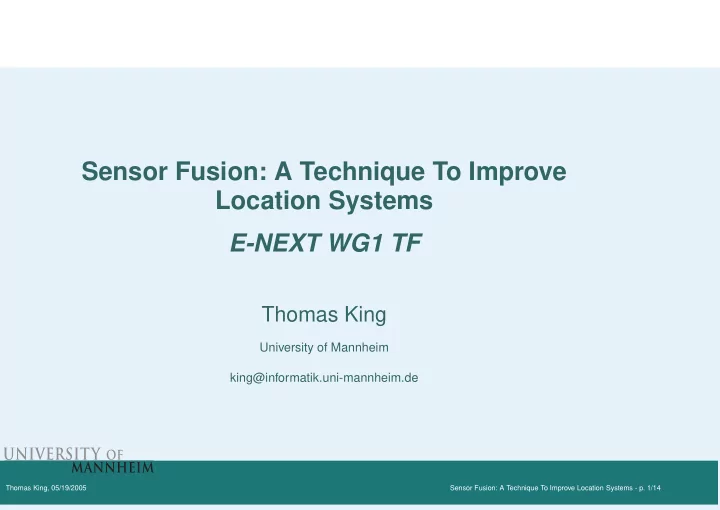

Sensor Fusion: A Technique To Improve Location Systems

E-NEXT WG1 TF

Thomas King

University of Mannheim king@informatik.uni-mannheim.de

slide-2
SLIDE 2

Introduction

  • Motivation
  • Outline
  • Categorization

Existing Work Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 2/14

Motivation

■ Various applications require location information ◆ mobile ad-hoc routing: position based routing ◆ mobile business: context-aware applications ■ various location systems are around ■ no highly accurate, easy-to-use indoor location

systems is available

slide-3
SLIDE 3

Introduction

  • Motivation
  • Outline
  • Categorization

Existing Work Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 2/14

Motivation

■ Various applications require location information ◆ mobile ad-hoc routing: position based routing ◆ mobile business: context-aware applications ■ various location systems are around ■ no highly accurate, easy-to-use indoor location

systems is available ⇒ we investigate sensor fusion based location systems

slide-4
SLIDE 4

Introduction

  • Motivation
  • Outline
  • Categorization

Existing Work Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 3/14

Outline

■ Categorization ■ Existing Work ■ Sensor Fusion ■ Conclusion

slide-5
SLIDE 5

Introduction

  • Motivation
  • Outline
  • Categorization

Existing Work Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 4/14

Categorization

Location Systems Use Existing Infrastructure Use Dedicated Infrastructure Televison Bluetooth Wireless LAN FM Radio Satellite Based Satellite Independent GPS Infrared Ultrasonic Rosum Sensor Fusion RADAR RightSPOT Active Badge Cricket

slide-6
SLIDE 6

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 5/14

Global Positioning System - Overview

■ designed for the U.S. military ■ funded and operated by the Department of

Defense

■ operational since 1995 ■ 24 satellites orbit the earth at a height of 20.000

km

■ provides an accuracy of 5-20 meters in 95 percent

  • f all cases
slide-7
SLIDE 7

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 6/14

Global Positioning System - Flaws

■ a line of sight to at least 4 satellites is required ■ the GPS signals are blocked by obstacles (walls,

foilage, ...)

slide-8
SLIDE 8

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 6/14

Global Positioning System - Flaws

■ a line of sight to at least 4 satellites is required ■ the GPS signals are blocked by obstacles (walls,

foilage, ...)

slide-9
SLIDE 9

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 7/14

RADAR - Overview

■ wireless LAN access points are used to determine

the position of mobile devices

■ two step approach: ◆ trainging phase: a database with signal strength

values of the operation area have to be created

◆ location phase: uses this database ■ median distance error 2.5 meters

slide-10
SLIDE 10

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 8/14

RADAR - Database

■ a dense grid of measurement points is required

slide-11
SLIDE 11

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 9/14

RADAR - Positioning

■ the mobile device measures the signal strength of

the access points in communication range

■ the mobile device compares this sample with the

values stored in the database

slide-12
SLIDE 12

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 10/14

Bluetooth

■ invented to replace low-bandwidth cabling e.g.

computer peripherals

■ communication range up to 10 meters ■ proximity based location determination

slide-13
SLIDE 13

Introduction Existing Work

  • Global Positioning System -

Overview

  • Global Positioning System -

Flaws

  • RADAR - Overview
  • RADAR - Database
  • RADAR - Positioning
  • Bluetooth

Sensor Fusion Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 10/14

Bluetooth

■ invented to replace low-bandwidth cabling e.g.

computer peripherals

■ communication range up to 10 meters ■ proximity based location determination

slide-14
SLIDE 14

Introduction Existing Work Sensor Fusion

  • Sensor Fusion - Overview
  • Sensor Fusion - Challenges
  • Generic Location System

Architecture Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 11/14

Sensor Fusion - Overview

■ modern mobile devices contain a multiple of

communication and sensor interfaces (e.g. Wireless LAN, Bluetooth, GSM, ...)

slide-15
SLIDE 15

Introduction Existing Work Sensor Fusion

  • Sensor Fusion - Overview
  • Sensor Fusion - Challenges
  • Generic Location System

Architecture Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 11/14

Sensor Fusion - Overview

■ modern mobile devices contain a multiple of

communication and sensor interfaces (e.g. Wireless LAN, Bluetooth, GSM, ...) ⇒ exploit the correlation between sensed parameters to increase the positioning accuracy and availability

slide-16
SLIDE 16

Introduction Existing Work Sensor Fusion

  • Sensor Fusion - Overview
  • Sensor Fusion - Challenges
  • Generic Location System

Architecture Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 11/14

Sensor Fusion - Overview

■ modern mobile devices contain a multiple of

communication and sensor interfaces (e.g. Wireless LAN, Bluetooth, GSM, ...) ⇒ exploit the correlation between sensed parameters to increase the positioning accuracy and availability

slide-17
SLIDE 17

Introduction Existing Work Sensor Fusion

  • Sensor Fusion - Overview
  • Sensor Fusion - Challenges
  • Generic Location System

Architecture Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 12/14

Sensor Fusion - Challenges

■ challenges: ◆ different sensor types provide different accuracy

and precision

◆ sensor data is often noisy ◆ position estimates from different sensors may

conflict with each other

slide-18
SLIDE 18

Introduction Existing Work Sensor Fusion

  • Sensor Fusion - Overview
  • Sensor Fusion - Challenges
  • Generic Location System

Architecture Conclusion Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 13/14

Generic Location System Architecture

BluetoothSensor + getSignalStrengthVector ():Vector WirelessLANSensor + getSignalStrengthVector ():Vector KNearestNeighbor + getPosition ():Position Viterbi + getPosition ():Position << interface >> Sensor + getSignalStrengthVector ():Vector << interface >> LocationDeterminationAlgorithm + getPosition ():Position GPS + getPosition ():Position BayesianNetwork + getPosition ():Position << interface >> SensorFusion + getPosition ():Position

slide-19
SLIDE 19

Introduction Existing Work Sensor Fusion Conclusion

  • Conclusion

Thomas King, 05/19/2005 Sensor Fusion: A Technique To Improve Location Systems - p. 14/14

Conclusion

■ Categorization of location systems ■ Existing Work ◆ GPS ◆ RADAR ◆ Bluetooth ■ Sensor Fusion
