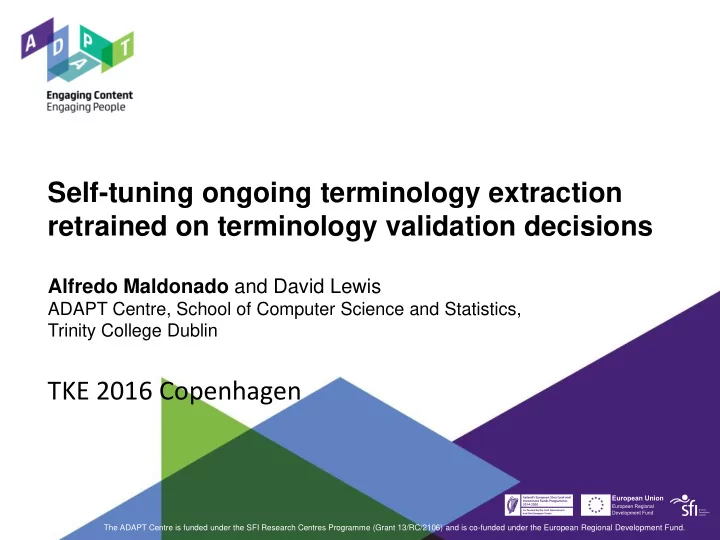

Self-tuning ongoing terminology extraction retrained on terminology validation decisions

Alfredo Maldonado and David Lewis

ADAPT Centre, School of Computer Science and Statistics, Trinity College Dublin

TKE 2016 Copenhagen

www.adaptcentre.ie

Agenda

• Why do we need to do terminology extraction on an ongoing basis?

Motivation

• Ongoing terminology extraction with and without learning

Methodology

• Description of Simulation Experiments and Results

Experimental Setup and Results

• The feedback loop in machine learning-based ongoing terminology

extraction can help in identifying the majority of terms in a batch of new content Conclusions and next steps

www.adaptcentre.ie

MOTIVATION

www.adaptcentre.ie

A frequent assumption in terminology extraction

• Surely if I do terminology extraction at some point towards the

beginning of a content creation project, I will capture the majority of the terms of interest that are ever likely to appear, right?

• I’m basically taking a representative sample of the terms in the

project

www.adaptcentre.ie

Let’s test that assumption

• Here’s an actual example using the term-annotated ACL RD-TEC

(QasemiZadeh and Handschuh, 2014)

• ACL RD-TEC: a corpus of ACL academic papers written between

1965 to 2006 in which domain-specific terms have been manually annotated

www.adaptcentre.ie

Motivation – new content introduces new terms

The proportion of new terms in a subsequent year never reaches 0 Between 12% and 20% of all valid terms in any given year will be new If you don’t do term extraction periodically (e.g. annually) you will start missing out A LOT OF new terms within a few years

www.adaptcentre.ie

The reality is …

• As content gets updated, new previously unseen terms will start

appearing

• These terms will not have been captured during our initial term

extraction and will have to be researched by our users or our terminologists downstream, causing bottlenecks in translation / usage of terminology, perhaps incurring additional costs

Clipart from https://openclipart.org

www.adaptcentre.ie

THE SOLUTION?

(METHODOLOGY)

www.adaptcentre.ie

Ongoing terminology extraction

… …

First proposed by Warburton (2013) – automatically filtering previously identified terms and non-terms in subsequent extraction exercises

Selected terms

Rejected terms Selected terms

Rejected terms Filtered terms Filtered terms

Content Batch 1 Content Batch 2

Extraction and Ranking Extraction and Ranking Automatic filtering Validation Validation

Filtered terms Selected terms

Rejected terms Filtered terms

Content Batch 3

Validation Automatic filtering Extraction and Ranking

Filtered terms

www.adaptcentre.ie

Proposed Solution: Machine Learning ongoing Terminology Extraction (MLTE)

… …

Selected terms

Rejected terms Selected terms

Rejected terms Train model

Content Batch 1 Content Batch 2

Extraction Extraction

Candidate Classification

Validation Validation

Retrained model Selected terms

Content Batch 3

Validation

Candidate Classification

Extraction

Rejected terms Retrained model

Instead of compiling term lists for filtering, we introduce a Machine Learning classification model that learns from terminologist’s validation decisions

www.adaptcentre.ie

Proposed System Architecture

Parameter:

• History size k (number of past batches to use as training data)

Text from previous k batches

Training

Validation decisions from previous k batches

Training, model, etc. …

Model for current batch

CURRENT BATCH

Current batch text Validation decisions for current batch

www.adaptcentre.ie

EXPERIMENTAL SETUP AND RESULTS

www.adaptcentre.ie

Dataset

• Usage of the ACL RD-TEC corpus
• Has terminology gold standard
• Has term index info (which terms appear in which docs)
• Documents are time-stamped (date of conference)
• C04-1001_cln.txt
• J05-1003_cln.txt
• Sample: RDTEC papers from 2004 till 2006
• 2,781 articles
• 9,114,767 words
• 3,300 words per article on average
• Sample divided in chronological batches of approx. 40 articles

each

• 69 batches
• Simulation of ongoing term extraction AND validation using an

annotated, time-stamped corpus

www.adaptcentre.ie

Simulation

Given current batch bt: 1. Extract term candidate n-grams from articles in batch (n = 1 .. 7) 2. Automatically remove any term candidates that appeared in any previous batch – like Warburton (2013) 3. Automatically remove any term candidates with POS patterns not associated with any valid terms in previous batches

• This is to reduce the amount of non-valid term candidates in training

data to counteract skewness towards non-valid candidates

• Notice no need to supply manual POS pattern filters!

4. Using previously trained model (if available), predict whether each term candidate is a valid term or not 5. Evaluate prediction by comparing predictions with gold standard in ACL RD-TEC annotation – Simulates manual validation step 6. Create new training data by concatenating this gold standard data points with that of the previous k-1 batches (history of size k). In our experiments, best results with k = 16. 7. Train a new model using newly created training data. 8. Go to next batch bt+1 and start from 1 until completing all batches.

www.adaptcentre.ie

Model and Features

• Model
• Support Vector Machine (SVM) classifier
• Linear Kernel
• Features
• Term candidate’s POS pattern
• Term candidate’s character 3-grams
• Two domain contrastive features:
• Domain Relevance (DR) (Navigli and Velardi, 2002)
• Term Cohesion (TC) (Park et al., 2002)
• Contrastive corpus 1 – a 500-way clustering of 2009 Wikipedia

documents (Baroni et al., 2009)

• Contrastive corpus 2 – a dynamic clustering of batch history

(each cluster has roughly 40 articles)

www.adaptcentre.ie

Experiments

• Our simulated approach, as described
• Two baselines:
• Baseline 1: An approximation to Warburton’s (2013) method

using standard, off-the-shelf filter-rankers provided by JATE (Zhang et al., 2008)

• Automatic filtering across batches takes place
• No learning model is trained
• Baseline 2:Train SVM classifier using our features on first batch

and use that classifier to predict terms from all subsequent batches

• Same as our approach, but no retraining at each batch

takes place

www.adaptcentre.ie

Evaluation

• Recall (coverage): % of valid terms in a batch were predicted as

valid

• Low recall indicates we’re missing many valid terms
• Precision (true positives): % of valid terms in the set of term

candidates predicted as valid

• Low precision indicates we’re producing many false positives
• Usually, we want to identify as many true valid terms as possible,

potentially at the risk of returning a relatively high number of false positives.

• We’re interested in achieving high recall (coverage) at the

expense of a moderate precision

www.adaptcentre.ie

Results

www.adaptcentre.ie

CONCLUSIONS AND NEXT STEPS

www.adaptcentre.ie

Conclusions

• Obtained good recall (coverage) scores using our method

(ONGOING), much better than the two baselines

• Average recall of 74.16% across all batches
• Precision scores are quite disappointing, meaning that we can

expect many false positives in each batch

• Ongoing retraining does help in keeping high recall
• Manual terminology validation already takes place in virtually all

terminology extraction tasks. Let’s just use them to train an ongoing machine-learning classifier automatically!

• The lack of a feedback loop mechanism in the statistical filter-

rankers does hinder their performance when used on an ongoing basis with automatic exclusion lists

www.adaptcentre.ie

Future work

• Conduct human-based benchmarks
• Address low precision scores
• Post-processing strategies like re-ranking predicted candidates

(e.g. by using statistical rankers)

• Exploring new features based on topic models
• Exploring reinforced learning techniques
• Experiment on other datasets from several other domains
• Further investigate role of contrastive corpus
• E.g. not all specialised terms will feature in Wikipedia
• Fall-back strategy like relying in sub-terms
• Distributional vector composition techniques in order to estimate

feature values of terms missing in contrastive corpus

www.adaptcentre.ie

QUESTIONS?

Alfredo Maldonado Research Fellow ADAPT Centre at Trinity College Dublin alfredo.maldonado@adaptcentre.ie maldonaa@tcd.ie @alfredomg on Twitter

The ADAPT Centre for Digital Content Technology is funded under the SFI Research Centres Programme (Grant 12/RC/2106) and is co-funded under the European Regional Development Fund.

Clipart from https://openclipart.org

www.adaptcentre.ie

APPENDIX

www.adaptcentre.ie

Two assumptions

• Assumption 1: We have a terminology pipeline in which extracted terms will be further processed by

terminologists and other linguists (e.g. research, translation, etc.) and will end up in a terminology database (termbase) to be used by other professionals (e.g. translators, specialists), organisations and systems

• Assumption 2: We have a non-static, ongoing source of new content
• Examples:
• Academic/scientific papers from journals, conferences proceedings, etc.
• Technical manuals for industrial, technological or medical equipment
• Web-based/online content
• Strings for software, mobile apps, web apps
• Content that starts getting translated before source text is completed (“sim ship” or “simultaneous ship”)
• If your content is static and finite, you perhaps won’t benefit from ongoing terminology extraction – Is

your content really static???

Clipart from https://openclipart.org and http://howiedi2.deviantart.com

Termbase Content Terms Research Translation Users

www.adaptcentre.ie

Evaluation of filter-rankers

• Consider the top N ranked candidates as valid term predictions and

all other candidates as non-valid term predictions (Pecina, 2010).

• If a batch has v valid terms, we could consider the N = v top

candidates as valid terms and the rest as non-valid terms.

• However, N = v is too inflexible and will tend to penalise the recall of

rankers

• In our experiments we use N = 2v

www.adaptcentre.ie

Evaluation of filter-rankers

N = 2v

www.adaptcentre.ie

Evaluation of filter-rankers

N = 7v
