Select Bus Service on 86 th Street Manhattan Community Board 8 | February 4, 2014 New York City Transit Overview Project Elements NYCDOT/DDC Street Improvement Project Current Traffic Conditions Traffic Analysis M86

slide-1
SLIDE 1

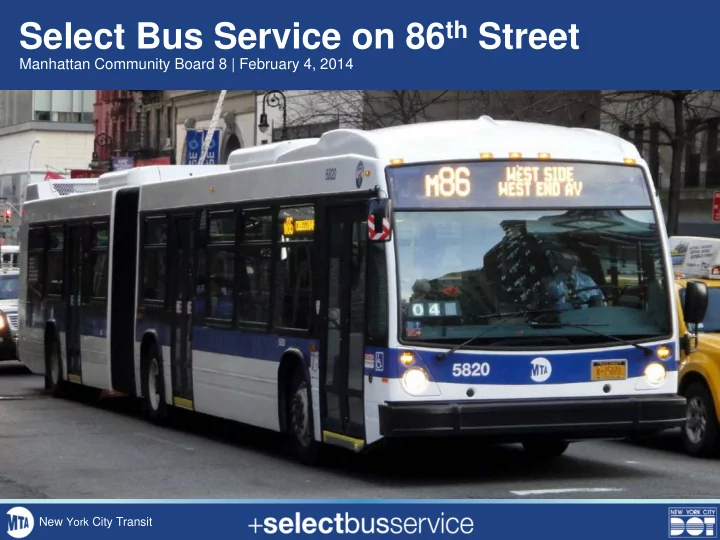

Select Bus Service on 86th Street

Manhattan Community Board 8 | February 4, 2014

New York City Transit

slide-2
SLIDE 2
  • Project Elements
  • NYCDOT/DDC Street Improvement Project
  • Current Traffic Conditions
  • Traffic Analysis
  • M86 Bus Stops
  • Project Timeline and Next Steps

Overview

2

slide-3
SLIDE 3

Select Bus Service in New York City

Select Bus Service (SBS) is New York City’s brand name for Bus Rapid Transit: an improved bus service that offers fast, frequent, and reliable service on high-ridership bus routes. SBS has brought:

  • 15-23% faster bus speeds
  • ~10% increase in ridership
  • More reliable service
  • Customer satisfaction of 95%
  • Safer streets / reduction in crashes

There are currently 7 Select Bus Service routes serving all 5 boroughs.

3

slide-4
SLIDE 4

Improved fare collection Transit signal priority Passenger information Improved station amenities Bus lanes Pedestrian safety improvements

4

Select Bus Service Features

slide-5
SLIDE 5

Select Bus Service in New York City

Faster Fare Collection

5

Fare machines can be positioned to maximize pedestrian flow

slide-6
SLIDE 6

Select Bus Service in New York City

Signal Improvements and Targeted Bus Lanes

6

No dedicated bus lanes proposed for East 86th St – queue jumps being considered for 84th St exiting Central Park

slide-7
SLIDE 7

Select Bus Service in New York City

Real-time Passenger Information

7

Coming to 86th St in 2015

slide-8
SLIDE 8

Select Bus Service in New York City

Improved Streetscape Elements – Bus Bulbs

8

New Bus Bulbs at 3rd and Lexington Avenues

slide-9
SLIDE 9

Select Bus Service in New York City

Pedestrian Safety Improvements – Neckdowns

9

New Neckdowns at Park, Lexington, and Third Avenues

slide-10
SLIDE 10

Select Bus Service in New York City

Implement Commercial Loading Zones where needed

10

slide-11
SLIDE 11

Why SBS on 86th St?

Most passengers per mile of any bus route in NYC Carries over 25,000 passengers per day Crucial connection to 1456BC trains and 12 bus routes CB8 support of SBS elements (fare machine) and streetscape improvements

11

slide-12
SLIDE 12

M86 SBS Route

12

slide-13
SLIDE 13

13

Proposed Westbound Stop Change

slide-14
SLIDE 14

14

Proposed Central Park Stop Change

slide-15
SLIDE 15

Pedestrian Improvements

15

Two travel lanes retained in each direction M86 SBS stops at bus bulbs at Lexington and Third Avenues

slide-16
SLIDE 16

16

Neckdowns Park Av: NW and SE corners Lexington Av: NE corner Bus Bulbs Lexington Av: NW corner Lexington Av: SE corner

East 86th Street Pedestrian Improvements

slide-17
SLIDE 17

East 86th Street Pedestrian Improvements

17

Neckdowns Park Av: NW and SE corners Lexington Av: NE corner Bus Bulbs Lexington Av: NW corner Lexington Av: SE corner

slide-18
SLIDE 18

18

Bus bulbs reduce boarding times and separate waiting bus customers from pedestrian traffic

Pedestrian Improvements

slide-19
SLIDE 19

East 86th Street Conditions

Current Issues: Loading and delivery Traffic and safety impacts Second Ave Subway construction Future growth issues: Marine Transfer Station truck activity

19

slide-20
SLIDE 20

East 86th Street Curb Analysis

20 11:31 AM 11:36 AM 11:41 AM 11:46 AM 11:51 AM 11:55 AM 12:06 PM 12:06 PM

Time lapse camera analysis shows truck double parking occurring for over 50% of the hour at busiest time periods, blocking one travel lane Commercial loading regulations should be considered 86th St between Lexington and 3rd Av, south curb

slide-21
SLIDE 21

21 2:31 PM 2:36 PM 2:41 PM 2:46 PM 2:52 PM 2:57 PM 3:02 PM 3:07 PM

East 86th Street Curb Analysis

Time lapse camera analysis shows truck double parking occurring for over 50% of the hour at busiest time periods, blocking one travel lane Commercial loading regulations should be considered 86th St between Park Av and Lexington Av, north curb

slide-22
SLIDE 22

East 86th Street Traffic Analysis

22

M86: 12 buses per peak hour Typical SBS loading time at a busy stop: 30 seconds Buses loading at bus bulbs 10% of the time at peak hour DOT collected traffic volumes that indicate maneuvering around loading buses will not have significant impact

slide-23
SLIDE 23

East 86th St Traffic Analysis Conclusions

25

  • Existing double parking for loading and deliveries blocks

travel lanes for long periods

  • Articulated M86 buses not currently reaching the curb at

every stop

  • SBS fare collection will dramatically speed dwell time at

stops

  • Current traffic conditions lead to lanes blocked for much

longer than they would be with M86 SBS bus bulbs

slide-24
SLIDE 24

East 86th St Traffic Analysis Conclusions

26

Traffic movement on East 86th St is not adversely affected by proposed bus bulbs since motorists are typically able to clear the upcoming intersection in the same signal cycle

slide-25
SLIDE 25

Winter 2015

  • Refine bus priority elements

Spring 2015

  • Install fare machines and other SBS elements
  • Upgrade M86 to SBS

Summer-Fall 2015

  • DDC Streetscape construction begins

27

Next Steps

slide-26
SLIDE 26

Questions?

New York City Transit
