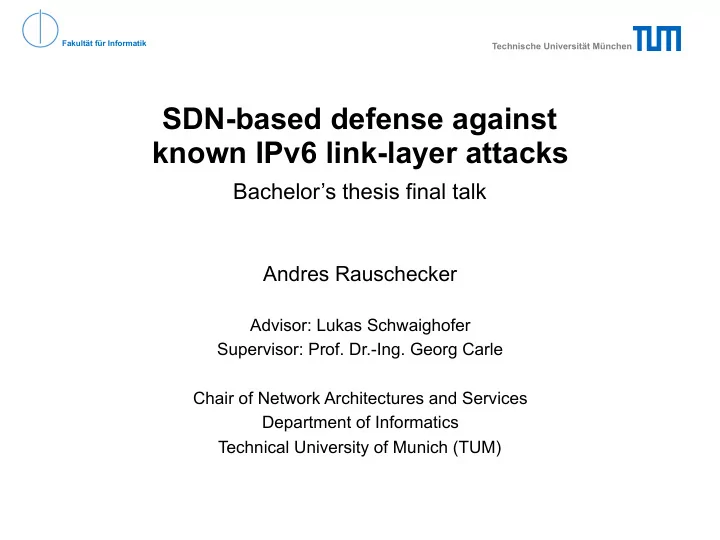

Fakultt fr Informatik Technische Universitt Mnchen SDN-based defense against known IPv6 link-layer attacks Bachelors thesis final talk Andres Rauschecker Advisor: Lukas Schwaighofer Supervisor: Prof. Dr.-Ing. Georg Carle Chair of

slide-1
SLIDE 1

Fakultät für Informatik

Technische Universität München

SDN-based defense against known IPv6 link-layer attacks

Bachelor’s thesis final talk

Andres Rauschecker

Advisor: Lukas Schwaighofer Supervisor: Prof. Dr.-Ing. Georg Carle Chair of Network Architectures and Services Department of Informatics Technical University of Munich (TUM)

slide-2
SLIDE 2

2

Overview

  • Introduction
  • Related work: NDPMon, Snort & defensive switches
  • Attack analysis: ICMP
  • Controller design: Flow Tables, address reuse
  • Evaluation: attack defense, new threats
  • Attack vectors on the controller & further issues
  • Conclusion & future work

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-3
SLIDE 3

3

Introduction

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • IPv4 replaced by new v6, but:
  • similar mechanisms in addressing & host

communication

  • similar attacks on the new protocol, esp. ICMPv6

➡ link-layer security problematic

  • Related Work: NDPMon, Snort, defensive switches
  • active defense?
slide-4
SLIDE 4

4

Related work - NDPMon

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • Monitoring tool for ND related traffic
  • two modes:
  • learn: recognize hosts by analyzing normal traffic

➡ generates XML topology file

  • monitor: recognize malicious behavior

➡ logging to file/mail ➡ countermeasures limited to simple custom packets

slide-5
SLIDE 5
  • rule-set based: monitor every packet for matching patterns
  • Internal mode:
  • virtual bridge between two network segments
  • filter for internal <-> external traffic

➡ limited defense: drop packets between segments, send

custom packets

5

Related work - Snort IDS

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-6
SLIDE 6

6

Related work - Defensive switches

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • CISCO, HP & H3C: IPv6 „Source Guard“ mechanism:
  • IP-MAC-VLAN table:
  • learn legitimate hosts from DHCP traffic
  • CISCO only: learning from ND traffic

➡ drop all packets, that do not match the table

slide-7
SLIDE 7

7

Attack analysis: ICMP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-8
SLIDE 8

8

Attack analysis: ICMP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • ICMP protocol used for address registration and link-local

communication ➔ several attack vectors exist:


  • Router Advertisement & Solicitation
  • Echo Request & Reply pair
  • Neighbor Advertisement & Solicitation
slide-9
SLIDE 9

9

Attack analysis: ICMP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • Router Advertisement & Solicitation:
  • becoming the default router ➔ MitM, DoS
  • recognizing malicious behavior is complex (rogue RAs

are homogenous to legal ones)


  • idea: white-list approach (not implemented)
slide-10
SLIDE 10

10

Attack analysis: ICMP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • Echo Request & Reply pair:
  • ICMP Ping Smurfing:


Attacker sends forged ERq - with Host 1 as source

slide-11
SLIDE 11

11

Attack analysis: ICMP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

  • Echo Request & Reply pair:
  • ICMP Ping Smurfing:


Hosts send back ERp to Host 1 ➔ Distributed DoS

slide-12
SLIDE 12

12

Attack analysis: ICMP

  • Neighbor Advertisement & Solicitation:
  • before registering IP - send a Neighbor Solicitation
  • no answer within interval ➔ we can use the IP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-13
SLIDE 13

13

Attack analysis: ICMP

  • Neighbor Advertisement & Solicitation:
  • DAD Denial-of-Service: fake Neighbor Advertisement
  • attacker forges reply ➔ we can not use the IP

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-14
SLIDE 14

14

Attack analysis: ICMP

  • Neighbor Advertisement & Solicitation:
  • Man-in-the-Middle attacks: fake NAs

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-15
SLIDE 15

15

Attack analysis: ICMP

  • Neighbor Advertisement & Solicitation:
  • Man-in-the-Middle attacks: fake NAs

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-16
SLIDE 16

16

Controller design

  • Main security problem: packets from forged sources
  • Idea: Keep track of all legitimate IP registrations
  • Via: Software Defined Networking

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-17
SLIDE 17
  • Controller checks for legality of NS
  • Sends OpenFlow message to all switches to allow IP

17

Controller design: Flow Tables

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-18
SLIDE 18

18

Controller design: Flow Tables

  • OpenFlow table concept: Table forwarding

IN PORT SRC MAC SRC IP

2 00:11:22:33:44:55 fc00::1:2 4 AA:BB:CC:DD:EE:FF fc00::1:3

IN PT DST MAC

2 00:11:22:33:44:55 4 AA:11:CC:22:EE:55

IP Match Table Mac/Port Table

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-19
SLIDE 19

19

Controller design: Address reuse

  • So far: IPs once registered can not be changed

➡ Check IP usage, if new NS requests it

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-20
SLIDE 20

20

Controller design: Address reuse

  • Original Host sends back NA ➔ still online, no reuse
  • No NA from original Host ➔ offline, IP reuse

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-21
SLIDE 21

21

Evaluation

  • Selected attacks on Echo and ND messages
  • successfully defended
  • Memorizing network states enables a new layer of security!
  • Keeping track of all NS packets on the controller
  • attack vectors targeting the controller?

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-22
SLIDE 22

22

Attack vectors on the controller

  • Flood of NS, with mutating src MAC & src IP
  • Fills internal cache dictionaries
  • Slows down registration of legitimate packets
  • Possible solution:
  • Supply exact topology to controller
  • Controller knows how many IPs per port
  • Limit packets per port & block port in attack

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-23
SLIDE 23

23

Further issues

  • Mininet network initialization race-condition
  • After network startup: not all NS registered in FTs

➡ Internal problem in the topology startup:


Switch-handshake executed during host initializations

  • Lost switch connection after controller shutdown
  • restarting the controller and reestablishing switch

datapath objects not possible

➡ Loading controller & switch states from file currently

not possible

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-24
SLIDE 24

24

Conclusion

  • link-layer protection for established hosts
  • against Ping Smurfing and ND Spoofing
  • alternative to (costly) proprietary solutions
  • attack vector on the controller:
  • problematic for newly registering hosts only
  • defense dependent on the network infrastructure

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-25
SLIDE 25

25

Future work

  • Implementation of router white-list
  • Incorporating IP registrations from DHCP
  • Limiting ND propagation
  • Advanced, scheduled table cleanup
  • Defending controller attacks

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk

slide-26
SLIDE 26

26

Thank you for your attention.

Andres Rauschecker - SDN-based defense against known IPv6 link-layer attacks - BA final talk
