Scrutinizing WPA2 Password Generating Algorithms in Wireless Routers Radboud University Nijmegen (The Netherlands) MSc Eduardo Novella MSc Carlo Meijer Dr. ir. Roel Verdult { ednolo@alumni.upv.es , carlo@youcontent.nl , rverdult@cs.ru.nl }

slide-1
SLIDE 1

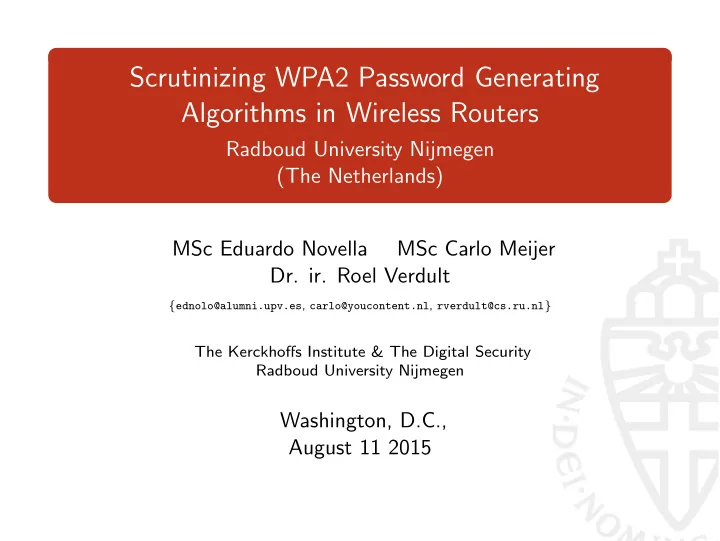

Scrutinizing WPA2 Password Generating Algorithms in Wireless Routers

Radboud University Nijmegen (The Netherlands) MSc Eduardo Novella MSc Carlo Meijer

  • Dr. ir. Roel Verdult

{ednolo@alumni.upv.es, carlo@youcontent.nl, rverdult@cs.ru.nl}

The Kerckhoffs Institute & The Digital Security Radboud University Nijmegen

Washington, D.C., August 11 2015

slide-2
SLIDE 2

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Outline

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 2 / 57

slide-3
SLIDE 3

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Eduardo Novella

  • MSc at The Kerckhoffs Institute (Radboud Nijmegen)
  • Security Analyst at Riscure (Delft)
  • Focused on embedded security (PayTV industry)
  • Blog: http://www.ednolo.alumnos.upv.es

Delft (NL) & San Francisco (USA) https://www.riscure.com

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 3 / 57

slide-4
SLIDE 4

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Carlo Meijer and Roel Verdult

Roel Verdult

  • RFID hacking
  • libNFC developer
  • Attacking wireless

crypto-protocols:

  • Mifare
  • iClass
  • Hitag2
  • Megamos Crypto
  • Atmel CryptoMemory
  • ...

Carlo Meijer

  • MSc student at the

Kerckhoffs Institute

  • Future PhD at

Radboud

  • New Mifare attack

http://www.cs.ru.nl/~rverdult/publications.html

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 4 / 57

slide-5
SLIDE 5

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Motivation

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 5 / 57

slide-6
SLIDE 6

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Motivation (2)

1 Seems to be a pattern 2 Has anyone looked into Dutch routers?

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 6 / 57

slide-7
SLIDE 7

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Motivation (3)

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 7 / 57

slide-8
SLIDE 8

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

What this talk is about

Main topics

1 Basic hardware hacking 2 Propose a methodology to reverse-engineer routers 3 Find out WPA2 password generating algorithms used by ISPs 4 Responsible disclosure procedure with Dutch ISPs and NCSC a

ahttps://www.ncsc.nl/english Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 8 / 57

slide-9
SLIDE 9

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Obtaining the firmware

Available options

1 Available for download 2 Exploiting a known vulnerability 3 Debug interfaces: UART and JTAG 4 Desoldering the flash chip

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 9 / 57

slide-10
SLIDE 10

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

OS Command injection

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 10 / 57

slide-11
SLIDE 11

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

UART’ing a device

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 11 / 57

slide-12
SLIDE 12

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

UART’ing a device (2)

1 Depends on bootloader capabilities 2 Typically does not allow backups 3 May allow unsigned code execution

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 12 / 57

slide-13
SLIDE 13

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

JTAG’ing a MIPS SoC

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 13 / 57

slide-14
SLIDE 14

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

JTAG’ing a MIPS SoC (2)

1 Read supported flash chips directly 2 Unsupported? 1 Identify block device I/O functions 2 Pull the image from RAM

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 14 / 57

slide-15
SLIDE 15

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Dumping the Flash

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 15 / 57

slide-16
SLIDE 16

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Decompressing / deobfuscating

Compression

1 Binwalk 2 Gzip / LZMA 3 SquashFS

Obfuscation

1 Similar finding 2 Reverse engineer the bootloader

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 16 / 57

slide-17
SLIDE 17

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Finding the algorithm

Figure: Character set reference

1 ESSID pattern: <ISP Name> + 7 digits → <ISP Name>%07 2 Character set 3 Factory reset code

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 17 / 57

slide-18
SLIDE 18

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Analyzing

Emulation

1 Try different inputs

  • Wifi Mac (upper/lower, w,w/o ’:’)
  • Ethernet Mac
  • S/N

2 QEMU: tiny .c mmaps image, jump

Issues:

1 Initialization skipped

E.g. sprintf

  • Hook and replace

E.g. Unmapped regions

  • mmap, fill with sensible data

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 18 / 57

slide-19
SLIDE 19

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Reverse engineering

... Slow , boring ...

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 19 / 57

slide-20
SLIDE 20

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Wireless Authentication & Deauthentication

Figure: WPA2 4-way handshake authentication Figure: WPA2 deauthentication

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 20 / 57

slide-21
SLIDE 21

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Attacking

Suppose ∼ 100.000 candidates

1 Deauth → auth handshake 2 Crack offline 3 Less than 1 minute

Need 1 client connected

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 21 / 57

slide-22
SLIDE 22

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: Findings

1 UART → Tiny OpenWRT 1 Dump FW 2 Enable telnetd 2 OS command injection in telnetd → root 3 Backdoors found in all routers 4 Stack buffer overflow in HTTP server → ROP 5 WPA2 password generating algorithms

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 22 / 57

slide-23
SLIDE 23

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: Backdoors and super-admin

1 Firmware dumped via

serial console UART

2 Credentials are

hardcoded

  • Cannot be changed by

customer

  • Cannot be changed by

ISP without fw update

  • Plaintext, not hashed

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 23 / 57

slide-24
SLIDE 24

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: Command Injection in telnet service

1 Telnet command sanitization

  • Checks for ’&’
  • Checks for ’;’
  • Does not check for ’|’

→ still vulnerable

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 24 / 57

slide-25
SLIDE 25

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: How to obtain WPA keys?

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 25 / 57

slide-26
SLIDE 26

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: How to obtain WPA keys?

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 26 / 57

slide-27
SLIDE 27

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: How to obtain WPA keys?

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 27 / 57

slide-28
SLIDE 28

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: How to obtain WPA keys?

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 28 / 57

slide-29
SLIDE 29

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: How to obtain WPA keys?

MD5( constant seed, lowercase ethernet mac address, uppercase wifi mac address ) 802.11 headers hold mac addresses in plaintext

  • Capturing a single raw packet is sufficient
  • Allows instant computation of passphrase

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 29 / 57

slide-30
SLIDE 30

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: Biggest ISP in Spain, 2010

Figure: Same algorithm, different secret seed Figure: They forgot to remove the plaintext!

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 30 / 57

slide-31
SLIDE 31

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Comtrend: Stack buffer overflow

Figure: Buffer overflow vulnerability

1 RCE over http 2 Attacker advantages 1 Telnet inaccessible from WAN 2 Browsers refuse to talk telnet 3 Trick browser exploit 4 Widespread abuse

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 31 / 57

slide-32
SLIDE 32

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 32 / 57

slide-33
SLIDE 33

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom: Previous Findings

Italian researchers released the following problems:1

1 Sitecom WLM-3500 backdoor accounts 2 WLM-3500 and WLM-5500 → Wireless keys 3 Firmware obfuscation → XOR encryption 4 WLR-4000 and WLR-4004 → Wireless keys 5 Several web flaws

1http://blog.emaze.net Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 33 / 57

slide-34
SLIDE 34

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom: Our findings

1 WLR-2100 and WLR-2500 → New algorithm 2 WLR-XXXX and WLM-XXXX → Confirm all affected 3 WL-XXX → New algorithm 4 Around 90% are affected → Only MAC is needed :(

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 34 / 57

slide-35
SLIDE 35

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom: WLR-2X00

We emulated an stripped MIPS binary:

$ chroot . ./qemu-mips-static bin/AutoWPA 000cf6ec73a0 wpamac flash set WLAN-WPA-PSK NUWFBAYQJNXH flash set USER-PASSWORD NUWFBAYQJNXH flash set WEP128-KEY1-1 4e555746424159514a4e584800

MD5(MAC address) converting to charset (A-Z)

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 35 / 57

slide-36
SLIDE 36

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom: WLR-2X00

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 36 / 57

slide-37
SLIDE 37

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom: WPA generation

Figure: Old-New algorithm. Around 40 models are affected

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 37 / 57

slide-38
SLIDE 38

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Sitecom: WPS generation

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 38 / 57

slide-39
SLIDE 39

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom

Figure: Generating ESSIDs from the SN

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 39 / 57

slide-40
SLIDE 40

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 40 / 57

slide-41
SLIDE 41

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom

Figure: Generating PSKs from the SN

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 41 / 57

slide-42
SLIDE 42

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom in The Netherlands

Figure: We fully reverse-engineered the algorithm used in Holland

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 42 / 57

slide-43
SLIDE 43

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom in more countries

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 43 / 57

slide-44
SLIDE 44

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom in more countries

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 44 / 57

slide-45
SLIDE 45

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom in more countries

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 45 / 57

slide-46
SLIDE 46

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom in more countries

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 46 / 57

slide-47
SLIDE 47

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Thomsom in more countries

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 47 / 57

slide-48
SLIDE 48

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Arcadyan update log

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 48 / 57

slide-49
SLIDE 49

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

  • Arcadyan. WPA key generation

We broke this just bruteforcing similar Arcadyan algorithms 2 3.

Require: s6, s7, s8, s9, s10, m9, m10, m11, m12 ∈ [0, .., F] k1 ← (s7 + s8 + m11 + m12) & (0xF) k2 ← (m9 + m10 + s9 + s10) & (0xF) x1 ← k1 ⊕ s10 x2 ← k1 ⊕ s9 x3 ← k1 ⊕ s8 y1 ← k2 ⊕ m10 y2 ← k2 ⊕ m11 y3 ← k2 ⊕ m12 z1 ← m11 ⊕ s10 z2 ← m12 ⊕ s9 z3 ← k1 ⊕ k2 w1 ← s6 w2 ← k1 ⊕ z3 w3 ← k2 ⊕ z3 return [x1, y1, z1, w1, x2, y2, z2, w2, x3, y3, z3, w3]

2https://www.seguridadwireless.net 3https://sviehb.wordpress.com Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 49 / 57

slide-50
SLIDE 50

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

ADB / Pirelli

Figure: Call flow from generateKey

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 50 / 57

slide-51
SLIDE 51

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

ADB / Pirelli

Figure: Call flow for createWPAPassphraseFromKey

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 51 / 57

slide-52
SLIDE 52

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

ADB / Pirelli

Figure: Dissasembly of wlWriteMdmDefault

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 52 / 57

slide-53
SLIDE 53

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

ADB / Pirelli

Figure: Dissasembly of generateKey-from-mac

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 53 / 57

slide-54
SLIDE 54

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

ADB / Pirelli

Figure: Secret data found out in the library

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 54 / 57

slide-55
SLIDE 55

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Timeline

Responsible disclosure

1 2014-12-20 Communication with NCSC a 2 2015-01-?? Radboud Nijmegen & NCSC contact with ISPs 3 2015-02-01 Dutch ISPs are aware about the vulnerabilities 4 2015-04-02 1st meeting with ISPs. Presentation 5 2015-04-29 2nd meeting with ISPs. Presentation 6 2015-08-04 Talk at Bsides Las Vegas-PasswordsCON 7 2015-08-11 Full disclosure at USENIX WOOT’15

ahttps://www.ncsc.nl/english Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 55 / 57

slide-56
SLIDE 56

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Conclusion

  • Since SpeedTouch security issue in 2008,

security has not improved whatsoever

  • This is an industry-wide problem.
  • Security by Obscurity does not work!
  • Vendors reuse the same algorithms with slightly small changes
  • Neither stripped nor obfuscated binaries are a solution
  • Please do not include algorithms inside of FW images

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 56 / 57

slide-57
SLIDE 57

Who we are Introduction Methodology Findings & Vulnerabilities Conclusion Q&A

Questions and answers

Novella, Meijer, Verdult USENIX WOOT 2015 Scrutinizing WPA2 Algorithms in Wireless Routers 57 / 57
