SC Monitoring Program Noise Norbert Hubner norbert.haubner@havochvatten.se Revised proposal for a regional monitoring sub-program of continuous noise Purpose Quantify the pressure of continuous sound in the HELCOM region Aim To determine

slide-1

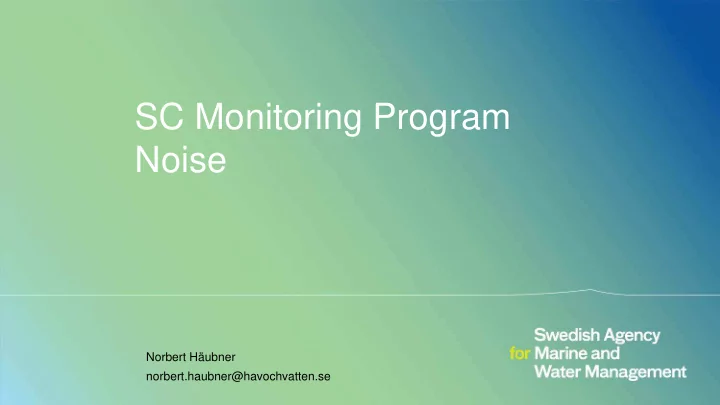

SLIDE 1

SC Monitoring Program Noise

Norbert Häubner norbert.haubner@havochvatten.se

slide-2
SLIDE 2

Revised proposal for a regional monitoring sub-program of continuous noise

Purpose Quantify the pressure of continuous sound in the HELCOM region Aim To determine the sound pressure level in the Baltic Sea through standardized and coordinated activities by Member States

2017 2018 2019

Post-monitoring analyses, e.g. optimization of number and location of rigs vs. gain of results Minor monitoring at prioritized locations and automized runs of soundscape model

2015 2016 2014 ?

slide-3
SLIDE 3

Current monitoring

Year Denmark Germany Poland Estonia Finland Sweden Lithuania Latvia Russia 2014      

  • 2015

  

  • 2016

     

  • 2017

     

  • Status of the acoustic measurements in HELCOM countries during 2014 – 2017

“” measurements at one or more locations A regional coordination is necessary for an cost effective and quality controlled monitoring program.

slide-4
SLIDE 4

Current monitoring

  • National monitoring by 6 of 9 member states (no regional coordination)
  • Standards of monitoring and signal processing already developed
  • Infrastructure for a regional data sharing platform and visualization tool

exist after the BIAS project.

slide-5
SLIDE 5

Regional monitoring sub-program

Minor monitoring – every year

1. Measurements at prioritized locations

  • performed by Member States.

2. Maps produced by a soundscape model

  • performed by appointed party.

3. Soundscape maps combined with measurements in a visualization tool

  • performed by appointed party.
slide-6
SLIDE 6

Regional monitoring sub-program

Major monitoring – when needed

  • 1. Need for extended monitoring efforts is based on

the difference between yearly observed and modelled results, or by the need for specific actions or results dictated by HELCOM processes.

  • 2. Purpose to calibrate the soundscape model-

performed by Member States.

  • 3. Optimization of number and locations of sensors
  • vs. gain of results - performed by appointed party.
slide-7
SLIDE 7

2017 2018 2019

Post-monitoring analyses, e.g. optimization of number and location of rigs vs. gain of results Minor monitoring at prioritized locations and automized runs of soundscape model

2015 2016 2014 ?

slide-8
SLIDE 8

Current Soundscape planning tool

slide-9
SLIDE 9

Emergence maps of traffic noise above natural sounds

The map show the areas where the sound pressure level of anthropogenic noise is above natural (wind and wave) sound – 50 % of the time. The data represents sound pressure level for the 125 Hz 1/3 octave band and is an average over the full water column.

slide-10
SLIDE 10

Data arrangements

? S&C Considered necessary:

  • Agreements on a responsible

caretaker of the data sharing platform (draft caretaking agreement).

  • Monitor the soundscape planning

tool.

  • Manage administration and quality

control. Other data demands such as AISA, VMS, wind, sound speed, need to be handled.

slide-11
SLIDE 11

All costs in EURO

Monitoring cost per nation

Denma mark Germany Poland Estonia ia Fi Finla land Sweden Lit ithuania ia Total al sum Labor cost per deployment 5 769 4 800 3 500 4 000 24 100 18 829 3 500 64 498 Sum ships and consumables per deployment 1 544 12 500 2 250 4 500 15 318 9 856 2 250 48 218 Sum travel expenses per deployment 221 300 750 300 3 035 1 074 750 6 430 Total c l cost p per deplo loyment 7 534 17 600 6 500 8 800 42 453 29 759 6 500 119 146 Yearly c cost: f four d deplo loyments D DK, K, DE, E, PL, E EE, E, L LT; two d deplo loyments FI FI, SE 30 136 € 70 400 € 26 000 € 35 200 € 84 906 € 59 518 € 26 000 € 332 1 160 €

Shared costs Minor Monitoring

Company Costs DSP* Initiation cost and development (60 h) Agreed responsible caretaker 6 000 DSP* Yearly administration (40 h) Agreed responsible caretaker 4 000 DSP* National data quality control (60 h) Agreed responsible caretaker 6 000 SPT** Initiation cost and development (100 h) Appointed party 10 000 SPT** Yearly administration Appointed party 5 000 SPT** Input of measured data Appointed party 2 000 Shared cost first year Shared cost subsequent years Program coordination - initiation of operationl monitoring program (100 h) Agreed responsible caretaker 10 000 43 000 € 27 000 € * DSP= Data Sharing Platform Cost per nation (9 nations) Cost per nation (9 nations) ** SPT= Soundscape Planning Tool 4 778 € 3 000 €

Shared costs Minor Monitoring production of soundscape maps

Company Costs Modelling Initial cost for setting up automized input data Appointed party 10 000 Modelling Input data (not automized) Appointed party 10 000 Modelling Yearly cost for running the model Appointed party 35 000 Modelling cost first year Modelling cost subsequent years 55 000 € 45 000 €

Cost estimate for Minor Monitoring
