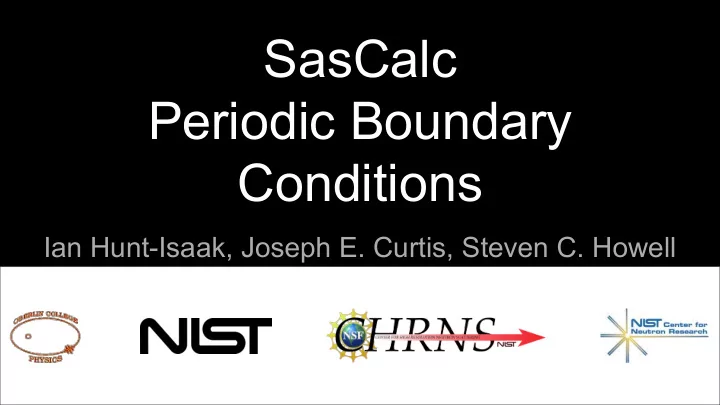

SasCalc Periodic Boundary Conditions

Ian Hunt-Isaak, Joseph E. Curtis, Steven C. Howell

slide-2
SLIDE 2

Road Map

1. Question to answer 2. Issue with current approach 3. Alternative approaches 4. Results 5. Next Steps

slide-3
SLIDE 3

Why are concentrated proteins so viscous?

https://openclipart.org/image/2400px/svg_to_png/2058 86/remigho-syringe.png
slide-4
SLIDE 4

Small-Angle Scattering (SAS)

slide-5
SLIDE 5

Small-Angle Scattering (SAS)

Form Factor, P(Q) I(Q) ∝ P(Q) S(Q) Structure Factor, S(Q)

slide-6
SLIDE 6

SAS of dilute proteins used to determine shape

slide-7
SLIDE 7

Concentration Affects the Scattering

slide-8
SLIDE 8

Concentration Affects the Scattering

Form Factor Form Factor

slide-9
SLIDE 9

Co-solutes modulate protein interactions

Change in scattering is not dominated by P(q) or S(q) alone.

slide-10
SLIDE 10

Molecular Simulation

Adapted from http://nmschneider.com/blog/2014/5/9/nearest-image-for-particle-simulations-in-matlab
slide-11
SLIDE 11

Molecular Simulation

Adapted from http://nmschneider.com/blog/2014/5/9/nearest-image-for-particle-simulations-in-matlab
slide-12
SLIDE 12

Fourier Transform: g(r) → S(Q)

  • Most general
  • Slow
  • Limited to spherical systems
slide-13
SLIDE 13

Finite size effects

slide-14
SLIDE 14

Finite size effects

slide-15
SLIDE 15

Desired Features of Calculator

  • Simultaneously calculate both P(Q) and S(Q)
  • Avoid finite size effects
  • Fast
slide-16
SLIDE 16

Debye Formula

Not universally applicable: vs

slide-17
SLIDE 17

Explicit Fourier Transform

  • Most general

○ Contains P(Q) and S(Q)

slide-18
SLIDE 18

Removing finite size effects

  • Fancy Stat Mech - g(r)

○ Limited to spherical systems

  • Bigger Box

○ Num Atoms ~ (Box Length)3

  • Calculate Box scattering and remove
slide-19
SLIDE 19

First Test System - Lennard Jones Particles

Radial Distribution Function for Liquid Argon at 85 K - Yarnell, et al.

Verify Radial Distribution of Simulation

slide-20
SLIDE 20

Removing Box Effects

slide-21
SLIDE 21

Removing Box Effects

slide-22
SLIDE 22

Removing Box Effects

slide-23
SLIDE 23

Integrating g(r) vs Box Subtraction

slide-24
SLIDE 24

Next Steps

  • Apply this to a periodic box of proteins (lysozyme, mAb)
  • Automate algorithm to subtract box effects
  • Parallelize using GPUs
slide-25
SLIDE 25

Thank you!

slide-26
SLIDE 26

Backup Slides

slide-27
SLIDE 27

Existing Calculators

Experiment Simulation Watch out S(Q) ≠ I(Q).

slide-28
SLIDE 28

S(Q) via Fourier Transform

  • g(r) simple to

calculate

  • Can extend h(r)

via use of Ornstein-Zernike Equation

slide-29
SLIDE 29

SasCalc (Golden Vector)

  • Multiple Molecules?
  • Separation of S and P?

Two questions:

  • Can Extract S?
  • Periodic Boundary Conditions effects?
slide-30
SLIDE 30

Scattering of test system

slide-31
SLIDE 31

Current Limitations

10 mg/ml 100 mg/ml Of Medical interest? YES YES Can we calculate Scattering? YES NO (somewhat)

Simulation Boxes:

slide-32
SLIDE 32

Integrating g(r) vs Box Subtraction

slide-33
SLIDE 33

Integrating g(r) vs Box Subtraction
