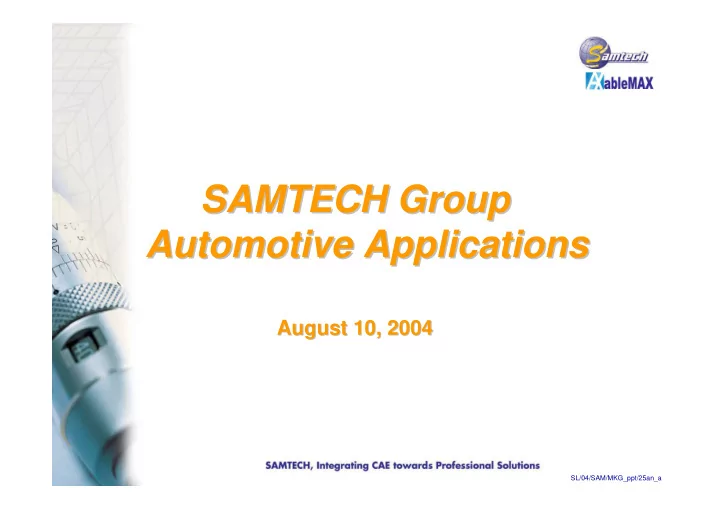

SAMTECH Group SAMTECH Group Automotive Applications Automotive Applications

August 10, 2004 August 10, 2004

SL/04/SAM/MKG_ppt/25an_a

SLIDE 2

08/06/04, Page 2

This document is the property of SAMTECH S.A.

Hybrid model of a crankshaft

SLIDE 3

08/06/04, Page 3

This document is the property of SAMTECH S.A.

Valve system

SLIDE 4

08/06/04, Page 4

This document is the property of SAMTECH S.A.

Brake disk: thermal analysis

SLIDE 5

08/06/04, Page 5

This document is the property of SAMTECH S.A.

Composite Structures Analysis

SLIDE 6

08/06/04, Page 6

This document is the property of SAMTECH S.A.

Prototype Composite Subframe

Car Subframe (Automobile Blanc Cardon)

SLIDE 7

08/06/04, Page 7

This document is the property of SAMTECH S.A.

Prediction of Pipe Shape

SLIDE 8

08/06/04, Page 8

This document is the property of SAMTECH S.A.

Welding Spots Optimization

Welding spots idealized with small beam elements
Sizing optimization on a car body
Design variables: discrete beam properties
Objective:minimize number of welding spots
Constraints on given displacements
5000 variables

SLIDE 9

08/06/04, Page 9

This document is the property of SAMTECH S.A.

Modeling of the Opel VECTRA

Car body modeling (OPEL Vectra)

SLIDE 10

08/06/04, Page 10

This document is the property of SAMTECH S.A.

Car riding (30Km/h) over an
bstacle (25cm height)
Super-Element for large car

body model (shell)

Flexible mechanisms for suspension
Wheels, beams, springs, sliders,

spherical joints…

Car body and suspension modeling (OPEL)

Modeling of the Opel VECTRA

SLIDE 11

08/06/04, Page 11

This document is the property of SAMTECH S.A.

Modeling of the Peugeot 406

Suspension modeling of Peugeot 406 (PSA)

SLIDE 12

08/06/04, Page 12

This document is the property of SAMTECH S.A.

Non-linear beams for car body and stabilisator
Super-Element for rear axle
Mechanisms for suspension and steering:

hinges, spherical joints, bushings, rack and pinion…

Pacejka wheel model for ground interaction

Computation:

statics
0-5

straight

5-…steering wheel turned

Vehicle dynamics (Volkswagen)

Modeling of a VW car

SLIDE 13

08/06/04, Page 13

This document is the property of SAMTECH S.A.

Elastomeric seal Computation

Deformable-deformable contact
Displacement piloting of gear lever
Hyperelastic material

SLIDE 14

08/06/04, Page 14

This document is the property of SAMTECH S.A.

Transmissions & Gears

Gearing wheel modeling: detailed flexible-flexible contact/friction conditions SAMCEF Mecano global analysis of a gearing mechanism

SLIDE 15

08/06/04, Page 15

This document is the property of SAMTECH S.A.

Transmissions & Gears

SAMCEF Mecano detailed model

f the Geneva mechanism

SLIDE 16

08/06/04, Page 16

This document is the property of SAMTECH S.A.

Control head Bowed cable Blower Heater core Cases : scroll & distribution Evaporator Filter Air inlet case / recirc Temperature door Cases : distribution distribution valves Cam

Components

Cam of a car ventilation system (DELPHI Automotive)

Control head Bowed cable Control head Bowed cable Assembly on vehicle

SLIDE 17

08/06/04, Page 17

This document is the property of SAMTECH S.A.

Cam of a car ventilation system

SAMCEF Mecano Analysis of a Cam Mechanism – DELPHI Automotive

SLIDE 18

08/06/04, Page 18

This document is the property of SAMTECH S.A.

Optimization of Cam tracks

Flexible-flexible contact Cam Analysis … with Contact and Friction Design and optimization of Cam Profiles using BOSS quattro – DELPHI Automotive

SLIDE 19

08/06/04, Page 19

This document is the property of SAMTECH S.A.

Advanced Topic: Mechatronic System Simulation

SLIDE 20

08/06/04, Page 20

This document is the property of SAMTECH S.A.

Thank you for your attention ! We will be very pleased to answer to your questions.

SLIDE 21

08/06/04, Page 21

This document is the property of SAMTECH S.A.

Simple scenario using SAMCEF Field

Creation of an engine model from CAD entities defined using the local parametric modeler of SAMCEF Field

SLIDE 22

08/06/04, Page 22

This document is the property of SAMTECH S.A.

Hinge joint definition between connecting-rod and crankshaft

SLIDE 23

08/06/04, Page 23

This document is the property of SAMTECH S.A.

Hinge joint definition between piston and connecting-rod

SLIDE 24

08/06/04, Page 24

This document is the property of SAMTECH S.A.

Cylindrical joint definition between piston and cylinder

SLIDE 25

08/06/04, Page 25

This document is the property of SAMTECH S.A.

Definition of pressure on pistons

SLIDE 26

08/06/04, Page 26

This document is the property of SAMTECH S.A.

Mesh: Topological connections defining rigid bodies and accounting for kinematical joints

SLIDE 27

08/06/04, Page 27

This document is the property of SAMTECH S.A.

Rigid Body Model Simulation Detection of a geometrical defect

SLIDE 28

08/06/04, Page 28

This document is the property of SAMTECH S.A.

Back to the modeler Modification of cylinder length

SLIDE 29

08/06/04, Page 29

This document is the property of SAMTECH S.A.

Update of rigid body model

SLIDE 30

08/06/04, Page 30

This document is the property of SAMTECH S.A.

Rigid Body Model Simulation No interference any more

SLIDE 31

08/06/04, Page 31

This document is the property of SAMTECH S.A.

Replacement of a rigid connecting rod by a flexible one

SLIDE 32

08/06/04, Page 32

This document is the property of SAMTECH S.A.

Update of mesh with one flexible connecting-rod

SLIDE 33

08/06/04, Page 33

This document is the property of SAMTECH S.A.

Automatic connection with rigid components

SLIDE 34

08/06/04, Page 34

This document is the property of SAMTECH S.A.

Rigid-flexible Model Simulation Stresses superimposed on motion

SLIDE 35

08/06/04, Page 35

This document is the property of SAMTECH S.A.

Rigid-flexible Model Simulation with flexible-flexible contacts

Stresses superimposed on Motion

SLIDE 36

08/06/04, Page 36

This document is the property of SAMTECH S.A.

SAMCEF Field Notion of components library
