SAFE Europe 2011 F-35 Lighting II Pilot Flight Equipment update Wednesday 6 th April 2011 Chris Pugh-Bevan F35 Contract Manager Andy Hancock European Account Manager 1 F-35 Program Information Non Export Controlled Information

slide-1
SLIDE 1

1

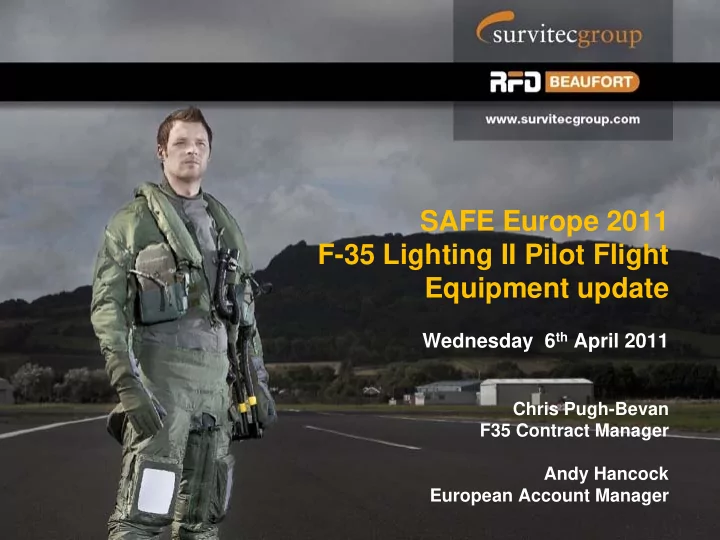

SAFE Europe 2011 F-35 Lighting II Pilot Flight Equipment update

Wednesday 6th April 2011

Chris Pugh-Bevan F35 Contract Manager Andy Hancock European Account Manager

slide-2
SLIDE 2

2 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 2

  • First fully integrated PFE solution for US Platform
  • Interoperability with F-35 Partner Nations
  • By design, compatible with US Legacy aircraft
  • Fully qualified with aircraft life support and escape systems
  • Single Design Solution Modular System
  • Designed, Manufactured, Fitted and Supplied by OEM
  • Multi Layer Protection
  • Improved Technical Fabrics
  • Comfort
  • Thermal management
  • Protection
  • Durability

PFE Design Philosophy

slide-3
SLIDE 3

3 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 3

slide-4
SLIDE 4

4

Garments

Summer (Land/Sea) Summer CB Winter Sea Winter Sea CB

Socks Required Required Required Required Underwear Lower, Male & Female Required Required Required Required Underwear Upper, Male & Female Required Required Required Required Underwear Upper Crop Top, Female Optional Optional Optional Optional Cooling Garment (replaces Underwear upper) Optional Optional Optional Optional Thermal Garment

  • Required

Required Light Weight Coverall with ARS Required

  • Cold Water Immersion Garment/Socks
  • Required

Required Flight Use CB Protective Layer (worn in all CB scenarios)

  • Required
  • Required

Lower G Garment, Skeletal Required Required Required Required Lower G Garment, Full Coverage Optional Optional Optional Optional Sleeved Flight Jacket/LPU/ARS

  • Required

Required Required Sleeveless Flight Jacket/LPU Required

  • Breathing Gas Hose Assembly (non CB)

Required * Required * Boots Required Required Required Required Summer Gloves Required Required Required Required Winter/Sea Gloves

  • Required

Required Transit Use CB Protective Layer

  • Required
  • Required

* CB version supplied by Gentex

slide-5
SLIDE 5

5 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 5

Summer Summer CB Winter Winter CB

Providing F-35 PFE in all Environmental Configurations

slide-6
SLIDE 6

6 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 6

Initial Standard (Block 0)

Scheduled activities To be confirmed Completed activities

LRIP Planned Deliveries

1st Half 2nd Half

2003

1st Half 2nd Half

2005

1st Half 2nd Half

2004

1st Half 2nd Half

2006

1st Half 2nd Half

2007

1st Half 2nd Half

2009

1st Half 2nd Half

2008 Final Standard LRIP (DASH 4.2) Final Standard SDD (DASH 2.8)

Contract Award Initial Flight Clearance Final Flight Clearance Contract Award Contract Amended Contract Amended SOF Summer Full Qualification Flight Clearance Non CB & CB Production

  • ngoing

LRIP 2 & 3 LRIP 1 Start

1st Half 2nd Half

2010

1st Half 2nd Half

2011

PRR SOF Winter

slide-7
SLIDE 7

7

SDD Closure - Key Milestones completed since 2009

  • SDD Winter Sea SOF
  • RFDB Final Standard Equipment Level Qualification

completed (18+ test categories including combination & sequential testing for optimised integrity)

  • RFDB Final Standard System Level Qualification completed

(14+ test categories including Chem Bio schedules)

  • 27+ Final Standard Escape System Tests completed with

LRIP Final Standard PFE (including 3 x Chem Bio schedules)

  • Fully Integrated Size Rolls generated in accordance with the

CAESAR Anthropometric Database and Wright Patterson AFB Aircrew Survey

slide-8
SLIDE 8

8

Going Forward - SDD Closure

  • Final Escape System Tests

2nd Qtr 2011

  • RFDB Delta Chem Bio Qualification

2nd Qtr 2011 (additional POL & Glove testing)

  • Chem Bio Man Rating

1st Half 2011

slide-9
SLIDE 9

9

F-35 Pilot Cooling Unit Design Philosophy

  • Provide compact, lightweight, portable cooling capability for F-35

Pilot in Chem Bio PFE

  • F-35 PCU compact designed for pre-flight ground use, easily mounted

in the cockpit.

  • PCU utilises reduced flow rate, high inlet temperature, with low power

requirement

  • Reduced mass makes this PCU suitable for many platform

applications

  • Fully integrated with PFE Cooling Garment, the system is optimised to

deliver maximum efficiency and benefit

  • Provides effective cooling allowing improving Pilot comfort and

performance

  • Designed for multi mission roles
slide-10
SLIDE 10

10 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 10

CABLE PARK-POINT HOSE PARK-POINT

PCU and Battery Assembly

slide-11
SLIDE 11

11 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 11

  • PCU and associated equipment progressed through PDR

and CDR

  • IFP PCUs Battery Charger and Ground Support Equipment

supplied

  • 2 x PVI events held at LM DFW in 2010 with IFPs
  • Pilot feedback positive
  • PVI feedback incorporated into design update for FS units
  • Harness deleted for improved portability
  • Direct coupling to the battery via dagger pins & swing

clamps

PCU SDD Progress

slide-12
SLIDE 12

12 12

Scheduled activities Completed activities

1st Half 2nd Half

2009

Contract Award CDR

Qualified assets Full Qualification Flight Clearance FS assets and Validation Programme

1st Half 2nd Half

2011

1st Half 2nd Half

2010

IFP Assets & PVI 1 PVI 2

slide-13
SLIDE 13

13 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 13

  • Successful Technology Transfer from UK to

Ohio

  • 100% Berry compliance for textiles
  • 100% made in the USA
  • Operator Training program - August 2009
  • Successful LM Production Readiness Review -

Oct 2009

  • Successful First Article Inspection – June 2010
  • First LRIP delivery to Eglin Afb - 4th July 2010
  • Stage increase to workforce to support RAMP
  • Multi disciplined LEAN manufacturing process
  • Manufactured and delivered 1,100+ LRIP

assets to date

  • Deliveries against LRIP 1, LRIP 2, LRIP 3

since July 2010

Manufacturing Update RFD Beaufort, Inc – Ohio

slide-14
SLIDE 14

14 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 14

  • Overall 2-day process for

PFE (Below the Neck)

  • Conduct predicted fit of each

item of PFE

  • Complete PFE fit validations

and fit map scoring with pilots

  • Record Anthropometric Data
  • nto Survitec PFE Asset

Control System

Eglin PFF Concept of Operation PFE

slide-15
SLIDE 15

15 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 15

  • Potential Aircraft Build / Deliverables
  • 9 Partner Nations
  • USA
  • Canada
  • Australia
  • UK

2011-2017 = 19

  • Italy

2014-2017 = 40

  • Netherlands

2011-2017 = 20

  • Norway

2015-2017 = 20

  • Turkey

2015-2017 = 24

  • Denmark

(2018)

European Dimension

slide-16
SLIDE 16

16 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 16

  • Qualification data can be used

for existing programs

  • Backwards compatibility on

F-16

  • New technologies availablility

eg Explosive free Operating Mechanism

  • RFID

Patner Nations :Norway

slide-17
SLIDE 17

17 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 17

  • Rationalise Inventory by

maximising compatibility between platforms

  • Reduce logistic burden

Netherlands

slide-18
SLIDE 18

18 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 18

  • Full Coverage Anti G Protection

Key product benefits

Protects against UV - unique double layer fabric Quick response to change in pressure (full suit) Secondary closure (quick release) Abrasion resistant material Less stretch/ more strength - continuous filament fabric

  • 1. Improves pilot

performance in High-Gz environments

  • 2. Prevents avoidable GLOC

mishaps

  • 3. Far greater durability,

reliability and through-life performance equating up to ~2.5x lifespan

slide-19
SLIDE 19

19 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 19

FC vs. US 5 bladder less fatigue------------------------------------more fatigue 0 1 2 3 4 5 6 7 8 9 10 FC vs. RAF 5 bladder less fatigue------------------------------------more fatigue 0 1 2 3 4 5 6 7 8 9 10

  • Pilot fatigue decreased through reductions

in: AGSM Dehydration  3% increase in dehydration halves tolerance at 7Gz* Weight/ thermal burden  Ensemble can be zipped up at the aircraft

slide-20
SLIDE 20

20 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 20

3 4 5

6

7 8 9 10 Acceleration (Gz)

MIL-SPEC ~ 6.0 RFD Beaufort ~ 9.5

+40%

slide-21
SLIDE 21

21 F-35 Program Information Non Export Controlled Information – Releasable to Foreign Persons 21

New for 2011

slide-22
SLIDE 22

22 22

Never compromise when his life depends on it... The Survitec Way
