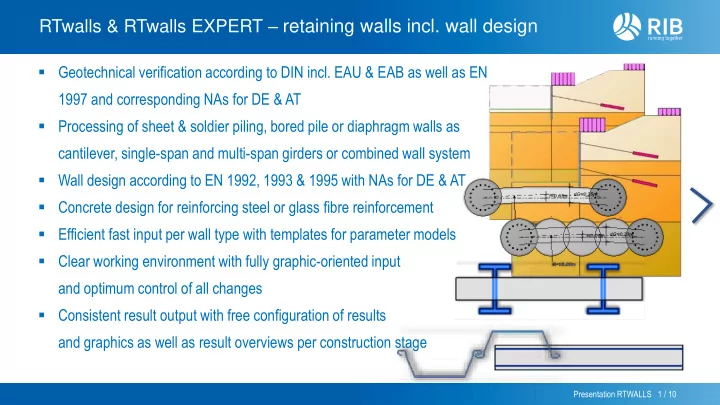

RTwalls & RTwalls EXPERT – retaining walls incl. wall design

▪ Geotechnical verification according to DIN incl. EAU & EAB as well as EN 1997 and corresponding NAs for DE & AT ▪ Processing of sheet & soldier piling, bored pile or diaphragm walls as cantilever, single-span and multi-span girders or combined wall system ▪ Wall design according to EN 1992, 1993 & 1995 with NAs for DE & AT ▪ Concrete design for reinforcing steel or glass fibre reinforcement ▪ Efficient fast input per wall type with templates for parameter models ▪ Clear working environment with fully graphic-oriented input and optimum control of all changes ▪ Consistent result output with free configuration of results and graphics as well as result overviews per construction stage

Presentation RTWALLS 1 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 2

Object Tree Ribbon Bar Grafics View Property Grid Tabular Input Result List

Powerful ground engineering system with modern surface environment

Presentation RTWALLS 2 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 3

Sophisticated approaches for earth pressure and earth resistance

„classic“ earth pressure according to DIN 4085 earth pressure according Culmann

Different types of earth pressure relocations as well as user defined relocations

Presentation RTWALLS 3 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 4

Primary stage0 deconstruction stage 4 Construction stage 3 Construction stage 2 Construction stage 1 Consideration of different excavation phases and reconstruction conditions

Consistent processing of construction and reconstruction stages

Presentation RTWALLS 4 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 5

Economical design by load case combination for each limit state

Combination all stages Load combination Differentiation of permanent loads, guiding and accompanying effects Tabular view LC Combination Combinationen stage C

Presentation RTWALLS 5 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 6

Tabular input of anchors

Optimal processing of anchors / selection of the anchorage system

Easy processing of anchor properties The anchor types can be designed as strand anchors, single rod anchors or Ischebeck TITAN anchors

Presentation RTWALLS 6 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 7

Integrated design of retaining wall

Various wall types can be used Dialog for editing the bracing as single / multi-field girder Direct selection of type of retaining wall Simple selection of verifications

Presentation RTWALLS 7 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 8

Grafically interactive display of results

Numerical output

• f results

Direct selection of result diagrams Envelope of deformations Overview of design results Graphical output

• f results

Presentation RTWALLS 8 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 9

Verifiable result list with graphics

Output of stress resultants for design Result document with graphics and numerical data Clearly arranged proofs for retaining walls Overview graphic with all relevant information

Presentation RTWALLS 9 / 10

Fertigteilträger FERMO - Nachfolgeprogramm für RTfermo und FETT

ZWAX 10

Advantages: ▪ High-quality application packages (X) ▪ Simple entry

• ptions (X)

▪ Option to add LF combination (X)

Module / Product packages RTwalls START package RTwalls EXPERT package RTwalls sheet pile wall RTwalls soldier pile wall RTwalls diaphragm wall RTwalls bored pile wall Basic module X X X X X X Upgrade to full version X Load combinations X X X X X X Design as sheet pile wall X X X Design as soldier pile wall X X X Design as diaphragm wall X X X Design as bored pile wall X X X

Modular product concept with various application scenarios

Presentation RTWALLS 10 / 10
